VR66C Vibratory Roller

Overview

Increase productivity with improved vibratory roller design.

Benefits

Available in three widths

• 1676 mm (66 in.)
• 1854 mm (73 in.)
• 2134 mm (84 in.)

Two drum styles

• Smooth drum: for coarse materials such as sand, gravel, and stone
• Padded or Sheeps-foot: for dense, hard-to-compact materials such as clay (VR66C and VR73C only)

Improved compaction forces

• VR66C — 3538 kgf (7,800 lbf)
• VR73C — 3878 kgf (8,550 lbf)
• VR84C — 4250 kgf (9,370 lbf)

Additional details

Required hydraulic oil-flow rate is 41–95 L/min (11–25 gpm)

Overview

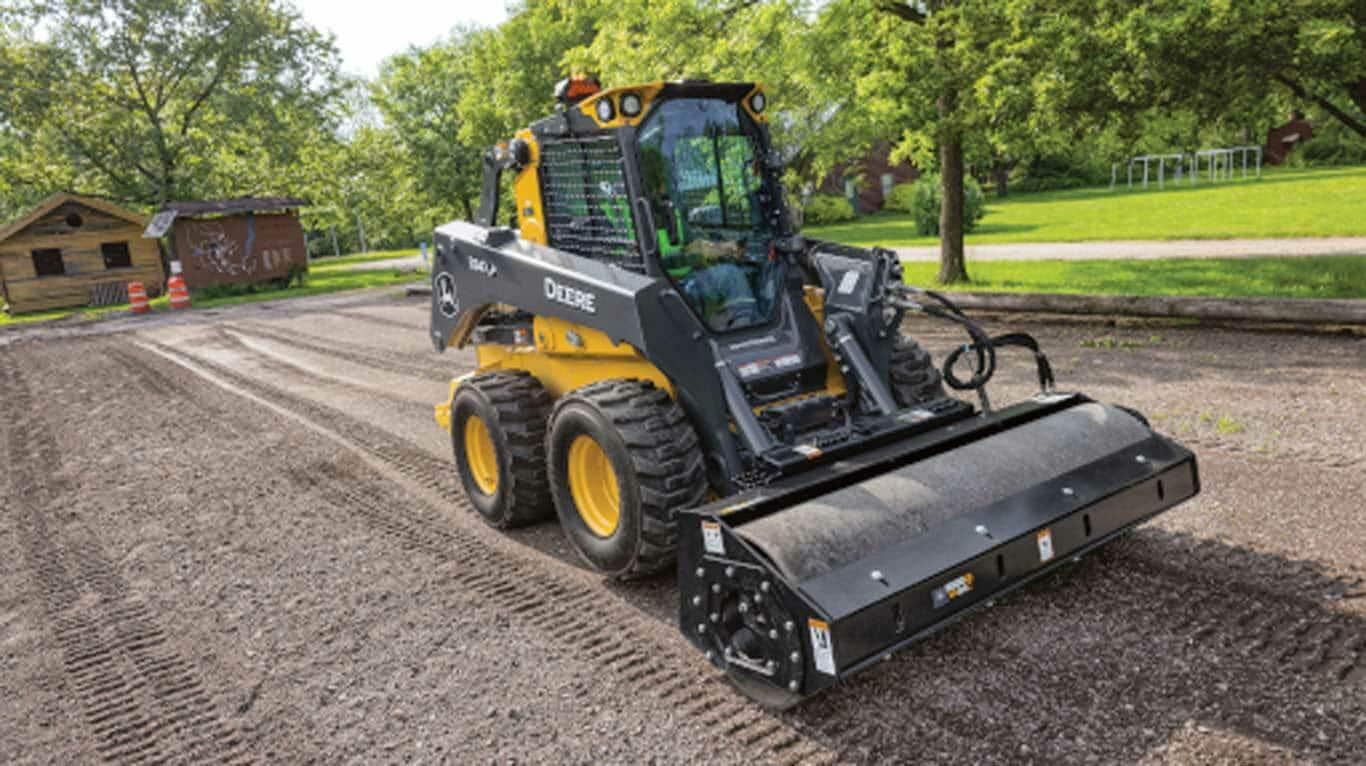

John Deere vibratory rollers turn a skid steer loader (SSL), compact track loader (CTL), or compact wheel loader (CWL) into a powerful compactor. Ideal for asphalt patch, foundation, trench, and flatwork compaction, they’re very economical since owning one eliminates the costs and maintenance of a self-propelled roller. C-Series Vibratory Rollers offer versatility for a wide range of materials including sand, gravel, soils, and asphalt.

Benefits

• The steel drum has an adjustable steel scraper blade ensuring smooth and uniform compaction performance
• Bidirectional operation increases productivity
• Powered by standard hydraulics, vibratory rollers produce compaction forces up to 4250 kgf (9,370 lbf)
• With drum oscillation of ±15 degrees, these attachments are easy to maneuver
• Quik-Tatch™ compatible, they take only one minute to hook up
• Drum and shaft bearings are lubricated and cooled in oil bath for long life
• The VR66C and VR73C are offered in smooth drum or padded drum styles. The VR84C is only offered in smooth drum style
