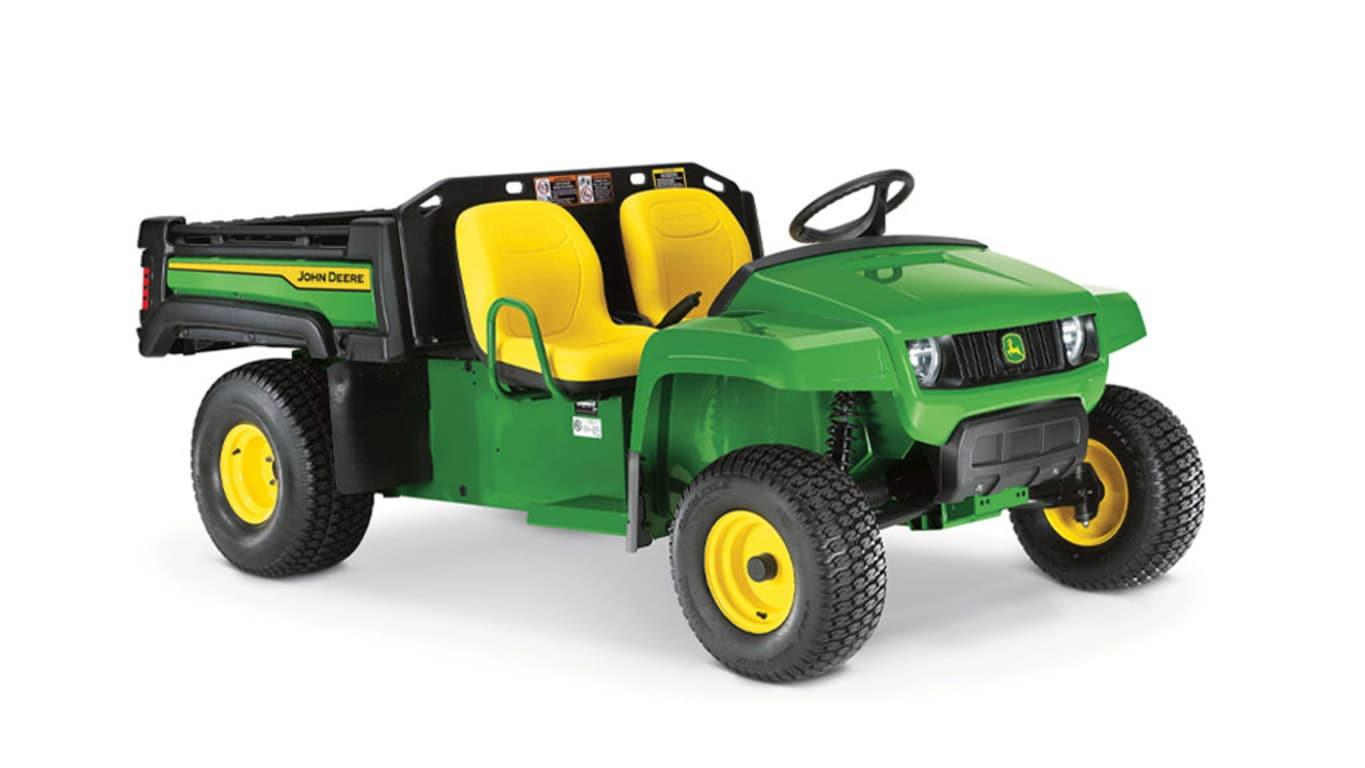

TE 4x2 Electric

The Gator™ TE Utility Vehicle features a motor powered by a 48-V electrical system.

• This electrical system provides plenty of power to carry loads, climb hills, and perform evenly until recharge

Through the use of a separately excited controller, the Gator TE offers the following unique features:

• Dynamic braking
  • The motor brakes when the operator lets off the accelerator; it is not a substitute for the brakes
• Overspeed control
  • Reduces exposure to high-speed situations even when descending a hill; under normal conditions with a light load, the vehicle will not freewheel down an incline
• Roll away
  • The electronic brake limits the vehicle speed to approximately 3.2 km/h (2 mph) and prevents the vehicle from freewheeling down a grade when left unattended
• Reduced speed in reverse
  • Controls the vehicle speed to approximately 13 km/h (8 mph) without the loss of torque
• Anti-rollback
  • When stopped on a grade, this feature prevents the vehicle from freewheeling in the opposite direction of the original travel direction
• Regeneration
  • Energy is transformed back into the batteries when the vehicle travels faster than the set maximum speed; regeneration also occurs when dynamic braking is engaged; an estimated 3 percent to 5 percent regenerative energy is put back into the batteries during a day of work
• Diagnostics
  • An onboard computer diagnoses the electrical system; using a flashing indicator light, a sequence of flashes indicates where the controller is having problems communicating
• Speed control
  • The controller is set for a vehicle speed of 20.92 km/h (13 mph)
• Key-off control
  • Permits the function of the interlock and safety features with the key in the off position
• Directional change control
  • When switching from forward to reverse, the machine will come to a complete stop and then changes directions; this prevents a whiplash effect and potential high stress on the drivetrain

Power is transferred through a transaxle with helical gearing for low gear noise.

The Gator™ TE is equipped with an Underwriters Laboratories Inc. (UL) approved onboard charger. Located under the passenger seat, the onboard charger allows the user to charge their TE from any location containing a wall receptacle. This saves the user time, as they do not have to travel back to the maintenance area for charging; charging can be done anywhere.

The onboard charger is designed with a wide input voltage range from 85 - 265 VAC, making it capable for worldwide application. Power factor correction and 12A maximum current draw ensures the charger will work reliably from any power outlet in the world, even through surges and sags.

Improved run time

The onboard charger features advanced temperature sensor technology that improves the information flow coming in and out of charger. The batteries are allowed to charge more fully than they were ever able to before; this can improve run time by up to 75 percent (depending on use cycle).

Important safety features of the charger are as follows:

• Vehicle ignition interlock
  • Prevents the vehicle from being driven while connected to the charger
• Automatic shutoff
  • Battery charger automatically shuts off after reaching the full charge

External charger plug and light-emitting diode (LED) charge indicator

The Gator TE is equipped with an external AC input IEC connector on the driver side of the vehicle to allow the flexibility of where the charger cord is stored. There is a multicolor LED indicator for low charge, more than 80 percent charge, full charge, or fault.

The heavy-duty design with arc-welded uni-body construction provides strength and manufacturing tolerance control.

Many of the Gator™ TE's standard features offer the operator and passenger a smooth, comfortable ride.

• Side-by-side seating provides room for the operator and one passenger
• Hip restraints serve as a handhold and help to keep the operator and passenger in their seats over rough terrain
• Professional high-back cushioned seats are position-adjustable and provide additional comfort and support
• Both seats tilt forward for dry storage and ease of service

The Gator TE's controls and improved walk-through platform provide easy entry/exit for both operator and passenger.

• Glove box is located in the dash to provide a convenient storage area for small tools and the operator's manual
• Grab bar is provided for the passenger
• Automotive-style controls for easy operation
• Center-mounted key switch
• Steering wheel is moved forward to provide more room for the operator

The deluxe cargo box consists of a 15 percent glass-filled polypropylene composite material that eliminates rust, dents, and reduces noise. The cargo box floor and front panel are made of steel.

Deluxe cargo box tailgate

The tailgate can be opened or removed to ease clean out and to carry longer items. The tailgate features truck-like performance and can be operated with one hand.

The standard installed lanyards can also be removed to lower the tailgate to 150 degrees for convenient loading and unloading tasks.

Deluxe cargo box tilt

The deluxe cargo box is easy to latch, unlatch, raise, and lower using a handle that’s built into the cargo box.

• On TX, TX Turf, and TE vehicles the cargo box latch is integrated into the lift handle.
• On TH vehicles, the cargo box latch is located on the front of the cargo box.

A prop rod is provided to hold the box in the upright position for operator convenience, as well as limit box pivot travel.

Integrated tie-down points

The deluxe cargo box offers integrated tie-down points for increased versatility. Tie down points are located in the following areas:

• Four corners inside the cargo box bed
• Four points on the load guard directly behind the operator station (A)
• Tie-down bars on either side of the cargo box (B)
• Six points on the underside of the cargo box frame (circled)

Converting deluxe cargo box to a flat bed

The deluxe cargo box easily converts to a flatbed by removing ten bolts and unplugging rear lights (if equipped) at the harness pigtail at the rear of the machine. The flatbed configuration allows loading larger and irregularly shaped cargo.

Comfort and convenience packages

T-Series vehicles are ordered with a comfort and convenience package, which includes factory-installed optional equipment.

Code

Description

TX

TX Turf

TE

TH

5100

Base comfort and convenience package

-Deluxe cargo box with paint and reflectors

-Manual cargo box lift

Standard

Standard

Standard

5100

Base comfort and convenience package

-Deluxe cargo box with paint and reflectors

-Manual cargo box lift

-48-V Headlights

Standard

5105

Select comfort and convenience package

-Deluxe cargo box with spray-in liner and brake and taillights

-Manual cargo box lift

Upgrade

option

Upgrade

option

Upgrade

option

5105

Select comfort and convenience package

-Deluxe cargo box with spray-in liner and brake and taillights

-Power cargo box lift

-48-V to 12-V converter

-38-mm (1.25-in.) rear receiver hitch

Upgrade

option

Optional accessories

Attachments for field conversion are also available to upgrade lighting and add equipment. Optional accessories for the deluxe cargo box include:

• Cargo box bed mat
• Cargo box power lift
• Side tool rack
• Cargo box divider
• 5-gal. (19-L) bucket holder
• Cargo box extender
• Cargo box side extensions
• Taillight protectors
• Side- and top-opening toolboxes
• Lighting kits

Cargo box specifications

Length

1143 mm (45 in.)

Width

1320 mm (52 in.)

Depth

304 mm (11 in.)

Volume

0.46 m3 (16.4 cu ft)

Weight capacity TX and TX Turf

272 kg (600 lb)

Weight capacity TE

227 kg (500 lb)

Weight capacity TH gasoline

454 kg (1000 lb)

Weight capacity TH diesel

550 kg (1200 lb)

Dump angle

43 degrees

CAUTION: Carrying extra-long cargo that extends beyond the box can adversely affect stability.
