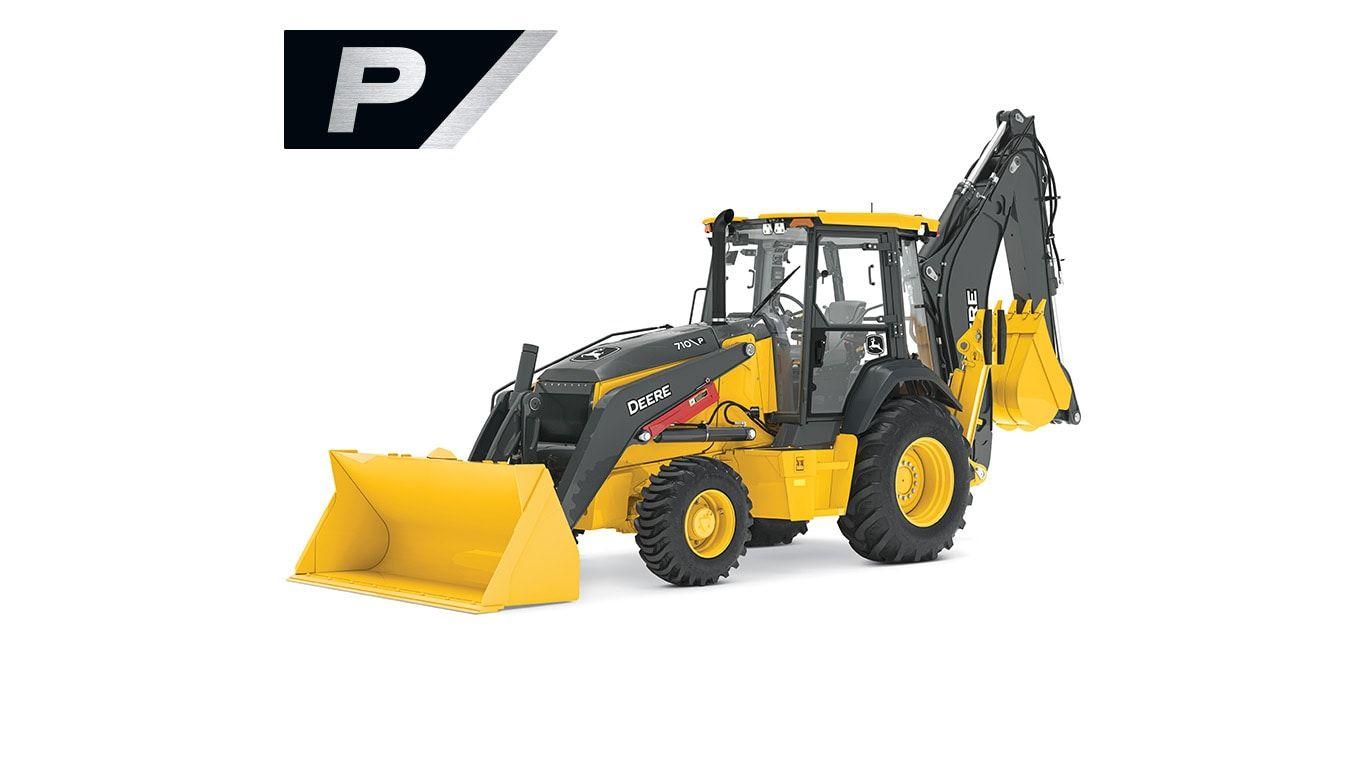

710 P-Tier

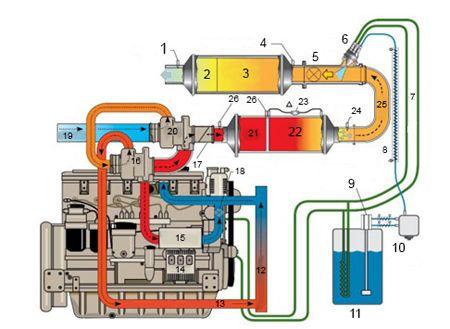

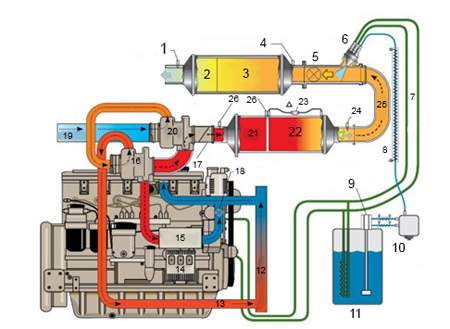

1. NO2 sensor
2. AOC
3. SCR
4. Temperature sensor
5. Mixer
6. DEF injector
7. Engine coolant lines
8. DEF line
9. Header assembly with level and temperature sensor
10. DEF supply module and filter
11. DEF tank
12. Air-to-air cooler
13. Compressed air from turbochargers
14. ECU
15. EGR cooler
16. WGT
17. Exhaust throttle valve
18. EGR valve
19. Fresh air
20. Fixed
21. DOC
22. DPF
23. Δ P sensor
24. NO2 sensor
25. Exhaust
26. Temperature sensors

Overview

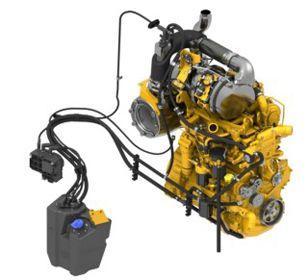

4.5L John Deere PowerTech™ Plus Engine

• For 710 P-Tier configurations. EPA Final Tier 4 (FT4)/EU Stage IV emission certified. 148 net peak hp.
• Series Turbocharger design provides great low speed torque
• Aftertreatment design includes:
  • Selective catalyst reduction (SCR) system
  • Cooled exhaust gas recirculation (EGR)
  • Diesel oxidation catalyst (DOC)
  • Diesel particulate filter (DPF)
  • Diesel exhaust fluid (DEF)

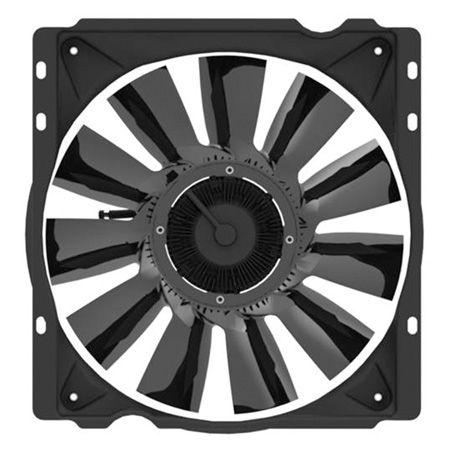

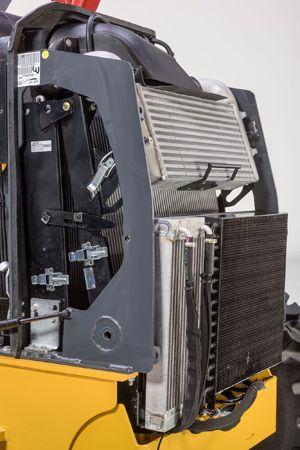

The 710 P-Tier uses an electronically controlled variable speed cooling fan. The speed of this fan is controlled by the temperature of various machine systems (engine, hydraulics, transmission, and the like). This means that the fan speed can be reduced when the machine is operating at cooler temperatures. A lower fan speed will reduce horsepower draw from the engine, reduce fuel consumption, and allow a quieter environment for the operator.

Economy mode is available through the sealed switch module (SSM). When enabled while facing forward, economy mode sets the engine rpm at a maximum of 2100 rpm in first and second gear. It is limited to 2000 RPM when the seat position is facing the backhoe. This setting can be used in lighter work applications to promote improved fuel efficiency.

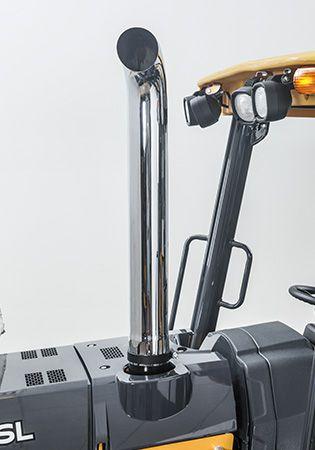

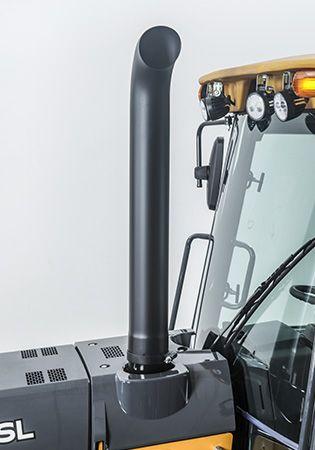

Additional factory options

Pressure-compensated, load sensing (PCLS) hydraulics, provide better multifunctioning, smoother machine control, and up to 15 percent greater craning capacity with Lift Mode, collectively providing a distinctive customer experience and unmatched machine reliability. PCLS are highly valuable for Underground customers due to its productivity, lift capacity, quality and reliability

• The variable displacement axial piston pump creates hydraulic flow on demand, increasing hydraulic efficiency, decreasing fuel consumption, and lowering the daily operating cost for your customer. The field proven SCX 180 rear valve is common for all PCLS machines (320 P-Tier, 410 P-Tier, 710 P-Tier)
• Selective flow auxiliary rate selection adjusted within the main display, eliminating the need to get out of the cab and adjust a manual knob on all PCLS machines.
• Buttons for the horn, selective flow, auxiliary proportional roller, and extendable dipperstick have been incorporated into the pilot controls
• The PCLS system enables excellent multifunctioning ability at all engine speeds.
• Trenching operation can be conducted at a lower engine rpm, reducing fuel consumption and jobsite noise.
• Precision mode reduces hydraulic flow by 55 percent, allowing accurate, detailed backhoe work to be performed without sacrificing overall hydraulic-lift performance. Ideal for working in tight areas, around utilities, or while craning. Inexperienced operators will be able to use this feature to become comfortable with the backhoe, as they master their operating skills. Precision Mode can be activated with the press of a button on the SSM.

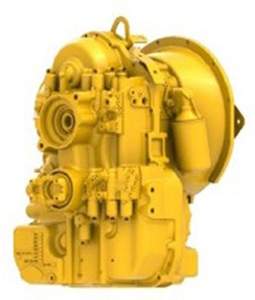

John Deere continues with its PowerShift™ Transmission and can be manually shifted by use of the transmission control lever. 5 forward, 3 reverse gears.

Autoshift is now included in the base machine configuration. When enabled on the sealed-switch module, Autoshift automatically shifts the PowerShift™ transmission to the appropriate gear. Simply set the control lever to the highest gear desired, and the transmission will optimally shift based on engine rpm and ground speed.

• Heavy duty transmission oil filter standard on all machines for increased reliability
• Hydraulically actuated clutch packs for smooth shifting and reliable performance under all operating conditions and loads

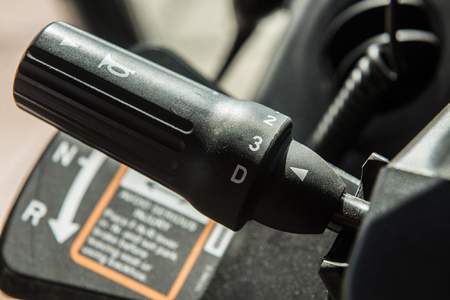

• ‘Manual mode’ provides an easy to reach and use twist grip Transmission Control Lever (TCL)
• Autoshift improves the operator experience during transport or load and carry applications

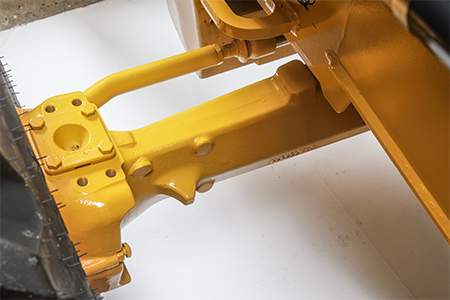

Mechanical Front Wheel Drive (MFWD) with limited slip differential. The main MFWD on/off control is mounted on the RH console.

• Limited slip front axle delivers 65% of available power to the tire with the best traction for true all-wheel-drive pulling power
• Completely sealed axle has no breathers to maintain or service, promoting reliability (axle breathers can be susceptible to water and/or dirt intrusion)
• The machine will automatically disable the MFWD in 4th gear to reduce tire wear.
• Extend tire tread life with Momentary MFWD for ‘on the fly’ activation. Controlled with a touch of a button on the loader lever. Great for engaging a pile or briefly powering through sticky or slippery terrain.

Transmission Control Lever (TCL)
