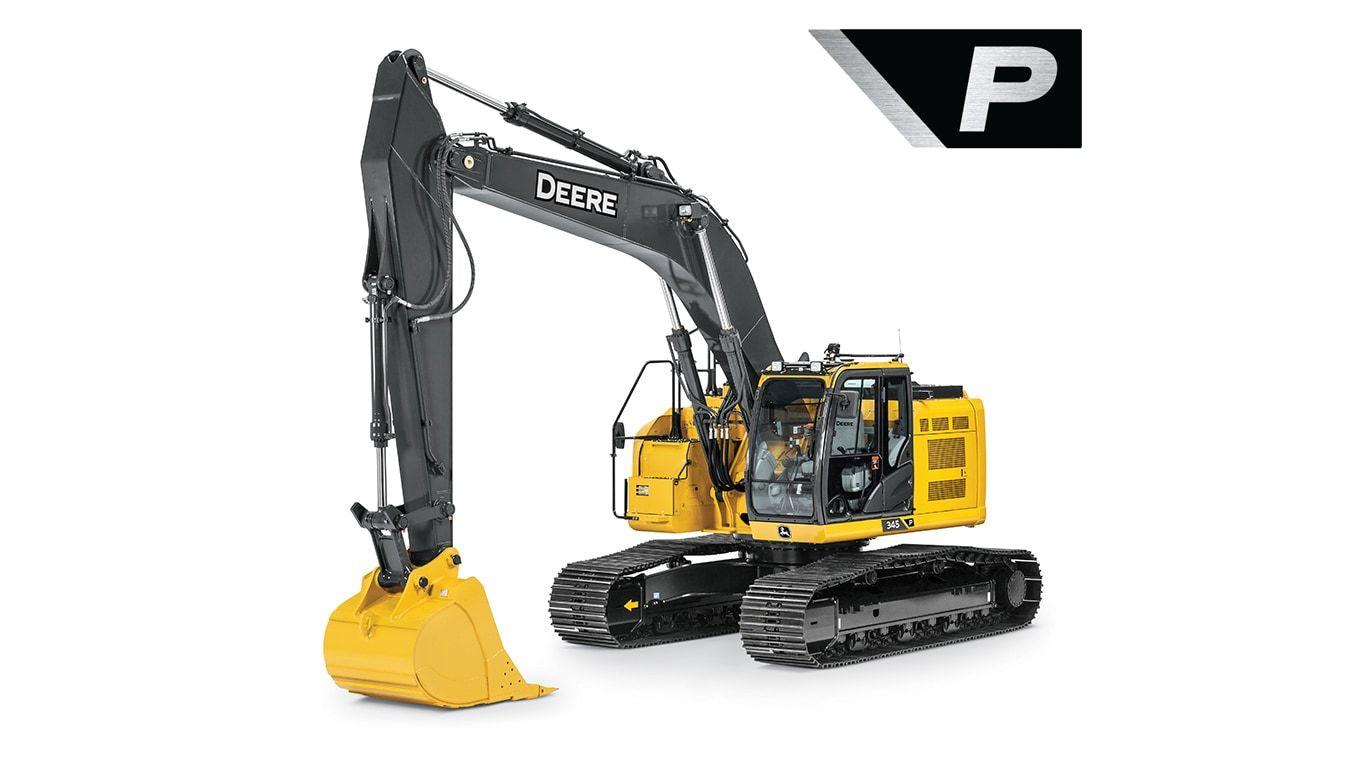

John Deere Mid-Size ExcavatorsMid-Size Excavator
Zero ash-service intervals. Zero regenerations. Extremely efficient combustion allows Isuzu® engines to burn particulate matter in cylinder during combustion. Diesel exhaust fluid is injected into the exhaust stream and through Selective Catalytic Reduction (SCR), emissions standards are achieved.
Pumps 1 and 2 combined control the boom and arm functions. Pump 3 is dedicated to swing. The result is fast cycle times and increased productivity.
Take digging forces to new levels with power boost when you need it. This machine is a well-balanced, smooth operating machine in a reduced tailswing configuration.
Factory installed auxiliary hydraulic lines enable your excavator to run a number of attachments and increase the versatility of your machine, without the need for additional machines or operators.
Standard Right Rear and Left Camera system with additional light-emitting diode (LED) surround lighting work together to provide the operator enhanced 270 degree visibility around the machine. All integrated into the main monitor.
| Emission Rating | Tier 4 / Stage IV |
|---|---|
| Engine Manufacturer | Isuzu |
| Number Of Cylinders | 6 |
| Displacement, ltr (Inches³) | 7.8 (475) |
| Rated speed, rpm | 1900 |
| Engine Output - Net, kW (hp) | 186 (249) |
| Number Of Carrier Rollers - Each Side | 2 |
| Number Of Track Rollers - Each Side | 8 |
| Track Shoe Width, mm (inches) | 800 (32) |
| Transport Length Mono Boom, mm (ft/in) | 10020 (32 ft 10 in) |
|---|---|
| Transport Height - Maximum, mm (ft/in) | 3420 (11 ft 3 in) |
| Overall Undercarriage Width, mm (ft/in) | 3390 (11 ft 1 in) |
| Track Length On Ground, mm (ft/in) | 4050 (13 ft 3 in) |
| Overall Undercarriage Length, mm (ft/in) | 4940 (16 ft 2 in) |
| Tailswing Radius, mm (ft/in) | 2090 (6 ft 10 in) |
| Ground Clearance, mm (inches) | 500 (20) |
| Width over fixed tracks, mm (ft/in) | 3390 (11 ft 1 in) |
| Track Gauge, mm (ft/in) | 2590 (8 ft 6 in) |
| Digging Reach - Mono Boom, mm (ft/in) | 11460 (37 ft 7 in) |
| Ground Level Reach - Mono Boom, mm (ft/in) | 11220 (36 ft 10 in) |
| Dig Height - Mono Boom, mm (ft/in) | 11690 (38 ft 4 in) |
| Dump Height - Mono Boom, mm (ft/in) | 8670 (28 ft 5 in) |
| Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) | 7410 (24 ft 4 in) |
| Dig Depth - Mono Boom, mm (ft/in) | 7570 (24 ft 10 in) |
| Fuel Tank, ltr (gallons (US)) | 380 (100) |
|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 160 (42) |
| Ground Bearing Pressure, kPa (PSI) | 50 (7.3) |
|---|---|
| Swing Speed, rpm | 10.5 |
| Swing Torque, kNm (lbf / ft) | 90.5 (66750) |
| Travel Speed - High, kph (mph) | 4.1 (2.5) |
| Tractive Force, kN (lbf) | 298 (66990) |
| Arm Tearout, kN (lbf) | 127 (28550) |
| Bucket Breakout, kN (lbf) | 202 (45410) |
| Gradeability, % | 70 |
| End lift - 7.5m Reach, kg (lbs) | 9220 (19870) |
| Side lift - 7.5m Reach, kg (lbs) | 5450 (11770) |
| Total Flow, lt/min (gallons (US) / min) | 681 (180) |
| Bucket Pressure, bar (PSI) | 343 (4970) |
| Boost Pressure, bar (PSI) | 380 (5510) |
| Operating Weight, kg (lbs) | 35700 (78705) |
|---|
