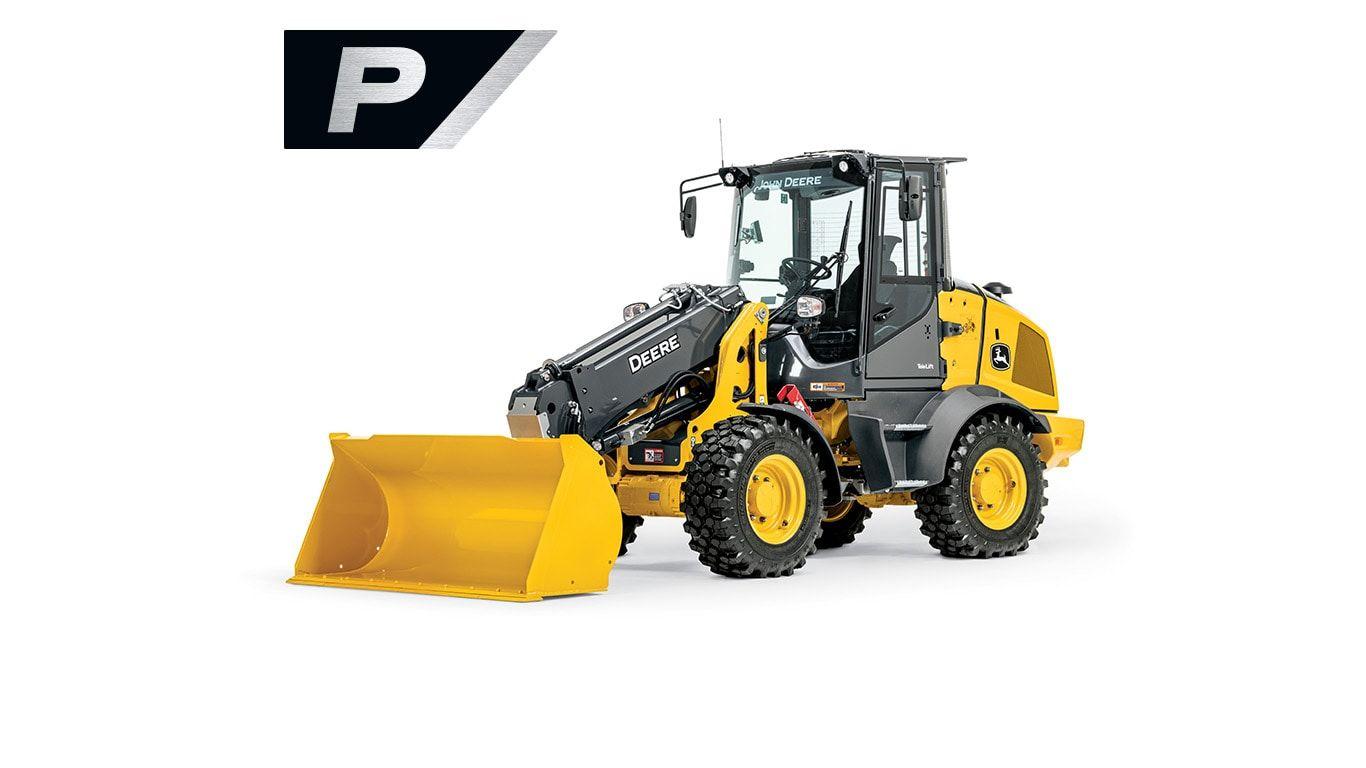

326 P-Tier

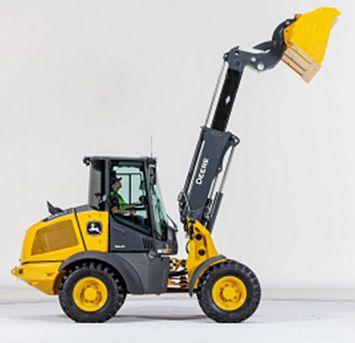

Whether you're feeding livestock, stacking bales in the barn or onto a trailer, or moving back snow piles, the 326 P-tier Tele Lift compact loader provides unparalleled lifting prowess with the purpose-built telescopic lift arms, capable of effortlessly raising over 16 feet and providing extended reach capabilities.

• Enjoy greater reach up to 4.96 m (16 ft, 3 in.) vertically and out to 1.5 m (4 ft 10.8 in.) horizontally.
• Reach higher and farther, without needing a larger machine or sacrificing the tight turning radius you get from an Articulation Plus™ compact wheel loader.
• Tele Lift allows you to maintain control of your load and work farther from the body of the machine; loading material or stacking bales can be done without getting the machine too close to trailers, racks, stacks, or piles, ideal for less experienced operators.

Standard Z-Bar

High-Lift

244 P-Tier

3.22 m (10 ft, 7 in.)

324 P-Tier

3.35 m (11 ft)

3.79 m (12 ft, 5 in.)

326 P-Tier Tele Lift

4.96 m (16 ft 3 in.)

344 P-Tier

3.72 m (12 ft, 2 in.)

4.01 m (13 ft, 2 in.)

Height to Hinge Pin, Fully Raised Dimensions with Varying Linkages

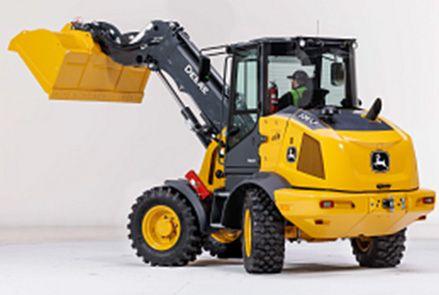

P-tier compact wheel loaders continue to feature industry exclusive Articulation Plus™ that adds rear wheel steering to increase full turn tipping load and improve maneuverability.

• Pairing the tighter turning radius and high full turn tipping load of Articulation Plus™ with the reach of the Tele Lift lets the customer do more work in tighter spaces.
• This steering system combines 30 degrees of standard articulation with an additional 10 degrees of rear-wheel steering.
• Articulation Plus™ enables a significantly higher full turn tipping load than machines without this feature because the machine does not need to articulate as much to turn.
• This feature results in a significantly tighter turning radius than comparatively sized loaders without Articulation Plus™.

These features benefit the operator in any application.

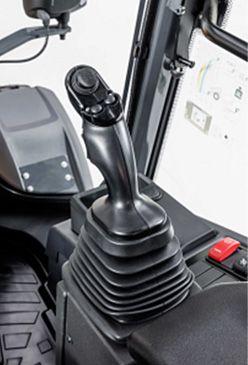

• EH Controls: With EH Controls, the operator can keep their hands on the joysticks to complete a variety of functions, including moving the boom and bucket, as well as extending or retracting the telescopic arm.

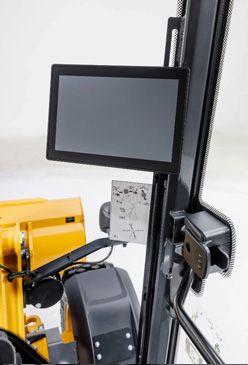

• Display: The cutting-edge 9-inch touchscreen display elevates the operator experience; key information such as warning/status symbols and machine positioning details are clearly available, while other programming menus are intuitive and easy to navigate. The screen also enables the operator to program and automate lift arm and bucket positions and movements.
• Synergy: The combination of EH controls and the touchscreen display enable a suite of features that improve performance and operator comfort.
  • Return to Dig / Return to Carry: Positions for dig and carry can be programmed in the monitor, streamlining repetitive actions.
  • Soft stops: This feature smooths the stopping motion of the boom and bucket, reducing the jarring of the machine to improve comfort, reduce machine wear, and maximize material retention.
  • Adjustable response: Operators can adjust the responsiveness of the EH controls to their liking; settings can be found in the monitor.

.

Elevate your confidence as this intelligent system monitors machine stability and prevents movements that could compromise the machine.

• Monitor load stability with the Load Torque Display, a visual indicator of current stability.
• Quickly and easily understand when you are approaching the stability limit of the machine with audio and visual warnings in the cab.
• Prevent machine damage by limiting movements that put the machine in a compromised position. Once the limit is reached, movement of the telescopic lift arms are limited to actions that reduce the load (for example, retracting arms and/or lowing the boom, depending on position).
• An independent system warns of potential overload of the tilt cylinder.

Set your operators up for success in any application with the great visibility you get from all John Deere P-tier compact wheel loaders, plus lighting and windows specific to the 326 P.

• All of John Deere’s P-tier compact wheel loaders benefit from more glass and better visibility from the seat than the previous series.

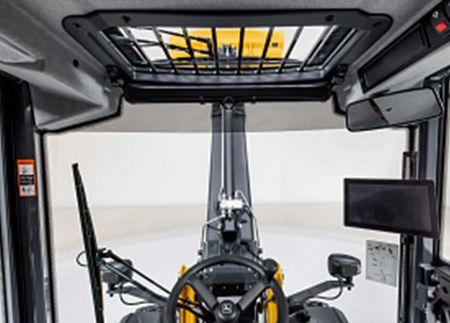

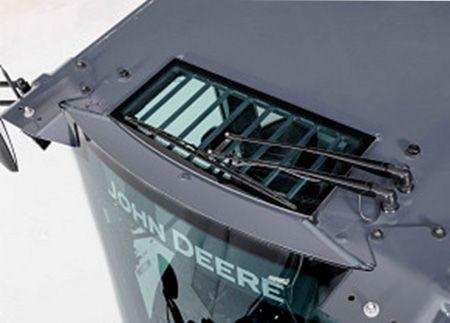

• The roof of the 326 P features an additional window with wiper blade and optional sunshade, providing visibility to the attachment when the boom is raised and extended.

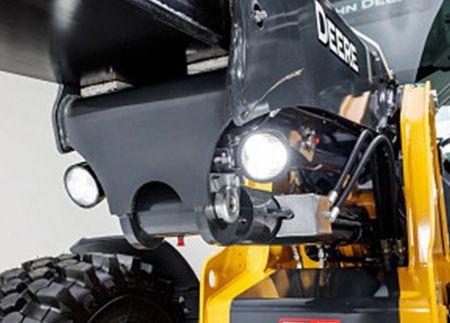

• Standard LED lights illuminate the immediate work area. Upgrading to the deluxe lighting package doubles the number of lights on the front and back of the cab and adds LED lights on the lift arm, ensuring the attachment is always well-lit, including while raised and extended.
