John Deere BackhoesBackhoe

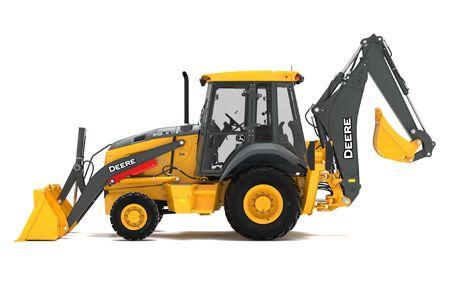

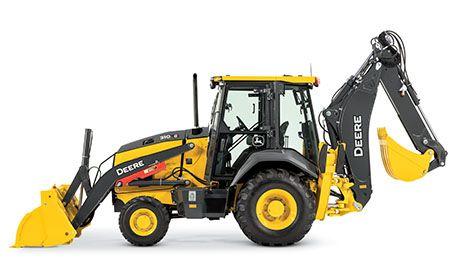

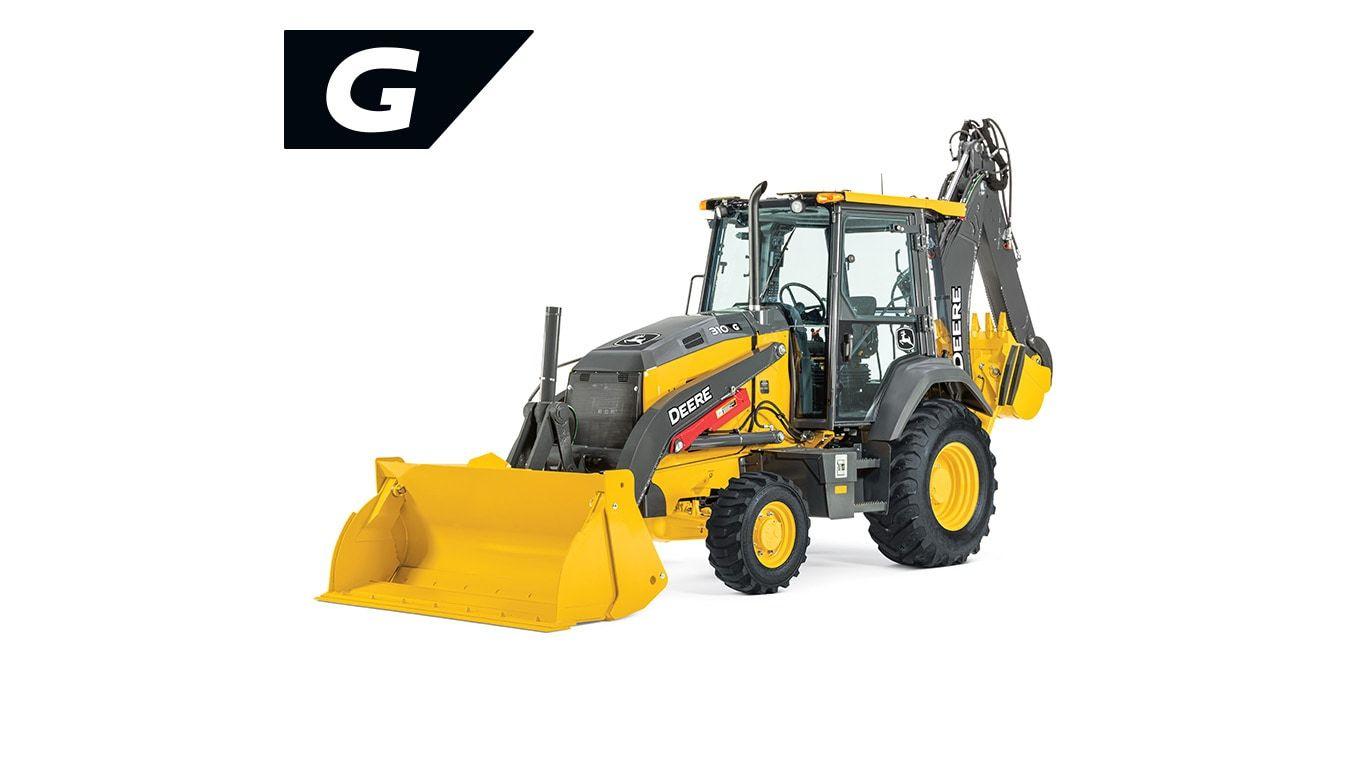

The 310 G-Tier is designed to deliver great customer value at a lower acquisition price. With a more basic operator station, the feature trade-offs enable a lower acquisition price than this model’s previous design. The new four-speed synchromesh manual transmission is designed to deliver greater customer value at a lower acquisition price while maintaining machine reliability.
The economically priced, rental-friendly 310 G-Tier features a four-speed manual-range gear-selection transmission with synchronizers. 4 forward, 4 reverse gears.
You can feel confident in the reliability, performance, and fuel efficiency of the 310 G-Tier proven Yanmar 3.3L engine. With no external engine aftertreatment components needed, the engine design minimizes machine complexity and the number of parts that must be maintained by the customer, resulting in lower total cost of ownership and enhanced uptime.
This EPA Interim Tier 4 (IT4)-equivalent diesel complies with EPA Final Tier 4 (FT4)/EU Stage IV emissions regulations without the need for aftertreatment components, minimizing machine complexity and the number of parts needed to maintain your fleet. This is important to rental company customers who value total cost of ownership, quality and reliability, and ease of maintenance.
The open center control valve and pump combination has been used on Deere backhoes since 1997. This field-proven system has served the product well over its lifetime, providing such benefits as high contamination tolerance, excellent swing control, open center pressure/force control, operator “feel”, and excellent multifunction performance as compared to other open center systems in the marketplace.
The 310 G-Tier includes an axial-piston pump (32.8 GPM).
| Engine Manufacturer | Yanmar |
|---|---|
| Engine Model | 4TNV98CT |
| Displacement, ltr (Inches³) | 3.3 (203) |
| Rated Speed, rpm | 2300 |
| Engine Output - Net, kW (hp) | 51 (68) |
| Transmission Type | Synchro Shuttle |
| Service Brake Type | Wet Disc |
| Service Brake Actuation | Hydraulic |
| Max length with ext. Stick, mm (ft/in) | 7450 (24 ft 5 in) |
|---|---|
| Height over ext Stick, mm (ft/in) | 3490 (11 ft 5 in) |
| Width over tires, mm (ft/in) | 2200 (7 ft 3 in) |
| Wheelbase - 4WD, mm (ft/in) | 2150 (7 ft 1 in) |
| Ground Clearance, mm (inches) | 244 (10) |
| Width - General Purpose Bucket, mm (ft/in) | 2184 (7 ft 2 in) |
| Bucket Rotation - Position 1, Degrees | 190 |
| Bucket Pin Height - General Purpose, mm (ft/in) | 3400 (11 ft 2 in) |
| Dump Height - General Purpose, mm (ft/in) | 2660 (9 ft 1 in) |
| Dump Reach - General Purpose, mm (inches) | 846 (33.3) |
| Digging Depth - General Purpose, mm (inches) | 157 (6.2) |
| Turning Radius - 4WD Braked, mm (ft/in) | 3380 (11 ft 1 in) |
| Turning Radius - 4WD Not Braked, mm (ft/in) | 3790 (12 ft 5 in) |
| Fuel Tank, ltr (gallons (US)) | 128.7 (34) |
|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 42.7 (11.3) |
| Bucket Capacity - Standard General Purpose, m³ (yd³) | 0.86 (1.13) |
| Bucket Breakout - General Purpose, kN (lbf) | 41.8 (9389) |
| Lift To Full Height - General Purpose Bucket, kg (lbs) | 2812 (6199) |
| Pump | Axial Piston Pump |
| Operating Weight, kg (lbs) | 7043 (15527) |
|---|
