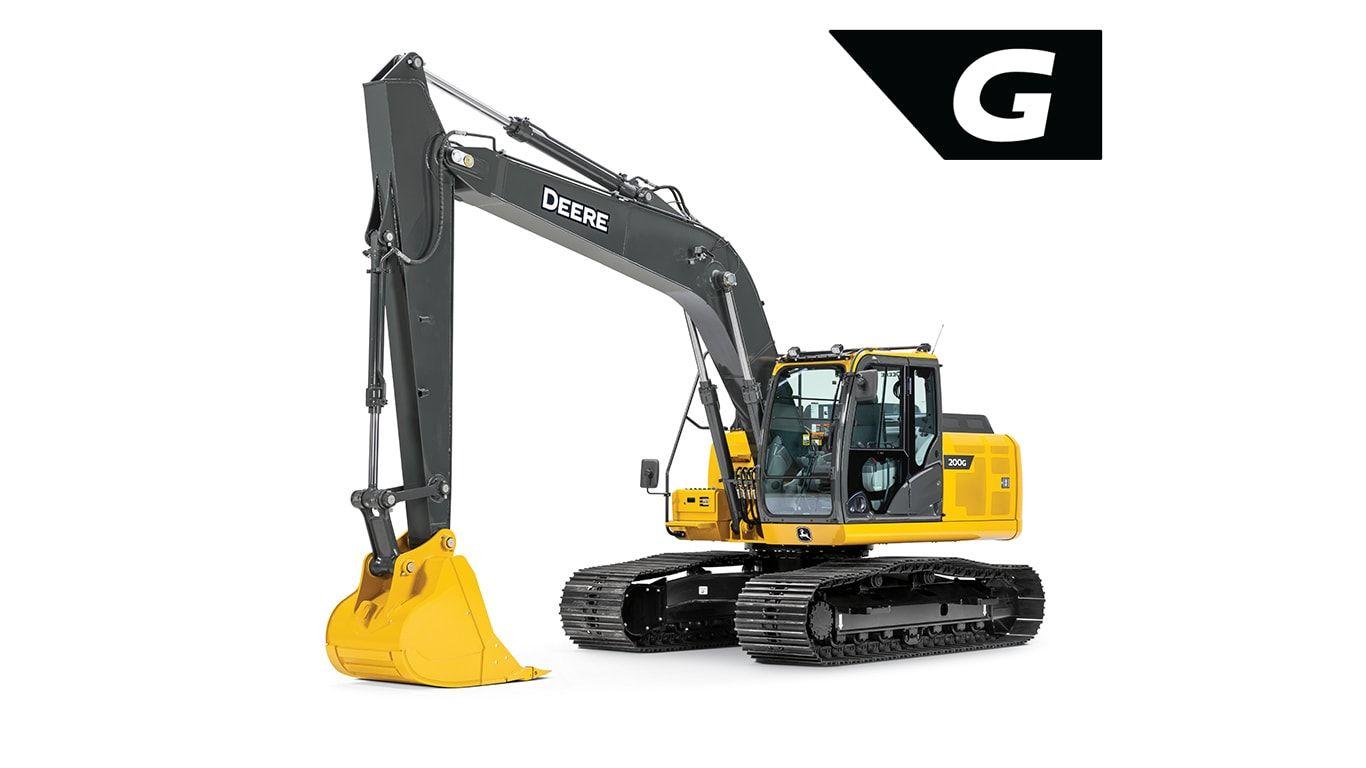

John Deere Mid-Size ExcavatorsMid-Size Excavator
P-Tier updates build on the proven G-Series design. Take front joint durability to new levels compared to G-Series.
Factory installed hydraulic plumbing all the way to the end of the arm. Coupler controls integrated into a switch in the cab. Quick and efficient coupler installation. Popular in the underground segment, couplers allow excavators to efficiently switch attachments and get more productive working hours each day.
| Emission Rating | Tier 4 / Stage IV |
|---|---|
| Engine Manufacturer | John Deere Power Tech |
| Number Of Cylinders | 4 |
| Displacement, ltr (Inches³) | 4.5 (275) |
| Rated speed, rpm | 2000 |
| Engine Output - Net, kW (hp) | 109 (146) |
| Number Of Carrier Rollers - Each Side | 2 |
| Number Of Track Rollers - Each Side | 7 |
| Track Shoe Width, mm (inches) | 800 (32) |
| Transport Length Mono Boom, mm (ft/in) | 9040 (29 ft 8 in) |
|---|---|
| Transport Height - Maximum, mm (ft/in) | 3390 (11 ft 1 in) |
| Overall Undercarriage Width, mm (ft/in) | 3000 (9 ft 10 in) |
| Track Length On Ground, mm (ft/in) | 3370 (11 ft 1 in) |
| Overall Undercarriage Length, mm (ft/in) | 4170 (13 ft 8 in) |
| Tailswing Radius, mm (ft/in) | 2550 (8 ft 4 in) |
| Ground Clearance, mm (inches) | 450 (18) |
| Width over fixed tracks, mm (ft/in) | 3000 (9 ft 10 in) |
| Track Gauge, mm (ft/in) | 2200 (7 ft 3 in) |
| Digging Reach - Mono Boom, mm (ft/in) | 9940 (32 ft 7 in) |
| Ground Level Reach - Mono Boom, mm (ft/in) | 9790 (32 ft 1 in) |
| Dig Height - Mono Boom, mm (ft/in) | 9790 (32 ft 1 in) |
| Dump Height - Mono Boom, mm (ft/in) | 6930 (22 ft 9 in) |
| Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) | 6870 (22 ft 6 in) |
| Dig Depth - Mono Boom, mm (ft/in) | 7070 (23 ft 2 in) |
| Fuel Tank, ltr (gallons (US)) | 285 (75.3) |
|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 125 (33) |
| Ground Bearing Pressure, kPa (PSI) | 32 (4.64) |
|---|---|
| Swing Speed, rpm | 12.8 |
| Swing Torque, kNm (lbf / ft) | 50 (36765) |
| Travel Speed - High, kph (mph) | 5.3 (3.3) |
| Tractive Force, kN (lbf) | 169 (38030) |
| Arm Tearout, kN (lbf) | 83.7 (18825) |
| Bucket Breakout, kN (lbf) | 127 (28552) |
| Gradeability, % | 70 |
| End lift - 7.5m Reach, kg (lbs) | 4370 (9420) |
| Side lift - 7.5m Reach, kg (lbs) | 2830 (6110) |
| Total Flow, lt/min (gallons (US) / min) | 382 (100) |
| Bucket Pressure, bar (PSI) | 343 (4980) |
| Boost Pressure, bar (PSI) | 380 (5511) |
| Operating Weight, kg (lbs) | 20507 (45170) |
|---|
