1110G

Hydraulic-driven variable-speed fan available in the 1110G runs only as needed reducing fuel consumption and debris flow through the cooler cores. Program it to reverse at periodic intervals to clear core-clogging buildup.

• Helps reduce fuel consumption
• Works to lower operating temperatures

Now included in base machine, the JDLink telematic system provides the foundation for John Deere’s Precision Forestry solutions. These systems help optimize your machine, your uptime, and your jobsites, which ultimately lead to improved production efficiency.

• JDLink connectivity enables you to view several parameters of your machine, including its location, fuel level, average fuel burn rate, idle time, machine utilization, and much more
• When enabled, John Deere Connected Support™ allows the dealer to provide remote diagnostics, rapid service response with the right part in hand, and parts availability; all to maximize machine uptime
• John Deere’s centralized Machine Health Monitoring Center analyzes data from thousands of connected machines, identifies trends, and develops recommended actions to help prevent downtime
• TimberMatic Maps gives enhanced visibility to the jobsite, which streamlines communication and increases efficiency
• TimberManager™ provides remote visibility to your operation from any device, allowing you to make smart business decisions based on real-time production data

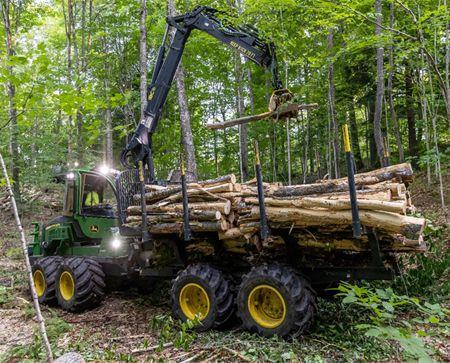

The long-bogie configuration provides added value in multiple ways for your operation. Lower ground pressure compared to other models, helps reduce soil disturbance. The longer frame helps increase stability side-to-side while driving and working on slopes.

The bogie axle also features a portal structure, which contains an additional gear set on the wheel-end of the bogie. This increases the ground clearance compared to a conventional bogie. The bogie axles also have a balancing gear in their center swing bearing.

• Helps reduce ground pressure
• Side-to-side stability
• Bogie portal construction enables high ground clearance
• Works to improve traction

The 1110G forwarder is available with a wheelbase that is 40 cm (15 -3/4 inches) shorter, for better agility in thinning applications without sacrificing stability or load size.

• Helps increase maneuverability
• Similar load size to machines with longer wheelbase

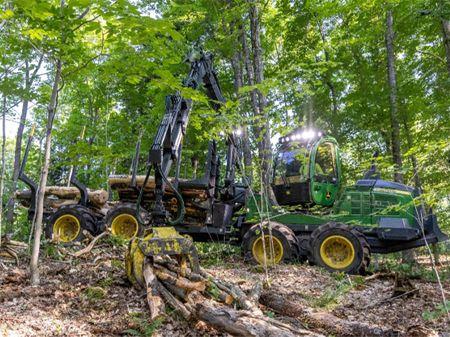

The cabin follows the boom slew and remains automatically in upright orientation but can also be operator-controlled. Boom following and leveling functions can be adjusted by the operators' preferences; offset and delay between cabin and boom movements and the behavior of leveling can be adjusted. The cabin turns 290° providing 360° visibility of boom movements and the surrounding jobsite, for safe, efficient log loading.

• Leveling function keeps the operator comfortably sitting in upright orientation
• Excellent visibility to the working area and boom tip all the time; no posts obstructing sight to the grapple
• The operator doesn’t have to follow the boom by continuously turning his head
• The cabin is on a separate platform with the boom
• The cabin also has a different turning center than the boom; thus, the cabin doesn’t have to turn as much as the boom while following the movements of the boom tip
  • Less stress on the operator
