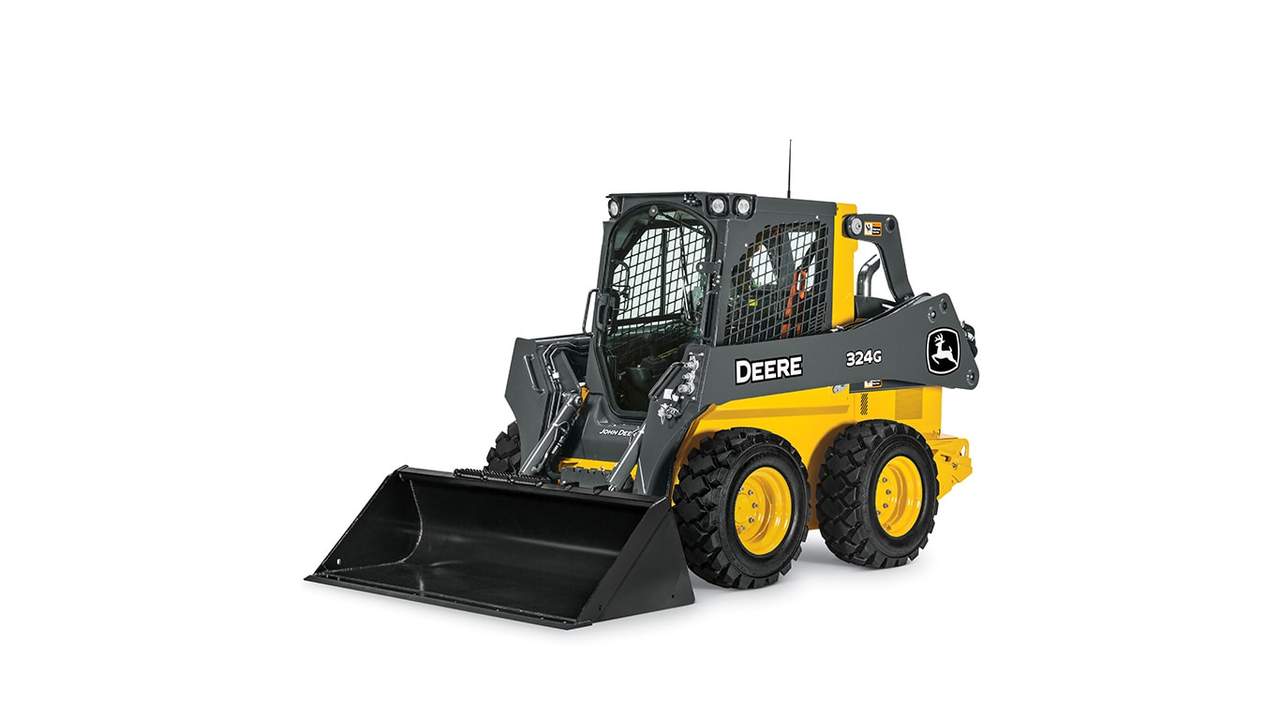

324G - New John Deere Skid Steer Loader for Sale
Introducing the John Deere 324G Skid Steer, a powerhouse of versatility and performance, available at Five Star Equipment. Located in 7 major cities across Pennsylvania and New York, Five Star Equipment is your go-to destination for top-of-the-line machinery. The 324G Skid Steer is designed to meet the needs of today’s demanding job sites with its impressive rated operating capacity of 2,690 lbs and a robust operating weight of 7,700 lbs. With a wide array of attachments and a spacious, ergonomically designed cab, this machine is built for comfort and productivity. Whether you’re in construction, landscaping, or any other industry requiring a reliable skid steer, the 324G is engineered to deliver.
Engine and Power
- Engine Manufacturer: Yanmar
- Engine Model: 4TNV98CT
- Emission Rating: Tier 4
- Aspiration: Turbo
- Displacement: 3.3 liters (203 cubic inches)
- Rated Speed: 2500 rpm
- SAE Net Power: 52.5 kW (70 hp)
- SAE Gross Power: 55 kW (74 hp)
- Max. Gross Torque: 280 Nm (207 lbf/ft)
- Drive Chain Rating [ANSI]: 80 – HD
- Tire Size – Standard: 12 – 16.5 – 12 PR SKS
- Length – No Bucket: 2850 mm (112.3 inches)
- Length – With Bucket Foundry: 3460 mm (136.3 inches)
- Width – No Bucket: 1700 mm (67 inches)
- Overall Height: 2060 mm (81.1 inches)
- Ground Clearance: 240 mm (9.3 inches)
- Wheelbase: 1120 mm (44.2 inches)
- Rear Departure Angle: 28 Degrees
- Height to Hinge Pin: 3200 mm (126 inches)
- Dump Angle: 41 Degrees
- Dump Height – Maximum Foundry: 2590 mm (102.1 inches)
- Reach – Max Dump Height Foundry: 760 mm (29.9 inches)
- Rollback – Ground Level: 34 Degrees
- Fuel Tank: 79 liters (21 gallons)
- Rated Operating Capacity – Foundry: 1221 kg (2690 lbs)
- Tipping Load – Foundry: 2443 kg (5380 lbs)
- Axle Torque – Maximum: 6771 Nm (4994 lbf/ft)
- Speed – Maximum: 11.1 kph (6.9 mph)
- Speed – Maximum Option: 17.9 kph (11.1 mph)
- Breakout – Lift Foundry: 23.3 kN (5250 lbf)
- Breakout – Bucket Foundry: 38.9 kN (8750 lbf)
- Hydraulic Power: 31.009 kW (41.5 hp)
- Hydraulic Power – Option: 47.103 kW (63.1 hp)
- Pump Output: 78 liters/min (21 gallons/min)
- Pump Flow – Option: 120 liters/min (32 gallons/min)
- System Pressure: 237.87 bar (3450 PSI)
- Operating Weight – Foundry: 3496 kg (7700 lbs)
Attachments and Versatility
- Over 100 attachments are available for maximum versatility.
- Increased auxiliary hydraulic flows and power for enhanced attachment performance.
- Optional electrically actuated Quik-Tatch™ for convenient in-cab attachment changes.
- Creep control for precise tasks requiring full hydraulic flow at lower speeds.
Comfort and Cab Features

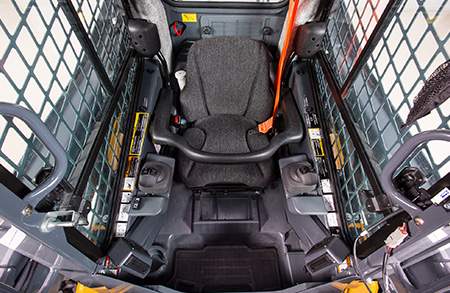

- Spacious and ergonomically designed cab for all-day comfort.
- Sealed and pressurized cab for reduced noise and cleanliness.
- Optional air-ride heated seat and Bluetooth radio.
- Removable glass windows for easy cleaning.
- Multiple slip-resistant steps and ergonomically placed handles for safe entry and exit.
- Excellent visibility for increased situational awareness.

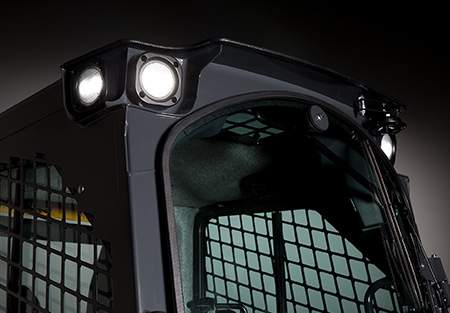

- Optional deluxe LED lighting for better visibility in low-light conditions.
- Clear sightlines to tires and cutting edges.

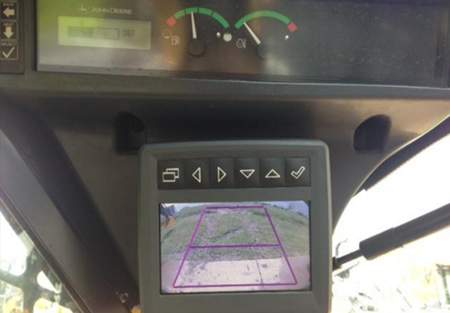

- Rearview camera and low-sloped hood for unmatched rear visibility.
- Easy access to components for regular service or repair.
- Hood tilts up for ground-level access to maintenance points.

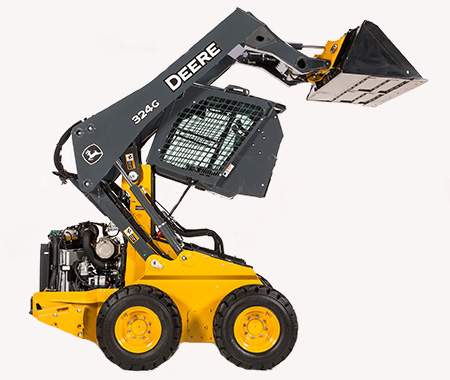

- Cab swings up in less than five minutes for drivetrain access.
Removable metal side panels for easy cleaning.
Optional JDLink™ for machine data and health alerts.
- Increased bucket breakout forces for better material handling.
- Optional ISO-H switchable controls with electro-hydraulic Joystick Performance Package.
- Differential steering for maintained speed and traction during turns.
- Standard two-speed drivetrain for quicker job site navigation.
324G Skid Steer Attachments
NOTE: This is not an exhaustive list of available John Deere attachments for the 324G Skid Steer Loader. For more information on what attachments are available, visit our John Deere Attachments page or call our sales team today.

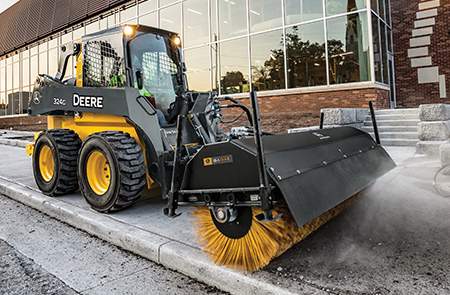

- Angle Broom: Perfect for sweeping debris or snow, the angle broom attachment is a versatile tool for construction and maintenance tasks.

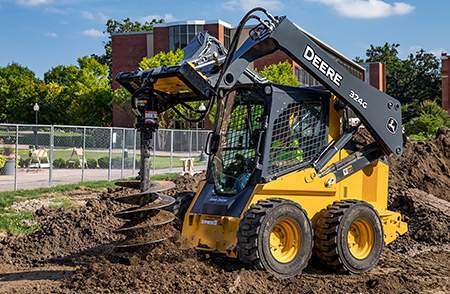

- Auger: Ideal for drilling holes in various soil types, the auger attachment is essential for fence installations, planting trees, or construction projects.
Material Handling Attachments

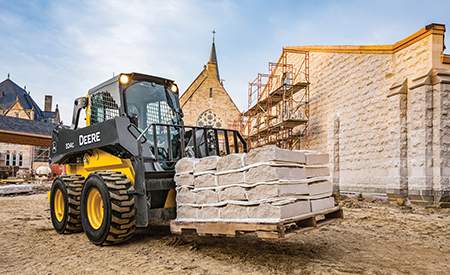

- Pallet Forks: Designed to lift and transport palletized materials efficiently, the pallet fork attachment is a must-have for any job site.
- Bucket: The standard bucket attachment is versatile for a variety of tasks, including digging, grading, and material handling.
- Blade: For leveling and grading tasks, the blade attachment is a useful tool that can be used in construction, agriculture, or landscaping.
- Snow Blower: For those in colder climates, the snow blower attachment is perfect for clearing snow from driveways, parking lots, and roads.
- Trencher: Ideal for digging trenches in various soil types, the trencher attachment is an essential tool for utility and construction work.
- Rotary Cutter: For mowing large areas or cutting through thick brush, the rotary cutter attachment is a powerful tool for landscaping and maintenance.
With the 324G’s optional high-flow hydraulics, you can add high-performance attachments like snow blowers, rotary cutters, or brooms to extend the machine’s versatility further. Contact us today or visit one of our 7 locations for more information on attachments for your 324G Skid Steer.
JD Skid Steers - Drivetrain Comparison Chart
Displacement, ltr (Inches)
Rated Speed, rpm
SAE Net Power, kW (hp)
SAE Gross Power, kW (hp)
Max. Gross Torque, Nm (lbf / ft)
Drive Chain Rating [ANSI]
80 - HD
80 - HD
100 - HD
100 - HD
Tire size - Standard
10 - 16.5
10 x 16.5
12 - 16.5 - 12 PR SKS
12 - 16.5 - 12 PR SKS
14 - 17.5 - 12 PR Extra Wall
14 - 17.5 - 14 PR Hauler
