Z900 Series Zero-Turn MowersZTrak™ Zero-Turn Mower

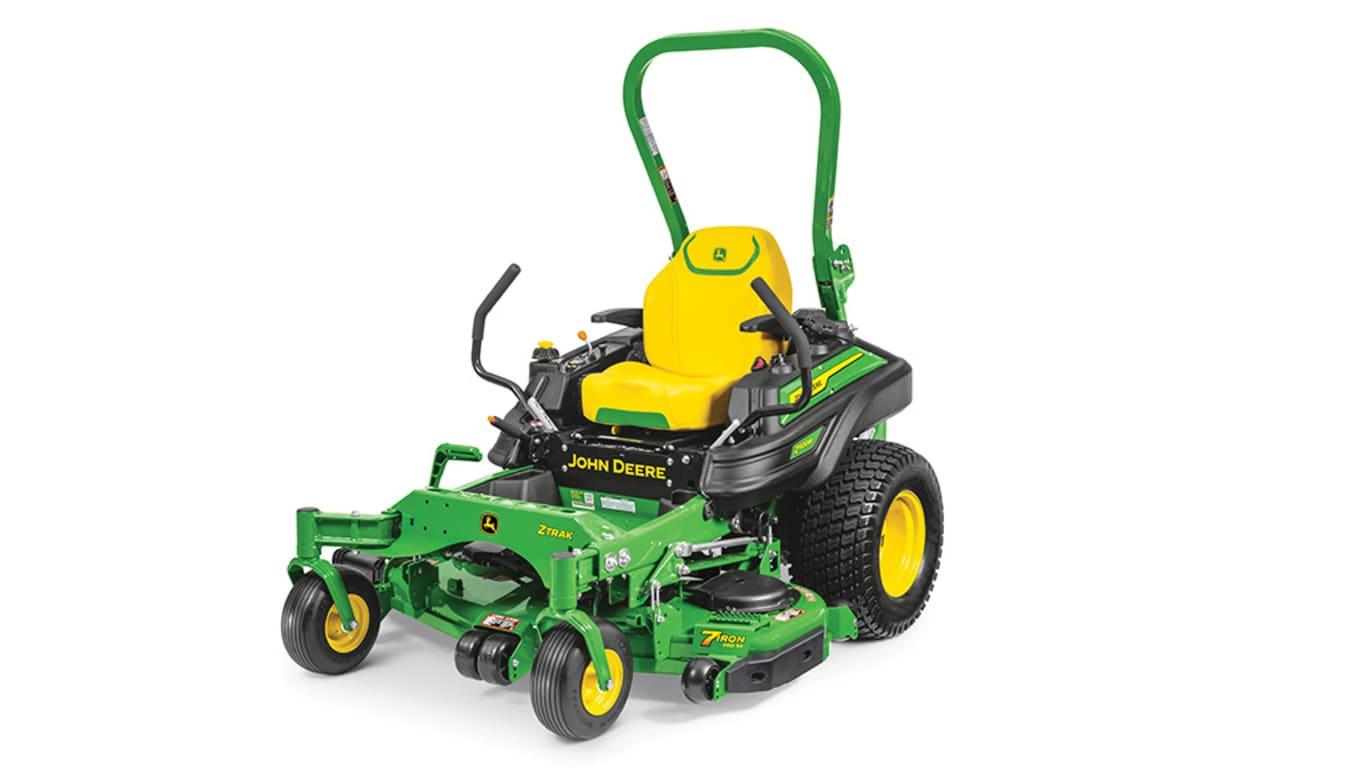

The Z920M is powered by an air-cooled, vertical shaft engine:
Engine features include:
The engine is easy to service, including changing the oil:
ZTrak™ Z900 Mowers are equipped with a dual-element, canister-style air filter, easily accessible from the rear of the machine without tools.
The ZTrak Z900 Mowers are equipped with one single-fill, top-draw fuel tank:
Under normal conditions, load, and operation, fuel consumption for carbureted Z900 ZTrak Mowers is 1.5 U.S. gph (5.7 L/hr) to 2.2 U.S. gph (8.3 L/hr), depending on the horsepower and conditions.
7-Iron PRO mower decks have demonstrated quality, performance, and durability. They deliver a high-quality cut in diverse conditions.
Key features of the 7-Iron PRO mower deck:
On every commercial mower deck there are three 1-in. (25-mm) spindles that are cold-forged and heat-treated for strength. Spindles are supported by precision ball bearings that provide great performance and reliability.
Mower deck
Z920M
Z930M
Z950M
Z955M EFI
Z960M
Z965M EFI
Z975M EFI
Z950R
Z955R EFI
Z965R EFI
Z970R
Z985R EFI
48-in. (122-cm) 7Iron PRO side- discharge
x
54-in. (137-cm) 7Iron PRO side- discharge
x
x
x
x
60-in. (152-cm) 7Iron PRO side- discharge
x
x
x
x
x
x
x
x
x
x
x
72-in. (183-cm) 7Iron PRO side- discharge
x
x
x
x
x
x
x
x
The deck step safely aids the operator's entrance and egress from machine.
There are two factory-installed seating options available for the M Series:
Both seats have the ComfortGlide fore/aft suspension system that gives superior ride comfort over uneven areas:
The deluxe comfort seat with armrests is standard on all M Series models:
A fully adjustable suspension seat with armrests option is available on the M and R Series:
Code
Description
2091
Deluxe comfort seat with armrests
2093
Fully adjustable suspension seat with armrests
Two-lever hydrostatic control provides the following:
The Brake & Go starting system is a John Deere exclusive. This feature makes the starting process on all ZTrak™ mowers easier, while also making it possible to remove two interlock switches from the machine.
The Brake & Go starting procedure helps a novice operator look and feel like a professional. To start the machine, the parking brake must be engaged. It does not matter whether the power take-off (PTO) switch is on or off, nor does it matter if the control levers are pulled in or in the out position.
As long as the parking brake is engaged, the machine will start. When the parking brake is applied, the control levers cannot be moved to the forward or reverse positions.
Several storage areas are provided on the ZTrak machines. A convenient cup holder is also available.
The motion control levers have two height positions and can also be adjusted forward or rearward within the slotted holes. The levers should be adjusted so the operator can achieve a full range of control operation comfortably.
The easy-to-turn (from-the-seat) tracking adjustment allows operators to keep their mowers straight and produce professional striping results.
The controls are grouped together on the right console, providing one central location for:
An easy-to-use cutting-height lift system allows the operator to adjust the mower deck height with no tools and minimal effort. The easy-to-grip knob allows operators to dial in the desired height of cut (HOC).
Cutting height can be adjusted from approximately 1 in. to 5.5 in. (2.5 cm to 14 cm). Each increment on the knob adjusts the HOC approximately 0.25 in. (0.64 cm). The deck can also be raised and locked in a transport position to provide maximum ground clearance when moving the machine from one area to another.
The transport lock function allows the deck to be returned to the previous HOC after being in the transport position:
This design increases productivity by allowing operators to change the cutting height without having to leave the seat.
An exclusive 2-year, unlimited hour/3-year, 1200-hour (whichever comes first) bumper-to-bumper warranty is standard for all John Deere M Series Mowers. The warranty is best in its class and places John Deere at the forefront of commercial mowing. It is also hassle free, with one company handling all of the paperwork.
NOTE: 36 months or 1200 hours, whichever comes first. For the first 24 months, there is no hour limitation.
An exclusive 2-year, unlimited hour/3-year, 1500-hour (whichever comes first) bumper-to-bumper warranty is standard on all John Deere R Series mowers. The warranty is best in the industry and puts John Deere at the forefront of commercial mowing. It is also hassle free, with one company handling all of the paperwork.
NOTE: 36 months or 1500 hours, whichever comes first. For the first 24 months, there is no hour limitation.
The durability features of the frame are as follows:
A steel rear bumper provides protection for the machine. The bumper is made of two pieces, making it easy to remove and install when using a material collection system (MCS).
A rear hitch can be added to the steel bumper for towing purposes. ZTrak M and R Series Mowers can tow up to 400 lb (181.4 kg).
Michelin, X, and Tweel are trademarks of Michelin North America, Inc.
The hydrostatic drive included with the Z900 Z Trak Mowers features two 13-cc (0.8-cu in.) unitized hydraulic pumps combined with commercial-grade, heavy-duty, 13-cc (0.8-cu in.) wheel motors into a single unit. The drive units feature cross porting, where the hydraulic fluid from the side doing the least work is filtered and then fed into the input of the side doing the most work. This ensures that the coolest fluid is going into the side working the hardest in order to provide the best performance during extended hillside operation in the same direction.
One pump and one motor drive each wheel on the Z900 ZTrak™ Mowers. This provides several benefits:
The design of the Z900 Series makes many service components reachable and easily accessible from the ground.
All ZTrak™ Mowers come with a maintenance label that is conveniently located inside the right-hand console. The label is written on English and Spanish languages and includes daily service check points, approximate fluid capacities, and tire pressures.
To speed access to owner information web pages, a QR code is printed onto a product identification number (PIN) label located near the onboard storage. The owner information web pages that include links to:
On Z920M, Z930M, Z950M, Z960M, Z950R, Z970R models, the hour meter shows the number of hours the machine is run when the key switch is in the on position. It only counts the hours the engine is actually running. Machine diagnostics are the first step of a monitoring system to help operators quickly diagnose common downtime issues. A trouble code light is included on the hour meter.
Use of the hour meter and service interval chart helps determine when the machine will need service.
The Z955M, Z965M, Z975M, Z955R, Z965R, and Z985R EFI models include a modern display panel that speeds trouble shooting by providing error codes, system voltage, and circuit continuity tests that can report switch functionality and circuit continuity in seconds, without tools. These models are also equipped with a Service ADVISOR™ J1939 port to speed dealer diagnostics.
The spacious operator station has been designed for comfort, visibility, and ease of use:
The ROPS and seat belt work in conjunction to provide a protective zone around the operator:
Foldable ROPS and retractable seat belt are standard equipment:
ROPS position
Height at top of ROPS
Upright
73 in. (185 cm)
Down
47 in. (119 cm)
John Deere commercial mowers are evaluated by the manufacturer (John Deere Turf Care) and conform to American National Standards Institute (ANSI) / Outdoor Power Equipment Institute (OPEI) 5395-1 and 5395-3 safety requirements for combustion-engine-powered lawnmowers.
BUC11438 LED work lights provides the ability to mow at twilight and are available as a field installed attachment. See attachment story for compatibility and requirements.
BUC11406 LED beacon light signals to others that the machine is approaching and is available as a field installed attachment. See attachment story for compatibility and requirements.
A JDLink™ M Modem connects a commercial mower to the John Deere Operations Center, which enables you to manage your fleet more efficiently, increase productivity, and reduce labor costs. With a modem and Operations Center, you are always connected to the work in progress and can make timely adjustments to keep your fleet mowing.
A JDLink M Modem is standard equipment on model year 2024 and newer TerrainCut Front and Wide-Area Mowers.
A modem can be field installed on:
See compatibility section for serial number breaks and requirements.
The John Deere Operations Center tracks your fleet and provides tools to analyze mower data. The connected features vary by mower model.
Models
Location and status
GPS
speed
Geofencing and curfews
Engine hours
Maintenance planner
Machine Analyzer Tool
Fuel level
Fuel consumption
Diagnostic trouble codes
Service Advisor Remote
Z700 ZTrak Mowers
X
X
X
Key
X
X
---
---
---
---
Z900 ZTrak Mowers with carbureted engines
X
X
X
Key
X
X
---
---
---
---
Z900 ZTrak Mowers with EFI engines
X
X
X
Sync
X
X
X
X
X
X
Z994R ZTrak Mowers
X
X
X
Key
X
X
---
---
---
---
Z997R ZTrak Mowers
X
X
X
Sync
X
X
---
X
X
X
E Series QuikTrak Mowers
X
X
X
Key
X
X
---
---
---
---
Q820M, Q850M, and Q850R QuikTrak Mowers
X
X
X
Sync
X
X
X
---
X
---
Q865R EFI QuikTrak Mowers
X
X
X
Sync
X
X
X
X
X
X
R Series commercial walk-behind mowers
X
X
X
Key
X
X
---
---
---
---
1550 TerrainCut Front Mowers
X
X
X
Key
X
X
---
---
---
---
1570, 1575, 1580, and 1585 TerrainCut Front Mowers
X
X
X
Key
X
X
---
X
X
X
1600 TerrainCut Wide-Area Mowers
X
X
X
Key
X
X
---
X
X
X
The JDLink M Modem regularly transmits the location and operational status of each mower in the fleet so you can monitor mowing progress in Operations Center.
The modem regularly transmits the mower’s engine hours to inform maintenance planning and balance use.
Factory or custom maintenance plans can be established in Operations Center. Maintenance alerts are sent when engine hours reach maintenance intervals.
On select products, the modem transmits the trouble codes generated by the mower’s control units to the Operations Center. Addressing DTCs can reduce downtime and repair costs. For example, a low-engine oil pressure DTC can indicate an engine is low on oil. Addressing the issue can prevent costly downtime and repairs.
To help address issues quickly, when a DTC is generated, the Operations Center can display a push notification on the mobile app and send an email. Operations Center can also be configured to limit notifications to stop-level severity DTCs.
On select products, the modem reports the time the mower spent transporting, idling, and working. The Operations Center’s Machine Analyzer tool reports usage data which allows you to analyze operator behavior, identify causes of low productivity, and initiate corrective actions.
On select products, the modem reports the fuel level. On these products, an analysis of fuel consumption is available in the Operations Center Machine Analyzer Tool. Measuring fuel consumption enables you to address causes of excessive fuel use.
On select products, John Deere dealers can perform remote diagnostics, software programming, and adjustments without the cost of a service call.
A JDLink M Modem is standard equipment on model year 2024 and newer (SN 110,001-) TerrainCut Front Mowers and model year 2024 and newer (SN 690,001-) TerrainCut Wide-Area Mowers.
A JDLink M Modem can be field installed on the commercial mowing products listed below. Field installation attachments simplify modem installation, and include brackets, mounting hardware, harness, and instructions. Field installation requires a JDLink M Modem to be ordered separately. The field installation attachments include a wiring harness therefore the modem should be ordered with the less harness option code.
Model
Compatible model years
Installation attachment
Z700 ZTrak Mowers
2024 and newer (SN 080,001-)
BUC11759
Gasoline-powered Z900 ZTrak Mowers
2024 and newer (SN 130,001-)
BUC11759
Z994R ZTrak Mowers
2024 and newer (SN 070,001-)
BUC11759
Z997R ZTrak Mowers
2021 and newer (SN 070,001-)
BUC11908
QuikTrak Mowers
2024 and newer (SN 010,001-)
BUC11744
R Series commercial walk-behind mowers
2025 and newer (SN 070,001-)
BUC11918
TerrainCut Front Mowers
2022-2023 (SN 080,001-110,000)
BUC11797
1600 TerrainCut Wide-Area Mowers
2023 (SN 680,001-690,000)
BUC11797
John Deere provides the commercial mower industry with the Michelin X Tweel Turf technology for Commercial ZTrak Mowers:
Michelin is a world leader in tire manufacturing and technology. This airless radial tire solution is an industry first for John Deere, which provides an additional advantage to John Deere customers.
Advantages of the Michelin X Tweel Turf include:
Heavy-duty construction provides the ultimate in performance and reliable operation:
NOTE: In some cases, different size Tweel tires are required depending on the mower deck size.
The ZTrak M Series Mowers with 48-in. (122-cm) mower decks come with 24x9.5-12 4 PR drive tires. M Series Mowers with 54-in. (137-cm), 60-in. (152- cm), and 72-in. (183-cm) decks come with 24x12-12 4 PR drive tires. All M Series Mowers are equipped with 13x6.5-6 front flat-free semi-pneumatic caster tires.
The ZTrak R Series Mowers with 48-in. (122-cm) mower decks come with 24x9.5-12 4 PR drive tires. R Series Mowers with 54-in. (133-cm), 60-in. (152-cm) and 72-in. (183-cm) decks come with 24x12-12 4 PR drive tires. All R Series Mowers are equipped with 15x6-6 front flat-free semi-pneumatic tires.
The tires provide:
Michelin, X, and Tweel are trademarks of Compagnie Générale des Etablissements Michelin SCA.
John Deere provides application-specific Environmental Protection Agency (EPA) approved field-installed propane conversion kits for specific John Deere commercial walk-behind mowers, QuikTrak Mowers, and commercial ZTrak™ Mowers. The conversion kits include all components required to convert the engines to operate on propane fuel. Single-tank or dual-tank brackets (depending on the vehicle) are provided for securely holding the propane tank(s) to the vehicle.
Propane tanks are not included.
An optional altitude kit is required when operating at altitudes above 2000 ft (610 m). The operator’s manual with the propane conversion kit provides further details. Parts must be ordered separately through John Deere Parts.
Propane facts:
Advantages of John Deere propane conversion kits include:
Propane tank mounting bracket options:
Optional tank configurations and sizes are available to provide operators the ability to tailor for run time:
NOTE: Reference the Propane and Attachment Compatibility Chart to determine tank configurations that are compatible.
Engine displacement
FS603cc
FS726cc
FX726cc
FX852cc
Average consumption (lb [kg]/hr)
3.9 (1.8)
4.2 (1.9)
4.2 (1.9)
5.8 (2.6)
Run time (hours) with 20-lb (9.1-kg) tank
5.1
4.8
4.8
3.4
Run time (hours) with 33.5-lb (15.2-kg) tank
Not available
8.0
8.0
5.8
Run time (hours) with 43.5-lb (19.7-kg) tank
Not available
10.4
10.4
7.5
| Engine Manufacturer/model | FX730V |
|---|---|
| Engine power | Gross at 3,600 rpm 23.5 hp 17.5 kW |
| Fuel tank capacity | 11.5 U.S. gal. 43.5 L |
| Mower deck size | 48-in. (122-cm) 7Iron™ PRO side-discharge 54-in. (137-cm) 7Iron™ PRO side-discharge 60-in. (152-cm) 7Iron™ PRO side-discharge |
| Blade tip speed | 7Iron PRO: Approximately 18,500 fpm |
| Transmission | Hydrostatic |
| Speed range | 0-12 mph 0-19.3 km/h |
| Drive wheels | 24x12-12 |
| Caster wheels | 13x6.5-6 |
| Warranty | 36 months or 1200 hours, whichever comes first First 24 months, no hour limitation |
| Manufacturer/Model | FX730V |
|---|---|
| Power | Gross at 3,600 rpm 23.5 hp 17.5 kW |
| Displacement | 44.3 cu in. 726 cc |
| Cylinders | Two |
| Crankcase capacity | With filter, 2 U.S. qt 1.9 L |
| Oil filter | Full flow, replaceable |
| Lubrication | Full pressure |
| Cooling | Air |
| Air cleaner | Pre-cleaner Yes Heavy-duty canister type with safety element |
| Injection | - |
| Fuel type | Gasoline |
|---|---|
| Fuel consumption | Under normal conditions, load, operation, and dependent on loads and operating conditions 1.1-1.9 U.S. gal./hr 4.2-7.2 L/hr |
| Fuel tank capacity | 11.5 U.S. gal. 43.5 L |
| Fuel tank switch/shut-off valve | Yes |
| Charge system | 30 amp |
|---|---|
| Battery voltage | 12 V |
| Cold cranking amp | 300 amp |
| Hour meter | Standard, digital |
| Operator presence starting system | Brake-N-Go (hand) |
| Transmission | Hydrostatic |
|---|---|
| Hydraulic pumps | - |
| Wheel motors | Tuff Torq heavy-duty integrated piston wheel motor |
| Travel speed | Speed range 0-12 mph 0-19.3 km/h Forward 0-12 mph 0-19.3 km/h Reverse 0-4.5 mph 0-7.2 km/h |
| Speed and direction control | Twin levers |
| Hydraulic capacity | 5.9 U.S. qt 5.6 L |
| Hydraulic oil cooler | - |
| Filter | Internal, replaceable |
| Warranty | 36 months or 1200 hours, whichever comes first First 24 months, no hour limitation |
|---|
| Drive wheels | 24x12-12 |
|---|---|
| Rear tires | - |
| Load rating | 4 PR |
| Dynamic braking | Twin levers |
|---|---|
| Park brake | Internal wet disk integrated in the transmission |
| Park brake actuation | Hand brake |
| Type | Electro-magnetic, 200 lb-ft 271 Nm |
|---|---|
| Drive | V-belt |
| Size | 48-in. (122-cm) 7Iron™ PRO side-discharge 54-in. (137-cm) 7Iron™ PRO side-discharge 60-in. (152-cm) 7Iron™ PRO side-discharge |
|---|---|
| Deck construction | 7-gauge, 0.179-in. (4.6-mm) one-piece forged steel |
| Discharge | - |
| Height-of-cut range | Increments 0.25 in. 0.64 cm 1-5.5 in. 2.54-14 cm |
| Cutting width | 48, 54, 60 in. 122, 137, 152 cm |
| Deck thickness | - |
| Length | Varies by deck size |
|---|---|
| Thickness | 0.25 in. 0.64 cm |
| Blade tip speed | 7Iron PRO: Approximately 18,500 fpm |
| Number | Three |
| Caster wheel type | Flat free |
|---|---|
| Caster wheels | 13x6.5-6 |
| Front anti-scalp rollers | RH, center, LH |
| Rear anti-scalp rollers | Standard |
| Length | 84 in. 213 cm |
|---|---|
| Width | With chute down, 62, 68, 74 in. 157, 173, 188 cm |
| Height | With ROPS up, 73 in. 185 cm With ROPS down, 47 in. 119 cm |
| Weight | 1,228 to 1,313 lb 557 to 596 kg |
| Rollover protective structure (ROPS) | Yes |
|---|---|
| Slope operating limit | 20 degrees (10 degrees with material collection system installed) |
| Date collected | 1-Aug-24 |
|---|
