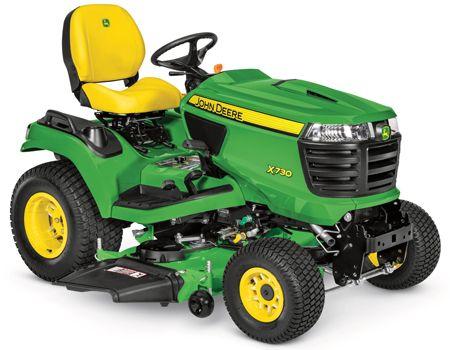

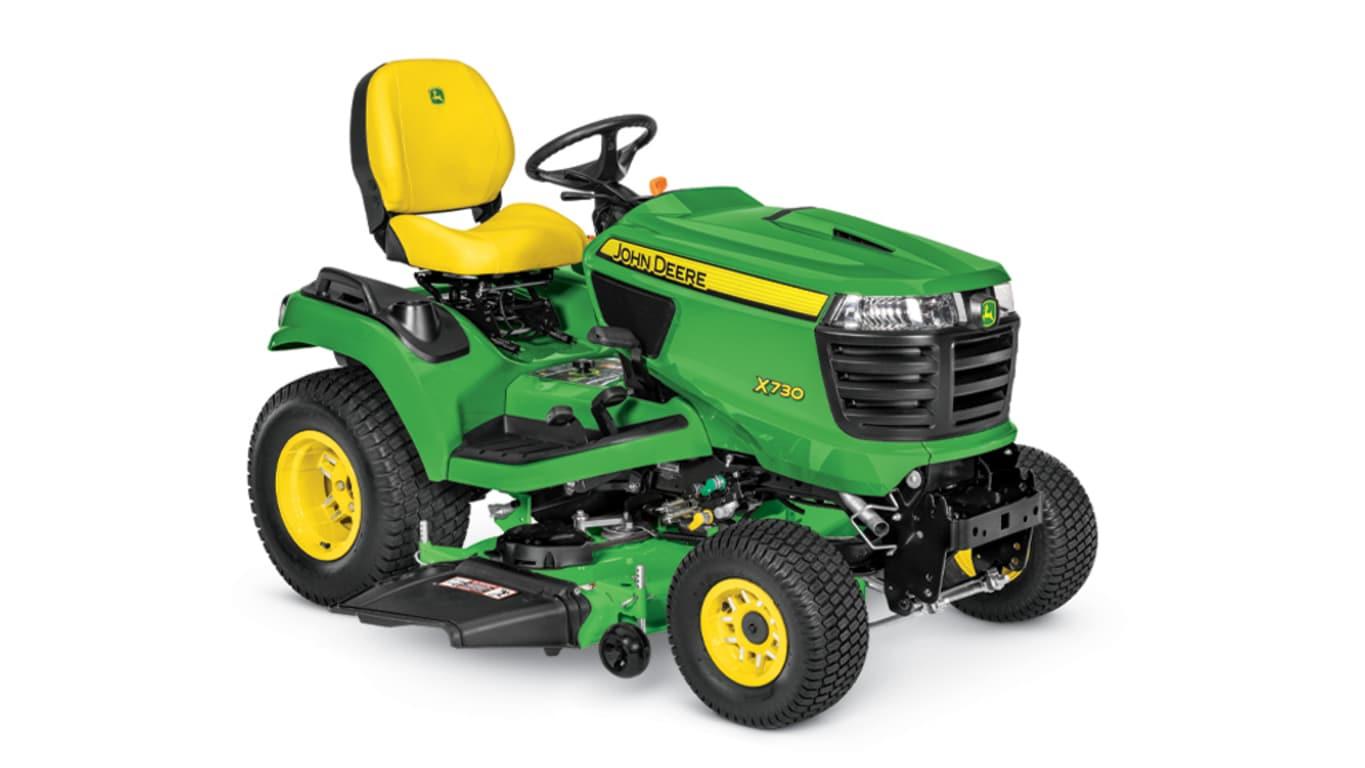

X700 Signature Series Lawn TractorsSignature Series Lawn Tractor
The V-twin, liquid-cooled John Deere iTorque power system with electronic fuel injection (EFI) provides exceptional performance and has the durability to handle commercial-use applications. The John Deere iTorque power system includes a combination of engine features that provide more lugging ability, even cooling, and durability.
iTorque stands for intelligent design (to get a task done efficiently) and torque (good lugging ability). It is used exclusively on gasoline-powered Select Series™ and Signature Series Tractors.

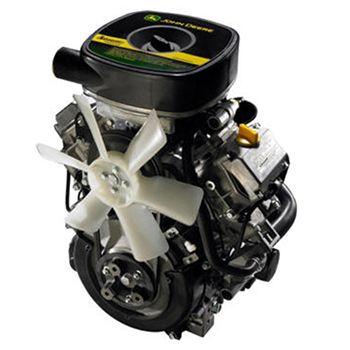

The 25.5-hp (19-kW) liquid-cooled V-twin engine has a large 45.5-cu in. (745-cc) displacement to provide plenty of power and torque for excellent performance in any operating condition. The one-piece hood is hinged to open for convenient engine service.
Key engine features include:

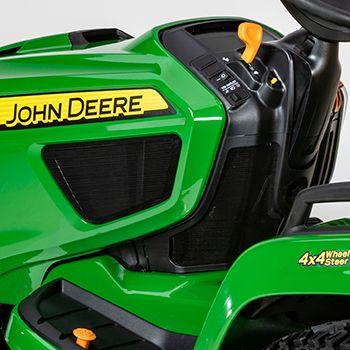

Engine intake air is drawn in through screened panels at the base of the pedestal and on the right and left sides of the tractor hood:
An inertia-discharge canister with dry-type paper element surrounded by a foam precleaner cleans intake air for long engine life:
A high-capacity regulated alternator charging system provides plenty of power to quickly recharge the battery and run electrical equipment, such as lights or a sprayer:

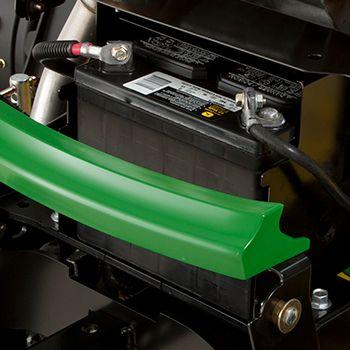

A large-capacity, 340 cold-cranking amp battery provides plenty of cranking power for quick, sure starts in cold weather:
Electronic fuel injection (EFI) offers many important performance advantages:
A large, 5.2-U.S. gal. (19.7-L) capacity fuel tank holds enough fuel for extended operation between refills:
A deep-deck design of 5.5 in. (14 cm) delivers excellent airflow so material can be processed quickly and efficiently. The deck is forged from 9-gauge, 0.15-in. (3.8-mm) steel and has welded-on reinforcement at the bottom edge for extra strength and durability.

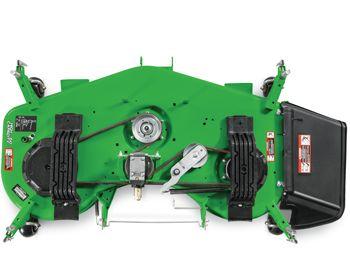

High-capacity mower decks are formed in a hydraulic press to minimize the number of welds and provide a smooth underside for reduced material buildup:
Ramps are provided to permit driving over the mower deck for installing and removing it from the tractor:
A wash port is provided to make cleaning the underside of the mower deck easy:
Optional high-performance mulching attachment
The high-performance mulching attachment provides excellent mulching performance:
Optional MulchControl™ attachment

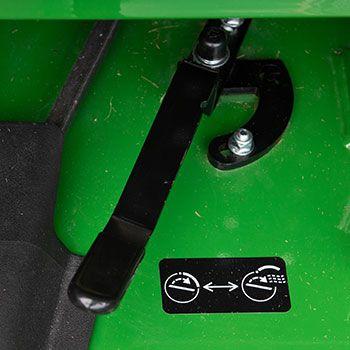

The optional MulchControl attachment comes with a handle on top of the mower deck that is used to open and close the discharge baffle:
An optional hydraulic MulchControl actuator attachment is available to replace the standard control lever and allow the operator to control MulchControl from the seat using the tractor’s hydraulic control lever.
NOTE: To have hydraulic control of the MulchControl baffle, both MulchControl and hydraulic MulchControl actuator attachments must be ordered. The hydraulic MulchControl actuator is an extra-cost option for the MulchControl attachment.
Changing from mulching to side discharge or vice versa with the hand lever or hydraulic MulchControl actuator option takes only a few seconds.
MulchControl is well-suited to the following mowing situations:
MulchControl puts the operator in control of the clippings. Now the operator can have all the benefits of mulching with the ability to easily change to side-discharge or bagging when needed.
MulchControl limitations
While in the side-discharge mode, MulchControl will still mulch about one-third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
MulchControl compatibility
MulchControl is a field-installed attachment. Mulching blades are included:
NOTE: The hydraulic MulchControl actuator is not available for the 48-in. (122-cm) Accel Deep™ Mower Deck.
Order:
BM26300 MulchControl attachment (54 HC)
BM25258 MulchControl attachment (60 HC)
BUC10536 Hydraulic MulchControl actuator
Drive-over mower quick reference (major steps)
John Deere has designed a system that makes it easy to remove and reinstall the mower deck. A few steps need to be followed carefully to ensure success.
The list below includes the major steps. Refer to the operator’s manual for a more detailed procedure. The tractor most likely has the mower already installed, so these steps begin with the removal procedure.
DRIVEJD - Always Dependable Product
Mower removal steps
Drive tractor to level area.
Ready mower deck.
Increase engine speed, engage traction assist, and drive over.
Mower installation steps
Verify tractor and mower are ready.
Engage traction assist, increase engine speed, and drive or back over.
Join mower to tractor.
Done! Set mower deck height and mow.
![MulchControl with baffle closed (shown on 54-in. [137-cm] High-Capacity Mower Deck)](/_next/image?url=https%3A%2F%2Fcdn.sanity.io%2Fimages%2F0g2jo1kv%2Fproduction%2F68d67280d754a71e3bca02696475b971f203a964-450x350.jpg&w=3840&q=75)
![MulchControl with baffle open (shown on 54-in. [137-cm] High-Capacity Mower Deck)](/_next/image?url=https%3A%2F%2Fcdn.sanity.io%2Fimages%2F0g2jo1kv%2Fproduction%2F67b9d138d5607c23a98e84a5e5d7752f7cd3fe75-450x350.jpg&w=3840&q=75)
The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
MulchControl is an innovative, simple design that is easy to use and maintain:

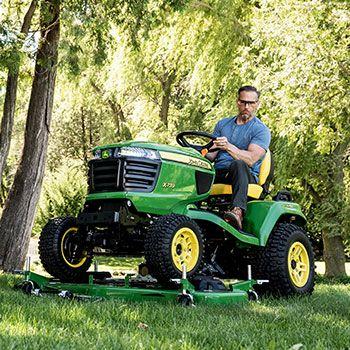

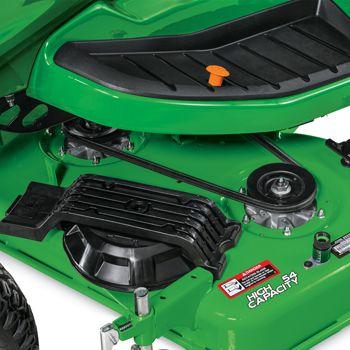

High-capacity mower decks have ramps positioned on top of the deck for easy installation:
To remove the mower deck:
The AutoConnect driveshaft is an optional kit that will automatically connect or remove the drive from the mower deck to the tractor's mid power take-off (PTO) shaft.
The AutoConnect drive does not need to be removed from the tractor when using front-powered equipment.
An exclusive 4-year or 700-hour (whichever comes first), single-source, bumper-to-bumper warranty* is standard for all John Deere X700 Series Tractors.
*Term limited to years or hours used, whichever comes first, and varies by model. U.S. and Canada only. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.

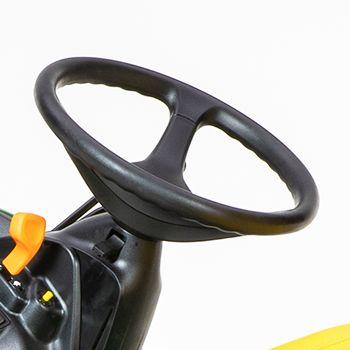

The tilt steering wheel can be adjusted for optimum operator comfort:
Two-piece, 21-in. (53-cm) high-back seat, with John Deere branded embroidery, has a thick seat cushion for lasting comfort, even after a full day of use. The back can be angled to maximize operator comfort by using a convenient lever on the side of the seat.

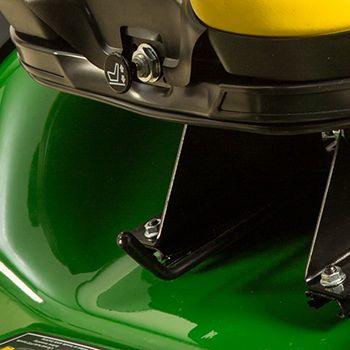

A four-bar adjustable seat suspension and 7-in. (18-cm) slide-rail fore-aft adjustment are provided to optimize operator comfort.

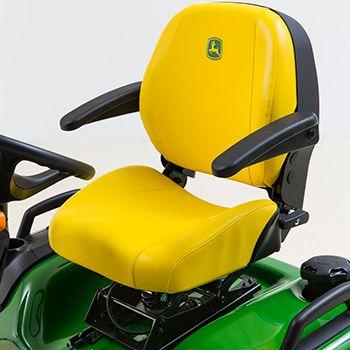

Optional armrests increase operator support and comfort, thus reducing fatigue and improving productivity, especially when mowing for extended periods of time. Armrests are adjustable to suit the operator. The embroidered logo on the seat back makes this upscale seat look as good as it feels.

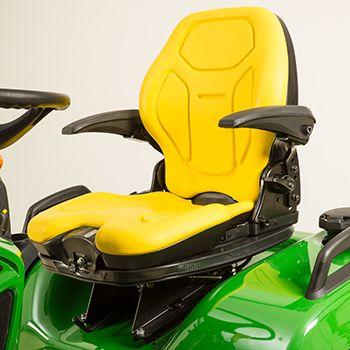

The optional air-ride seat minimizes vibration the operator feels while using the tractor and provides a very smooth ride. This seat has a full pneumatic suspension that is easy for operators to adjust to suit their individual needs. Wide, shaped ergonomic cushions are comfortable and reduce back strain.
Features include:
Key benefits of the seat:
NOTE: The air-ride seat is compatible with all X700 Signature Series Tractors, model year 2013 and later (serial number 010,001-). Plug and play wiring harness for use with the air-ride suspension seat has been added to model year 2019 tractors (serial number 70,001-) to reduce seat-installation time. Model year 2013-2018 (serial number 010,001-070,000) requires AM146765 wiring harness. See DTAC solution 115258 for more information.

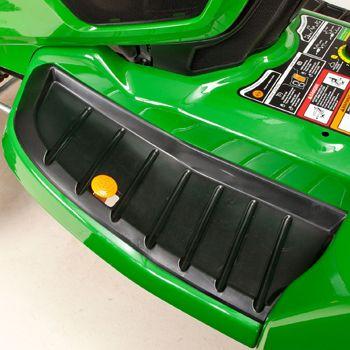

Foot pads help isolate the operator's feet from vibration:
The fender handles provide a convenient handhold to use when getting on and off the tractor and when operating on slopes:

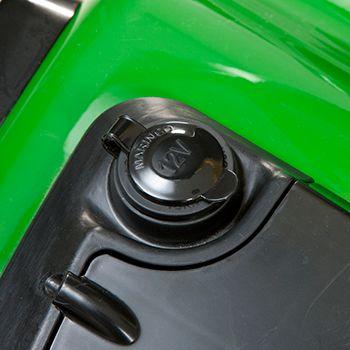

12-V outlet located for the convenience of connecting a variety of electrical and electronic equipment:

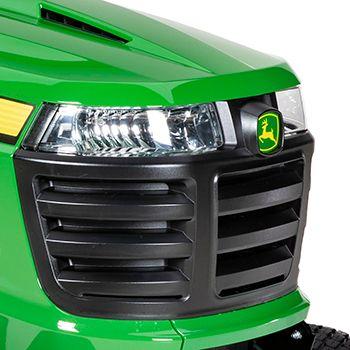

Large, automotive-type headlights and taillights provide unsurpassed nighttime illumination:

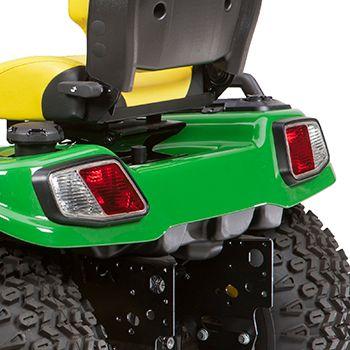

Rear lights provide visibility for the tractor operator and others:
An advantage of X700 Series Garden Tractors is their ability to use attachments for snow removal and a variety of other yard-care tasks.
The front quick-hitch mounting system allows for a tool-free change between the front blade, rotary broom, and snow blower. Additional attachments available for use with the equipment listed below include:

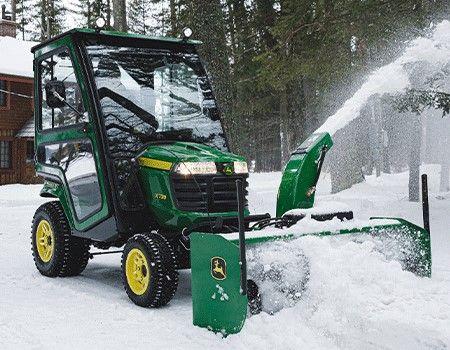

The 47-in. (119-cm) and 54-in. (137-cm) Snow Blowers have the capacity to handle big snow-removal jobs.
The front quick-hitch mounting system allows for a tool-free change between the front blade, rotary broom, and snow blower.

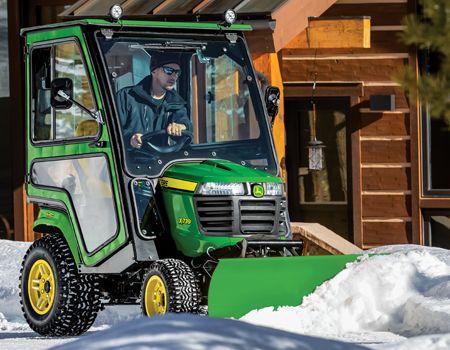

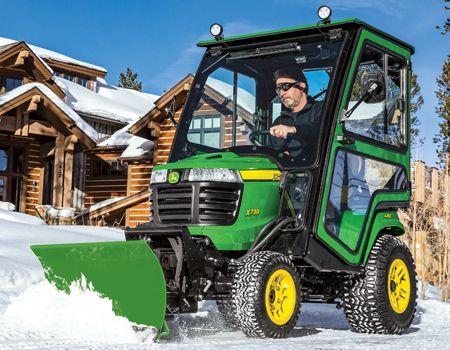

The 54-in. (137-cm) and 60-in. (152-cm) Front Blades are excellent for moving snow, gravel, dirt, sand, or other loose material. They can be hydraulically angled up to 27 degrees right or left or used in the straight-ahead position.

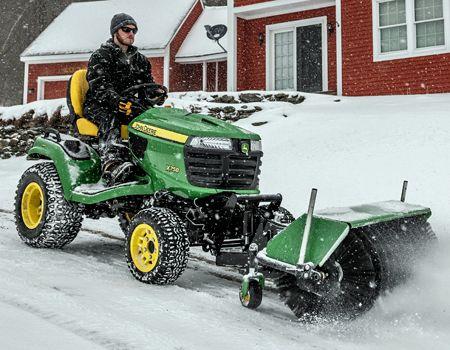

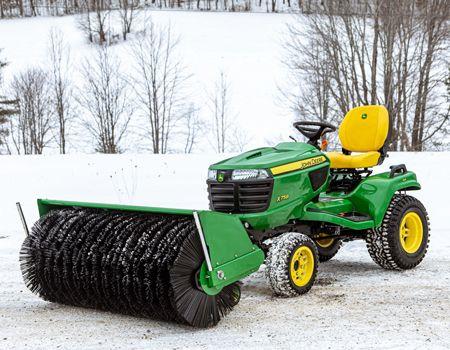

The 52-in. (132-cm) and 60-in. (152-cm) Rotary Brooms increase tractor versatility by allowing use for a variety of sweeping jobs. The broom effectively meets the needs of commercial, farm, home, and estate operators with four-season versatility:
Spring
Rotary brooms can be used to dethatch lawns and clean off tennis courts and other areas quickly and effectively.
Summer
Rotary brooms effectively perform a wide variety of sweeping jobs, including cleaning sidewalks, parking lots, driveways, construction job sites, and barns. They can also be used for backfilling trenches.
Fall
Rotary brooms can be used to sweep leaves and windrow pine needles. They sweep artificial turf and clean up spectator areas after sporting events.
Winter
Rotary brooms effectively move up to 2 in. (5 cm) of snow, which may eliminate the need for a snow thrower, depending on the geographic area.

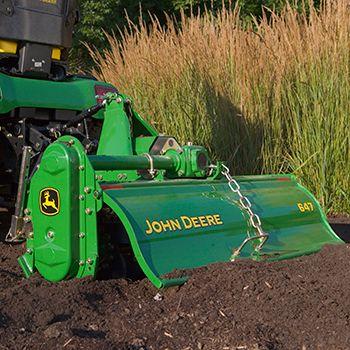

The 647 Rotary Tiller is 47-in. (122-cm) wide and ideal for preparing seedbeds, controlling weeds, and other tillage jobs for homeowners, golf courses, hospitals, schools, and estates. It requires a tractor equipped with a Category 1, 3-point hitch and 540-rpm rear power take-off (PTO).

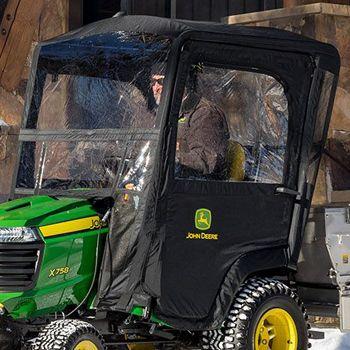

The roomy steel-frame weather enclosure shields the operator against snow, rain, sun, and wind.

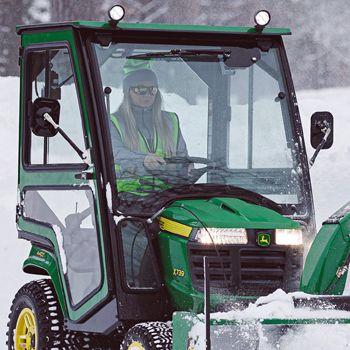

This hard-side cab is rollover protection structure (ROPS) certified for extra protection:

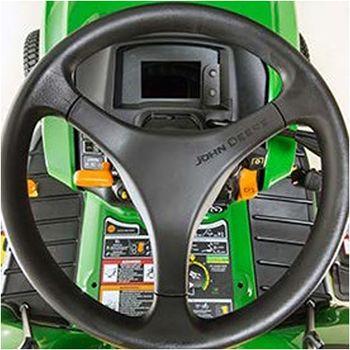

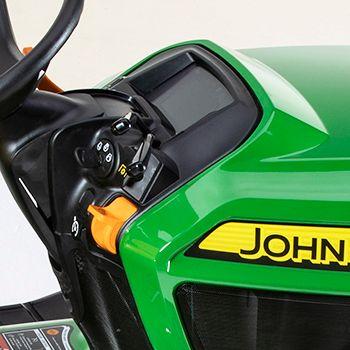

The contoured dash has clean, attractive styling and ergonomic controls for easy use:

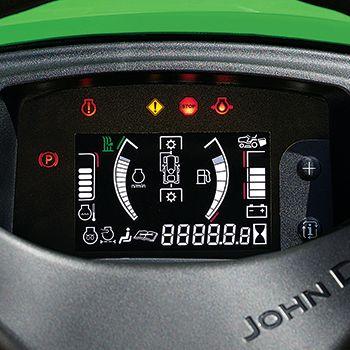

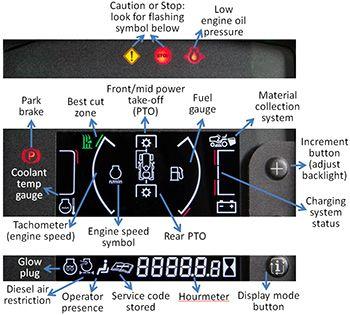

The instrument display has the look and feel of a modern automobile. A power-up sequence cycles lights and gauges to indicate they are working:

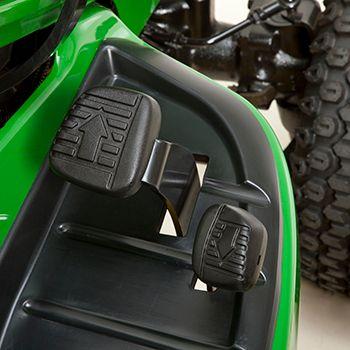

Twin Touch foot pedals control the speed and direction of travel:
When the master brake pedal is depressed, the PTO and cruise control disengage.

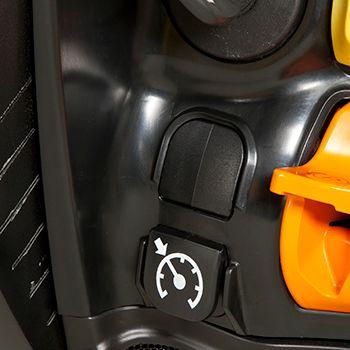

Cruise control is standard equipment:

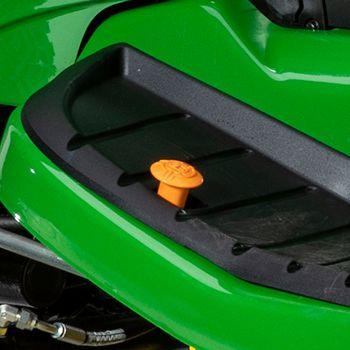

A foot-operated differential lock supplies positive power to both rear drive wheels for increased traction:

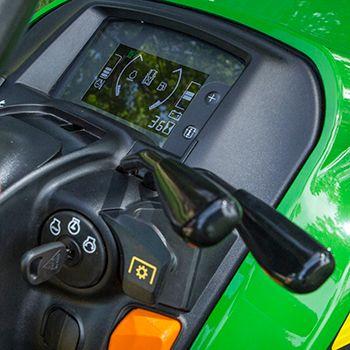

A two-function hydraulic control system is standard equipment.
The hydraulic system allows effortless equipment control:

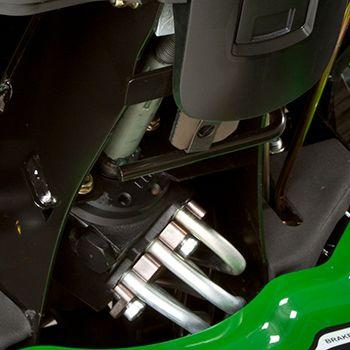

Power steering is standard equipment. It provides effortless, automotive-like control:
Two-wheel steer (X730, X750)
Four-wheel steer (X734, X754)
Full-time four- wheel drive (X738, X758)

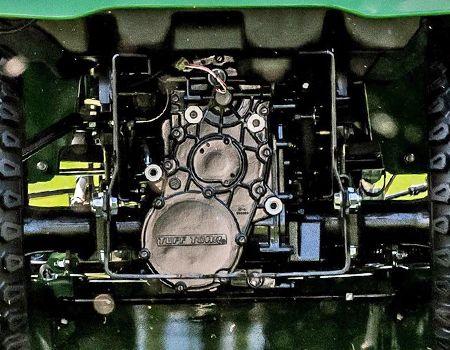

Full-time four-wheel drive with four- wheel steer (X739)
Turning radius
25 in. (63.5
cm)
21 in. (53.3
cm)
25 in. (63.5 cm)
21 in. (53.3 cm)
Uncut circle radius (60- in. (152-cm) mower deck)
28 in. (71.1
cm)
6 in. (15.2
cm)
28 in. (71.1 cm)
6 in. (15.2 cm)
Turns lock-to-lock left
2.4
2.5
2.3
2.2
Turns lock-to-lock right
2.4
2.5
3.1
2.8

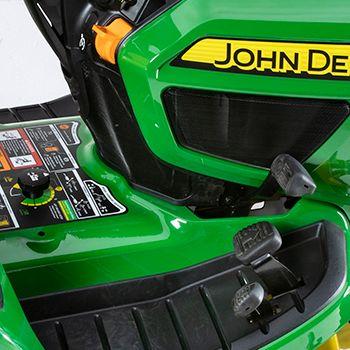

The parking brake control is conveniently located below the key switch on the steering pedestal:
Depressing the brake pedal disengages the PTO and cruise control:

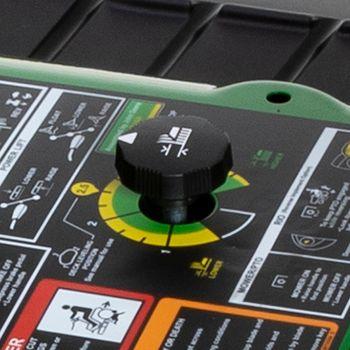

The depth stop allows setting the mower height from the operator's seat:

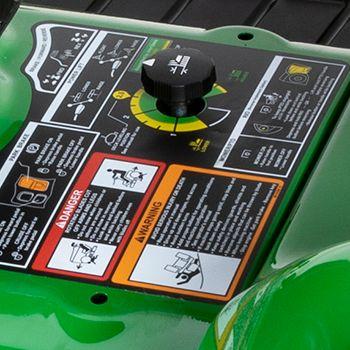

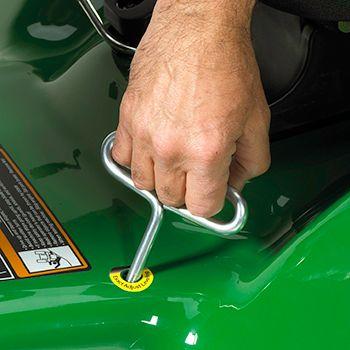

Exact Adjust ports on either side of the fender deck allow access to the rear mower deck height adjusting links:

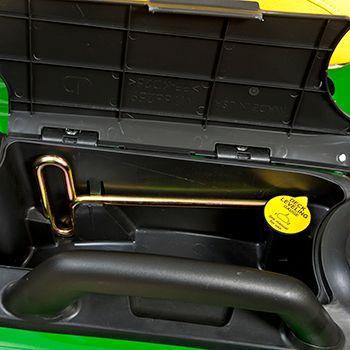

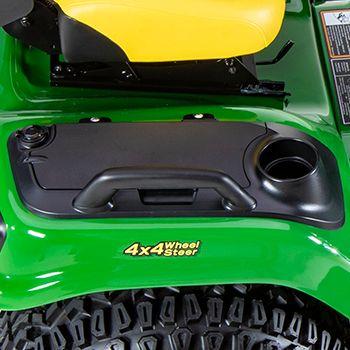

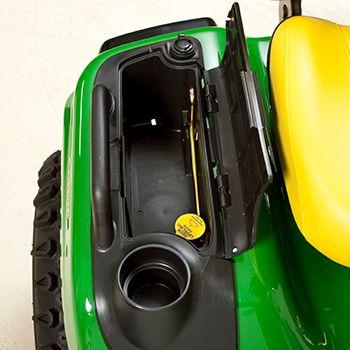

Exact Adjust tool and mower deck leveling gauge are stored in the toolbox to provide a convenient means of checking and adjusting the deck level:
Consult the operator's manual for the correct adjusting procedure. Basic adjusting steps to properly level the mower deck include:
NOTE: The adjusting tool supplied with the tractor is an 8-mm ball-hex key. The rounded end allows for some misalignment with the bolt as the deck is adjusted.

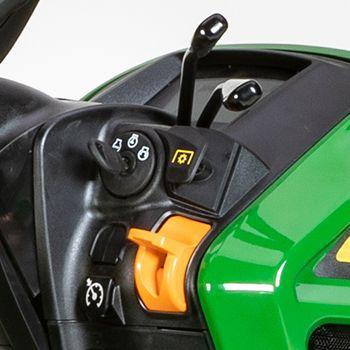

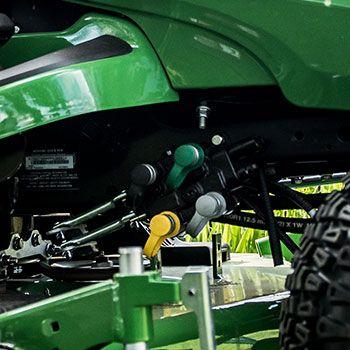

Four hydraulic couplers with color-coded covers are available for quick, easy connections.
CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:
NOTE: Backing up while the mower is engaged is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.
NOTE: For tractors equipped with an optional front PTO kit installed, the front implements will rotate while backing up without engaging RIO.
The hydrostatic transmission foot pedals must be in neutral, with brake depressed, PTO disengaged, and the ignition key used, before the tractor will start.
Once the tractor is running, the engine automatically shuts off if the operator leaves the seat with the PTO engaged, brake pedal unlocked, or hydrostatic foot controls out of the neutral position.

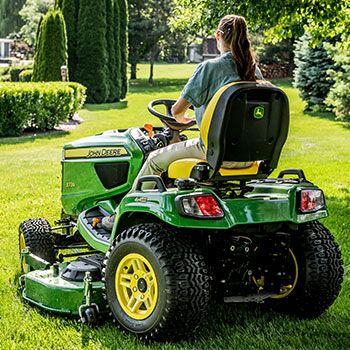

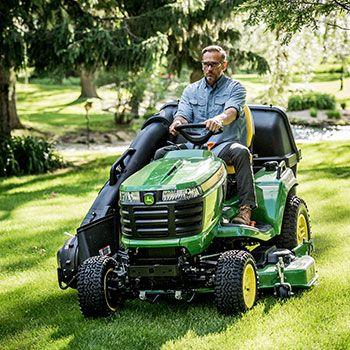

John Deere Signature Series are the very best mowing tractors available and can also handle a wide range of other yard care chores, such as snow removal, lawn cleanup, and landscaping work. These heavy-duty tractors include models with two-wheel drive (2WD) and four-wheel drive (4WD), two- and four-wheel steering, and even a model with full-time 4WD and four-wheel steering.

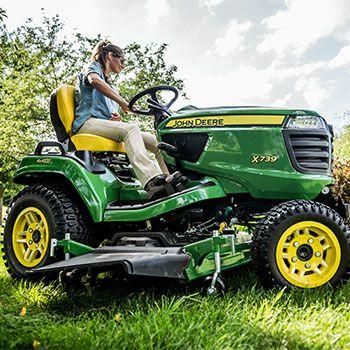

Standard equipment styled alloy wheels and John Deere brand embroidery:
The open platform is roomy and uncluttered:

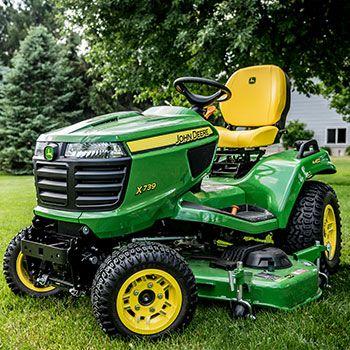

The single-piece hood completely encloses the engine:

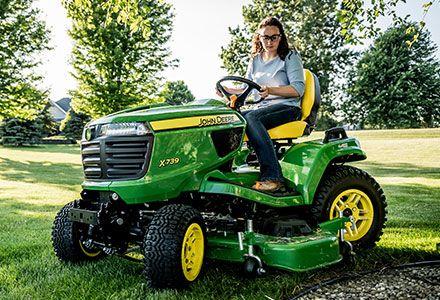

Available mower decks include a 48-in. (122-cm) Accel Deep™ Mower Deck or 54-in. (137-cm) or 60-in. (152-cm) Edge™ High-Capacity Mower Deck. All mowers have premium design features to give a clean, level cut and excellent performance, whether side discharging, mulching, or collecting lawn material.
X700 Signature Series Tractors offer these important performance advantages:

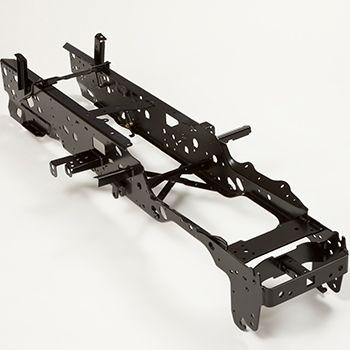

The full-length, welded C-channel steel frame provides plenty of strength to handle heavy equipment:
The frame is robotically metal inert gas (MIG) welded:
A front Quik-Tatch weight bracket is designed into the frame:

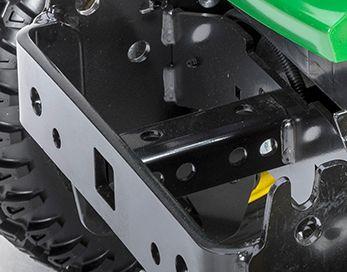

A front receiver hitch is designed into the frame:

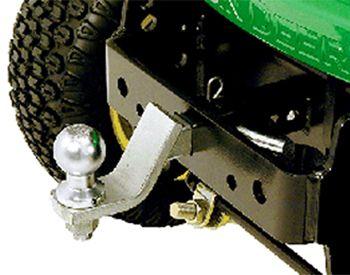

An optional rear receiver hitch is available.

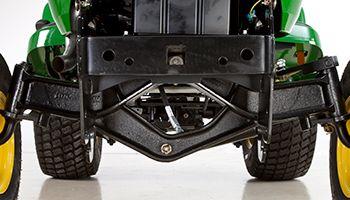

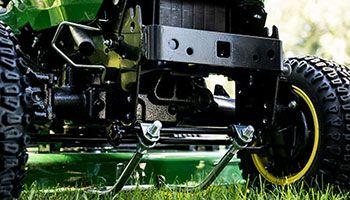

The front axles are made of strong, shock-resistant cast iron:

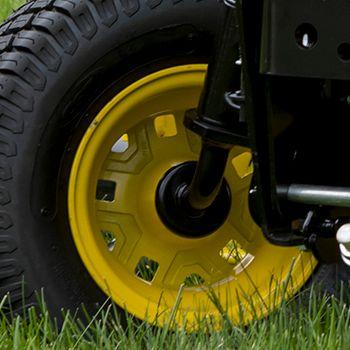

The 2WD tractors use large, 1-in. (2.5-cm) diameter wheel spindles for durability:

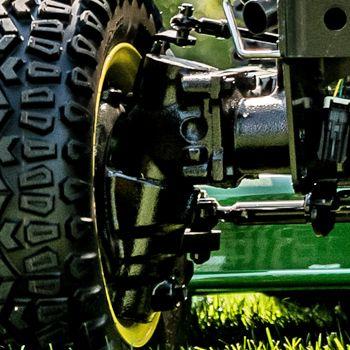

The 4WD tractors use heavy-duty cast and machined front spindle and wheel motor assemblies for durability and long life.
Twin Touch foot pedals control the speed and direction of travel:
When the master brake pedal is depressed, the power take-off (PTO) and cruise control disengage.
Cruise control is standard equipment:

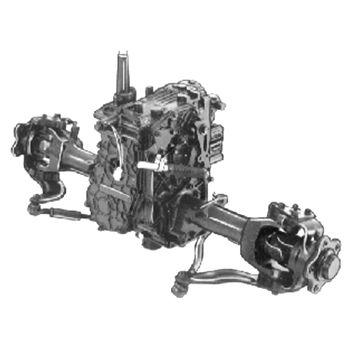

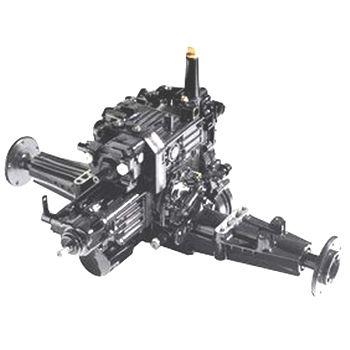

A rugged, heavy-duty commercial hydrostatic transaxle handles a wide variety of ground-engaging applications and commercial mowing usage. A hitch for tow-behind equipment is included. The tractor frame extends behind the transaxle to provide mounting points for the category 1 3-point hitch and Click N Go™ mounting brackets.
Many quality features are provided:
Two-wheel drive (2WD) and four-wheel drive (4WD) tractors use similar transaxles, however, four-wheel steer tractors have additional features that allow the rear wheels to turn.
Infinite control of ground speed and smooth change of direction provide efficiency and operator convenience. The differential lock provides positive power to both drive wheels for increased traction. It can be engaged by the operator as needed.
Forward
0 to 8.5 mph (0 to 13.7 km/h)
Reverse
0 to 6 mph (0 to 9.7 km/h)
A transmission oil cooler is standard equipment:
John Deere riding lawn mowers are equipped with a QR code label that links to an owner support website. The label can be found on the rear fender, to the left of the seat.
The owner support website is formatted for smart phones and available without setting up an account and password. The QR code includes the mower’s serial number, enabling the owner support website to provide a maintenance schedule, service parts, attachments, how-to guide, videos, warranty information, and an operator’s manual for the specific mower.
The owner support website also allows users to purchase service parts, schedule dealer service, purchase extended warranties, and download the Equipment Mobile app. The Equipment Mobile app enables users to maintain a shared digital service record with their dealer.

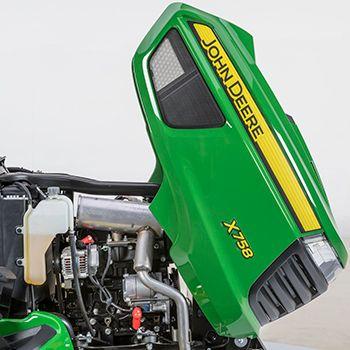

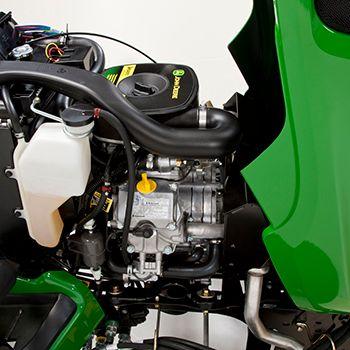

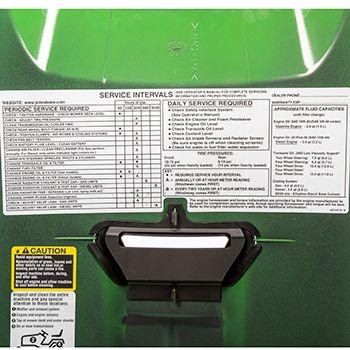

The one-piece hood opens easily to permit checking and servicing the engine:

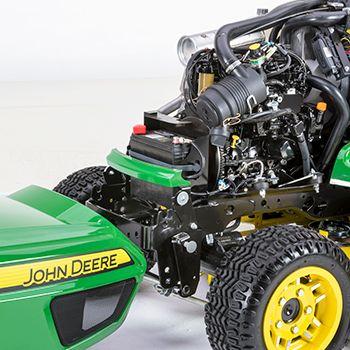

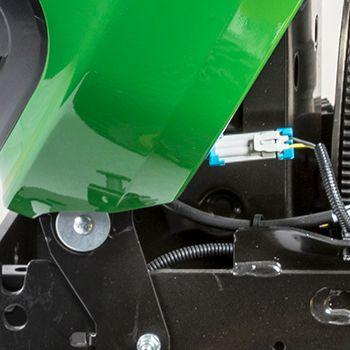

If necessary to do more extensive service, the hood can easily be completely removed without tools:

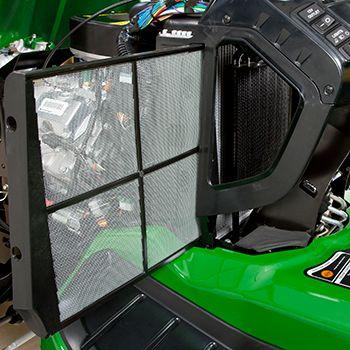

A screen keeps material from building up on the radiator and can be easily removed for cleaning.
A convenient deck-leveling gauge and Exact Adjust tool are provided:
The optional MulchControl system makes mulching more practical for many mowing situations because it not only does an excellent job of mulching, but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
MulchControl is an innovative, simple design that is easy to use and maintain:
MulchControl is well-suited to the following mowing situations:
MulchControl puts the operator in control of the clippings.

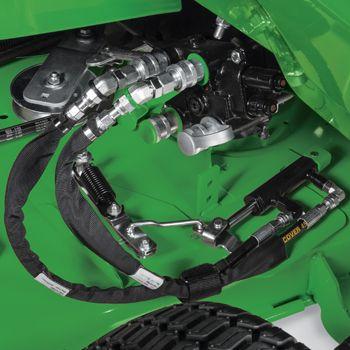

An optional hydraulic MulchControl actuator is available to shift the MulchControl baffle using the tractor’s hydraulic control lever. Operators can convert between modes without interrupting the mowing process, making it possible to change between modes:
While in the side-discharge mode, MulchControl still mulches about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
The MulchControl baffle can be opened or closed with the Power Flow™ blower installed. The Power Flow blower runs without material when the baffle is closed.
Each MulchControl system is an optional field-installed attachment and includes everything needed for handle actuation: baffles, handle, and mulch blades. If desired the optional hydraulic actuator needs to be ordered separately.
MulchControl is compatible with model year 2013 and newer X700 Signature Series Tractors (serial number 10,001-) with one of the following mower decks:
Optional hydraulic MulchControl actuator (BUC10536) is available for model year 2019 and newer 9078M 54-in. (137-cm) or 9079M 60-in. (152-cm) High Capacity Mower Deck (serial number 070,001-). Mower must be equipped with a basic MulchControl attachment:
BUC10705 48-in. (122-cm) Accel Deep MulchControl
BM26300 54-in. (137-cm) High Capacity MulchControl
BM25258 60-in. (152-cm) High Capacity MulchControl
BUC10536 Hydraulic MulchControl actuator
The 48-in. (122-cm) Accel Deep™ (48A) Mower Deck, 48-in. (122-cm) Edge™ Xtra Mower,* and 54-in. (137-cm) and 60-in. (152-cm) Edge High Capacity (HC) Mowers use a high-performance Power Flow blower to collect material into a variety of material collection systems:
Features are as follows:

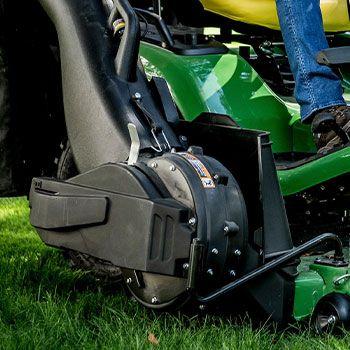

The Power Flow blower works well with either the standard mower blades or the mulching blades.

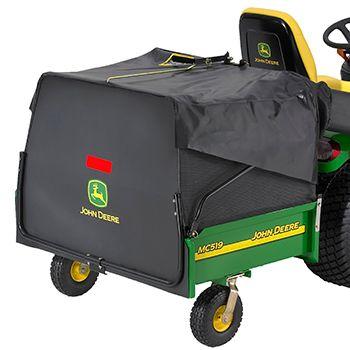

Each of the John Deere material collection systems has durable construction for long life in homeowner or commercial applications.

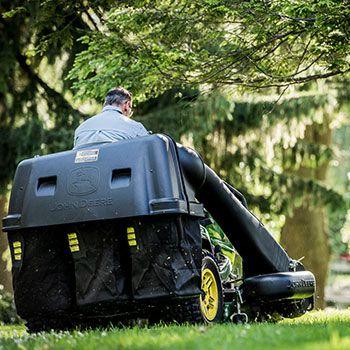

*NOTE: The three-bag, 14-bu (493-L) Power Flow is not compatible with a X729, X739, or X749 Tractor equipped with a 48X Mower Deck because the chute can contact the rear tire in a turn. However, it is compatible with the 48 Accel Deep (48A) Mower because the increased deck height and the height of its Power Flow blower housing lift the chute high enough to clear the wheel and fender with the three-bag hopper installed.

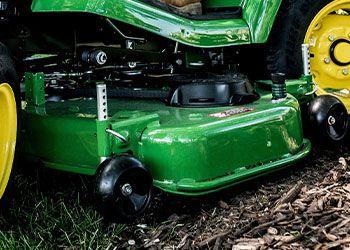

The 48-in. (122-cm) Accel Deep Mower Deck is a forged-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:
NOTE: The 9077M 48A Mower Deck requires a standard connect or auto connect attachment (similar to 54 HC and 60 HC Mower Decks). Unlike the 54 HC and 60 HC, the shaft drive 48A Mower Deck is not a drive-over deck. Operators can rotate the mower wheels 90 degrees and roll the 48A Mower Deck under an X700 Signature Series Tractor and utilize the auto connect to connect the power take-off (PTO) shaft.
Deep mower-deck forging gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut:
Deep mower-deck forging gives high productivity, which gets the job done fast. It allows the cut and suspended material room to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:
Large discharge opening is both high and wide to handle more material:
The flat-top shape of the deck forging is optimal for keeping itself and the operator clean:
Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities:

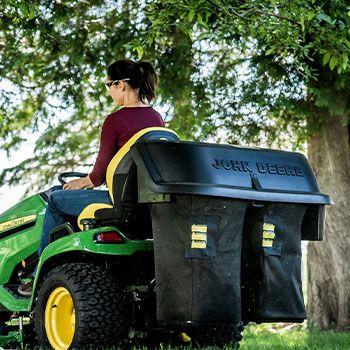

A variety of material collection systems is available for use with the Power Flow blower:

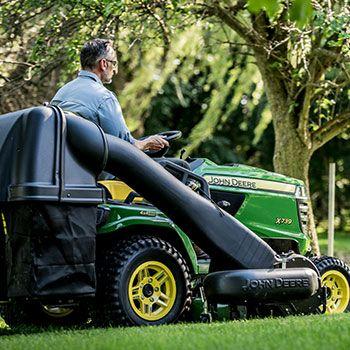

The Power Flow blower and chute are easy to install. The Power Flow blower swings out for easy cleanout and cleanup.
A wash port is provided to make cleaning the underside of the mower deck easy.

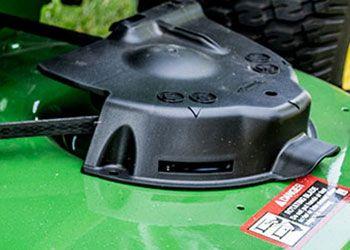

The 48A Mower Deck has strong spindle pockets to keep the blades aligned, even after years of tough service:

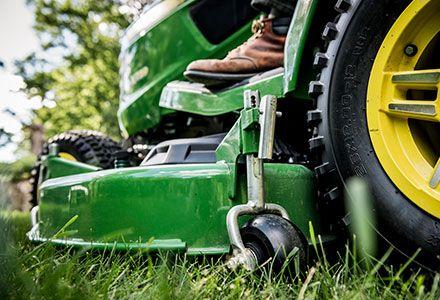

Mower wheels are heavy duty:
The 48A Mower Deck features a 5/8-in. (16-mm) diameter solid-steel rod side bumper that provides extra strength and protection.
Dual-stage E-coat and powder-paint coatings provide extra protection from rust.
The 48A Mower Deck is designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another:
Side-discharge blades can be used with the Power Flow system when bagging.
Mulching blades are included with the optional MulchControl system. They can be used for mulching, side discharging, and bagging.
Mower blade use chart
Mode(s) of operation
Mower blade
Side discharging mode only
Side-discharge blade (shipped with mower)
Mulching mode only
Mulching blade (shipped with MulchControl)
Side discharge and mulching
Mulching blade (shipped with MulchControl)
Bagging
Either side-discharge or mulching blade
Keep your John Deere equipment running its best with the John Deere Equipment Mobile App. Download the app from the mobile device’s app store, then add all your John Deere equipment by scanning the serial number bar codes. Once your equipment is added, you can access all your product’s model, serial number, and model year information in one place. The app also provides maintenance, parts, and support resources that are specific to your serial number(s).
It is important to get the right parts the first time. When you load your equipment list, Equipment Mobile provides parts information specific to your serial number(s). This is helpful to you and your John Deere dealer, as some parts can vary by serial number range.
Equipment Mobile includes comprehensive maintenance plans for each piece of your equipment. The maintenance plan screen keeps track of completed tasks, provides a place for your notes, and provides parts listings. You can also share your maintenance plan with your dealership, enabling tasks completed by the dealer to be included.
A machine’s operator’s manual is a go-to resource that is available in Equipment Mobile. You can search, view, and download a copy. The operator’s manual is specific to the serial number(s) of your equipment.
A smart connector links the mower to the Equipment Mobile App and transmits vehicle information via Bluetooth® wireless technology to provide:
Optional BUC11960 smart connector is for use with:
Hours, fuel level, key switch status, and battery level are updated whenever the Equipment Mobile device is in range of a mower with a BUC11960 smart connector.
Optional BUC10537 smart connector is for use with:
Hours, fuel level, key switch status, and battery level are updated whenever the mower’s key is turned on and the Equipment Mobile device is in range of a mower with a BUC10537 smart connector. The X350R Tractor does not report exact fuel level, it only indicates if the mower is low on fuel.
The Z370R, Z370RS, and Z380R Electric ZTrak Mowers include the smart connector in base equipment.
On Electric ZTrak Mowers the battery level, charging status, and hours are transmitted when the Equipment Mobile device is in range of the mower, and the mower is on or actively charging. Equipment Mobile can also update an Electric ZTrak Mower’s controller software.
A smart connector requires the Equipment Mobile App. The John Deere Equipment Mobile App can be found in the mobile device’s app store.
Bluetooth is a trademark of Bluetooth SIG, Inc.
| Engine power | 25.5 hp 19 kW |
|---|---|
| Oil change | - |
| Engine manufacturer/model | FD750D EFI |
| Transaxle type | K90 hydrostatic integrated with transaxle |
| Transaxle control | Twin Touch™ pedals |
| Rear tires | 26x12-12 turf |
| Lift system type | Two-function hydraulic |
| Cutting width | Accel Deep™ mower deck, 48 in. 122 cm High capacity mower deck, 54, 60 in. 137, 152 cm |
| U.S. warranty | 4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Power | 25.5 hp 19 kW |
|---|---|
| Displacement | 45.5 cu in. 745 cc |
| Manufacturer/model | FD750D EFI |
| Type | Electronic fuel injection (EFI), overhead valve, full-pressure lube, oil filter |
| Cylinders | V-twin, cast-iron liners |
| Governor | Mechanical |
| Choke/speed control | No choke required |
| Cooling method | Liquid |
| Air cleaner | Dry, replaceable with foam precleaner |
| Oil change | No tools |
| Type | Gasoline |
|---|---|
| Fuel delivery | Electronic fuel injection |
| Fuel gauge | Gauge on dash |
| Fuel tank location | Rear |
| Fuel fill opening | On left fender, 3 in. 7.6 cm |
| Fuel tank capacity | 5.2 U.S. gal. 19.7 L |
| Battery | 12 V 340 CCA |
|---|---|
| Charging system | Flywheel alternator, regulated, 20 amp |
| Engine starter | Solenoid shift |
| Hour meter | Yes |
| Headlights | Two standard, halogen, 37 W |
| Taillights or reflector | Taillights |
| Backup lights | Yes |
| Rear work lights | Yes |
| 12-V outlet | Yes |
| Type | K90 hydrostatic integrated with transaxle |
|---|---|
| Control | Twin Touch™ pedals |
| Cruise control | Yes |
| Oil cooler | Yes |
| Oil filter | Replaceable suction side 10 micron |
| Differential lock | Standard |
| Forward speed | 0-8.5 mph 0-13.7 km/h |
| Reverse speed | 0-6 mph 0-9.7 km/h |
| Brakes | Internal wet disc |
| Frame | Welded heavy-duty |
|---|---|
| Primer/paint | E-coat/powder |
| Weight bracket | Standard front - holds up to four Quik-Tatch weights, 42 lb 19 kg |
| Receiver hitch | Yes, front |
| Front axle | JDM BA8 nodular iron casting |
| Spindle bushings | Metal, replaceable |
| Front tires | 18x8.5-8 turf |
| Rear tires | 26x12-12 turf |
| Hood material | Noryl GTX902, painted |
| Fender deck material | Stamped steel |
| Floor mats | Sure-grip rubber |
| Storage | Covered toolbox |
| Service interval decal | Yes |
| Fender handles/grips | Handles |
| Cup holder | Yes |
| Equipment mounting | Optional category 1 3-point hitch |
| Maximum towing capacity | 1,000 lb 454 kg |
| Type | Hydraulic power |
|---|---|
| Four-wheel steer | Not available on this model |
| Steering wheel | 14 in. 35.6 cm |
| Tilt steering wheel | Standard, six position |
| Turning radius | 25 in. 63.5 cm |
| Uncut circle radius | 54 HC, 32 in. 81.3 cm 60 HC, 28 in. 71.1 cm |

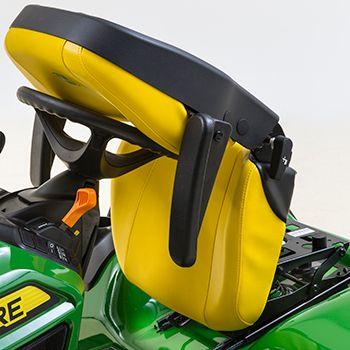

| Type | Two-piece adjustable seat with brand embroidery |
|---|---|
| Seat back height | 21 in. 53.3 cm |
| Armrests | Optional |
| Fore-aft adjustment | While seated, slide rail, 14-position, 7 in. 17.8 cm |
| Seat suspension | Six-position parallel arm |
| Type | Two-function hydraulic |
|---|---|
| Hydraulic outlets | Four, standard |
| Mower cut height | 1-5.25 in. 2.5-13.3 cm |
| Cut height increments | 0.25 in. 0.64 cm |
| Preset cut height | Yes |
| Type | Side discharge |
|---|---|
| Cutting width | Accel Deep™ mower deck, 48 in. 122 cm High capacity mower deck, 54, 60 in. 137, 152 cm |
| Construction | Forged steel deck shell |
| Mower deck material | 48A, 10 gauge 0.135 in. 3.4 mm 54 HC and 60 HC, 9 gauge 0.150 in. 3.8 mm |
| Mower wash port | Yes |
| Mower drive system | Hydraulic clutch, shaft |
| Mower wheels | 48A, four and center front roller 54 and 60 HC, four with optional center front roller |
| Mower wheel adjustment | Spring-loaded pin |
| Mower level adjustment | Exact Adjust ports and onboard deck-leveling gauge |
| Type | Roll under tractor (48A) Drive-over deck (54, 60 HC) |
|---|---|
| Front draft arms | Overcenter |
| Rear draft arms | V-align |
| Mower wheels rotate | Yes, 90 degrees for easy mower removal (48A), N/A (54 HC, 60 HC) |
| Drive system | Shaft or AutoConnect |
| Meets ANSI standard | Yes |
|---|---|
| Meets OPEI standard | Yes |

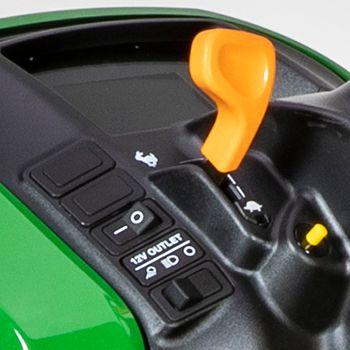

| Backup protection | Reverse Implement Option (RIO) |
| Safety video | Yes |
| Notes | Styled alloy wheels are standard equipment One-piece hood for easy engine access Hydraulic modulated PTO clutch for smooth mower and implement engagement |
|---|---|
| Warranty | 4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Mowers | 48A, 54 HC, 60 HC |
|---|---|
| Rear bagger | 7, 14, 19 bu 250, 500, 670 L |
| Powered material collection | Power Flow, 7, 14, 19 bu 250, 500, 670 L |
| Mulching system | Yes, MulchControl™ |
| Front thatcher | 38, 46, 54 in. 96.5, 116.8, 137.2 cm |
| Front blade | 54 in. 137.2 cm |
| Mid-mount blade | - |
| Snow blower | Two-stage, 47, 54 in. 119.4, 137.2 cm |
| Rotary broom | 52, 60 in. 132.1, 152.4 cm |
| Rotary tiller | 42, 48 in. 106.7, 121.9 cm |
| Sleeve hitch | - |
| 3-point hitch | Category 1 |
| Rear power take-off (PTO) | 540 rpm |
| Plow, moldboard | Adjustable, 8-14 in. 20.3-35.6 cm |
| Box scraper | 48 in. 121.9 cm |
| Cultivator | Adjustable, 30-46 in. 76.2-116.8 cm |
| Rear blade | 60 in. 152.4 cm |
| Disk harrow | Adjustable, 42-52 in. 106.7-132.1 cm |
| Landscape rake | 60 in. 152.4 cm |
| Sprayer | Tow-behind, 15, 25, 45 U.S. gal. 56.8, 94.6, 170.3 L Mounted, 25 U.S. gal. 94.6 L |
| Spreader | Tow-behind, 125, 175 lb 57.7, 79.4 kg Mounted, 125 lb 57.7 kg |
| Front bumper | Standard bumper/weight bracket |
| Brush guard | Yes |
| Weather protection | Hard-side cab, weather enclosure |
| Sun canopy | - |
| Rear receiver hitch | 1.25 x 1.25 in. 3.18 x 3.18 cm |
| Bucket holder | Yes, double bucket |
| Grass striping | Grass groomer kit, 48-in. (122-cm) mower only |
| Tractor shovel | 54 in. 137.2 cm |
| Front loader | Not available |
| Other equipment | - |
| Tow-behind tools | 21 |
| Height | 54.5 in. 1384 mm |
|---|---|
| Overall length | 75 in. 1905 mm |
| Wheelbase | 54.5 in. 1384 mm |
| Width with mower | 48A: 62.5 in. 1588 mm 54 HC: 64.5 in. 1638 mm 60 HC: 74 in. 1880 mm |
| Width with mower (deflector raised for storage) | 48A: 53.6 in. 1362 mm 54 HC: 57.5 in. 1461 mm 60 HC: 62 in. 1575 mm |
| Width without mower | 47 in. 1195 mm |
| Weight | No fuel or mower, 857 lb 389 kg |
| Manufacturing location | Horicon, Wisconsin, USA |
|---|---|
| Date collected | 1-Aug-23 |
