New equipment

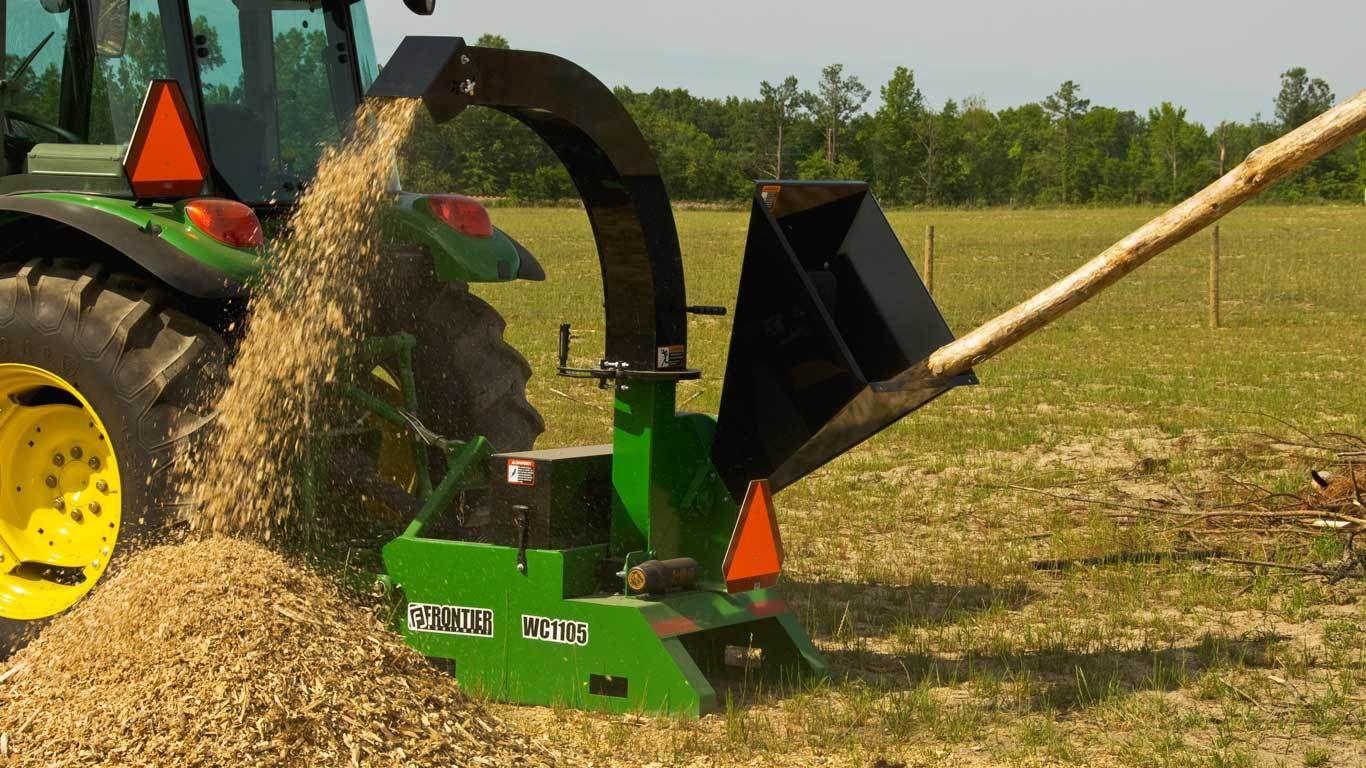

Frontier™ Landscape EquipmentWood Chippers
The belt drive system allows the WC11 Series Wood Chippers to operate using less horsepower while keeping the rotor rpm at a range from 1380 to 1920 rpm, depending on the model.
The WC1103 is a single belt drive, while the WC1105 has three belts.
| Chip opening | 76x140 mm 3x5.5 in. |
|---|---|
| Hopper opening | 635x457 mm 25x18 in. |
| System | Manual (gravity) |
|---|---|
| Feed_x001A_roller diameter | - |
| Hopper height | 965 cm 38 in. |
| Fixed | 2 positions |
|---|---|
| Adjustable | - |
| Unit | 170 kg 375 lb |
|---|---|
| Rotor style | Disc |
| Rotor | 29.5 kg 65 lb |
| PTO rpm | 540 rpm |
|---|---|
| HP range (Tractor PTO hp) | 13.4-29.8 kW 18-40 hp |
| Category | Cat. 1 |
|---|---|
| iMatch™ or Quik-Coupler | - |
| Requirements | - |
|---|---|
| Self-contained system | - |
| Knife quantity | Two |
|---|---|
| Knife size | 635x89x7.9 mm 2.5x3.5x0.3125 in. |
| Knife bolt | - |
| Shear bar | Adjustable hardened anvil |
| Rotor rpm | 1920 rpm |
| Number | One bx |
|---|---|
| Type | - |
| Labor hours | 0.5 |
|---|
| Time period | 1 year |
|---|
| Date collected | - |
|---|
