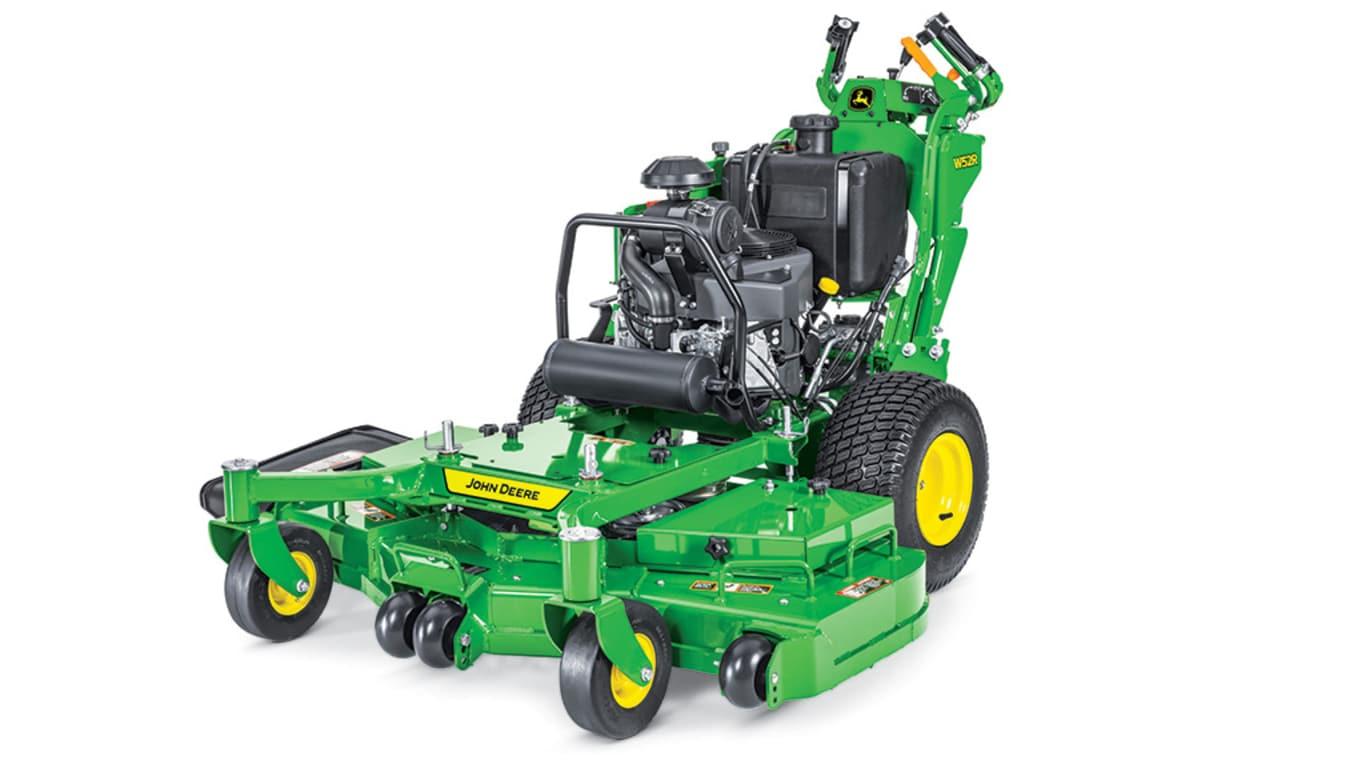

W52R

Powered by an air-cooled, vertical-shaft engine:

• 15.5 hp (11.6 kW) FX481V - W36R
• 19.0 hp (14.2 kW) FX600V - W48R, W52R
• 23.5 hp (17.5 kW) FX730V - W61R
• 36.8 cu in. (603 cc) - W36R, W48R, W52R
• 44.3 cu in. (726 cc) - W61R
• Electric start with a large 300 cold-cranking amp (CCA) battery for fast, convenient starts
• V-twin design for smooth operation and fast starts

Consistently strong torque at low- or high-speed operation

• Aluminum engine block with cast-iron cylinder liners

Effectively dissipates heat

• Lightweight and strong construction
• Overhead valve design
• More horsepower and torque per cubic inch of displacement
  • Better fuel efficiency
  • Less oil consumption
  • Cooler operating temperature
• Full-pressure lubrication with full-flow filter
  • Reduces engine wear by ensuring proper lubrication, even when operating on hillsides or uneven terrain
  • Helps keep oil clean for increased engine life

• Heavy-duty canister air cleaner for extended engine life and efficient operation
• Single-element air filter (W36R, W48R, W51R) or dual-element air filter (W61R)
• Rotating grass chopper screen
• Cylinder-head cooling-fin cleanout ports to ease maintenance
• Complies with U.S. Environmental Protection Agency (EPA) emission standards

Fuel tank and battery

Large, 5.4-gal. (20.4-L) top draw fuel tank is easy to fill with large filler opening in an easy-to-reach location.

• Fuel pump for dependable, consistent operation
• Top-draw system to reduce the chance for fuel leakage
• A replaceable in-line fuel filter for trouble-free operation

A powerful, 300-CCA battery is secured and protected from damage in an easy-to-access location.

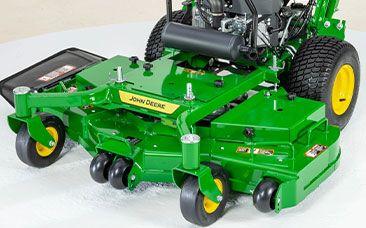

John Deere commercial mower decks have always demonstrated quality, performance, and durability. Each commercial walk-behind mower is equipped with a high-quality fabricated mower deck:

• 10-gauge, 0.135-in. (3.42-mm) fabricated steel deck top with added 10-gauge, 0.135-in. (3.42-mm) spindle mounting plate
• 7-gauge, 0.19-in. (4.8-mm) side skirts with reinforcement bar

The fabricated, floating mower deck delivers an extremely high-quality cut in diverse conditions:

• Floating suspension enables the best possible cut.
• Reinforced front lower edge gives strength and durability.
• Anti-scalp wheels are double-captured for durability and adjustable to three positions to suit the cut height.
• Deep-deck design for superior capacity.
• Side and center anti-scalp wheels promote a smooth mowing job.

• Hardened, high-lift steel blades extend cutting time and increase durability.
• High blade-tip speed of approximately 18,000 fpm (5,486 m/min).
• R Series mower decks include a center rear wheel for additional anti-scalp and curb climbing protection.
  • Adjustable to three height positions to suit the cut height

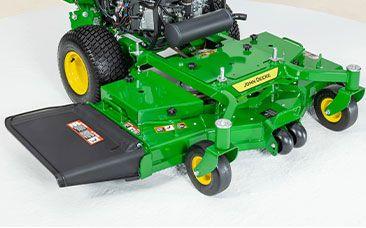

A high-quality polyethylene deflector gives an excellent finished appearance:

• Wide, formed discharge deflector provides even clipping distribution.
• Large discharge deflector evenly disperses expelled clippings.

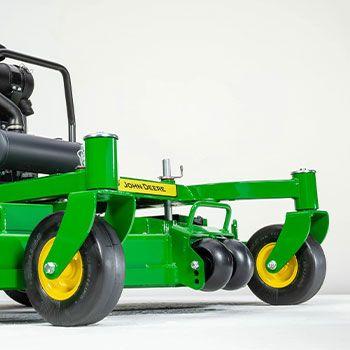

Caster wheels with flat-free tires contribute to a smooth, even cutting job:

• Large, flat-free caster wheels carry the mower deck smoothly over the lawn.
• Caster wheels are close to the mower deck to reduce vehicle footprint and turning radius.
  • With the wheels less exposed, there is less chance they will get snagged by immovable obstacles, thus improving maneuverability and reducing chance of damage.

Mower cut-height adjustment

A floating mower deck has several advantages over a fixed mower deck design:

• Follows ground contour more effectively for a more even cut
• Travels smoothly above the ground with minimal chance of scalping
• Easier to adjust the cutting height

Mower cutting height can be set from 1.5 in. (3.8 cm) to 4.5 in. (11.4 cm) in 0.5-in. (1.3-cm) increments:

• The free-floating deck gives a smoother, more level cut.
• Height-of-cut changes can be made without tools.
• Large handles are provided to facilitate lifting the mower deck for setting the cut height.
• Cut-height adjustment pins have 90-degree bend for easy removal and reinstallation.

Mower deck shields are easily removed with hand knobs for access to the drive belt and other service points:

• Easy-attach belt shields allow quick access for service.
• Four hand knobs allow removal of both mower shields.
• Greaseable spindles with easy, top access for simplified servicing.
• Spindle grease fittings can be greased with shields in place.

Optional mulching attachment

An optional mulching attachment and special mulching blades are available:

• The high-performance mulching attachment includes formed steel baffles to control the material for superior performance.
• Special mulching blades can also be used for side discharging, though overall cutting performance may be slightly less than with the standard blades.

Optional grass catcher

The grass catcher is designed to work with 36-in. (91-cm), 48-in. (122-cm), and 52-in. (132-cm) Mower Decks on John Deere Commercial Walk-Behind Mowers:

• Large, 4.4-cu ft (3.5-bu) capacity allows for less stops to empty catcher.
• No mower faceplate is needed. The catcher connects directly to standard mower deck features.
• Stainless steel and aluminum construction is both durable for long life and lightweight for easy handing.
• Convenient sliding door latch enables easy emptying.
• Two large grab handles provide for easy handling.
• Catcher weighs about 30 lb (13.6 kg) empty.

NOTE: The optional mulch and grass catcher attachments are not included in base equipment for the commercial walk-behind mower and must be ordered separately.

An optional mulching attachment and special mulching blades are available:

• The high-performance mulching attachment includes formed steel baffles to control the material for superior performance.
• Special mulching blades can also be used when side discharging, though overall cutting performance may be slightly less than with the standard blades.
• The mulching attachment allows for conversion of the mower deck so it can be used to perform the mulching function (grass or leaves).

Operating tips when mulching:

• Mow when grass is dry.
• Observe the one-third rule.
  • No more than one-third of the grass blade should be cut off at one time. This allows more efficient mulching and will promote the continued good health of the grass.
  • If the desired cut height cannot be achieved by cutting off one-third, or there is clumping of the clippings, it may be required to cut higher, wait a day, then lower the mower and make a second pass.
• Mow at proper intervals, approximately every four to five days.
• Always mow with sharp blades.
• Adjust ground speed to allow the mower deck to process the clippings effectively.

All of the controls are located within comfortable reach of the operator. Simplified operation of each control offers superior convenience, productivity, and safety:

• Color-coded and clearly marked levers, switches, and buttons enable simplified operation.
• Bilingual decals in English and Spanish are provided.
• The operator presence system requires that one of the bails must be depressed to operate the unit; the machine must be in neutral and the power take-off (PTO) must be disengaged to start.
  • Operator presence control levers are recessed into control handle when engaged, provides a smooth contour and comfortable handle to hold during operation.
• Separate choke and throttle – This takes the guesswork out of choke operation, with less chance of fowling the spark plugs.
• Electric PTO clutch on the engine powers the mower deck. The PTO switch on the dash is easy to see and use.

• Speed and steering controls are designed for ease of operation.
• Ergonomically designed control configuration on all units gives good operator comfort and leverage while driving.
• A speed-control lever is conveniently located in the center of the console and used to set maximum desired speed.

• Low actuation force is required for operator comfort.
• The neutral lock is spring-loaded for easy release.

A convenient and easy-to-operate switch is located on the console to operate the electric clutch, which powers the mower deck.

Parking brake (W36M, W48M)

W36M and W48M parking brake control lever:

• Color coded and located above the console, within easy reach of the operator
• Actuates internal braking mechanism of the transmissions

Parking brake (W36R, W48R, W52R, W61R)

W36R, W48R, W52R, and W61R parking brake control lever:

• Color coded and located above the console, within easy reach of the operator
• Actuates arm that creates a mechanical locking interference on both drive tires
• Brake pawl located near top of tire to eliminate contact with curbs

Bumper-to-bumper warranty

Model

Warranty

W36M, W48M

24 months no hour limitation

W36R, W48R, W52R, and W61R

36 months or 1200 hours, whichever comes first

First 24 months, no hour limitation

John Deere warranty includes:

• Single source
• Commercial application

All parts, except tires and batteries (which are warranted under separate documents provided with each product), are warranted

Quick response (QR) codes link to owner information web pages

To speed access to owner information web pages, a QR code is printed onto a product identification number (PIN) label located on frame (M-Series) or near handlebars (R-Series). The owner information web pages that include links to:

• Safety and how-to videos
• Operator’s manuals
• Parts catalogs
• Maintenance reminder sheets
• Attachments
• Warranty statements

Engine service

Engine service points are easy to reach:

• Oil drain tubes are provided to reduce oil spills and mess.
• Cleanout ports make inspecting and cleaning engine cooling fins easy.

Durable and adjustable control linkage

Control rods and ends are plated to stop rust and corrosion:

• Large pivot points for minimal wear and long life
• Grease fittings to lubricate for continued smooth operation
• Adjustable rod ends for easy and accurate adjustments

Control linkages are positioned tightly to the main frame structure to protect them from damage, such as being bent that could impact the speed and tracking of the unit.

Transmission service

Transmission oil reservoirs are easy to access and fill.

The transmission oil filter is a replaceable spin-on type for easy service.

Tow release

Transmission tow valves are easy to find and use.

Convenient tie-down locations

• Front and rear tie-down points are provided to aid in transport.
• More-rounded corners contribute to a clean, attractive appearance.
• Greater strength results from eliminating sharp angles where peak loads can cause failure.

From the operator's station to the mower deck, John Deere walk-behind mowers have a compact and functional design:

• Caster wheels are set in as close to the mower as possible.
  • Shortest overall machine length to maximize maneuverability and minimize space needed on a trailer
• The compact design of John Deere commercial walk-behind mowers allows access to operate in tight areas where larger ride-on machines cannot fit. Often, this means the area can be mowed with a walk-behind mower so it is not necessary to switch to another mower, which helps reduce the time on site.
• With the compact design of John Deere commercial walk-behind mowers, less space is required on a truck or trailer, possibly freeing up space for an extra mower, resulting in less time on property, saving both time and money.

Whether mowing hills or on level terrain, trimming, or mowing straight-away, the operator of a John Deere commercial walk-behind mower is able to control the machine:

• The compact design makes the machine easier to maneuver.
• Caster wheels are set close to the blades for most effective ground following capability.
• Compact design takes less space for mowing tighter areas.

Heavy-duty frame

John Deere commercial walk-behind mowers are designed around a heavy-duty formed and welded steel frame for strength and reliability:

• Welded frame consists of a combination of tubes and plate steel for a continuous frame that delivers long life
• Yoke and caster wheel assemblies are built strong for long life

Convenient tie-down locations

• Front and rear tie-down points are provided to aid in transport.
• Allows ability to secure straps pulling in opposite directions to keep unit from rolling during transport.

Wheels and tires

Large, flat-free front caster wheels and 4-ply rear drive wheels provide smoother operation:

• Rear tires are sized for the machine and mower width to give optimum deck overhang for trimming performance.
  • Tire size
    • 18x6.5-8 (W36M, W36R)
    • 18x8.5-8 (W48M, W48R, W52R, W61R)
  • Benefits include:
    • Better slope performance
    • Easier to operate over uneven ground
    • Better traction
    • Increased ground clearance
• Front caster wheels are designed for the best performance.
  • Large, 9x3.5-4 size for good flotation and easy steering
  • Flat-free, semi-pneumatic design for reliability
  • Positioned back close to the mower deck for most effective ground following capability

W36R, W48R, W52R, and W61R Mowers are equipped with an infinitely variable hydrostatic drive system with reverse, which does the following:

• Provides infinite ground-speed adjustments from 0 mph to 7.5 mph (0 km/h to 12.1 km/h) to meet the mowing application
• Enables a smoother transition from one speed to another
• Gives a reverse speed of 3 mph (4.8 km/h), enabling the operator to back out of tight mowing areas and increase productivity

Wheel motors power the rear drive wheels. Steel oil tubes between the pumps and wheel motors are used for maximum reliability.

A transmission oil reservoir is located next to the fuel tank for easy checking.

Sight glass for checking oil level without opening hydraulic system minimizes risk of contamination entering the system.

The transmission oil filter is a replaceable spin-on type for easy service.

Safety features are designed into M and R Series commercial walk-behind mowers:

• Before the engine will start, the transmission speed control lever must be locked in neutral, the parking brake set, the power take-off (PTO) disengaged, and the key switch turned to the on position.
• Left- and right-hand speed/direction control levers are locked in neutral by spring-loaded knobs on the end of control handles.
  • The knob has a finger lever, making it easy to move to the locked position while holding the control lever in the neutral position.
  • The locking knob is spring loaded for easy release of the control levers.
• Separate choke and throttle – this takes the guesswork out of choke operation, and there is less chance of fouling the spark plugs.
• Color-coded and clearly marked switches and buttons are easy to find.

• Convenient parking brake location
• The key switch interlock prevents bypass starting

• Shields are easy to remove and reinstall so they are more likely to be put back on after removal
• Safety labels
• Bilingual decals in English and Spanish

Safety certification

John Deere commercial mowers are evaluated by the manufacturer (John Deere Turf Care) and conform to American National Standards Institute (ANSI) / Outdoor Power Equipment Institute (OPEI) 5395-1 and 5395-2 safety requirements for combustion-engine-powered lawnmowers.

The grass catcher is designed to work with 36-in. (91-cm), 48-in. (122-cm), and 52-in. (132-cm) Mower Decks on John Deere Commercial Walk-Behind Mowers:

• Large, 4.4-cu ft (125-L) capacity for less stops to empty catcher.
• No mower faceplate is needed. The catcher connects directly to standard mower deck features.
• Stainless steel and aluminum construction is both durable for long life and lightweight for easy handing.
• Convenient sliding door latch enables easy emptying.
• Two large grab handles provide for easy handling.
• Catcher weighs about 30 lb (13.6 kg) empty.

Overview

A JDLink™ M Modem connects a commercial mower to the John Deere Operations Center, which enables you to manage your fleet more efficiently, increase productivity, and reduce labor costs. With a modem and Operations Center, you are always connected to the work in progress and can make timely adjustments to keep your fleet mowing.

JDLink M Modem

A JDLink M Modem is standard equipment on model year 2024 and newer TerrainCut Front and Wide-Area Mowers.

A modem can be field installed on:

• Model year 2024 and newer Z700 ZTrak™ Mowers
• Model year 2024 and newer gasoline-powered Z900 ZTrak Mowers
• Model year 2024 and newer Z994R ZTrak Mowers
• Model year 2021 and newer Z997R ZTrak Mowers
• Model year 2024 and newer Q800 QuikTrak™ Mowers
• Model year 2025 and newer R Series commercial walk-behind mowers
• Model year 2022-2023 TerrainCut Front Mowers
• Model year 2023 TerrainCut Wide-Area Mowers

See compatibility section for serial number breaks and requirements.

John Deere Operations Center

The John Deere Operations Center tracks your fleet and provides tools to analyze mower data. The connected features vary by mower model.

Models

Location and status

GPS

speed

Geofencing and curfews

Engine hours

Maintenance planner

Machine Analyzer Tool

Fuel level

Fuel consumption

Diagnostic trouble codes

Service Advisor Remote

Z700 ZTrak Mowers

X

X

X

Key

X

X

---

---

---

---

Z900 ZTrak Mowers with carbureted engines

X

X

X

Key

X

X

---

---

---

---

Z900 ZTrak Mowers with EFI engines

X

X

X

Sync

X

X

X

X

X

X

Z994R ZTrak Mowers

X

X

X

Key

X

X

---

---

---

---

Z997R ZTrak Mowers

X

X

X

Sync

X

X

---

X

X

X

E Series QuikTrak Mowers

X

X

X

Key

X

X

---

---

---

---

Q820M, Q850M, and Q850R QuikTrak Mowers

X

X

X

Sync

X

X

X

---

X

---

Q865R EFI QuikTrak Mowers

X

X

X

Sync

X

X

X

X

X

X

R Series commercial walk-behind mowers

X

X

X

Key

X

X

---

---

---

---

1550 TerrainCut Front Mowers

X

X

X

Key

X

X

---

---

---

---

1570, 1575, 1580, and 1585 TerrainCut Front Mowers

X

X

X

Key

X

X

---

X

X

X

1600 TerrainCut Wide-Area Mowers

X

X

X

Key

X

X

---

X

X

X

Location and status

The JDLink M Modem regularly transmits the location and operational status of each mower in the fleet so you can monitor mowing progress in Operations Center.

• Location history-Display of map with current and past locations of each mower.
• GPS Speed-Maps each mower’s current speed, based on GPS location data, so you can target operator training.
• Hours of operation-Reports the time of day the vehicle has been operated.
• Geofencing-Alerts when a mower enters or exits a prescribed area, for example if the mower has been stolen or an operator entered an area that should not be mowed.
• Curfews-Alerts if the mower is operating outside prescribed times, for example residential areas with early-morning noise restrictions.

Engine hours

The modem regularly transmits the mower’s engine hours to inform maintenance planning and balance use.

• Sync-The mower reports actual engine hours to the Operations Center.
• Key-Engine hours are estimated by monitoring the key switch. Engine hours can be corrected in Operations Center.

Maintenance planner

Factory or custom maintenance plans can be established in Operations Center. Maintenance alerts are sent when engine hours reach maintenance intervals.

Diagnostic trouble codes (DTCs)

On select products, the modem transmits the trouble codes generated by the mower’s control units to the Operations Center. Addressing DTCs can reduce downtime and repair costs. For example, a low-engine oil pressure DTC can indicate an engine is low on oil. Addressing the issue can prevent costly downtime and repairs.

To help address issues quickly, when a DTC is generated, the Operations Center can display a push notification on the mobile app and send an email. Operations Center can also be configured to limit notifications to stop-level severity DTCs.

Machine Analyzer Tool

On select products, the modem reports the time the mower spent transporting, idling, and working. The Operations Center’s Machine Analyzer tool reports usage data which allows you to analyze operator behavior, identify causes of low productivity, and initiate corrective actions.

Fuel level

On select products, the modem reports the fuel level. On these products, an analysis of fuel consumption is available in the Operations Center Machine Analyzer Tool. Measuring fuel consumption enables you to address causes of excessive fuel use.

Service Advisor Remote

On select products, John Deere dealers can perform remote diagnostics, software programming, and adjustments without the cost of a service call.

Compatibility

A JDLink M Modem is standard equipment on model year 2024 and newer (SN 110,001-) TerrainCut Front Mowers and model year 2024 and newer (SN 690,001-) TerrainCut Wide-Area Mowers.

A JDLink M Modem can be field installed on the commercial mowing products listed below. Field installation attachments simplify modem installation, and include brackets, mounting hardware, harness, and instructions. Field installation requires a JDLink M Modem to be ordered separately. The field installation attachments include a wiring harness therefore the modem should be ordered with the less harness option code.

Model

Compatible model years

Installation attachment

Z700 ZTrak Mowers

2024 and newer (SN 080,001-)

BUC11759

Gasoline-powered Z900 ZTrak Mowers

2024 and newer (SN 130,001-)

BUC11759

Z994R ZTrak Mowers

2024 and newer (SN 070,001-)

BUC11759

Z997R ZTrak Mowers

2021 and newer (SN 070,001-)

BUC11908

QuikTrak Mowers

2024 and newer (SN 010,001-)

BUC11744

R Series commercial walk-behind mowers

2025 and newer (SN 070,001-)

BUC11918

TerrainCut Front Mowers

2022-2023 (SN 080,001-110,000)

BUC11797

1600 TerrainCut Wide-Area Mowers

2023 (SN 680,001-690,000)

BUC11797

John Deere provides application-specific Environmental Protection Agency (EPA) approved field-installed propane conversion kits for specific John Deere commercial walk-behind mowers, QuikTrak Mowers, and commercial ZTrak™ Mowers. The conversion kits include all components required to convert the engines to operate on propane fuel. Single-tank or dual-tank brackets (depending on the vehicle) are provided for securely holding the propane tank(s) to the vehicle.

Propane tanks are not included.

An optional altitude kit is required when operating at altitudes above 2000 ft (610 m). The operator’s manual with the propane conversion kit provides further details. Parts must be ordered separately through John Deere Parts.

Propane facts:

• Propane is flammable and commonly used as a fuel.
• The molecular formula of propane is C3H8, and it is in the family of liquefied petroleum gases (LP gases). The other LP gases include butane, propylene, butadiene, butylene, isobutylene, and mixtures thereof.
• Propane is commonly available and has proven to be a dependable, safe, economical, and clean-burning fuel. It can be used as household fuel, industrial fuel, and fuel for internal combustion engines. Propane has been used as a fuel since 1910.
• At atmospheric pressure, propane boils at -44°F (-42.2°C), meaning it typically exists as a vapor. However, when contained under pressure, such as in a propane cylinder, it can exist as a liquid.
• Propane is naturally odorless, but includes an additive odorant, usually mercaptan, which gives it a distinct odor.
• Vapor propane is heavier than air, meaning it will settle in low areas such as along the ground or in drains.

Advantages of John Deere propane conversion kits include:

• Reduced fuel costs up to 30 percent depending on fuel prices
• Lower emissions
• Reduced fuel-system maintenance
• Maintains John Deere warranty
• EPA and CARB certified
• May qualify for national and state rebate and incentive programs.

Propane tank mounting bracket options:

Optional tank configurations and sizes are available to provide operators the ability to tailor for run time:

• Commercial walk-behind mowers have only a single-tank mounting option.
  • The single-tank bracket is designed for one 20-lb (9.1-kg) Worthington tank.
    • Tank is not included.
• Model year 2023 and older QuikTrak Mowers have single-tank and dual-tank mounting options.
  • The single-tank, right-side bracket is designed for one 33-lb (15-kg) Worthington tank.
    • Tank is not included.
  • The dual-tank brackets are designed for two 20-lb (9.1-kg) Worthington tanks.
    • Tanks are not included.
• Model year 2024 and newer QuikTrak Mowers have only a dual-tank mounting option.
  • The dual-tank brackets are designed for two 33-lb (15-kg) Worthington tanks.
    • Tanks are not included.
• ZTrak Mowers have single-tank and dual-tank mounting options.
  • The single-tank, left-side bracket is designed for one 33-lb (15-kg) or 43-lb (19.5-kg) Worthington tank.
    • Tank is not included.
  • The dual-tank brackets are designed for two 33-lb (15-kg) Worthington tanks.
    • Tanks are not included.
    • ZTrak Mowers with dual-tank configurations are not compatible with any material collection systems.

NOTE: Reference the Propane and Attachment Compatibility Chart to determine tank configurations that are compatible.

Estimated run-time comparison

Engine displacement
FS603cc
FS726cc
FX726cc
FX852cc

Average consumption (lb [kg]/hr)
3.9 (1.8)
4.2 (1.9)
4.2 (1.9)
5.8 (2.6)

Run time (hours) with 20-lb (9.1-kg) tank
5.1
4.8
4.8
3.4

Run time (hours) with 33.5-lb (15.2-kg) tank
Not available
8.0
8.0
5.8

Run time (hours) with 43.5-lb (19.7-kg) tank
Not available
10.4
10.4
7.5
