New equipment

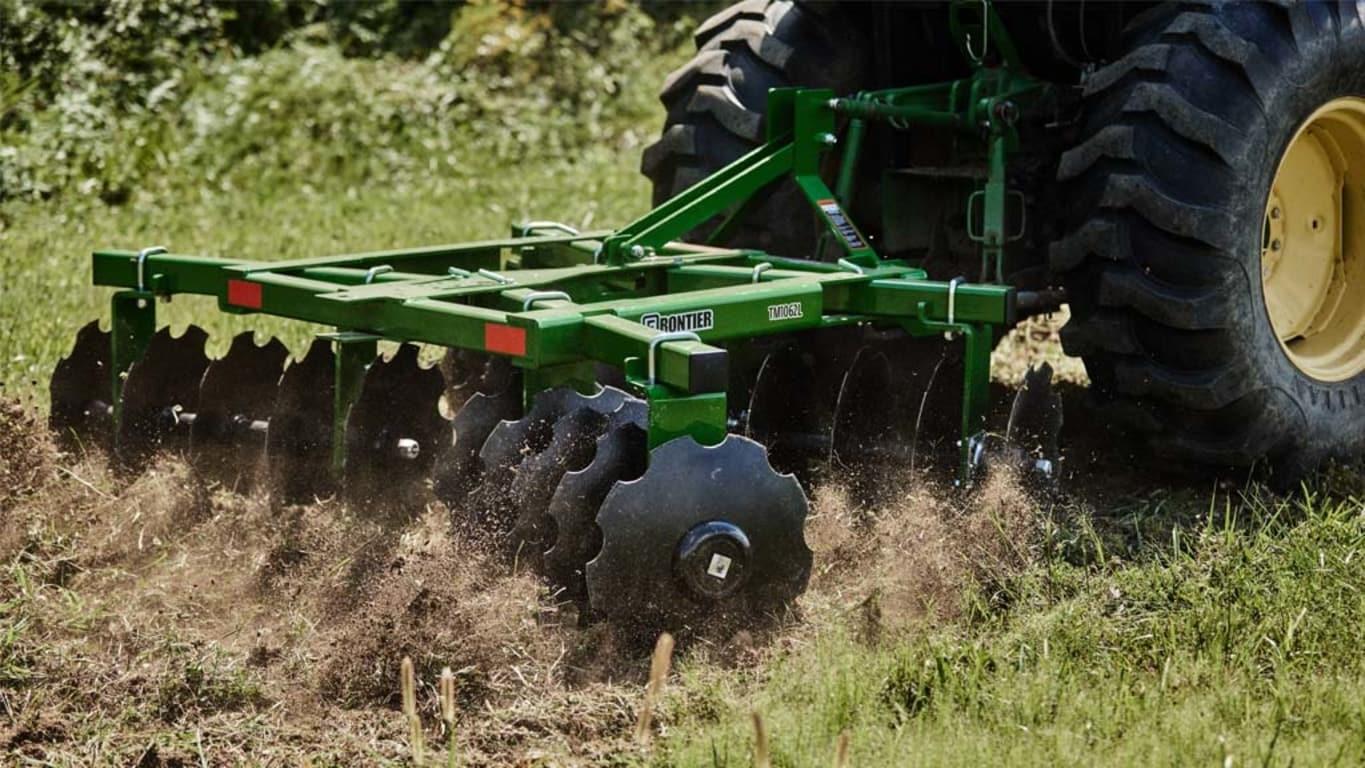

Frontier™ Tillage EquipmentTandem Disk Harrow
Each disk gang on the TM10L can be adjusted individually from outside of the frame.
Individual gang adjustments improve operator ease by eliminating the need to reach into the middle of the frame for disk gang adjustments. Easier adjustments will make it more convenient to precisely set the disk angle necessary for each soil type and desired finish.
In addition to the individual gang adjustments, the TM10L front and rear gang angles are mismatched to enable straighter tracking in the field for a smoother finish.
The TM10L Rear Hitch feature was designed specifically with increased versatility in mind. The Rear Hitch enables a chain harrow to be attached to the TM10L series. Attaching a chain harrow offers a fewer pass solution that helps improve soil finish, reducing time spent in the field.
Notched Front and Rear disk blades provide the TM10L with more aggressive soil penetration and versatility to create a finer soil finish. Individual gang angle adjustments enable notched front & rear disk blades to be easily adjusted for a finer soil finish that is typically seen with smooth disk blades.
The TM10L comes iMatch™ compatible, making it quick and easy to switch implements.
| Working Width | 48 in. |
|---|---|
| Overall Width, in. (cm) | 50 (127) in. |
| Overall Height, in. (cm) | 34 (86.4) in. |
| Overall Length, in. (cm) | 52 (130.1) in. |
| Height to Hitch Pins, in. (cm) | - |
| Disk Spacing | 7.5 in. |
|---|---|
| Disk Thickness | 3 mm (0.118 In.) |
| Disk Diameter, in. (cm) | 16 (40.6) |
| Number of Disks | 12 |
| Front Gang Blade Type | Notched |
| Rear Gang Blade Type | Notched |
| Notched (front) / Notched (rear) | - |
| Notched (front) / Smooth (rear) | - |
| Operating Weight | 437 lb |
|---|---|
| Shipping Weight | 452 lb |
| Weight per Disc (Approx.), lb (kg) | 36 (16.3) |
| Net | - |
| Weight per disk blade | - |
| Engine HP Range (kW) | 15-25 (11.2-18.6) |
|---|---|
| Engine HP Requirements | - |
| Recommended PTO hp range | - |
| Recommended drawbar hp range | - |
| Category | Limited Category I |
|---|---|
| iMatch / Quick hitch | Yes |
| Type | Clevis with Pin |
| Height to Hitch Pins, in. (cm) | 14 (35.6) |
| Bolt-on rear hitch | - |
| Front hitch type | - |
| Style | - |
| Diameter, in. | 1 |
|---|---|
| Type | Square |
| Material | - |
| Front Gang Angles | 0,7,14,21 Degrees |
|---|---|
| Rear Gang Angles | 0,5,12,19 Degrees |
| Adjustment | Tool-less |
| Gang / Frame Tubing | 2x3 rectangle with end caps |
|---|
| Bearing type | Self Aligning Sealed Ball Bearing in Pre-Riveted Flange |
|---|---|
| Material Thickness | - |
| Date collected | - |
|---|
| Blade option five | - |
|---|---|
| Blade option four | - |
| Blade option one | - |
| Blade option six | - |
| Blade option three | - |
| Blade option two | - |
| Axle Diameter, in. | - |
|---|---|
| Blade Spacing | - |
| Blade Thickness | - |
| Disc Diameter, in. (cm) | - |
| Front Gang Angles | - |
| Front Gang Blade Type | - |
| Gang / Frame Tubing | - |
| Number of Blades | - |
| Rear Gang Angles | - |
| Rear Gang Blade Type | - |
| Blade concavity | - |
|---|---|
| Quantity | - |
| Spacing | - |
| Type | - |
| Axle material | - |
|---|---|
| Axle size | - |
| Bearing standards | - |
| Bearing type | - |
| Bearing wear plates | - |
| Front angle | - |
| Furrow fillers | - |
| Rear angle | - |
| Scrapers | - |
| Duty | - |
|---|---|
| Tube size | - |
| Type | - |
| Approximate working width | - |
|---|---|
| Disk blades | - |
| Frame | - |
| Notched (front) Notched (rear) | - |
| Recommended drawbar hp range | - |
| Transport - Width | - |
| Lights | - |
|---|---|
| Markings | - |
| Safety tow chain | - |
| Approximate Assembly Time | - |
|---|---|
| Furrow Filler Kit | - |
| Labor hours | - |
| Rolling Basket | - |
| Scraper Kit | - |
| Size | - |
|---|---|
| Type | - |
| Wheel hub type | - |
| Ground clearance with base blades | - |
|---|---|
| Height | - |
| Length | - |
| Wheel hub bearings | - |
| Width | - |
| Time period | - |
|---|
| Approximate working width | - |
|---|---|
| Maximum penetration | - |
