John Deere Hay and Forage Tedding EquipmentHay Tedder
The exclusive Digidrive rotor drive fingers on the TD13 Series Hay Tedder are made from forged, case-hardened, heat-treated steel for maximum life and smooth power transmission.
Digidrive is a trademark of Kuhn, S.A. Joint Stock Company.

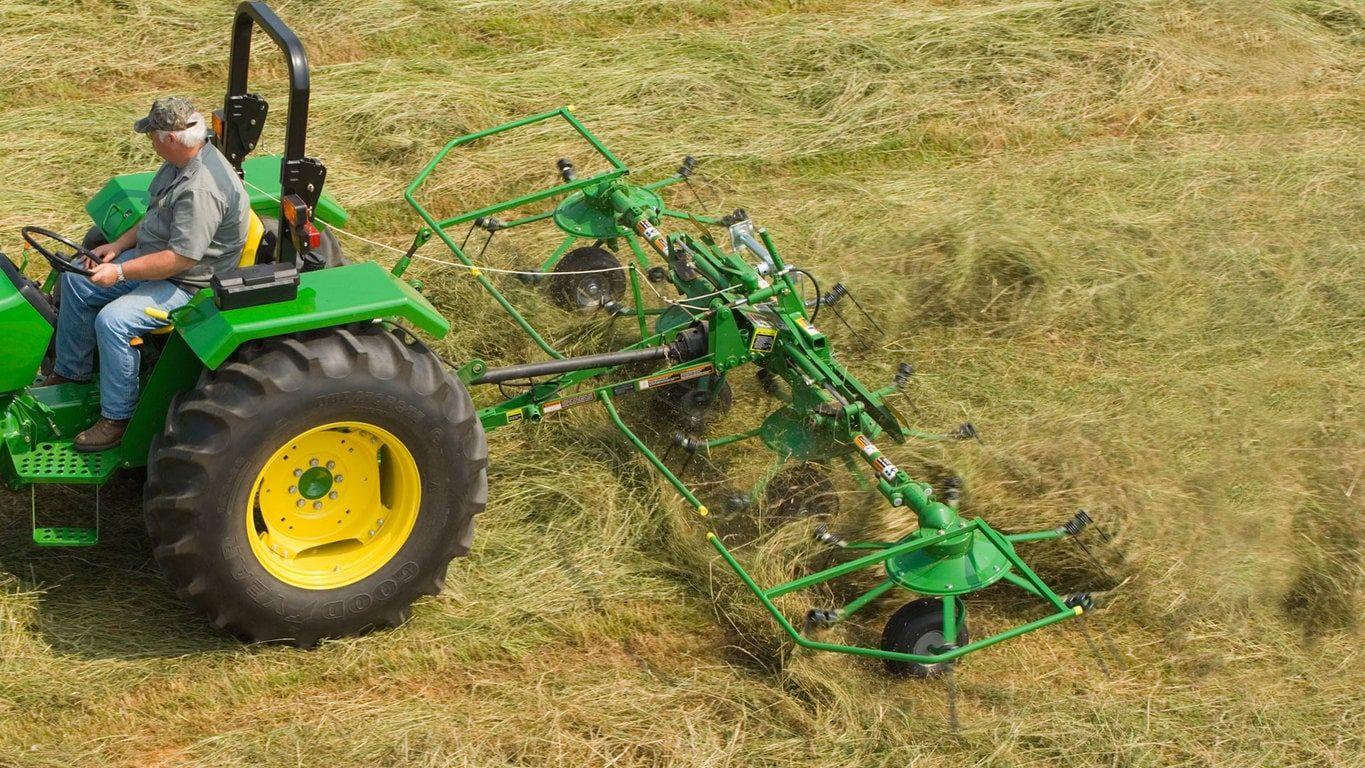

The Frontier™ TD13 Series Hay Tedder comes standard with hydraulic angle adjustment, perfect for transporting the tedder to multiple fields.
It allows the operator to set the working angle of the tedder one time, and then quickly and easily go from the transport to the working position using the tractor hydraulics from the comfort of the seat.
The TD13 Series Hay Tedder has flexible, steel tines that are heat treated for durability and highly resistant to fatigue.
The TD13 Series Hay Tedder has large balloon tires that allow smoother operation over irregular ground.
An aftermarket, field-installed wide deflector belt kit is available for feed bunk applications on the BP1166 Bale Processor.
An aftermarket, field-installed anti-wrap deflector kit helps to prevent hay from wrapping on the tine arms and rotor housings of the TD1316 Hay Tedder during use.
An aftermarket, field-installed wheel deflector kit helps prevent hay from being trapped by the tine arms of the TD1316 Hay Tedder during operation in light and/or fluffy hay applications.
Reduction gearbox conversion kit is great for heavy windrows or night windrow applications when using the TD1316 Hay Tedder.
| Width in working position | 5.4 m 17.7 ft |
|---|---|
| Tedding width | 5.0 m 16.4 ft |
| Transport width | 2.8 m 9.2 ft |
| Transport height | 2.7 m 8.7 ft |
| Transport length | 2.3 m 7.6 ft |
| Machine | - |
|---|---|
| Shipping | 456 kg 1,005 lb |
| Minimum hp (kw) | 14.9 L 20 hp |
|---|---|
| Hydraulic valves (SCVs) required | One |
| Type | Torque Limiter |
|---|---|
| rpm | 540 rpm |
| Straight, right-hand, left-hand angles | Standard |
|---|
| Type | Drawbar |
|---|
| Quantity | Four |
|---|
| Quantity per rotor | Six |
|---|---|
| Type | Round tubular |
| Size, in. (cm) | - |
| Height adjustment | Hydraulic tilt |
|---|---|
| Angle adjustment | - |
| Working size | 6 ply: 38x15 cm 15x6 in. |
|---|---|
| Transport size | - |
| Working type | Balloon |
| Transport type | - |
| Transport lights | - |
|---|---|
| Safety chain | Standard |
| Safety guards | Standard |
| SMV | Standard |
| Hydraulic vertical fold with hydraulic tilt | Standard |
|---|---|
| Integrated transport frame | - |
| Labor hours | 6 |
|---|
| Time period | 1 year |
|---|
| Date collected | - |
|---|
