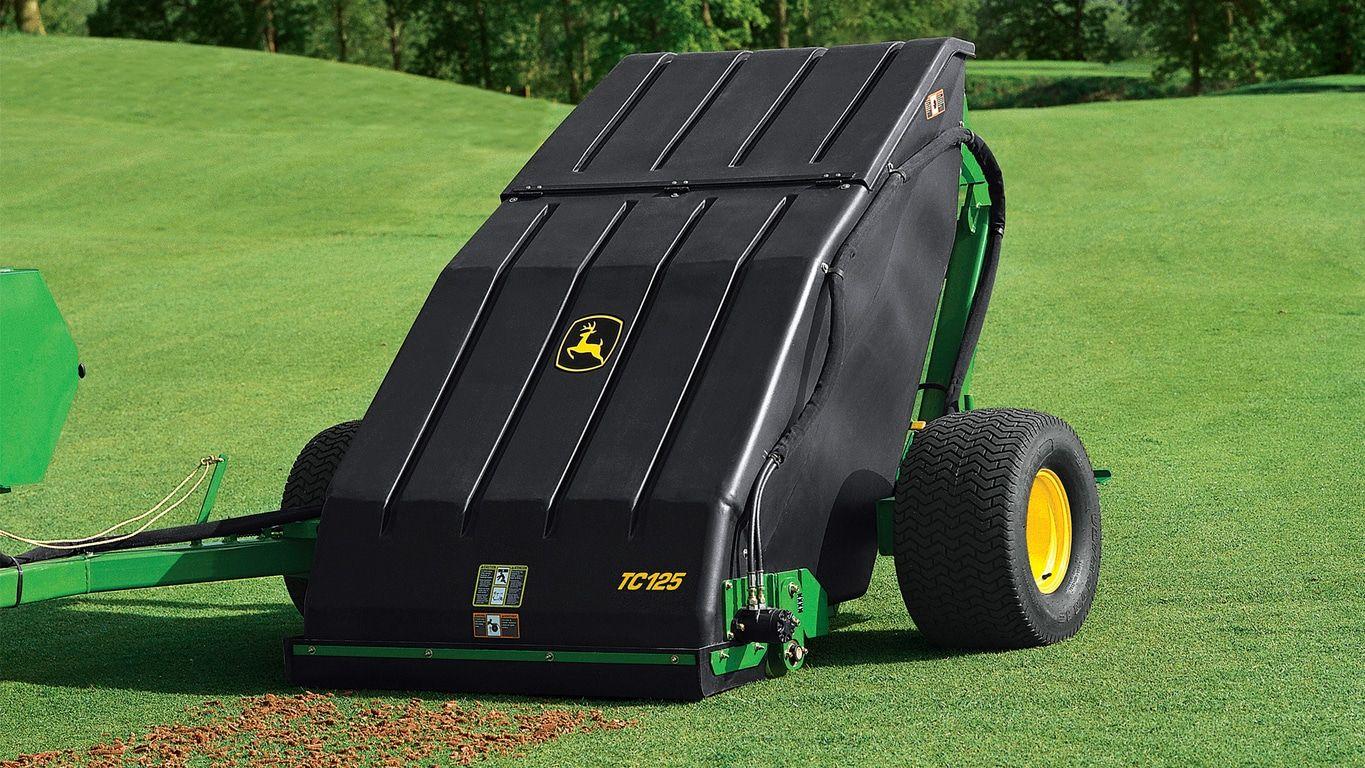

John Deere Aeration EquipmentTurf Collection System
The TC125 has a dumping height of 49 in. (124.5 cm) and is equipped with a hydraulic lift cylinder allowing debris to be easily emptied into the cargo box of a heavy-duty utility vehicle.
The hydraulically driven brush system is simple to operate and maintain, and it eliminates the need for an additional power source. A full-width roller can be adjusted to accommodate a variety of turf conditions and brush wear.
For consistent travel speed and pickup performance, the TCB10015 speed control kit is available as an attachment for field conversion for use on the 4000 Series Compact Utility Tractors. The BM19955 throttle/governor control kit is available for ProGator™ Heavy-Duty Utility Vehicles.
| Dump height clearance | 120 cm 49 in. |
|---|---|
| Hydraulic collection | 3 quick-disconnect couplers (2 rotary brush, 1 lift cylinder) |
| Productivity | Clears an average green in 15 minutes |
| Rollers | Brush aggressiveness and flotation is controlled by a 6-in (15.24 cm) diameter full width roller directly behind the rotary brush. The roller height can be adjusted to accommodate the turf conditions and degree of brush wear. |
| Hopper capacity | 0.71 m3 25 cu ft |
| Vehicle requirements | Powered by either a compact utility tractor or HDUV with a Selective Control Valve (SCV). Hydraulic requirements: 23 L/min 6 gpm Minimum continuous: 13.8 MPa 2,000 psi |
|---|---|
| Gathering width | 121.9 cm 48 in. |
| Hopper capacity | 0.71 m3 25 cu ft |
| Hitch | Attaches with standard hitch pin: 19 mm 0.75 in. |
| Offset towing feature | Allows the unit to be towed directly behind or offset to the left side of the vehicle. Easily performed while operator remains seated. |
| Hydraulic collection | 3 quick-disconnect couplers (2 rotary brush, 1 lift cylinder) |
| Lift | Hydraulic powered lift cylinder for dumping |
| Pick-Up system | Hydraulic powered rotary brush |
| Brush speed | Direct drive hydraulic motor: 500-600 rpm |
| Rollers | Brush aggressiveness and flotation is controlled by a 6-in (15.24 cm) diameter full width roller directly behind the rotary brush. The roller height can be adjusted to accommodate the turf conditions and degree of brush wear. |
| Productivity | Clears an average green in 15 minutes |
| Tires | 26.5x14-12 |
| Dimensions | Height Lowered: 162.5 cm 64 in. raised: 368 cm 145 in. Length 350.5 cm 138 in. Width 238.7 cm 94 in. Weight 554.5 kg 1220 lb |
| Dump height clearance | 120 cm 49 in. |
| Date collected | - |
|---|
