Cotton HarvestersCotton Stripper Header: 12-Row Rigid

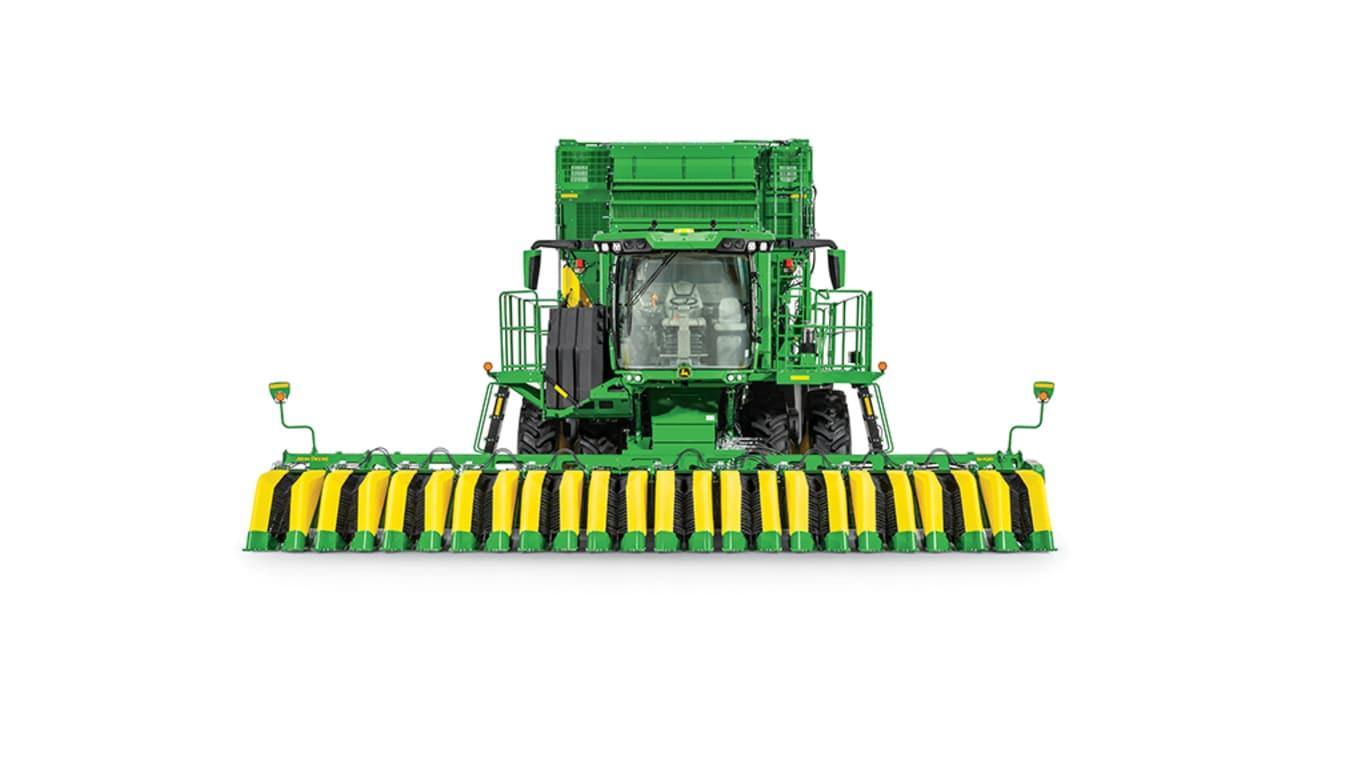

You want to harvest your cotton crop as quickly as possible to protect the lint quality. The narrow-row SH12R Header is the answer to harvesting your narrow-row cotton faster than ever before. The SH12R Header covers up to 48 percent more acres per hour compared to the previous 8-row narrow stripper header. Not only is it productive in the field, but it also detaches quickly to make transport between fields fast and easy.

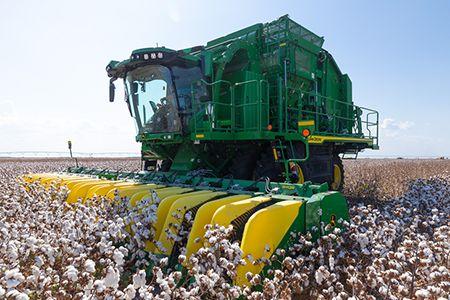

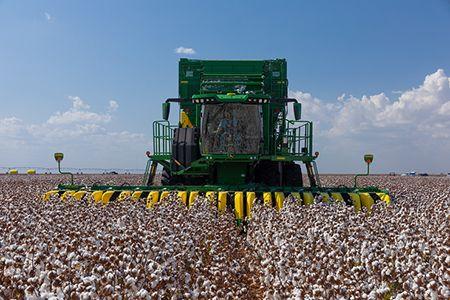

You will quickly notice the capacity increase with the CS770 Cotton Stripper pared with an SH Series Stripper Header. The mainframe is sized to easily handle the increased header sizes and cotton flow. A quick-attach stripper header reduces the time and effort you spend moving between fields.
| Number of rows | Twelve |
|---|---|
| Frame | Rigid |
| Spacings | 76.2, 81.3, 91.4 cm 30, 32, and 36 in. Six-row single skip: 96.5, 101.6 cm 38, 40 in. |
| Stripping unit style | Bat/brush stripping units |
| Cross auger type | High-capacity with single flight auger: 33.2 cm 13 in. |
| Number of rows | Twelve |
|---|---|
| Spacings | 76.2, 81.3, 91.4 cm 30, 32, 36 in. Six-row single skip: 96.5, 101.6 cm 38, 40 in. |
| Frame | Rigid |
| Cross auger type | High-capacity with single flight auger: 33.2 cm 13 in. |
| Cross auger diameter | 33.2 cm 13 in. |
| Brush roll diameter | 15.2 cm 6 in. |
| Brush roll length | 101.6 cm 40 in. |
| Unit auger diameter | 14.6 cm 5.75 in. |
| Cross auger speed (forward) | 500-700 rpm |
| Cross auger speed (reverse) | 300 rpm |
| Brush roll speed | 500-700 rpm |
| Unit auger speed | 500-700 rpm |
| Style | Bat/brush stripping units |
|---|---|
| Unit drive protection | Slip clutch, one per unit |
| Row guidance | - |
| Type | - |
|---|---|
| Drum diameter | - |
| Bypass system | - |
| Fuel tank | - |
|---|
| Pump type | - |
|---|---|
| Pressure | - |
| Flow | - |
| 6 row 40 in | - |
|---|
| Date collected | 2-Aug-2021 |
|---|
