Cotton HarvestersCotton Stripper Header: 12-Row Folding

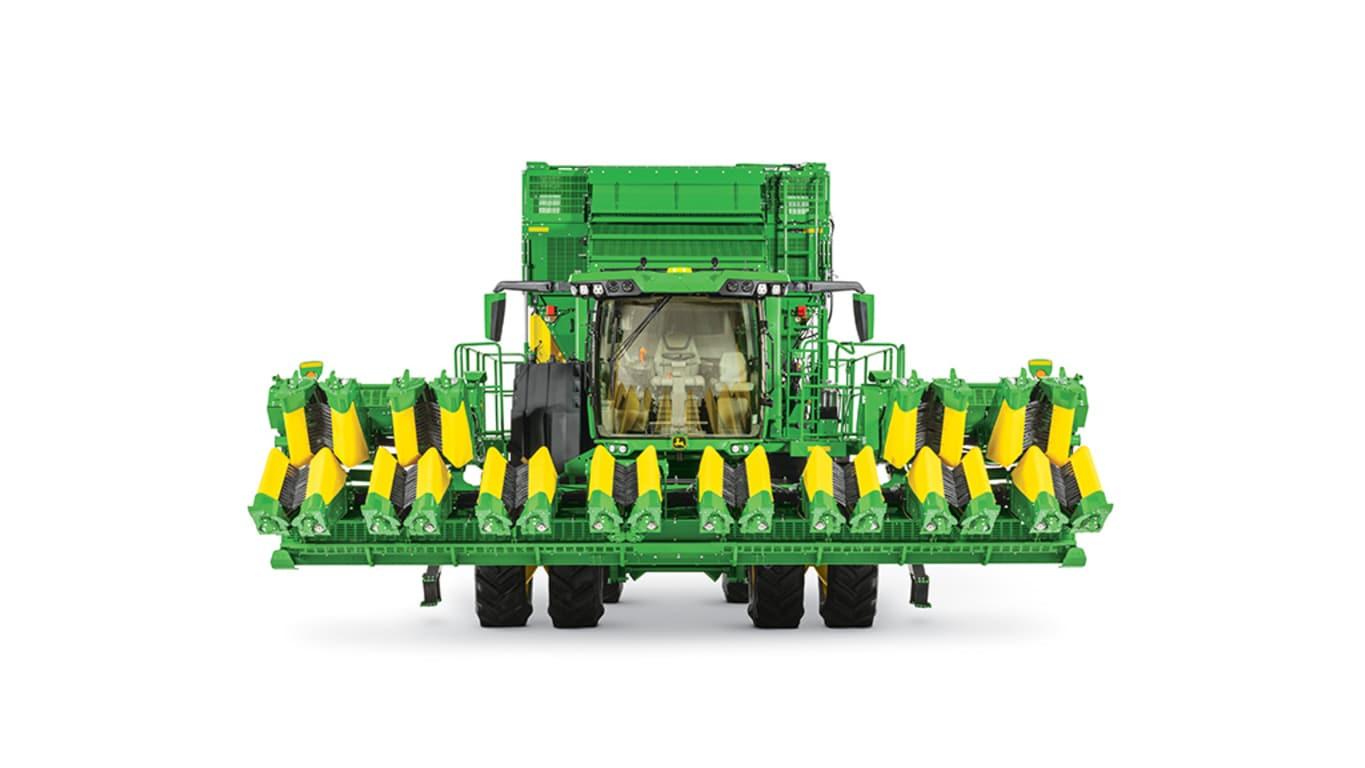

You want to harvest your cotton crop as quickly as possible to protect the lint quality. The wide-row SH12F Header is the answer to harvesting your wide-row cotton faster than ever before. The SH12F Header covers up to 48 percent more acres per hour compared to the previous 8-row stripper header. Not only is it productive in the field, but it also folds and unfolds quickly to make transport between fields fast and easy.

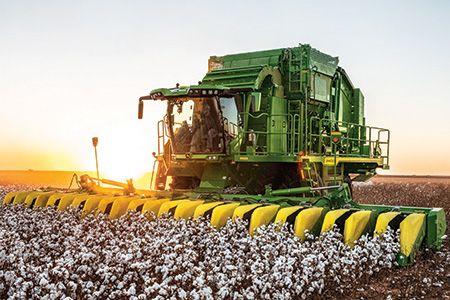

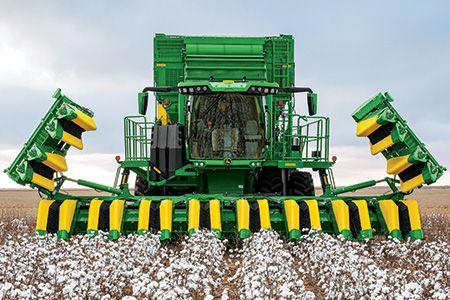

You will quickly notice the capacity increase with the CS770 Cotton Stripper pared with an SH Series Stripper Header. The mainframe is sized to easily handle the increased header sizes and cotton flow. A folding stripper header reduces the time and effort you spend moving between fields. It eliminates the need for a header trailer and moving employees back and forth when changing fields.
| Number of rows | Twelve |
|---|---|
| Frame | Folding |
| Spacings | 96, 101.6 cm 38, 40 in. |
| Stripping unit style | Bat/brush stripping units |
| Cross auger type | High-capacity with single flight auger: 33.2 cm 13 in. |
| Number of rows | Twelve |
|---|---|
| Spacings | 96.5, 101.6 cm 38, 40 in. |
| Frame | Folding |
| Cross auger type | High-capacity with single flight auger: 33.2 cm 13 in. |
| Cross auger diameter | 33.2 cm 13 in. |
| Brush roll diameter | 15.2 cm 6 in. |
| Brush roll length | 101.6 cm 40 in. |
| Unit auger diameter | 14.6 cm 5.75 in. |
| Cross auger speed (forward) | 500-700 rpm |
| Cross auger speed (reverse) | 300 rpm |
| Brush roll speed | 500-700 rpm |
| Unit auger speed | 500-700 rpm |
| Style | Bat/brush stripping units |
|---|---|
| Unit drive protection | Slip clutch, one per unit |
| Row guidance | - |
| Type | - |
|---|---|
| Drum diameter | - |
| Bypass system | - |
| Fuel tank | - |
|---|
| Pump type | - |
|---|---|
| Pressure | - |
| Flow | - |
| 6 row 40 in | - |
|---|
