Cotton HarvestersCotton Stripper Header: 8-Row Rigid

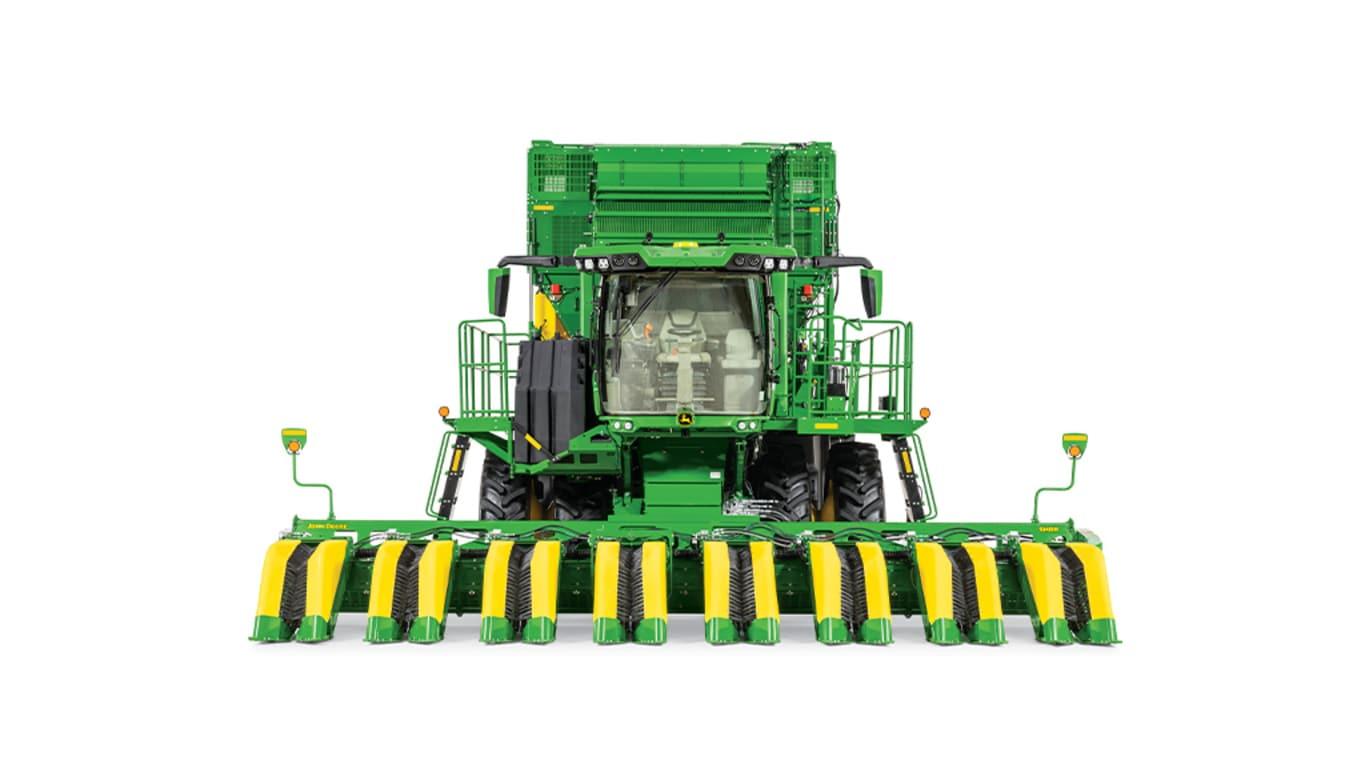

You want to harvest your cotton crop as quickly as possible to protect the lint quality. The eight-row SH8R Header is the answer to harvesting your wide-row cotton faster than ever before. The SH8R Header features the same capacity increases as the 12-row cotton stripper headers, which allows it to cover more acres per hour compared to the previous 8-row stripper header.

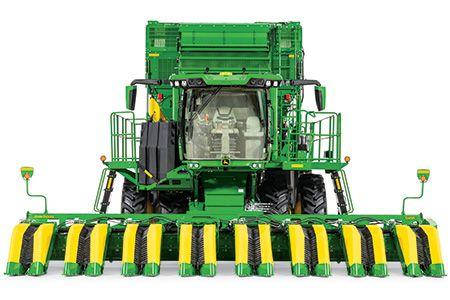

You will quickly notice the capacity increase of the CS770 Cotton Stripper pared with an SH Series Stripper Header. The mainframe is sized to easily handle the increased header sizes and cotton flow. A quick-attach stripper header makes it easy to remove the header when needed.
| Number of rows | Eight |
|---|---|
| Frame | Rigid |
| Spacings | 91.4, 96.5, 101.6 cm 36, 38, 40 in. Six-row single skip: 101.6 cm 40 in. |
| Stripping unit style | Bat/brush stripping units |
| Cross auger type | High-capacity with single flight auger: 33.2 cm 13 in. |
| Number of rows | Eight |
|---|---|
| Spacings | 91.4, 96.5, 101.6 cm 36, 38, and 40 in. Six-row single skip: 101.6 cm 40 in. |
| Frame | Rigid |
| Cross auger type | High-capacity with single flight auger: 33.2 cm 13 in. |
| Cross auger diameter | 33.2 cm 13 in. |
| Brush roll diameter | 15.2 cm 6 in. |
| Brush roll length | 101.6 cm 40 in. |
| Unit auger diameter | 14.6 cm 5.75 in. |
| Cross auger speed (forward) | 500-700 rpm |
| Cross auger speed (reverse) | 300 rpm |
| Brush roll speed | 500-700 rpm |
| Unit auger speed | 500-700 rpm |
| Style | Bat/brush stripping units |
|---|---|
| Unit drive protection | Slip clutch, one per unit |
| Row guidance | - |
| Type | - |
|---|---|
| Drum diameter | - |
| Bypass system | - |
| Fuel tank | - |
|---|
| Pump type | - |
|---|---|
| Pressure | - |
| Flow | - |
| 6 row 40 in | - |
|---|
| Date collected | 2-Aug-2021 |
|---|
