Frontier™ Snow Removal EquipmentSnowblowers
Manual adjustment of the chute angle on the spout is standard equipment on the SB21 Series Loader-Mounted Snowblowers.
An optional electrically controlled hydraulic cylinder is available to adjust the deflector angle.
The chute rotation and optional chute angle adjustment are powered by the hydraulic power pack and controlled with rocker switches installed in the tractor operator station.
As base equipment on SB21 Series Loader-Mounted Snowblowers, the discharge chute rotation is controlled with an electrically controlled hydraulic motor.
The chute rotation is powered by the hydraulic power pack and controlled with a rocker switch installed in the tractor operator station.

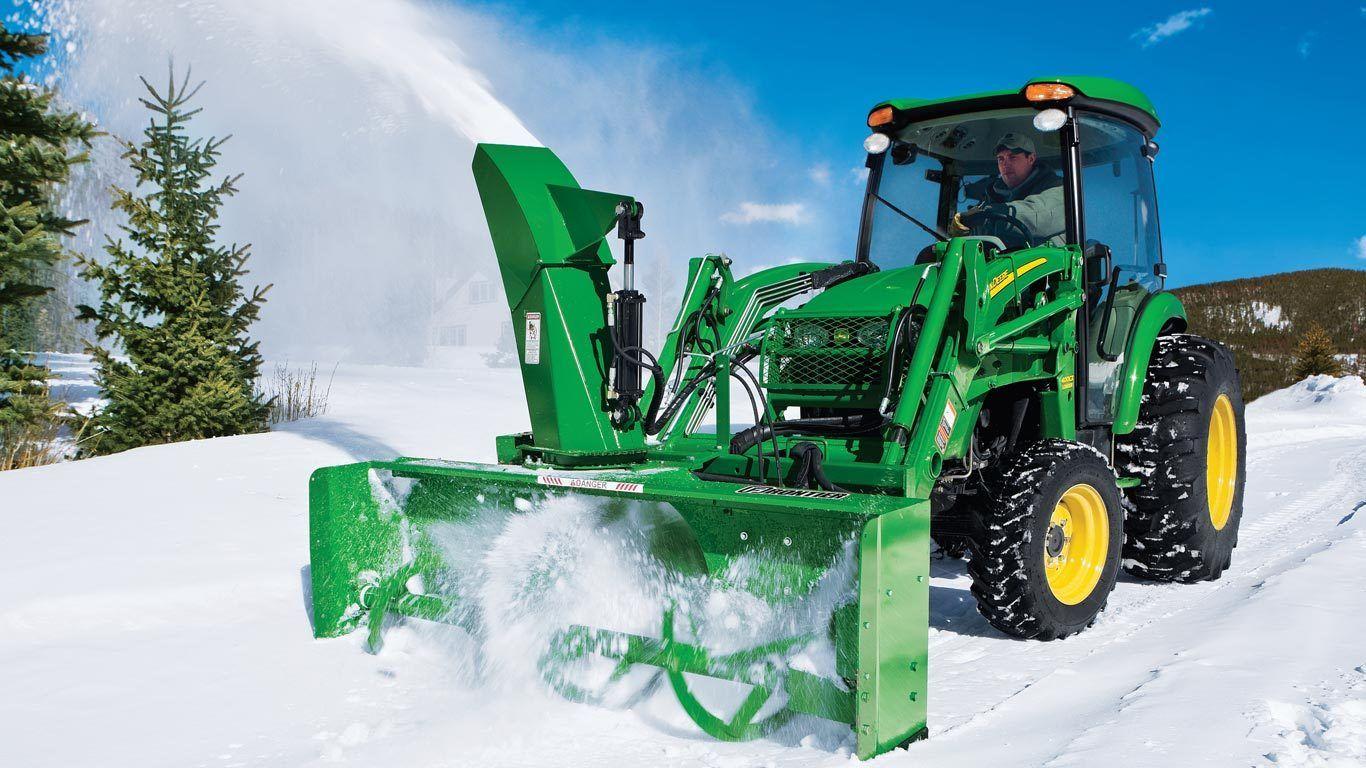

The SB21 Series Loader-Mounted Snow Blower's hydraulic three-point power packs are self-contained and powered by the tractor's rear power take-off (PTO). They are Category 1 and iMatch™ quick-hitch compatible.
Add suitcase weights (shown above) for additional ballast to the rear of the tractor.
Frontier™ SB21 Series Loader-Mounted Snowblowers monitor the torque applied to the impeller, which is an industry-exclusive feature.
The speed of the auger slows down when maximum torque is sensed, alerting the operator to slow ground speed. This allows the impeller to move away excess snow.
This feature reduces plugging during operation.
The SB21 Series Loader-Mounted Snowblowers come in a 162.6-cm or 193-cm (64-in. or 76-in.) working width, a 152.4-cm or 68.6-cm (60-in. or 27-in.) working height, and a 38.1-cm (15-in.) diameter auger. These features make quick work of snow-removal jobs.
Steel skid shoes are adjustable and replaceable. The cutting edge is also replaceable.
The field-installed drift cutter kits are used when snow is taller than the blower. It directs tall snow down to the snow blower, where it can be redirected.
NOTE: For SB1388R, SB1388, SB1308, SB1308R, SB1392 and SB1392R Three-Point Snow Blowers, and SB2164 and SB2176 Loader-Mount Snow Blowers.
Chute deflector and rotation kits allow the operator to change the direction of snow exiting the chute.
| Snow blower working width | 163 cm 64 in. |
|---|---|
| Power pack width | 97 cm 38 in. |
| Snow blower machine height | 152 cm 60 in. |
| Power pack height | 132 cm 52 in. |
| Snow blower operating | 363 kg 800 lb |
|---|---|
| Power pack operating | 243 kg 535 lb |
| Snow blower shipping | 476 kg 1,050 lb |
| Power pack shipping | 243 kg 535 lb |
| PTO horsepower | 18.6-25.4 kW 25-34 hp |
|---|---|
| PTO rpm | 540 rpm |
| Loader (current John Deere series) | 300 |
| Type | Two-part |
|---|---|
| Deflector adjustment (standard) | Manual |
| Deflector adjustment (optional) | Hydraulic cylinder |
| Rotation type | Hydraulic |
| Diameter | 21 cm 8.25 in. |
| Diameter | 38 cm 15 in. |
|---|---|
| Speed, rpm | 200 rpm |
| Type | Single |
| Flighting thickness | 1 cm 0.3125 in. |
| Blades | Four |
|---|---|
| Diameter | 61 cm 24 in. |
| Width | 18 cm 7 in. |
| Speed, rpm | 680 rpm |
| Impeller shaft diameter | 3 cm 1.25 in. |
| Fan relief valve setting | 207 bar 3000 psi |
|---|---|
| Auger relief valve setting | 138 bar 2000 psi |
| Oil cooler | Standard |
| Flow @ 3000 psi (207 bar) | At 207 bar: 133.60 L/min At 3000 psi: 16 gpm |
| Power pack reservoir | 56.8 L 15 gal. |
| System capacity | 68.1 L 18 gal. |
| Type | Replaceable, reversible |
|---|---|
| Thickness | 1 cm 0.375 in. |
| Width | 5.1 cm 2 in. |
| Configuration | Adjustable, six positions |
|---|---|
| Replaceable | Standard |
| Optional | Yes |
|---|
| End plate thickness | 0.47 cm 0.1875 in. |
|---|---|
| Back plate thickness | 0.3 cm 0.12 in. |
| Fan housing thickness | 0.3 cm 0.12 in. |
| Fan blade thickness | 0.64 cm 0.25 in. |
| Side panel bottom thickness | 1.27 cm 0.5 in. |
| Configuration | One unit |
|---|
| Labor hours | 2.5 to 3 hours |
|---|
| Time period (machine) | 1 year |
|---|
