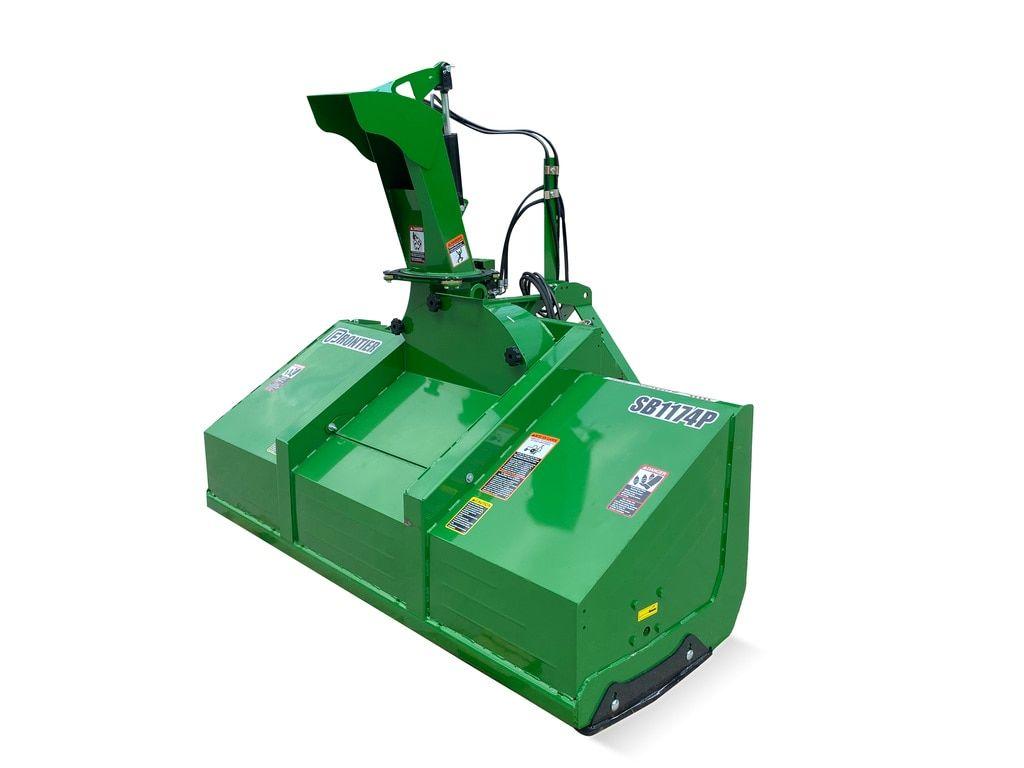

Frontier™ Snow Removal EquipmentPull Type Snowblowers
The Pull Type feature of the SB11P gives you the capability to blow snow while driving and facing forward while simultaneously giving you the ability to back-up closely to structures such as buildings, garage doors, walls, and other structures.

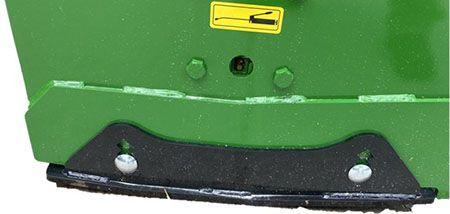

Adjustable and Replaceable Steel Skid Shoes are in base equipment on the SB11P. Adjustable Steel Skid Shoes can help prevent damage or injury from stones being thrown, by raising the cutting edge off the ground. Replaceable skid shoes will help extend the life of your snowblower. Poly Skid Shoes are also offered as a Field-Installed option.

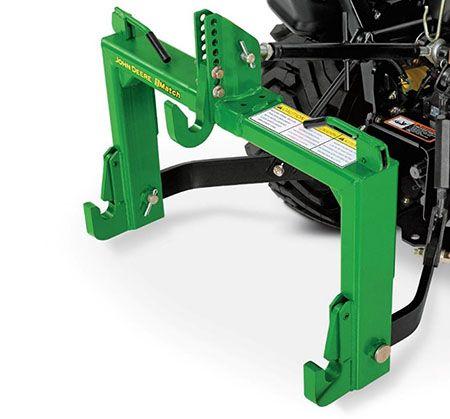

Models SB1164P and SB1174P are Category 1 and iMatch compatible.
All SB11P Series Snowblowers are equipped with manual or hydraulic chute rotation. Chute rotation adds versatility by allowing the operator to blow snow exactly where they want it to go, without repositioning the tractor.

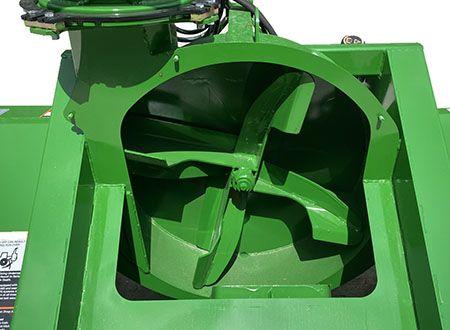

Moving snow faster and blowing it farther is simple with the four impeller blades.
The SB11P Series Snowblowers come with a manual chute deflector adjustment in base. Available in option a hydraulic chute deflector adjustment from the seat of the tractor, for an even quicker and easier control.
This is beneficial when operating around buildings or on city streets and allow to adjust the reach of the blown snow.
The Sloped Design and Position Markers of the SB11P allows operators increased visibility of the snow blowers back edge. Making it easier to evaluate the snow blower position, avoiding damaging the surroundings, or to the snowblower itself. This increased visibility of the back edge puts operators at ease

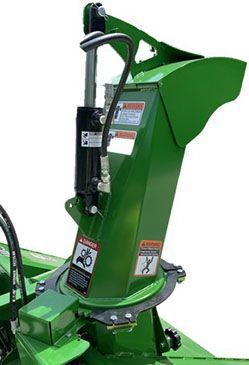

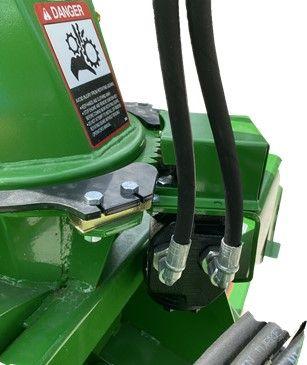

The field-installed hydraulic chute rotation kit is used to operate the chute rotation from the tractor seat, through a tractor rear SCV.

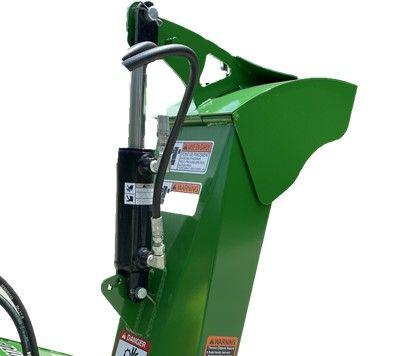

The field-installed hydraulic chute deflector kit is used to operate the chute deflector from the tractor seat through a tractor rear SCV.
The field-installed skid shoes are used to extend work life of the snow blower.
| Working width | SB1164P: 162 cm 63.75 in. SB1174P: 187 cm 73.75 in. |
|---|---|
| Rotation degrees | - |
| Impeller - Blades | - |
| Impeller - Speed | - |
| PTO | - |
| Minimum hp | - |
| Maximum hp | - |
| Hitch | - |
| Operating weight, incl. chute | SB1164P: 276.7 kg 610 lb SB1174P: 285.7 kg 630 lb |
| PTO power minimum | SB1164P: 15 kW 20 hp SB1174P: 18.6 kW 25 hp |
| PTO power maximum | SB1164P: 37.3 kW 50 hp SB1174P: 41 kW 55 hp |
| Height | - |
|---|---|
| Transport width | - |
| Working width | - |
| Length | - |
| Working height | All models : 64.8 cm 25.5 in. |
| Overall width | SB1164P: 165.1 cm 65 in. SB1174P: 190.5 cm 75 in. |
| Overall height (without chute) | All models : 92.7 cm 36.5 in. |
| Overall height (with chute closed) | All models : 153.7 cm 60.5 in. |
| Overall length | All models : 102.2 cm 40.25 in. |
| Operating | - |
|---|---|
| Operating weight, incl. chute | SB1164P: 276.7 kg 610 lb SB1174P: 285.7 kg 630 lb |
| Shipping | SB1164P: 290.3 kg 640 lb SB1174P: 299.4 kg 660 lb |
| Chute position | All models : Right |
|---|---|
| Deflector adjustment | - |
| Rotation type | All models : Manual or hydraulic |
| Diameter | - |
| Rotation degrees | All models : 245 degree (angle) |
| Flow restrictor (rotation) | All models : Yes |
| Flow restrictor (deflector) | All models : No (available via parts) |
| Hoses support | All models : Yes |
| Deflector adjustement (2 part chute) | All models : Manual (hydraulic or electric in option) |
| Type | - |
| Rotation | All models : No |
|---|
| Diameter | All models : 3.175 cm 1.25 in. |
|---|---|
| Speed | 170 rpm |
| Overload protection | Single |
| Auger - Single / dual | All models : Single |
| Main auger diameter | All models : 38.1 cm 15 in. |
| Auger driven system | All models : Chain No.60 |
| Shaft diameter | All models : 3.175 cm 1.25 in. |
| Second auger diameter | All models : N/A |
| Second auger driven system | All models : N/A |
| Blades | Four |
|---|---|
| Speed | - |
| Diameter | -- |
| Width | All models : 17.8 cm 7 in. |
| Optional secondary auger diameter | - |
| Impeller shaft diameter | All models : 3.5 cm 1.375 in. |
| Impeller RPM | All models : 540 rpm |
| Direction of impeller rotation | All models : CCW |
| PTO | - |
|---|---|
| Minimum hp | - |
| Maximum hp | - |
| PTO overload protection | - |
| PTO power minimum | SB1164P: 15 kW 20 hp SB1174P: 18.6 kW 25 hp |
| PTO power maximum | SB1164P: 37.3 kW 50 hp SB1174P: 41 kW 55 hp |
| Housing thickness | All models : 53 L 14 gal. |
|---|---|
| Side panel thickness | All models : 53 L 14 gal. |
| Impeller housing thickness | All models : 45.4 L 12 gal. |
| Roller | - |
|---|---|
| Idler adjustment | - |
| Compatibility | - |
|---|---|
| iMatch | - |
| Quick coupler | - |
| Parking stand | All models : Yes |
| Type of hitch | All models : 3 pts, cat. 1 |
| Compatibility with quick hitch | All models : Yes |
| Type | - |
|---|---|
| Replacable & reversible cutting edge | All models : Fixed |
| Cutting edge material | All models : Carbon steel |
| Cutting edge dimension | All models : 0.9525 cm 0.375 in. x 5.08 cm 2 in. |
| Type | - |
|---|---|
| Adjustable and replacable skid shoe | All models : Yes, 3 positions |
| Skid shoe material | All models : Carbon steel |
| Chain idler | All models : Yes |
|---|---|
| Number of auger shearbolt | All models : 1 (on the driving shaft) |
| Number of impeller shearbolt | All models : 1 (on the driveline) |
| Labor hours | All models : 1 hour |
|---|
| Machine | All models : 1 year |
|---|---|
