Frontier™ Tillage EquipmentRotary Tillers

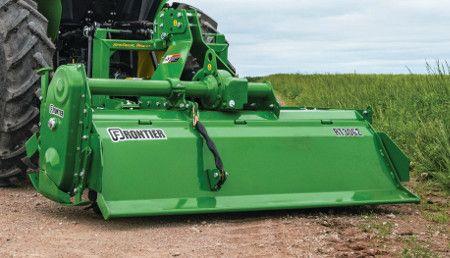

The hardened and tempered gear drive transmission requires less maintenance than a roller chain drive. Enclosed in an oil bath, gear drive components feature higher wear life, decreasing maintenance costs.

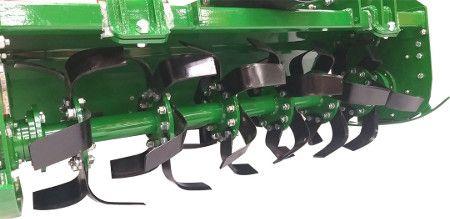

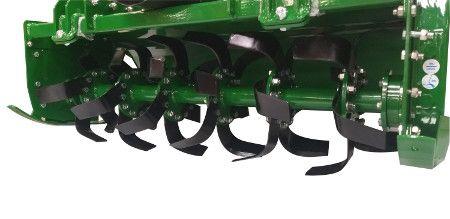

Reverse tilling easily breaks up compacted and rocky soils as well as sod and hard clay. Reverse tines rotation keep the tiller in the ground and prevent the implement from walking on top of the hard soil.

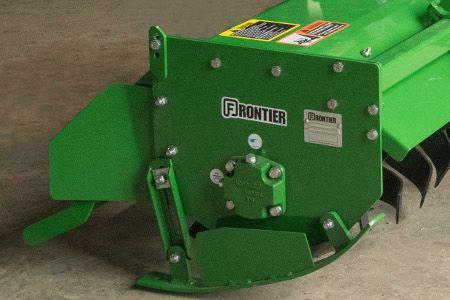

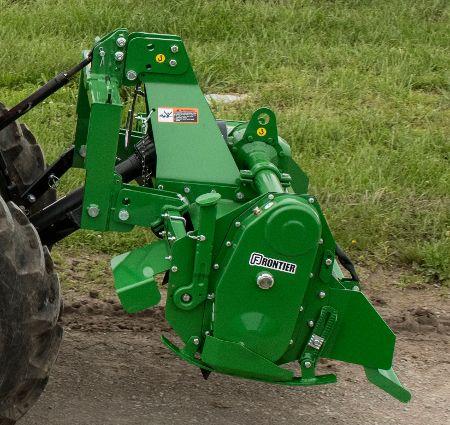

The sealed cover ensures the protection of the transmission components, preventing transmission damage due to moisture and mud.

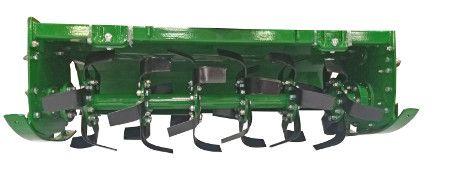

The hardened and tempered C-shaped rotor tines require less horsepower to operate. They are designed to engage the soil at different times for more efficiency.

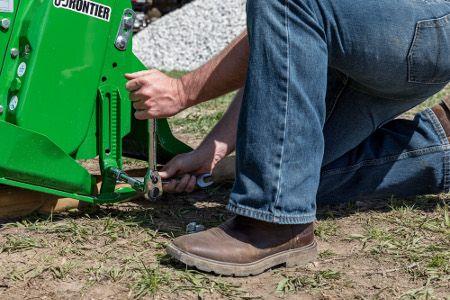

Easily set the working depth by adjusting the height of the skids with the adjustment bracket.

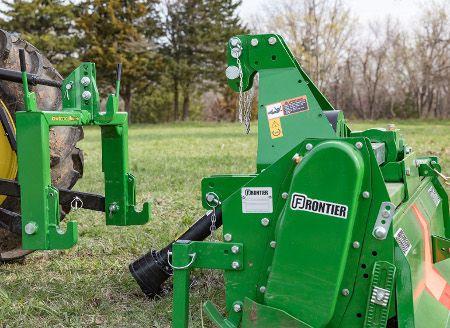

Implement-to-tractor hookup is simple with the iMatch Quick-Hitch Category 1 compatible.
| Working width | RT3042 and RT3042R: 106.7 cm 42 in. RT3049 and RT3049R: 124.5 cm 49 in. RT3062 and RT3062R: 157.5 cm 62 in. RT3073 and RT3073R: 185.4 cm 73 in. RT3081 and RT3081R: 205.7 cm 81 in. |
|---|---|
| Rotor - Blades (quantity) | All RT30 models : Six |
| Maximum working depth | RT3042, RT3042R, RT3049 and RT3049R: 19 cm 7.5 in. RT3062, RT3062R, RT3073, RT3073R, RT3081 and RT3081R: 21.6 cm 8.5 in. |
| Duty - Type | All RT30 models: Standard |
| Minimum PTO horsepower | - |
| Maximum PTO horsepower | - |
| 3-point compatible | RT 3073, RT3073R, RT3081 and RT3081R: Category 1 & 2 RT3062, RT3062R: Category 1 RT3042, RT3042R, RT3049, and RT3049R: Limited Category 1 |
| Weight without drive shaft | RT3042: 220 kg (485 lb) RT3042R: 225 kg (496 lb) RT3049: 240 kg (529 lb) RT3049R: 247.2 kg (545 lb) RT3062: 299.8 kg (661 lb) RT3062R: 308 kg (679 lb) RT3073: 332 kg (732 lb) RT3073R: 342 kg (754 lb) RT3081: 362 kg 798 lb RT3081R: 373 kg 822 lb |
| iMatch™ compatible (Cat. 1) | All RT30 models: Yes |
| Quick coupler (Cat. 3) | - |
| Working width | RT3042 and RT3042R: 120.4 cm 47.4 in. RT3049 and RT3049R: 140.2 cm 55.2 in. RT3062 and RT3062R: 173 cm 68.1 in. RT3073 and RT3073R: 200.4 cm 78.9 in. RT3081 and RT3081R: 205.7 cm 81 in. |
|---|---|
| Outside to outside width | - |
| Weight without drive shaft | RT3042: 220 kg (485 lb) RT3042R: 225 kg (496 lb) RT3049: 240 kg (529 lb) RT3049R: 247.2 kg (545 lb) RT3062: 299.8 kg (661 lb) RT3062R: 308 kg (679 lb) RT3073: 332 kg (732 lb) RT3073R: 342 kg (754 lb) RT3081: 375 kg 827 lb RT3081R: 386 kg 851 lb |
|---|---|
| Operating with skid shoes | - |
| Operating with cage roller | - |
| PTO speed rpm | All RT30 models: 540 rpm |
|---|---|
| Minimum PTO horsepower | - |
| Maximum PTO horsepower | - |
| Minimum horsepower | RT3042 and RT3042R: 11.2 kW 15 hp RT3049 and RT3049R: 13.4 kW 18 hp RT3062 and RT3062R: 17.9 kW 24 hp RT3073 and RT3073R: 22.4 kW 30 hp RT3081 and RT3081R: : 29.8 kW 40 hp |
| Maximum horsepower | RT3042, RT3042R, RT3049 and RT3049R: 26.1 kW 35 hp RT3062, RT3062R, RT3073, RT3073R, RT3081 and RT3081R: 44.7 kW 60 hp |
| Type | All RT30 models: Single speed |
|---|---|
| Oil cooler | - |
| Type | All RT30 models: Gear |
|---|---|
| Chain, ASAE | - |
| Side drive | All RT30 models: Gear |
| 3-point compatible | RT 3073, RT3073R, RT3081 and RT3081R: Category 1 & 2 RT3062, RT3062R: Category 1 RT3042, RT3042R, RT3049, and RT3049R: Limited Category 1 |
|---|---|
| iMatch™ compatible (Cat. 1) | All RT30 models: Yes |
| Quick coupler (Cat. 2) | - |
| Quick coupler (Cat. 3) | - |
| Adjustable offset | - |
| Type | RT3042, RT3042R, RT3049 and RT3049R: Category 3 with slip clutch RT3062, RT3062R, RT3073, RT3073R, RT3081 and RT3081R: Category 4 with slip clutch |
|---|---|
| Clutch type | All RT30 models: Friction |
| Shape | All RT30 models: C-shape |
|---|
| Rotor rotation | RT3042, RT3049, RT3062, RT3073, and RT3081: Forward RT3042R, RT3049R, RT3062R, RT3073R, and RT3081R: Reverse |
|---|---|
| Flanges (quantity) | RT3042 and RT3042R: Five RT3049 and RT3049R: Six RT3062 and RT3062R: Eight RT3073 and RT3073R: Nine RT3081 and RT3081R: Ten |
| Blades (quantity) | All RT30 models: Six |
| Type | All RT30 models: Skid shoes |
|---|---|
| Skid shoes | RT3042, RT3042R, RT3049, and RT3049R: Four settings - 0 to 7.1 cm 0 to 2.8 in. RT3062, RT3062R, RT3073, RT3073R, RT3081 and RT3081R: Four settings - 2.5 to 9.1 cm 1 to 3.6 in. |
| Maximum working depth | RT3042, RT3042R, RT3049 and RT3049R: 19 cm 7.5 in. RT3062, RT3062R, RT3073, RT3073R, RT3081 and RT3081R: 21.6 cm 8.5 in. |
| Rear door support | All RT30 models: Chain |
|---|---|
| Parking stand | All RT30 models: Standard |
| Markings | All RT30 models: Standard |
| Type | All RT30 models: Standard |
|---|
| Labor hours | All RT30 models: 1.5 Hours |
|---|
| Time period | All RT30 models: 1-year whole goods/3-year gearbox |
|---|
