New equipment

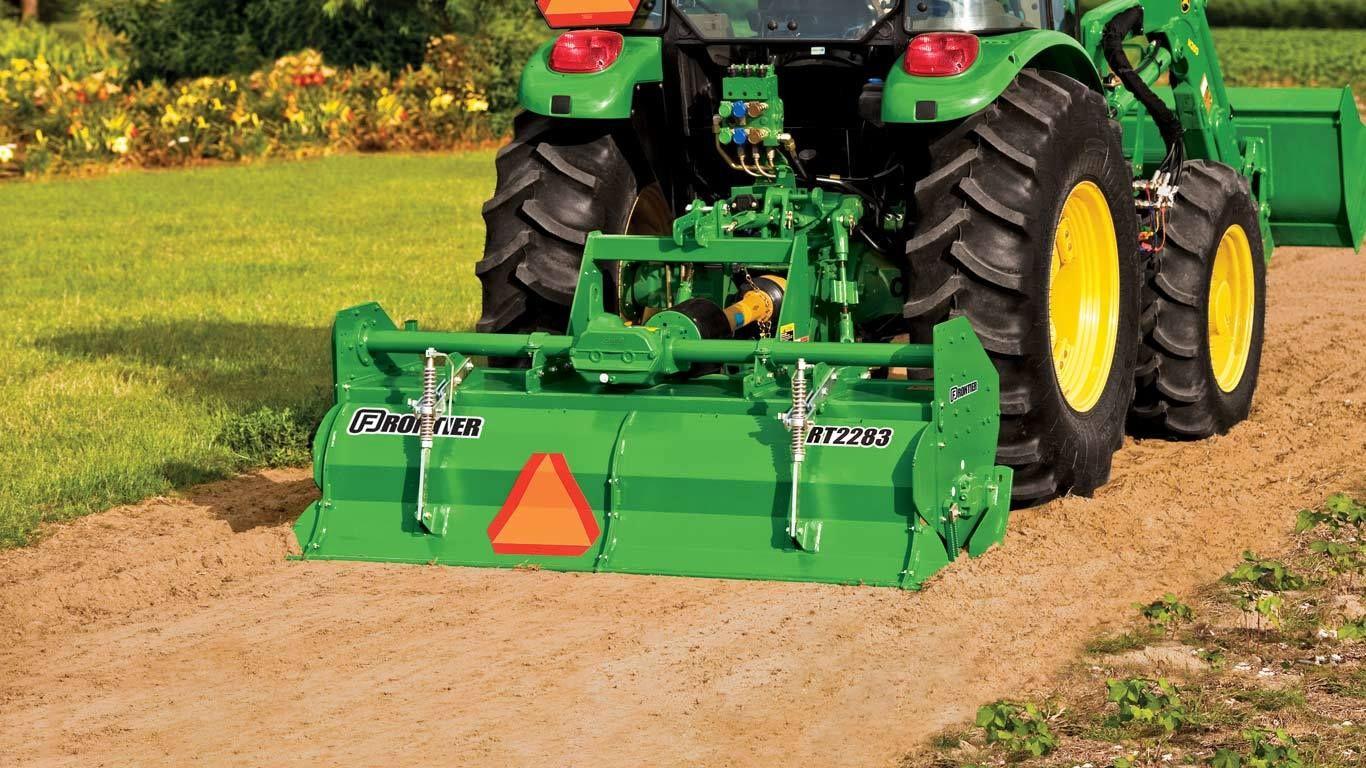

Frontier™ Tillage EquipmentRotary Tillers
The hand crank makes adjusting the depth of the roller easy on the RT22 and RT23 Series Rotary Tillers. Use a lower setting for more firming action, ideal for controlling wind erosion.
The RT22 and RT23 Series have an optional hydraulic cage roller adjustment kit available to allow for depth adjustments without leaving the tractor seat.
The gearcase is protected from abrasion and premature wear by the heavy-duty wear shields.
The helical-shaped rotor decreases horsepower required to drive units. They are designed so they enter the field at different times for more efficiency.
Easily adjust the working depth by adjusting the height of the skids with the adjustment bracket.
If the rotary tiller is equipped with the optional cage roller, the unit will still be equipped with skid shoes for wear protection.
Implement-to-tractor hookup is simple with the Quick-Coupler Category 2 compatibility.
| Working width | 210.8 cm 83 in. |
|---|---|
| Outside to outside width | 223.4 cm 88 in. |
| Operating with skid shoes | 779.7 kg 1,719 lb |
|---|---|
| Operating with cage roller | - |
| PTO speed rpm | 540 rpm |
|---|---|
| Minimum horsepower | 45 kW 60 hp |
| Maximum horsepower | 75 kW 100 hp |
| Type | Multi-stage |
|---|---|
| Oil cooler | - |
| Type | Gear |
|---|---|
| Chain, ASAE | - |
| 3-point compatible | Category 2 |
|---|---|
| iMatch™ compatible (Cat. 1) | - |
| Quick coupler (Cat. 2) | Yes |
| Quick coupler (Cat. 3) | - |
| Adjustable offset | - |
| Clutch type | Friction |
|---|
| Shape | L-shape |
|---|
| Flanges (quantity) | Eight |
|---|---|
| Blades (quantity) | Six |
| Type | Skid shoes |
|---|---|
| Maximum working depth | 27 cm 10.6 in. |
| Rear door support | Chain |
|---|---|
| Parking stand | Standard |
| Markings | Standard |
| Type | Medium |
|---|
| Labor hours | - |
|---|
| Time period | 1 year |
|---|
| Date collected | - |
|---|
