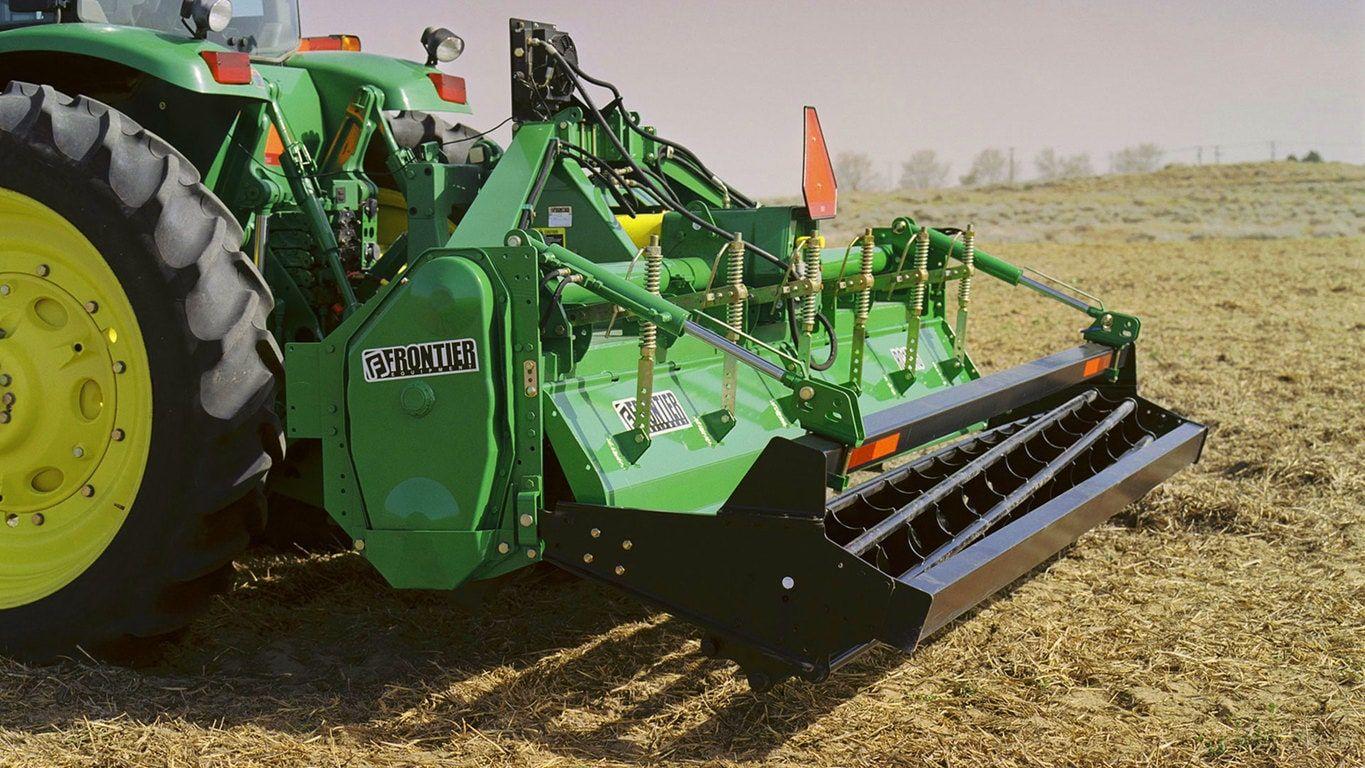

Frontier™ Tillage EquipmentRow Crop Rotary Tillers

Adjusting the height of the Frontier RC13 Series tailgate is easy. Just remove the bolts and raise the tailgate to one of five settings. Use the low setting for a more level finish.
A rear hydraulic tailgate adjustment is available as an option.

The RC13 Series gives the operator the option of skid shoes or a cage roller for preferred depth control. The skid shoes provide a controlled working depth, while the rollers gently press the soil for a firm seedbed.

The RC13 Series' double springs provide consistent down pressure on the tailgate to level the tilled soil.

Hydraulic control of the cage roller on the RC13 Series allows the operator to easily adjust the firming texture of the soil to meet changing soil conditions, all without leaving the tractor seat.

Tillers in the RC13 Series feature a cam clutch that protects the drive system from overloading when working in tough soil conditions.

Heavy-duty wear shields on each side of the RC13 Series Tiller help protect the gearcase from abrasion and premature wear.
The right disk attaches to the right of the tiller, and the left disk attaches to the left of the tiller. They move dirt away from the front of the skid shoes, allowing the tiller to cut deeper.
This hydraulic rear door kit is used to control the raising and lowering of the rear door to adjust particle size.
| Working width | 3.1 m 10.2 in. |
|---|---|
| Outside to outside width | - |
| Operating with skid shoes | 1,489 kg 3,282 lb |
|---|---|
| Operating with cage roller | - |
| PTO speed rpm | 1,000 rpm |
|---|---|
| Minimum horsepower | 134 kW 180 hp |
| Maximum horsepower | 190 kW 255 hp |
| Type | Multi-speed |
|---|---|
| Oil cooler | Optional |
| Type | Gear side drive |
|---|---|
| Chain, ASAE | - |
| 3-point compatible | Category 3 narrow and wide |
|---|---|
| iMatch™ compatible (Cat. 1) | - |
| Quick coupler (Cat. 2) | - |
| Quick coupler (Cat. 3) | Yes |
| Adjustable offset | - |
| Clutch type | Cam |
|---|
| Shape | L |
|---|
| Flanges (quantity) | 13 |
|---|---|
| Blades (quantity) | Six |
| Type | Skid shoe |
|---|---|
| Maximum working depth | 30 cm 11.8 in. |
| Rear door support | Metal rod with double spring |
|---|---|
| Parking stand | Standard |
| Markings | Standard |
| Type | Heavy duty |
|---|
| Labor hours | 2 hours |
|---|
| Time period | 1 year |
|---|
| Date collected | - |
|---|
