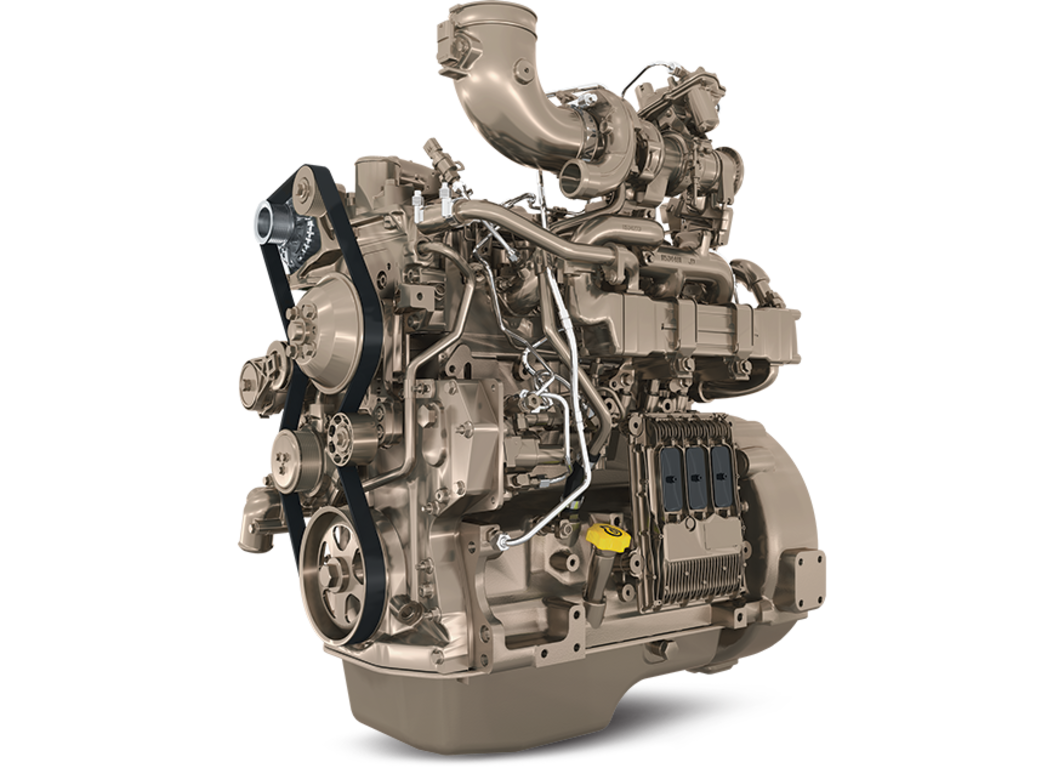

4045HFC04

4.5L Industrial Diesel Engine

Features

Wastegated turbocharger

Wastegated turbochargers are designed to develop more airflow at lower engine speeds to improve low-speed torque. The wastegate control device bleeds off a portion of the exhaust flow at higher engine speeds. Wastegated turbos deliver improved transient response and higher peak torque without compromising engine envelope size. They also provide the lowest installed cost across a given power range.

Cooled exhaust gas recirculation (EGR)

EGR cools and mixes measured amounts of cooled exhaust gas with incoming fresh air to lower peak combustion temperatures, thereby reducing NOx.

Diesel oxidation catalyst (DOC)

PowerTech PWL 4.5L engines for Final Tier 4/Stage IV produce near-zero levels of particulate matter (PM) without a filter, thanks to an optimized combustion system and engine calibration. Remaining PM and other hydrocarbons are oxidized passively in a flow-through DOC without the need for regeneration.

Selective catalytic reduction (SCR)

John Deere engines feature an SCR system that utilizes a urea-based additive, sometimes referred to as diesel exhaust fluid (DEF). The ammonia in the urea mixes with engine exhaust gases in the SCR catalyst to reduce NOx — converting it to nitrogen and water vapor.

High-pressure common-rail (HPCR) and engine control unit (ECU)

The HPCR fuel system provides variable common-rail pressure and higher injection pressures up to 1,975 bar (29,000 psi). It also controls fuel injection timing and provides precise control for the start, duration, and end of injection.

4-valve cylinder head

The 4-valve cylinder head provides excellent airflow resulting in greater low-speed torque and better transient response time by utilizing a cross-flow design.

Air-to-air aftercooled

This is the most efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.

Compact size

Engine performance

John Deere electronic engine controls

Faster engine control unit (ECU) manages both the engine and the aftertreatment system
Four times the memory, twice the RAM and double the processing speed
The input/output capability has increased 40%
Premium software option integrates with equipment or vehicles to reduce engineering and installation costs

Additional features

Gear-driven auxiliary drives
500-hour oil change
Self-adjusting poly-vee fan drive
Optional factory installed variable-speed fan drive improves fuel economy and reduces noise levels
R.H. or L.H. engine-mounted final fuel filters
Optional low-pressure fuel system with electrical transfer pump and auto-prime feature

EPA Final Tier 4	-

Model	4045HFC04
Number of cylinders	4
Displacement-- L (cu in)	4.5 (275)
Bore and Stroke-- mm (in)	106 x 127 (4.17 x 5.00)
Compression Ratio	17.0 : 1
Engine Type	In-line, 4-cycle
Aspiration	Turbocharged and air-to-air aftercooled
Length - mm (in)	870 (34.3)
Width-- mm (in)	650 (25.6)
Height-- mm (in)	1050 (41.3)
Weight, dry - kg (lb)	550 (1213)

Intermittent - Rated power/Rated speed	63-104 kW (85-140 hp) @ 2200-2400 rpm
Intermittent - Peak power	63-104 kW (85-140 hp) @ 2200-2400 rpm
Intermittent - Power bulge	0-4% @ 2200 rpm
Intermittent - Peak torque	333-540 Nm (246-398 lb-ft) @ 1600 rpm
Intermittent - Torque rise	20-36%
Heavy Duty - Rated power/Rated speed	63-104 kW (85-140 hp) @ 2200-2400 rpm
Heavy Duty - Peak power	63-104 kW (85-140 hp) @ 2200-2400 rpm
Heavy Duty - Power bulge	0% NA rpm
Heavy Duty - Peak torque	333-540 Nm (246-398 lb-ft) @ 1600 rpm
Heavy Duty - Torque rise	33-35%
Continuous - Rated power/Rated speed	63-104 kW (85-140 hp) @ 2200-2400 rpm
Continuous - Peak power	63-104 kW (85-140 hp) @ 2200-2400 rpm
Continuous - Power bulge	0-8% @ 2200 rpm
Continuous - Peak torque	333-540 Nm (246-398 lb-ft) @ 1600 rpm
Continuous - Torque rise	32-33%
