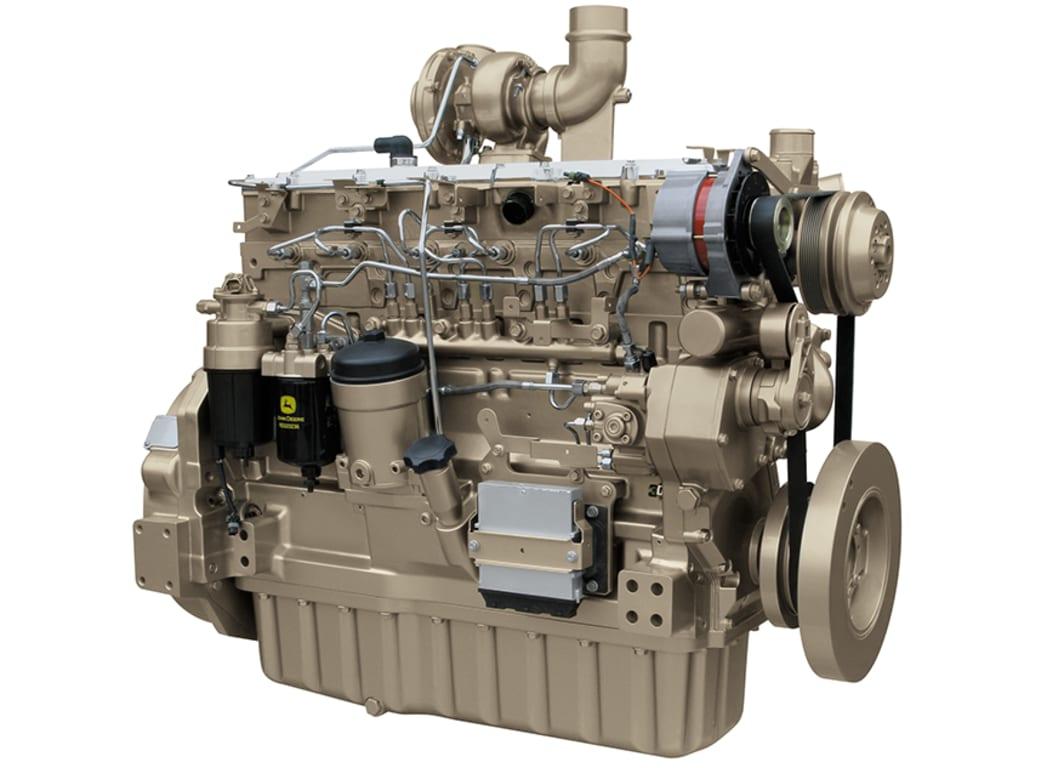

6090HFG84 9.0L Generator Drive Engine

New equipment

John Deere Generator Drive Engines

6090HFG84

9.0L Generator Drive Engine

Call Us Email Us Apply for Financing View Deere source

PowerTech™ E
Standby: 253-315 kW (339-422 hp)
@ 1500 -1800 rpm
Prime: 230-287 kW (308-385 hp)
@ 1500 - 1800 rpm
Dual frequency available

Features

Fixed geometry turbocharger

Fixed geometry turbochargers are sized for a specific power range and optimized to provide excellent performance across the entire torque curve. They are also designed to maximize fuel economy between the engine's rated speed and peak torque.

High-pressure common-rail (HPCR) and engine control unit (ECU)

The HPCR fuel system provides variable common rail pressure, multiple injections, and higher injection pressures, up to 1,600 bar (23,000 psi). It also controls fuel injection timing and provides precise control for the start, duration, and end of injection.

4-valve cylinder head

The 4-valve cylinder head provides excellent airflow with the cross-flow design.

Air-to-air aftercooled

This is the most efficient method of cooling intake air to help reduce engine emissions. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.

Compact size

Horsepower/displacement ratio is best-in-class
Lower installed cost
Mounting points are the same as previous engine models

John Deere electronic engine controls

Electronic engine controls monitor critical engine functions, providing warning and/or shutdown to prevent costly engine repairs and eliminate the need for add-on governing components, all lowering total installed costs.

Dual frequency

50 Hz/60 Hz dual frequency is available on these engines and meet EPA Interim Tier 3 and EU Stage III A emissions regulations.

Additional features

Self-adjusting poly-vee fan drive
Forged-steel connecting rods
Replaceable wet-type cylinder liners
Either-side service
Gear driven auxiliary drive

Specifications

Emissions Certifications

EPA Tier 3	-

General engine data

Model	6090HFG84
Number of cylinders	6
Displacement-- L (cu in)	9.0 (549)
Bore and Stroke-- mm (in)	118.4 x 136 (4.66 x 5.35)
Compression Ratio	16.0 : 1
Engine Type	In-line, 4-Cycle
Aspiration	Turbocharged and air-to-air aftercooled
Length - mm (in)	1208 (47.6)
Width-- mm (in)	630 (24.8)
Height-- mm (in)	1113 (43.8)
Weight, dry - kg (lb)	901 (1986)

Performance data range

Hz (rpm)	60 ( 1800 ) 50 ( 1500 )
Generator Efficiency %	90-94 90-94
Power Factor	0.8 0.8
Engine power - Prime kW	235-286 230-277
Engine power - Prime hp	315-384 308-371
Engine power - Standby kW	258-315 253-304
Engine power - Standby hp	346-422 339-408
Rated Fan Power - kW	29.4 17
Rated Fan Power - hp	39.4 22.8
Calculated generator set output - Prime kWe	185-242 192-244
Calculated generator set output - Prime kVA	232-302 240-305
Calculated generator set output - Standby kWe	206-268 213-270
Calculated generator set output - Standby kVA	258-336 266-337
