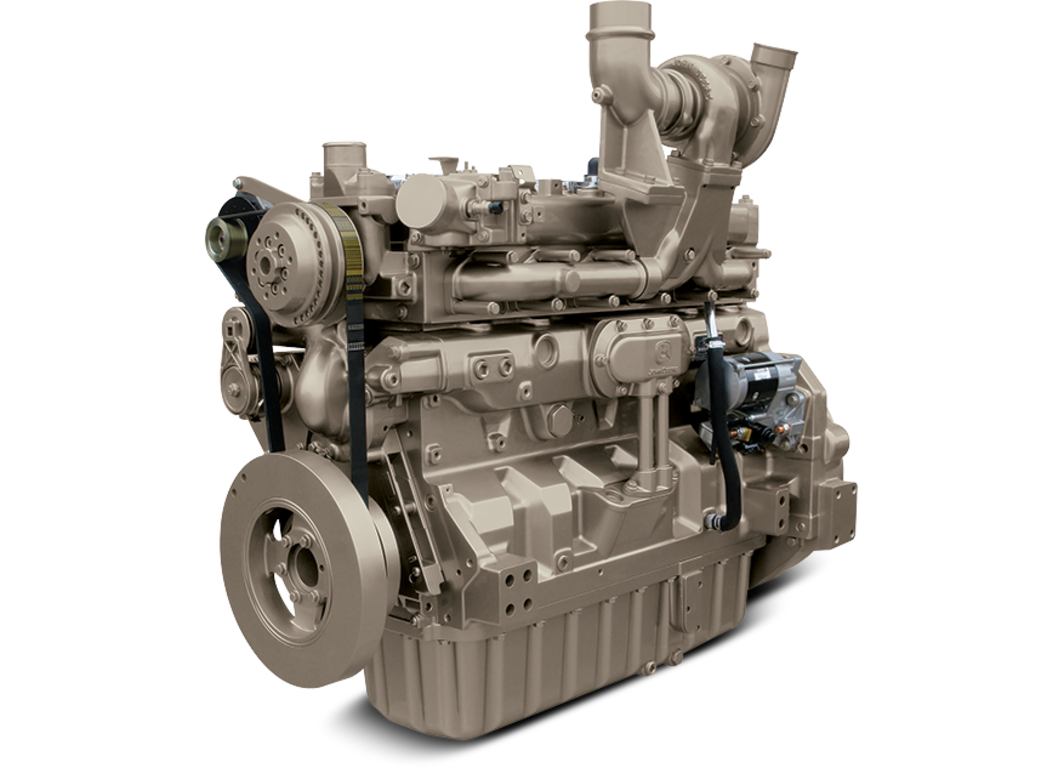

6090HF475 Industrial Engine

New equipment

John Deere Tier 2 and Lesser Regulated Engines

6090HF475

9.0L Industrial Diesel Engine

Call Us Email Us Apply for Financing View Deere source

PowerTech™
172 - 286 kW (231 - 386 hp)

Features

Fixed geometry turbocharger

Fixed geometry turbochargers are sized for a specific power range and optimized to provide excellent performance across the entire torque curve. They are also designed to maximize fuel economy between the engine's rated speed and peak torque.

High pressure common rail (HPCR) fuel system

The HPCR fuel system provides variable common-rail pressure, multiple injections, and higher injection pressures up to 1,600 bar (23,000 psi). It also controls fuel injection timing and provides precise control for the start, duration, and the end of injection.

4-valve cylinder head

The 4-valve cylinder head provides excellent airflow by utilizing a U-flow design.

Air-to-air aftercooled

This is the most efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.

John Deere electronic engine controls

Electronic engine controls monitor critical engine functions, providing warning and/or shutdown to prevent costly engine repairs and eliminate the need for add-on governing components, all lowering total installed costs.

Specifications

Emissions Certifications

Non-certified	-

General engine data

Model	6090HF475
Number of cylinders	6
Displacement-- L (cu in)	9.0 (549)
Bore and Stroke-- mm (in)	118 x 136 (4.66 x 5.35)
Compression Ratio	16.0 : 1
Engine Type	In-line, 4-Cycle
Aspiration	Turbocharged and air-to-air aftercooled
Length - mm (in)	1211 (47.7)
Width-- mm (in)	633 (24.9)
Height-- mm (in)	1260 (49.6)
Weight, dry - kg (lb)	1097 (2418)

Performance data range

Intermittent - Rated power/Rated speed	261-286 kW (350-384 hp) @2200 rpm
Intermittent - Peak power	298 kW (400 hp) @2000 rpm
Intermittent - Power bulge	1-14 % @2000 rpm
Intermittent - Peak torque	1474 N·m (1087 ft-lb) @1600 rpm
Intermittent - Torque rise	19-30%
Heavy Duty - Rated power/Rated speed	239 kW (321 hp) @2200 rpm
Heavy Duty - Peak power	272 kW (365 hp) @2000 rpm
Heavy Duty - Power bulge	14 % @2000 rpm
Heavy Duty - Peak torque	1349 N·m (995 ft-lb) @1600 rpm
Heavy Duty - Torque rise	30%
Continuous - Rated power/Rated speed	172-219 kW (231-296 hp) @2200 rpm
Continuous - Peak power	206-248 kW (276-333 hp) @1800-2000 rpm
Continuous - Power bulge	13-20 % @1800-2000 rpm
Continuous - Peak torque	1200-1228 N·m (885-906 ft-lb) @1600 rpm
Continuous - Torque rise	29-61%
