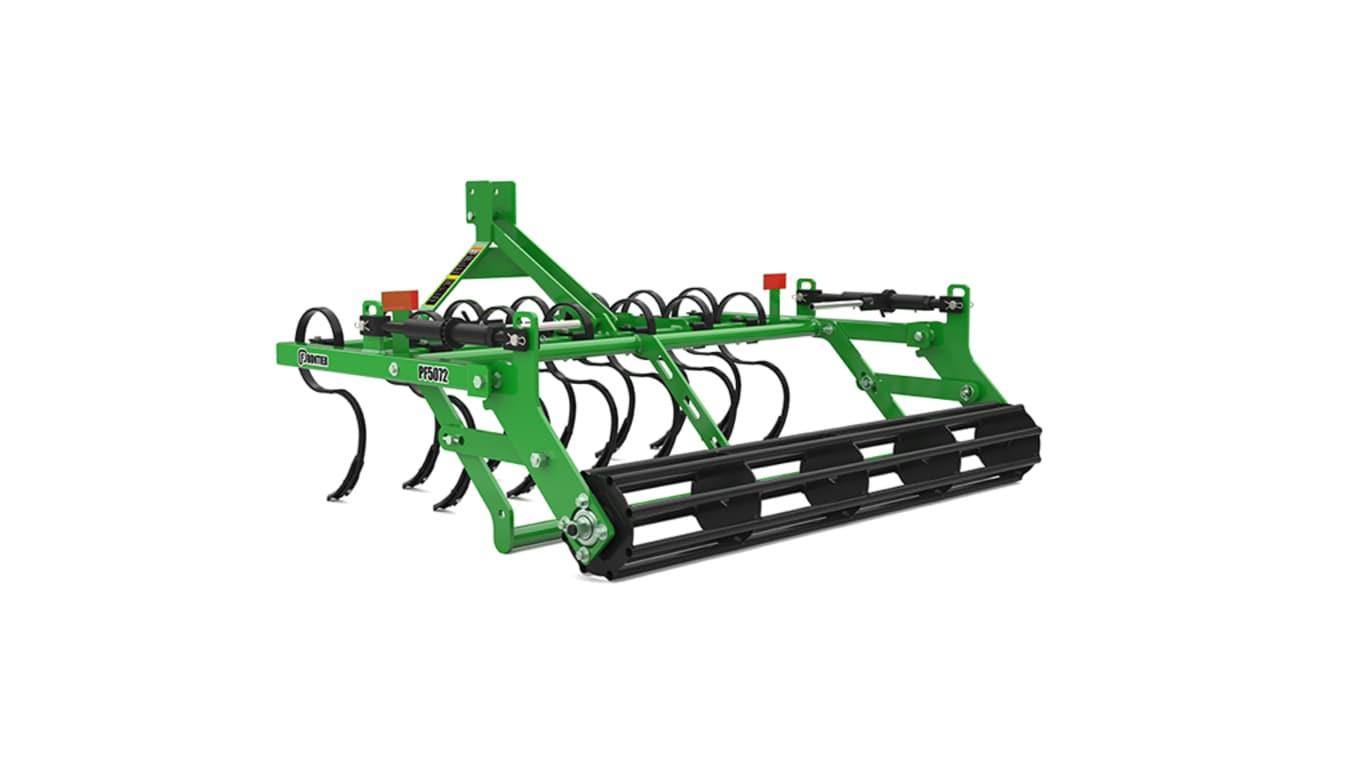

Frontier™ Livestock & Equine EquipmentPro Finisher
The arena drag features adjustable S-tines that effectively break down hard dirt clumps. This adjustability allows users to customize the drag's performance based on specific arena conditions, whether dealing with hard-packed surfaces or softer footing. Tailoring the implement to the arena’s needs ensures a consistently safe and effective surface.
Equipped with a floating drag blade, this arena drag provides versatility in achieving a smooth, uniform finish. Users can adapt the drag to different surfaces and conditions, ensuring that the arena is groomed to the desired specifications.
Designed with quick-hitch compatibility for both medium and large tractors, this arena drag easily integrates into existing equipment lineups. This versatility allows equine businesses to maximize the utility of their current machinery without needing additional investments. Operators can switch between tasks seamlessly, enhancing overall productivity and efficiency.
The adjustable design of the arena drag allows for controlled weight distribution across the implement. By modifying the drag’s configuration, operators can manage how deep the tines penetrate the footing, which is crucial for maintaining a consistent surface. This feature is especially valuable in arenas with varying traffic levels, ensuring appropriate care for all areas.
This arena drag is designed for versatility, allowing operators to navigate tight spaces and hard-to-reach areas with ease. By adjusting the angle and depth of the drag, users can effectively groom edges and corners of the arena, ensuring that every inch of the riding surface is maintained.
| Heaped | - |
|---|---|
| Struck level | - |
| Side loading height | - |
| Transport safety lights | - |
| PTO drive - Standard | - |
| PTO drive - Optional | - |
| Beater | - |
| Hydraulic-push upload rate | - |
| Heaped | - |
|---|---|
| Struck level | - |
| Liquid | - |
| Top of flare width | - |
|---|---|
| Inside width | - |
| Inside length | - |
| Inside depth | - |
| Working Width | 67.25 in. 170.8 cm |
| Overall Width | 74.25 in. 188.6 cm |
| Overall Height | 36.25 in. 92.1 cm |
| Height to Hitch Pins | 16.75 in. 42.5 cm |
| Overall length | 67.75 in. 172.1 cm |
| Overall width with standard tires | - |
| Overall loading height - top of flare | - |
| Overall height with hydraulic endgate to top beater | - |
| Height with splashguard | - |
| Side loading height | - |
| Screen height | - |
| Width of tank top | - |
| Beater height | - |
| Loaded with base tire | - |
|---|---|
| Implement with base tire | - |
| Towing unit minimum weight | - |
| Tongue weight (approximate) | - |
| Operating | 480 lb 217.7 kg |
| Implement Code | 32.16 |
| COG | 30 |
| Engine HP | 35-50 hp 26.1-37.3 kW |
|---|
| Transport safety lights | - |
|---|---|
| Markings | - |
| Safety tow chain | - |
| Jack | - |
| Standard | - |
|---|---|
| Optional | - |
| Shear bolt protection | - |
| Apron | - |
|---|---|
| Beater | - |
| Speed | - |
|---|---|
| Diameter | - |
| Configuration | - |
|---|---|
| Diameter | - |
| Inside shredder | - |
| Replaceable | - |
| Teeth | - |
| Speed | - |
| Drive chain | - |
| Quantity | - |
|---|---|
| Replaceable | - |
| Front | - |
|---|---|
| Rear | - |
| Tire size | - |
|---|---|
| Spindle size | - |
| Hub style | - |
| Axle | - |
| At 15 gpm | - |
|---|
| Standard | - |
|---|---|
| Optional | - |
| Hydraulic | - |
|---|
| Push gate | - |
|---|---|
| Hydraulic endgate | - |
| Floor | - |
|---|---|
| Box | - |
| Copper bearing steel tank | - |
| Side rail protection | - |
| Auger troughs | - |
| Hitch/S-Tine Tubing | 2 X 2 X 0.1875 in. 5.1 X 5.1 X 0.5 cm |
| Outside Tubing | 2.5 X 2.5 X 0.1875 in. 6.4 X 6.4 X 0.5 cm |
| Number of S-Tines | 13 |
| S-Tine Spacing | 3.4 in. 8.6 cm |
| Style | Clevis w/Pin |
|---|---|
| Category | Cat 1 |
| iMatch/Quick Hitch Compatible | Yes |
