New equipment

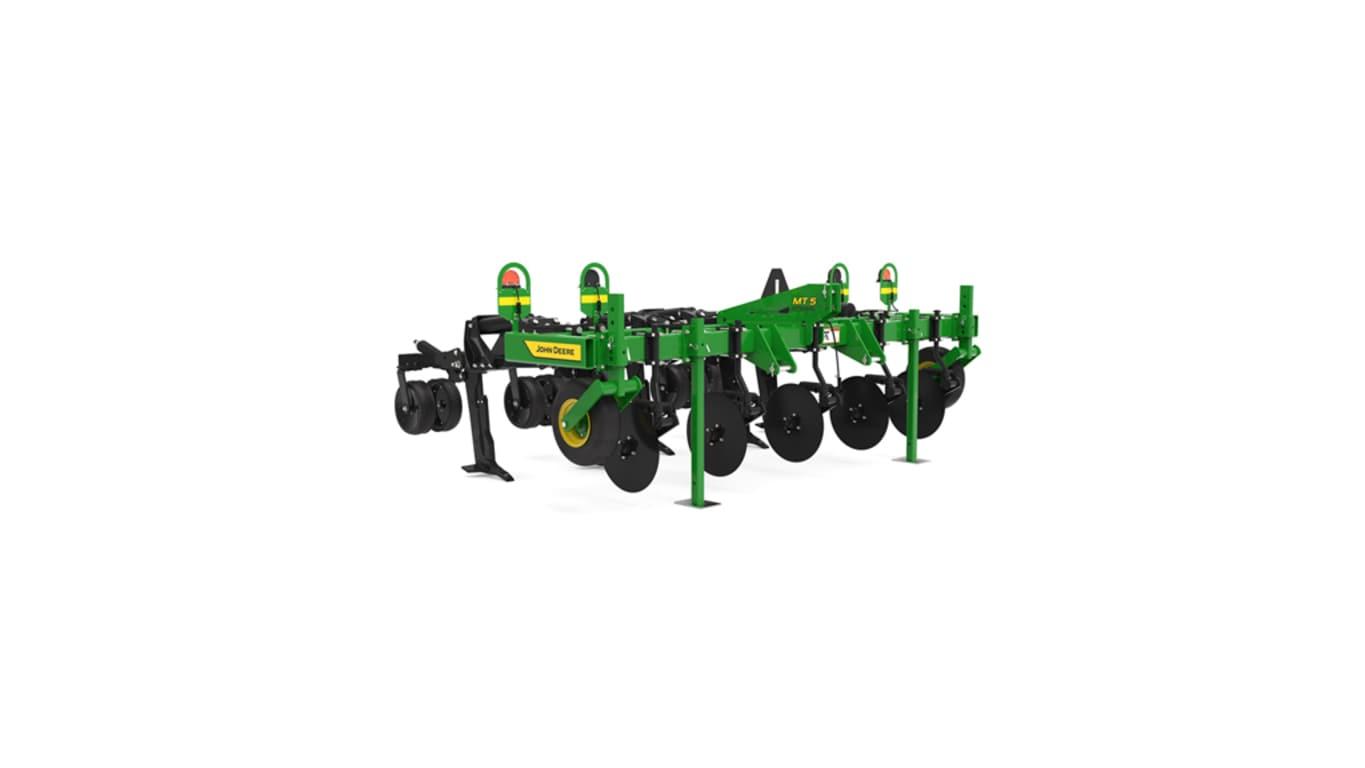

Tillage EquipmentMinimum-Till Ripper
MT Series Minimum Till Rippers are built to run at 4 – 7 miles per hour behind today’s high horsepower tractors.
Rip 25 more acres per day with the MT11 compared to the previous 9 standard model. MT Series Rippers break-up deep compaction at depths up to 16 in. while minimizing topsoil disturbance.
Extended wear standards deliver double the life expectancy compared to previous 2100 ripper models. The MT series delivers a highly productive and easy to set minimal maintenance solution to breaking up soil compaction. Spend less time changing components and more time working your ground.
| Working width | 3.8 m 12.5 ft |
|---|---|
| Transport width | 4.1 m 13.4 ft |
| Operating depth | Maximum 40.6 cm 16 in. |
| Miles per hour | 6.4-11.2 km/h 4-7 mph |
| Horsepower per standard | 29.8-44.7 kW 40-60 hp |
| Spacing between standards | 76.2 cm 30 in. |
| Type | In-line ripper |
|---|---|
| Option 1 | - |
| Option 2 | - |
| Option 3 | - |
| Option 4 | - |
| Option 5 | - |
| Option 6 | - |
| Option 7 | - |
| Option 8 | - |
| Option 9 | - |
| Option 10 | - |
| Option 11 | - |
| Option 12 | - |
| Option 13 | - |
| Option 14 | - |
| Option 15 | - |
| Option 16 | - |
| Option 17 | - |
| Option 18 | - |
| Option 19 | - |
| Option 20 | - |
| Option 21 | - |
| Option 22 | - |
| Option 1 | - |
|---|---|
| Option 2 | - |
| Option 3 | - |
| Option 4 | - |
| Option 5 | - |
| Option 6 | - |
| Option 7 | - |
| Option 8 | - |
| Option 9 | - |
| Option 10 | - |
| Option 11 | - |
| Option 12 | - |
| Option 13 | - |
| Option 14 | - |
| Option 15 | - |
| Option 16 | - |
| Option 17 | - |
| Option 18 | - |
| Option 19 | - |
| Option 20 | - |
| Option 21 | - |
| Option 22 | - |
| Option 1 | - |
|---|---|
| Option 2 | - |
| Option 3 | - |
| Option 4 | - |
| Option 5 | - |
| Option 6 | - |
| Option 7 | - |
| Option 8 | - |
| Option 9 | - |
| Option 10 | - |
| Option 11 | - |
| Option 12 | - |
| Option 13 | - |
| Option 14 | - |
| Option 15 | - |
| Option 16 | - |
| Option 17 | - |
| Option 18 | - |
| Option 19 | - |
| Option 20 | - |
| Option 21 | - |
| Option 22 | - |
| Maximum | 40.6 cm 16 in. |
|---|
| Size | 102x152x0.9.5 mm 4x6x0.375 in. |
|---|---|
| Maximum underframe clearance | 89 cm 35 in. |
| Miles per hour | 6.4-11.2 km/h 4-7 mph |
|---|
| Horsepower per standard | 29.8-44.7 kW 40-60 hp |
|---|
| Option 1 | 3-point hitch for integral |
|---|---|
| Option 2 | - |
| Option 3 | - |
| Option 1 | - |
|---|---|
| Option 2 | - |
| Options | Integral |
|---|---|
| Three-point hitch requirements | Category 3/4N (with Quik-Coupler) |
| Pull-type description | - |
| Spacing between standards | 76.2 cm 30 in. |
|---|---|
| Option 1 | Trip force Shear-bol: 3,265 kg 7,200 lb Standard type Straight with wear shin: 19 or 31.75 mm 0.75 or 1.25 in. Shear-bolt |
| Option 2 | Trip force 1,451.5 kg 3,200 lb Trip height 30.5 cm 12 in. Standard type 19 mm 0.75 in. Cushion trip |
| Option 3 | - |
| Option 4 | - |
| Options | Standard: 19 mm (0.75 in.) min-till point: 178 mm (7 in.) low-disturbance: 254 mm (10 in.) ultra-low-disturbance: 63 mm (2.5 in.) Standard: 31.75 mm (1.25 in.) Regular: 57 mm (2.25 in.) Capped: 57 mm (2.25 in.) Double-capped: 57 mm (2.25 in.) LaserRip points: 70 mm (2.75 in.), 127 mm (5 in.), and 178 mm (7 in.) |
|---|
| Description | - |
|---|---|
| Type | Spring cushion coulters |
| Pounds of force | Normal working load: 272.2 kg 600 lb Deflection of: 10.2 cm 4 in. Maximum trip load: 362.9 kg 800 lb Deflection of: 20.3 cm 8 in. |
| Blades | Straight or rippled: 559x4.5 mm 22x0.1777 in. |
| Description | - |
|---|---|
| Down force | 113.4 kg 250 lb |
| Size | 10.2x40.6 cm 4x16 in. |
| Spacing | 19.05 to 35.6 cm 7.5 to 14 in. |
| Angle adjustments | 1 to 15 degree (angle) |
| Type | Two Stabilizer wheels |
|---|---|
| Wheels | 52.1x20.3 cm 20.5x8 in. |
| Tires | 10 PR |
| Description | - |
|---|---|
| Additional feature | - |
| Option 1 | - |
| Option 2 | - |
| Option 3 | - |
| Option 4 | - |
