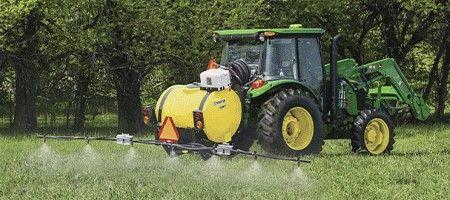

Frontier™ Landscape Equipment3-Point Mounted Sprayers
Choose which tank size best fits the area needing sprayed and your current tractor. The rugged translucent yellow tank has molded fill level indicators, drain spout, and tank sump for ease of operation.
The electric diaphragm pump is available only on the 170.3-L (45-gal) LS2004 Sprayer with the ability to choose between a 7.6-L/min or 15.1-L/min (2-gpm or 4-gpm) pump. These pumps can run dry without damage, which protects you from premature failure and maintenance costs.

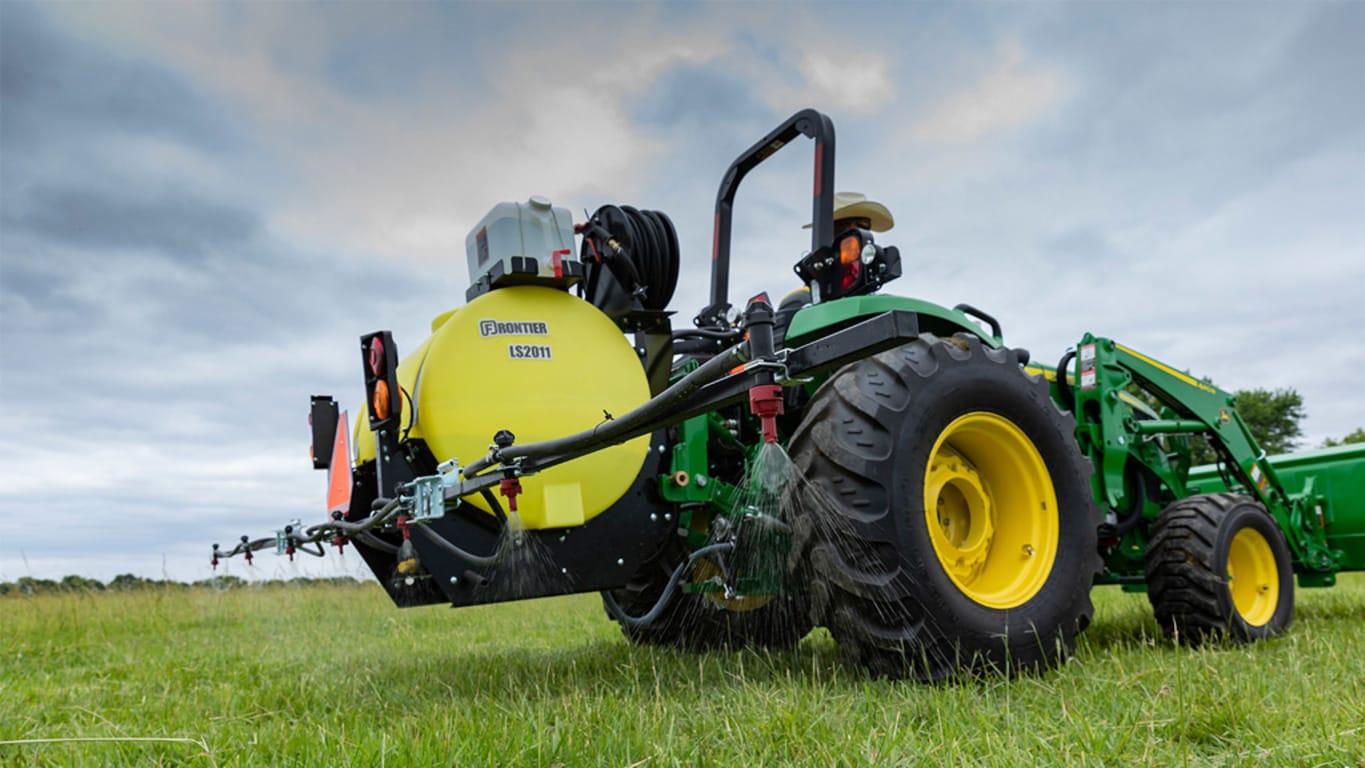

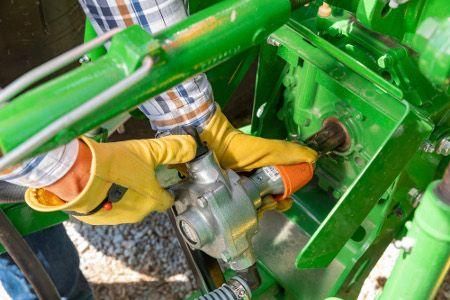

The six-roller cast PTO pump has a 79.5-L (21-gpm) flow and comes standard on the LS2006, LS2011, and LS2015 Sprayers with an option to upgrade to the Silver Series pump or the larger seven-roller pump available for the LS2015. The cast version of the roller pump is recommended when pumping water and can be used in agricultural applications, while the Silver Series pumps should be used with herbicide.
You have the option to match boom width to your acreage and operation. These booms come in 3-m (10-ft), 3.8-m (12.5-ft), 5.5-m (18-ft), 7.3-m (24-ft), and 9.1-m (30-ft) lengths. Hinges on the boom allow it to break away instead of damaging crucial components when inadvertently hitting an obstacle.
A boomless option is available when you want to avoid obstacles in your property or if you have rough terrain. There are two boomless options: 7.3 m (24 ft) or 9.1 m (30 ft).

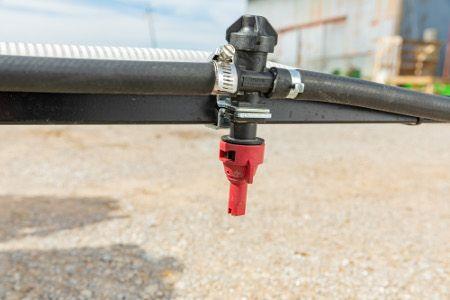

Single nozzle bodies come standard on all units. Quick-attach, no-drip diaphragm check nozzle bodies are easy to align and spaced at 50.8 cm (20 in.) for even coverage.
TeeJet is a trademark of Spraying Systems Co.

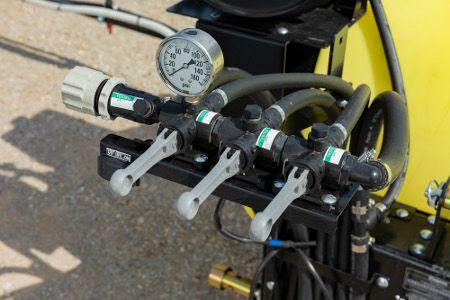

Easy, reachable, and adjustable controls make these sprayers ideal for any job, configuration, or user. The three-section boom controls on the 416.4- and 567.8-L (110- and 150-gal.) sprayers offer easy on and off functionality. The glycerin-filled gauge and pressure regulator valve allow you to adjust pressure easily. All components provide superior chemical and corrosion resistance.
Jet agitation or recirculation ensures even mixture of material from start to finish. With an in-line filter and shutoff valve, a dirty filter can be cleaned whenever needed, even if the tank is full. When you’re done, a tank sump allows for complete drainage.

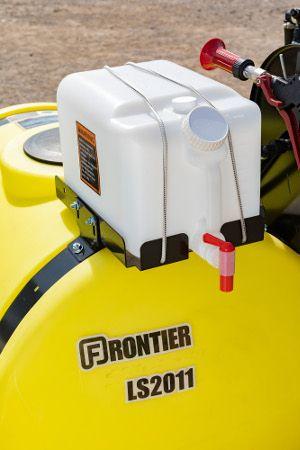

Fresh water is invaluable when you need to wash chemicals, and it is available on the 416.4- and 567.8-L (110- and 150-gal.) sprayers.

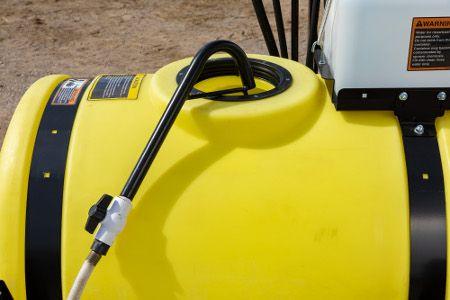

The innovative design and in-line valve make a convenient accessory for filling your sprayer. The design prevents back siphoning and keeps your hose and water source clear of the tank contents.
Implement-to-tractor hookup is simple with iMatch Quick-Hitch Category 1 compatibility.

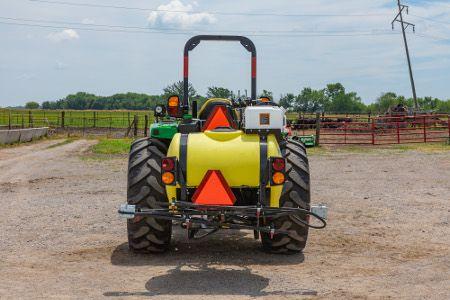

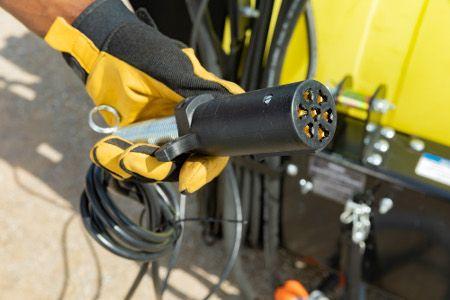

Easily connect your sprayer tail lights to a 7-pin equipped utility tractor. The light kit is available on 416.4- and 567.8-L (110- and 150-gal.) sprayer.

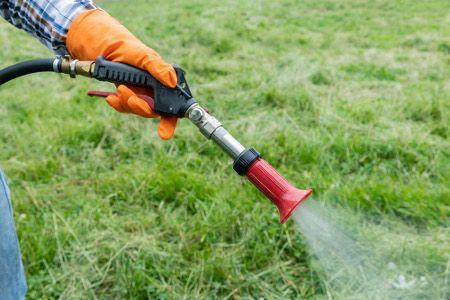

All models in the LS20 Series Sprayers include a hand-held spray gun with a 9.14-m (30-ft) hose as standard equipment.

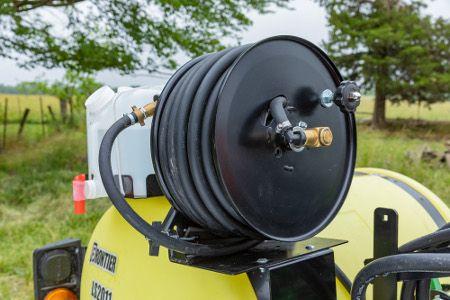

For hard to reach or small areas, a 30.5-m (100-ft) hose reel kit is available.
The right product needs to be applied at the right rate in the right place at the right time. Rate control helps ensure this while also:
With rate control, you can be confident that no matter the speed, the operator, or other factors at play, the desired rate will be applied across the pasture, golf course, field, etc.
Frontier offers a Rate Control Ready Kit for LS2011 and LS2015 sprayers for use with a John Deere rate controller (sold separately) with benefits such as:
Take Efficiency and Savings to the Next Level
You get the COMPLETE SOLUTION when using precision technology together. When you use the StarFire receiver, John Deere rate controller, John Deere display, FREE JDLink™ connection, and the John Deere Operations Center™, you unlock….
