Frontier™ Landscape Equipment3-Point Mounted Sprayers

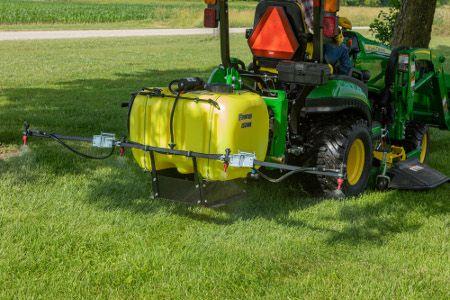

Choose which tank size best fits the area needing sprayed and your current tractor. The rugged translucent yellow tank has molded fill level indicators, drain spout, and tank sump for ease of operation.

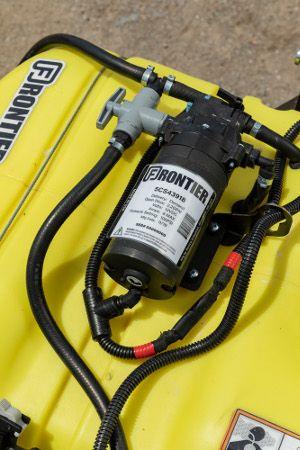

The electric diaphragm pump is available only on the 170.3-L (45-gal) LS2004 Sprayer with the ability to choose between a 7.6-L/min or 15.1-L/min (2-gpm or 4-gpm) pump. These pumps can run dry without damage, which protects you from premature failure and maintenance costs.
The six-roller cast PTO pump has a 79.5-L (21-gpm) flow and comes standard on the LS2006, LS2011, and LS2015 Sprayers with an option to upgrade to the Silver Series pump or the larger seven-roller pump available for the LS2015. The cast version of the roller pump is recommended when pumping water and can be used in agricultural applications, while the Silver Series pumps should be used with herbicide.
You have the option to match boom width to your acreage and operation. These booms come in 3-m (10-ft), 3.8-m (12.5-ft), 5.5-m (18-ft), 7.3-m (24-ft), and 9.1-m (30-ft) lengths. Hinges on the boom allow it to break away instead of damaging crucial components when inadvertently hitting an obstacle.
A boomless option is available when you want to avoid obstacles in your property or if you have rough terrain. There are two boomless options: 7.3 m (24 ft) or 9.1 m (30 ft).

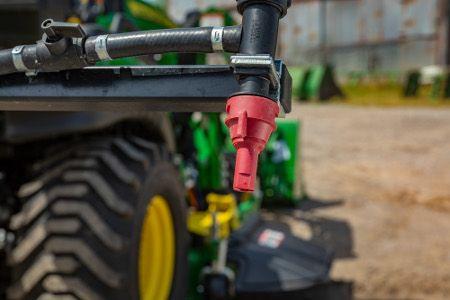

Single nozzle bodies come standard on all units.
TeeJet is a trademark of Spraying Systems Co.

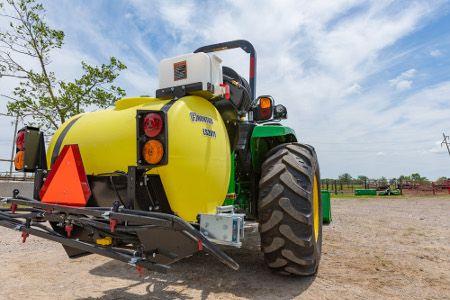

All models, except the LS1145, fold and unfold manually. Simply remove a pin and swing the arms out, then extend the outermost edge of the boom. The LS1145 hydraulically folds and unfolds, allowing the operator to stay in the cab.
The boom has a hinge that allows it to break away instead of damaging crucial components when inadvertently hitting an obstacle.
The boom utilizes a stainless-steel pipe, instead of multiple hoses, for product distribution. This configuration leads to fewer parts, less chance of product trapped in the lines, and a reduced pressure drop.
The gas cylinder provides an ergonomic and safe mechanism that shortens manual folding and unfolding time.
The Raven SCS 450 Controller automatically controls up to five sections (including two fenceline nozzles) of the boom depending on the speed of the tractor.
NOTE: The Raven SCS 450 option is available on LS1140 and LS1145 models only.
The Texas Industrial Remcor console manually controls three separate sections of the boom. It is available in base on all LS11 models.
Prevent crop damage and inability to control weeds due to skips and overlap by visualizing the placement of chemicals with foam markers.
SCS 450 is a trademark of Raven Industries Incorporated.

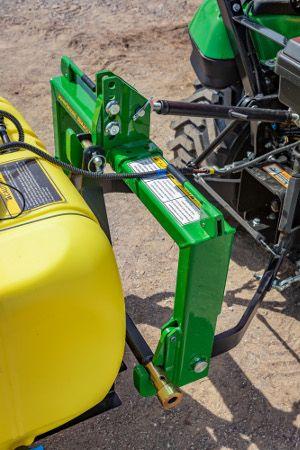

Implement-to-tractor hookup is simple with iMatch Quick-Hitch Category 1 compatibility.
The shape of the tank allows the liquid inside the tank to completely drain out, making it faster to switch from one chemical to the next, or prepare for storage.
Spray gun as standard equipment
All models in the LS20 Series Sprayers include a hand-held spray gun with a 9.14-m (30-ft) hose as standard equipment.
