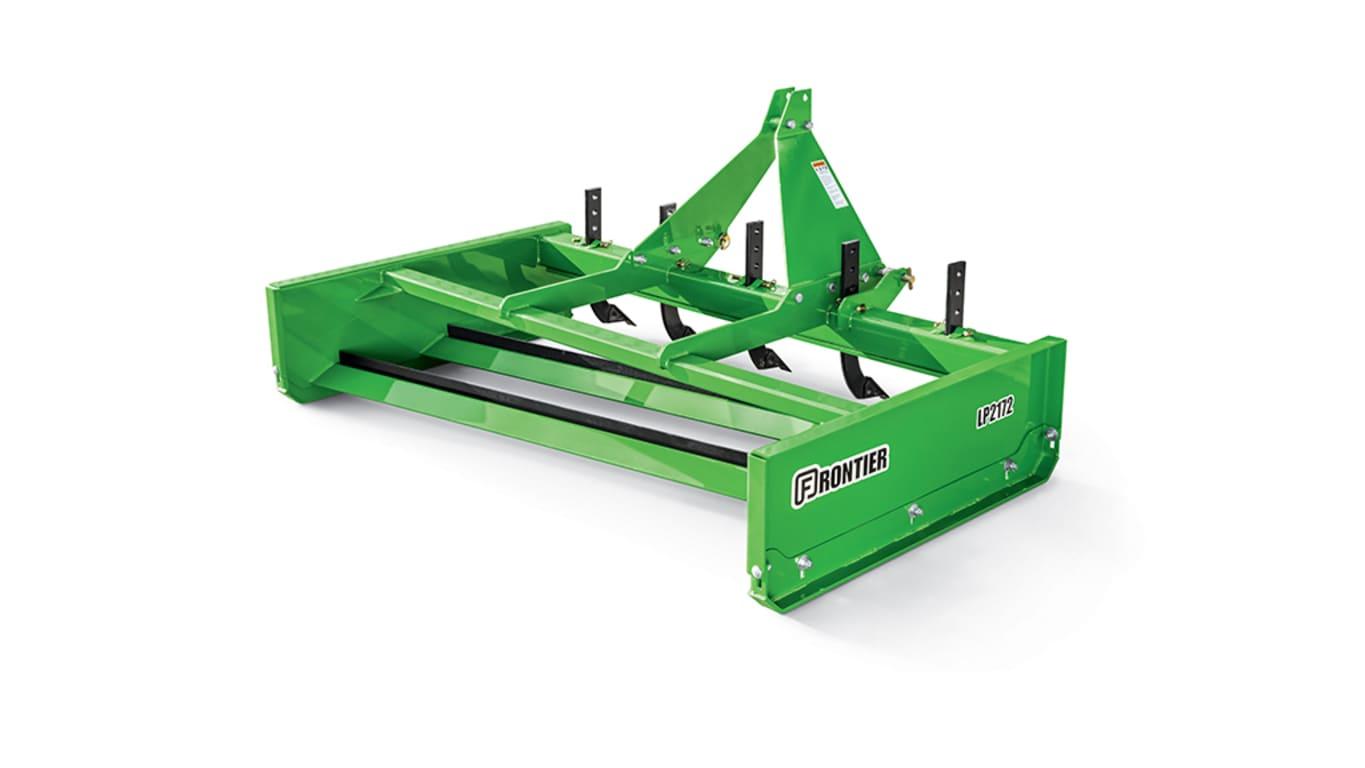

Frontier™ Landscape EquipmentLand Planes
Skid shoes increase the life of the cutting edges on the land planes while avoiding damage to the working surface.
The skid shoes are adjustable up and down on each side plate to allow for the creation of a crown on a road for water runoff.
By replacing the skid shoes when needed, it will extend the life of the land plane.
The scarifier shanks can be easily adjusted for depth control.
| Working width | LP2054L: 137.2 cm 54 in. LP2160: 152.4 cm 60 in. LP2172: 182.9 cm 72 in. LP2184: 213.4 cm 84 LP2196: 243.8 cm 96 |
|---|---|
| Overall Width | LP2054L: 147.3 cm 58 in. LP2160: 165.1 cm 65 in. LP2172: 193.0 cm 76 in. LP2184: 223.5 cm 88 in. LP2196: 254.0 cm 100 in. |
| Overall Height | LP2054L: 83.8 cm 33 in. LP2160: 88.9 cm 35 in. LP2172: 88.9 cm LP2184: 88.9 cm LP2196: 88.9 cm |
| Overall Length | LP2054L: 121.9 cm 48 in. LP2160: 121.9 cm LP2172: 121.9 cm LP2184: 137.2 cm 54 in. LP2196: 137.2 cm |
| Height to Hitch Pins | LP2054L: 35.6 cm 14 in. LP2160: 40.6 cm 16 in. LP2172: 40.6 cm LP2184: 40.6 cm LP2196: 40.6 cm |
| Operating | LP2054L: 143.3 kg 316 lb LP2160: 219.5 kg 484 lb LP2172: 239.5 kg 528 lb LP2184: 276.7 kg 610 lb LP2196: 296.2 kg 653 lb |
|---|---|
| Shipping | LP2054L: 308.4 kg 680 lb LP2160: 461.8 kg 1018 lb LP2172: 501.7 kg 1106 lb LP2184: 553.4 kg 1220 lb LP2196: 615.1 kg 1356 lb |
| Implement code | - |
| Required PTO horsepower | LP2054L: 13.4-22.4 kW 18-30 hp LP2160: 18.6-37.3 kW 25-50 hp LP2172: 18.6-37.3 kW LP2184: 29.8-67.1 kW 40-90 hp LP2196: 29.8-67.1 kW |
|---|
| Style | All:Clevis w/ Pin |
|---|---|
| 3-point compatibility | LP2054L: Cat 1 Limited LP2160: Cat 1 LP2172: Cat 1 LP2184: Cat 1 and 2 LP2196: Cat 1 and 2 |
| iMatch™ compatible (Cat. 1) | - |
| Quick-coupler compatible (Cat. 2) | All:Yes |
| Pull-type | - |
| Type | All:High Carbon Heat Treated Blades |
|---|---|
| Reversible | All:Yes |
| Replaceable | All:Yes |
| Quantity | All:Two |
| Size, in. (cm) | All:0.95x15.2 cm 0.375x6 in. |
| Placement | All:Blades Positioned at a 10 Degree Angle |
| Configuration | All: Infinitely adjustable |
|---|---|
| Thickness | LP2054L: 0.635 cm 0.25 in. LP2160: 0.95 cm 0.375 in. LP2172: 0.95 cm LP2184: 0.95 cm LP2196: 0.95 cm |
| Height adjustment range | All:6.35 cm 2.5 in. |
| Configuration | All:One unit |
|---|
| Labor hours | - |
|---|
| Time period | All:1 year |
|---|
| Adjustable | LP2054L: 3 Position LP2160: 4 Position LP2172: 4 Position LP2184: 4 Position LP2196: 4 Position |
|---|---|
| Heat treated | All:Yes |
| Available | - |
| Points | - |
| Quantity | LP2054L: 4 LP2160: 4 LP2172: 5 LP2184: 6 LP2196: 7 |
| Tubular scarifier beam size | - |
| Tubular scarifier beam thickness | - |
| Scarifier Depth Range | LP2054L: 0 cm 0 in. , -3.81 cm -1.5 in., -7.62 cm -3 in. LP2160: 5.08 cm 2 in. , 0 cm 0 in. , -5.08 cm -2 in. , -10.16cm -4 in. LP2172: 5.08 cm 2 in. , 0 cm 0 in. , -5.08 cm -2 in. , -10.16cm -4 in. LP2184: 5.08 cm 2 in. , 0 cm 0 in. , -5.08 cm -2 in. , -10.16cm -4 in. LP2196: 5.08 cm 2 in. , 0 cm 0 in. , -5.08 cm -2 in. , -10.16cm -4 in. |
| Date collected | - |
|---|
