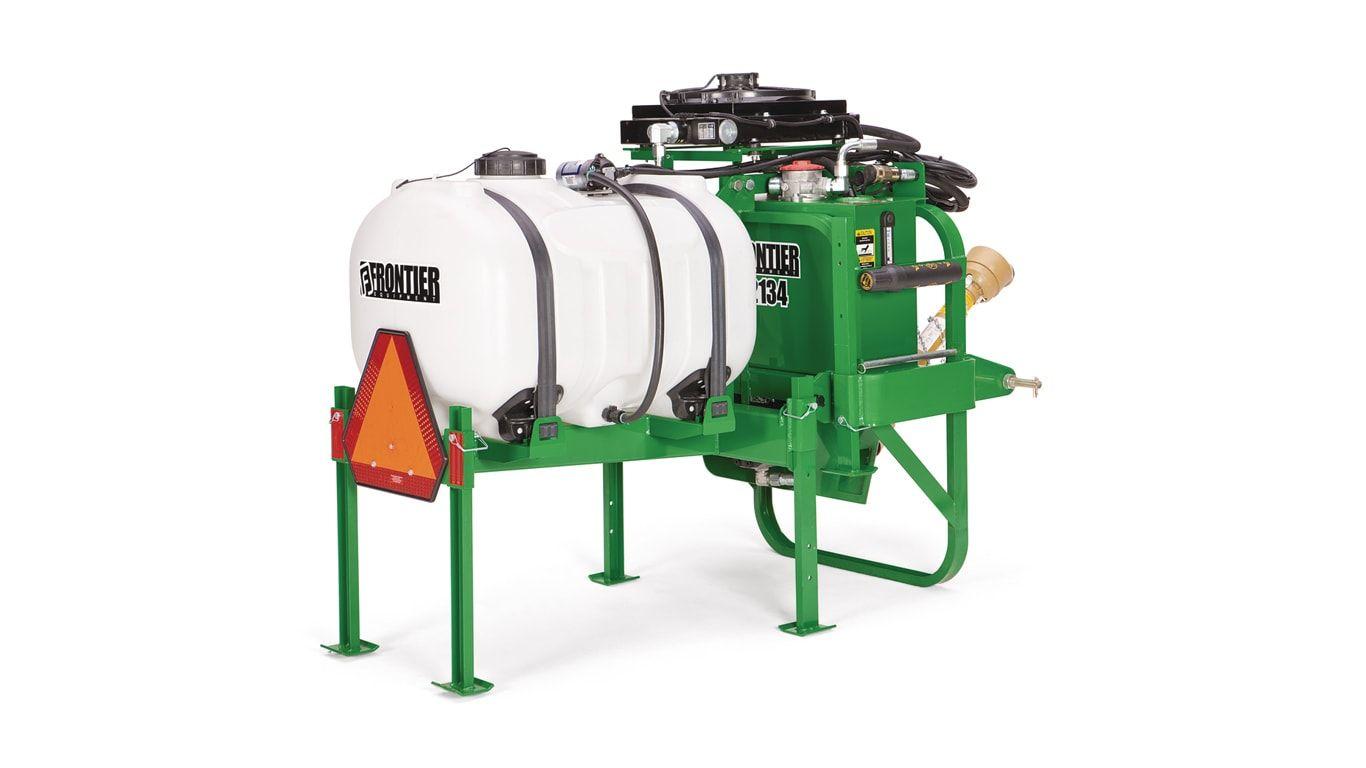

Frontier™ Loader AttachmentsHydraulic Power Pack
A thermal switch protects the hydraulic system when the hydraulic oil reaches 93 °C (200 °F).
Rear quick connect makes for fast and easy connections.
The optional oil cooler unit regulates the temperature of the hydraulic fluid for warmer weather implements.
| Unit width | 965 mm 38 in. |
|---|---|
| Unit width with weights | 1,524 mm 60 in. |
| Unit height | 1,321 mm 52 in. |
| Unit length | 762 mm 30 in. |
| Counter weight support | 700, accepts John Deere weights: 19.1 kg 42 lb and 31.8 kg 70 lb |
| Hitch - Category | Category 1 |
| Quick hitch, Category 2 | No |
| PTO horsepower | 18.6-26.1 kW 25-35 hp |
| PTO rpm | 540 PTO |
| Loader (current John Deere series) | 300 |
| Unit width | 965 mm 38 in. |
|---|---|
| Unit width with weights | 1,524 mm 60 in. |
| Unit height | 1,321 mm 52 in. |
| Unit length | 762 mm 30 in. |
| Operating | 1,177 kg 535 lb |
|---|---|
| Shipping | 1177 kg 535 lb |
| PTO horsepower | 18.6-26.1 kW 25-35 hp |
|---|---|
| PTO rpm | 540 PTO |
| Loader (current John Deere series) | 300 |
| Category | Category 1 |
|---|---|
| iMatch™ compatible | - |
| Quick hitch, Category 2 | No |
| Relief valve setting | 207 bar 3,000 psi |
|---|---|
| Oil cooler | Standard |
| Flow @ 3000 psi (207 bar) | 60.6 L/min 16 gpm |
| Oil reservoir | 56.8 L 15 U.S. gal. |
| Hose diameter | 19 mm 0.75 in. |
| Tank-mounted strainer | Standard |
| Tank-mounted return filter | Standard, with breather |
| Pump rpm | 1,836 rpm |
| Parking stands | Standard |
|---|---|
| Counter weight support | 700, accepts John Deere weights: 19.1 kg 42 lb and 31.8 kg 70 lb |
| Configuration | One unit |
|---|
| Labor hours | 1.5-2 |
|---|
| Time period (machine) | 1 year |
|---|
| Date collected | - |
|---|
