HH50

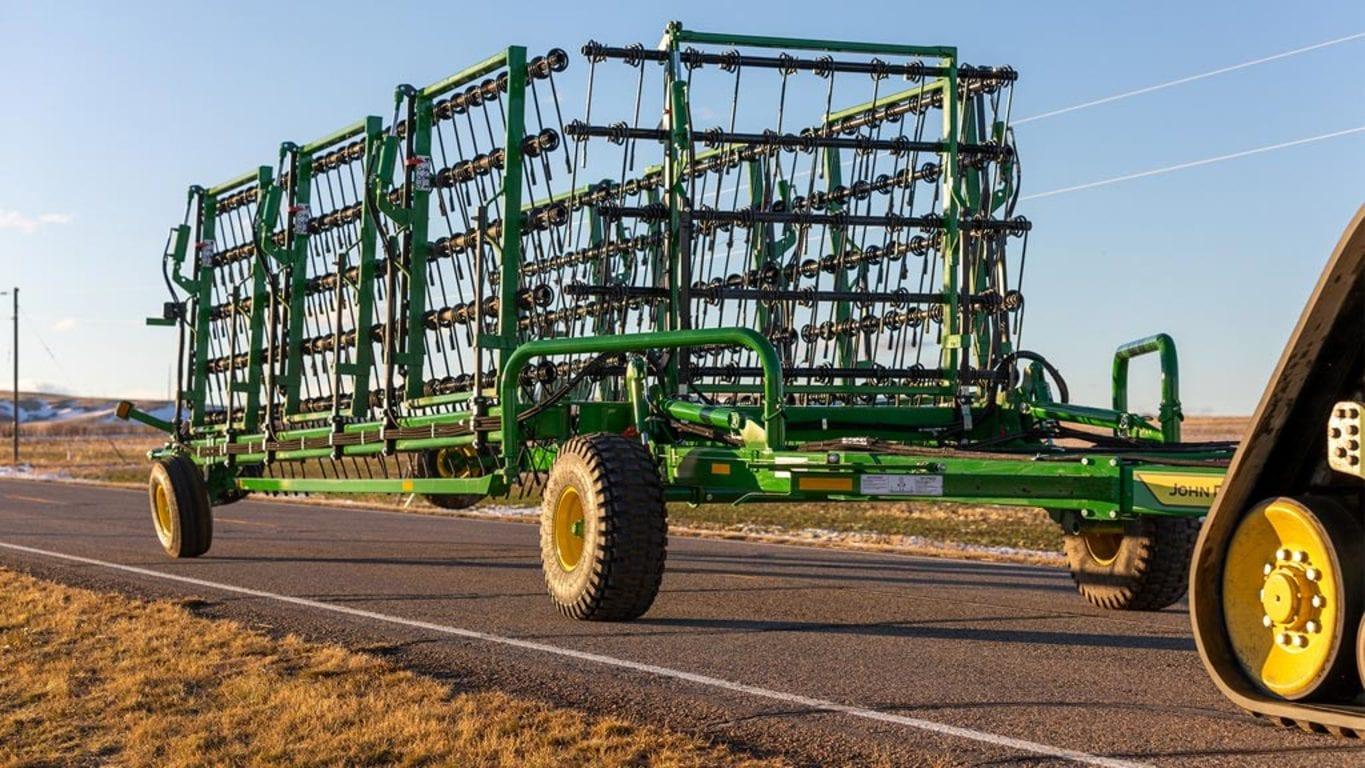

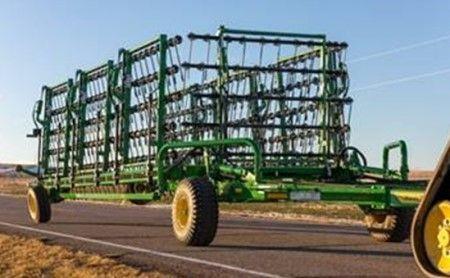

The Heavy Harrow is available in sizes ranging from 15.2 m to 25 m (50 ft to 82 ft). Power requirements range from 111.9 kW to 354.2 kW (150 hp to 475 hp).

Model

Category

Minimum engine power requirement

15.2 m (50 ft), five bar

4

111.9 kW (150 hp)

15.2 m (50 ft), seven bar

4

223.7 kW (300 hp)

21.3 m (70 ft), five bar

4

149.1 kW (200 hp)

21.3 m (70 ft, seven bar

5

298.3 kW (400 hp)

25 m (82 ft), five bar

4

223.7 kW (300 hp)

25 m (82 ft), seven bar

5

354.2 kW (475 hp)

NOTE: Power requirement is dependent on field conditions and tine angle.

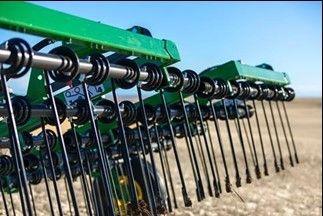

The Heavy Harrow is available in either a five-row configuration with 66-cm x 1.6-cm (26-in. x 5/8-in.) tines or a seven-row configuration with 66-cm x 1.3-cm (26-in. x 1/2-in.) tines. Both configurations have tungsten carbide Endura-Tip tines.

• Easily replace tines by removing a few bolts and easily dropping out the tine bar.
• Tine adjustment is simple with either mechanical or hydraulic adjust options.
• The seven-row configuration offers approximately 68 percent more ground coverage in the field over the five-row configuration.
