G5^Plus

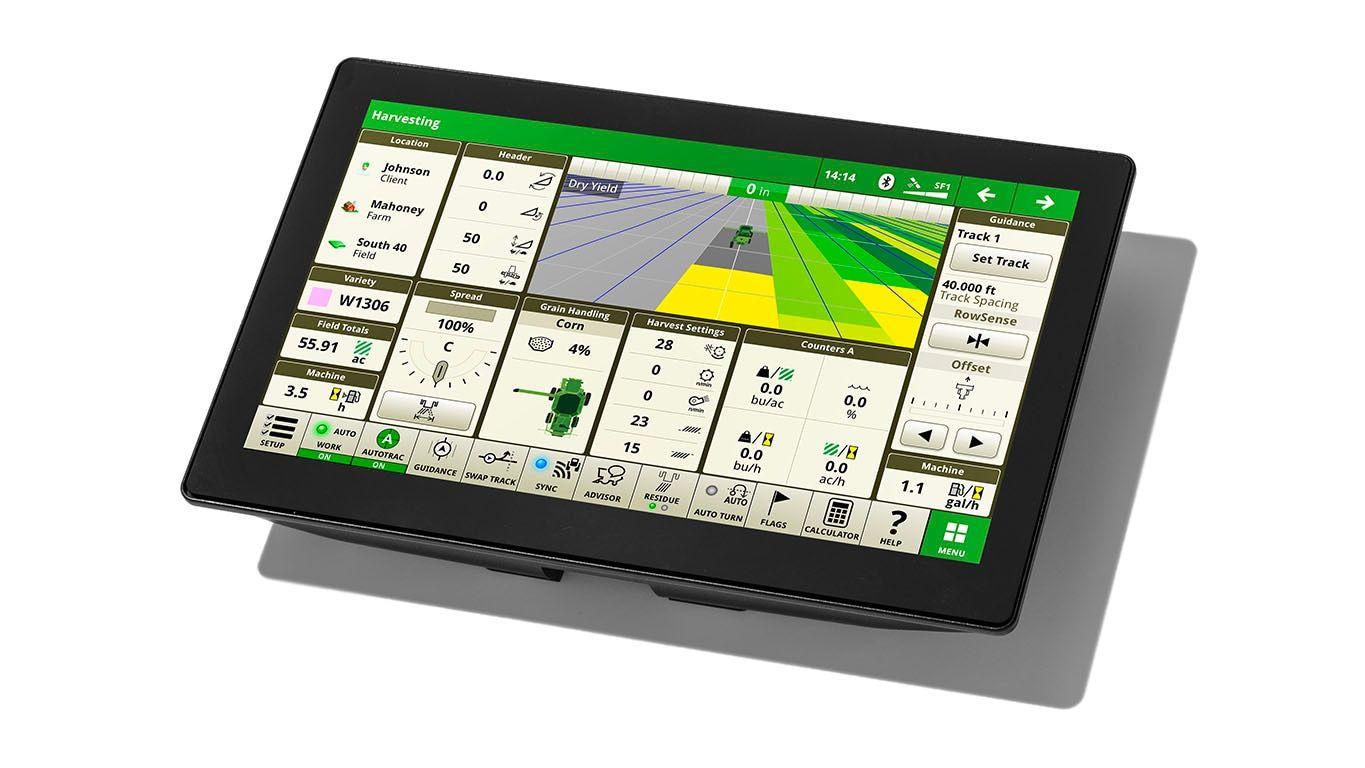

G5Plus Universal Display

The G5 display replaces the 4240 Universal display and uses a larger 12.8-in. (32.5-cm), 1080p HD, capacitive touchscreen and can grow into a fully capable, movable precision ag display. Tied with a StarFire™ Position receiver, the G5Plus Universal displays provides the power needed to perform all of John Deere’s precision ag features. The G5Plus Universal Display includes the following:

• View your information with configurable run screens
• Enhanced user experience with intuitive gestures (pinch to zoom), split-screen mapping, and pass visualization
• Access ongoing software updates that continue to add value overtime
• Straighten your rows with an optional AutoTrac License
• Reduce overlap with optional Section Control License
• Document data and send it to Operations Center for analysis with Data Sync
• Help operators out from afar with Remote Display Access
• Optional AutoTrac RowSense License when guidance accuracy is critical
• Optional G5 Advanced Licenses that unlocks numerous advanced technologies that will elevate your operation
• 4 Analog Digital Input to improve your view of machines, implements, and fields
• 2 Digital Video Inputs (Ethernet) for future use
• RS232 Serial Ports to document and use prescriptions on third-party controllers
• ISO VT and ISO Doc Compatibility to view and document third-party controllers
• Extended Monitor Capability puts more information available in one glance and more controls at your fingertips

Plus Universal Display">G5Plus Universal Display

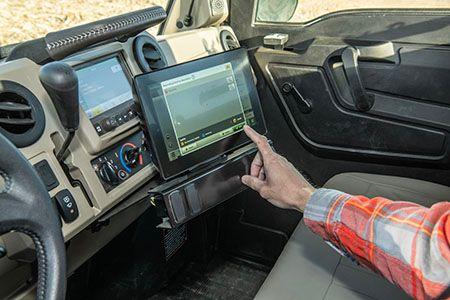

The G5Plus Universal Display ships from the factory with precision ag features included with the display and machine purchase. so that you can easily take the first steps on your precision ag journey:

• AutoTrac™ guidance
• Documentation
• Section Control
• Data Sync

The G5/G5Plus display was designed to provide a consistent user experience by providing full screen viewing of more run page modules, shortcut keys, and precision agriculture capabilities.

Expect easier setup, along with increased operator confidence thanks to a simple, customizable interface. The improved design of the G5/G5Plus display also aids in an optimal operating experience and maximizes uptime.

In order to increase your efficiency, take advantage of the following features offered by the G5/G5Plus display:

Satellite Maps

Satellite Maps introduces a Google background layer to the display, enhancing visibility and enriching the mapping experience for customers. This additional context provides imagery of the physical location of the machine, enabling a more informed and improved farming experience. Satellite Maps is enabled with a G5 Advanced license and 25.1 software release or newer.

This feature will enable customers to:

• Easier to correlate certain features like boundaries, guidance lines, and flags in the map to the actual physical location on the ground
• Understand the field entry while of the field with street names visible from the map
• Understand the job is complete for areas with no field boundary.
• Appreciate a more modernized experience within the cab.

Split Map

We are simplifying the process of displaying two primary map layers side by side on the G5 display. Customers no longer need to struggle with aligning two different map modules perfectly. By placing two maps next to each other, we provide significant value through enhanced visibility, improved comparison capabilities, and better decision-making support for farmers.

Pan and Zoom

With the pan and zoom feature, customers can navigate using their fingers, just as they do on their consumer devices. This user-friendly approach offers a more intuitive and interactive experience. Users can easily explore the map using natural hand movements such as swiping, pinching, and tapping. This method enhances user engagement and efficiency by facilitating smooth and dynamic interactions with the map. Additionally, it allows users to zoom in and out, pan across the map, and interact with specific points of interest, making the exploration process more enjoyable and accessible.

Overhead

Perspective (rear view)

Zoom Out: Pinch

X

X

Zoom Out: Single Tap with Two Fingers

X

X

Zoom In: Pinch

X

X

Zoom In: Double Tap with One Finger

X

X

Swiping: Sideways

X

Swiping: Forward/Backward

X

X

Pass Visualization

Users can easily diagnose row issues by understanding the direction of previous passes. Additionally, when multiple vehicles are operating in the same field, operators can view each pass, facilitating better planning throughout the field.

Remote Display Control (RDC), an extension of Remote Display Access (RDA)

Remote Display Access (RDA) and Remote Display Control (RDC) are powerful tools designed to enhance visibility and control of machine displays from virtually anywhere.

• RDA enables remote users to view a machine’s display in real time, providing valuable insights into operations without needing to be physically present.
• RDC goes a step further by allowing users to interact directly with the display—adjusting settings, navigating pages, monitoring live updates, and performing real-time troubleshooting.
  • NOTE: RDC is not meant for adjusting machine motion.

With RDC and RDA users can:

• Train Operators: Help operators learn how to use the machine—no need to be in the cab.
• Troubleshoot Faster: Solve issues without driving to the field.
• Support from Anywhere: Technicians, salespeople, operators, and managers can all view and control displays remotely.

Note that RDC is not meant for adjusting machine motion. Currently, only G5 Universal displays on 25.3 software without platform applications installed support RDC sessions. Displays with platform apps, like CommandCenter displays, are not compatible currently. If a display supports RDC, the RDC toggle will appear in the Remote Display Access window after starting a session.

Here are the steps to enable RDC on a capable display:

1. Ensure remote users have the appropriate Access Level and Permissions.
2. Start RDA Session.
3. Request Control Session - If the display is capable of RDA, meaning it’s a G5 Universal, on 25.3 GenOS software and does not have platform apps installed, then RDC can be toggled on.
4. Approve Control Session remotely and on the display.
5. If the machine user touches the display the RDC session will revert back to an RDA session.

Layout Manager

• Easily create page views that meet user needs and that are also equipped with default run pages.

Language and units

Easily switch between languages with the option to set the active and alternate language. Configure the shortcut bar to include the language toggle allows different individuals to easily switch the display between languages.

Flags

Reduce damage to machines by flagging obstacles in the field such as tile inlets, posts, rocks, or other landmarks. Mark areas of the field with point, line, polyline, or rectangle area flags for follow up at a later time or for reference while operating equipment. A few examples are tile blow outs, weedy areas, rocks, and wet spots. Users can also flag guidance tracks and boundaries that require updates. Name each flag to strengthen overall awareness of flag instances in the field. Flags recorded on the display or created in Operations Center can be transferred between displays using Setup Files, Work Plans, or Data Sync Setup.

Users and access

Users and access allow the owner or manager to lock out certain functions to prevent operators from accessing or changing settings. Lock-out functions are managed with a defined pin for the administrator.

The G5 CommandCenter can be set to one of two profiles, administrator, or operator. The administrator profile is always set to the full access group. This group allows unlimited access to all the features and can lock and unlock features in the operator profile.

Machine Monitor

• The Machine Monitor application provides you instantaneous readings about the status or condition of your machine.
  • This application shows parameters such as engine speed, coolant temperature, and ground speed.

Work Monitor

• The Work Monitor application displays performance information about the task being performed by the machine.
  • You are shown averages, totals, and productivity of the machine, such as area worked, average working speed, and fuel usage.
  • Work set up places the settings needed to properly setup features such as AutoTrac™ guidance, Documentation, and Section Control in a single location. Settings include:
    • Client, farm, and field
    • Crop type
    • Machine and implement dimensions
    • Variety/hybrid and planting/seeding rates
    • Variable rate prescriptions
    • Product and application rates
    • Application rates through the implement screens

Operator's Manual

Stay up to date on the latest displays, features, and enhancements with the Displays Operator’s Manual at the user’s fingertips. With each bundle update, the display automatically receives the latest Displays Operator’s Manual which means less time locating a paper copy and ensuring the most up-to-date information is always available.

Video capability

The video application on G5 displays has been redesigned to improve user interface and prepare for future enhancements. Features include the ability to name and configure cameras for viewing and scanning.

• Machines equipped with a G5 CommandCenter™, G5Plus CommandCenter, or G5Plus Universal are equipped with four analog video inputs. G5 Universal is equipped with one analog video input.
  • You can set a variety of triggers. With each trigger, the image appears on the display.

In cab flag alerts on the display

Machine users can experience visual and audible tones when a flag intersects the current path of travel for a machine or implement. The display will notify the operator in the cab 20 seconds before approaching the flag and again 10 seconds prior. This applies when moving in forward and reverse. Flag Alerts are available on Gen 4 and G5 displays with 25.2 or newer Gen OS software. Setup must be completed in Operations Center.

Field Boundaries

• Boundaries are a foundational piece of precision agriculture. When created correctly and accurately, boundaries can be a very powerful tool and provide tremendous value to an operation. Create driven field boundaries using a display and receiver or import boundaries from another display or Operations Center. Documentation data can be used to create boundaries from a previous operation within the John Deere Operations Center.
• Refer to the Boundary Creation and Management Sales Manual page to learn more about boundary quality levels, how to create each type, and the recommended use cases for each.

Dual-display mode

• G5 CommandCenter or G5Plus CommandCenter may be configured to run with the following John Deere displays connected at the cornerpost of a John Deere tractor:
  • GreenStar 2 1800 Display
  • GreenStar 2 2600 Display
  • GreenStar 3 2630 Display
  • 4640 Universal Display
  • 4240 Universal Display

NOTE: Vehicle applications are always located on the G5 CommandCenter.

Automatic base station switching

• Producers using John Deere RTK Radio 450 or 900 can link a base station to a desired client, farm, or field. This allows automatic switching to the associated base station when changing fields.

G5 applications with renewable license allow data to be transferred from the display to the John Deere Operations Center for job reporting and analysis using Wireless Data Transfer (WDT) or Data Sync.

• With WDT, you can manually send data to the John Deere Operations Center for review.
• Data Sync automatically sends your data to the Operations Center, avoiding the need for manually exporting the data.

Wirelessly sending data helps you save time and money while increasing productivity. Wirelessly transfer setup, prescription, and documentation files securely between office, mobile devices, eliminating the need for USB transfer. This increases your uptime and productivity, reduces the risk of data loss, and enables easy data sharing and more timely decision making.

Through the John Deere Operations Center, you are in control and can easily share files with a John Deere dealer and other trusted advisers.

NOTE: For users in areas of poor cellular coverage, data can be exported using a USB flash drive.

Documentation of implement-based field operations remains important regardless of controller brand. G5Plus CommandCenter™ and Universal Displays and Gen 4 4600 CommandCenter and 4640 Universal Displays can communicate with select third-party controllers and third-party global positioning systems (GPS). Collectively, the system supplies the operator with instantaneous data while viewing the display. This information can be viewed in the John Deere Operations Center software for further analysis and reporting.

Third-party RS232 GPS compatibility enables documentation and Section Control on the G5 and G5Plus CommandCenter™ or Universal Display, 4600 CommandCenter and 4640 Universal Display; AutoTrac™ automated steering functionality is not compatible with third-party RS232 GPS.

When using a Raven controller, the G5 and Gen 4 displays can run in conjunction with map-based prescriptions.

Collected data may include:

• Farm name
• Field name
• Application/seeding rates
• Variety/chemical name
• Totals
• Crop type
• Machine
• Implement
• Operator name
• Field boundaries
• Weather conditions
• Soil conditions

Compatible controllers:

• Raven SCS 440™ controller
• Raven SCS 450™ controller
• Raven SCS 660M™ controller

Compatible sensors

• Yara N-Sensor
• Trimble® GreenSeeker® system
• Fritzmeier nitrogen sensors

Compatible GPS:

• Third-party GPS receivers

Required components:

• Compatible controller
• Capable display:
  • G5 or G5Plus CommandCenter or Universal Display
  • Gen 4 4600 CommandCenter v2 Processor or 4640 Universal Display
• StarFire™ 3000 Receiver, StarFire 6000 Receiver, StarFire 6000 Integrated Receiver, StarFire 7000 Receiver, StarFire 70000 Integrated Receiver, or third-party (GPS) receiver
• John Deere Operations Center
• Third-party controller kit

SCS 440, SCS 450, and SCS 660M are trademarks of Raven Industries, Inc. Trimble and GreenSeeker are trademarks of Trimble, Inc.

Over-the-air reprogramming allows for fast, simple, and convenient updates that offer improved performance and new features when producer’s need them, when they want them, and when they are ready for them.

You have the power to reprogram John Deere Precision Ag component connected to your vehicle, over the air, without the need for a USB stick or separate download program:

• No more need for a USB stick
• No more need for a Mac® or PC laptop
• No more need for GreenStar Live Update
• No more need for the MyJohnDeere™ portal Software Manager
• No more need to remember to bring all of this hardware, nor to remember how to use all of these different tools

*NOTE: Other Precision Ag Technology displays (such as the Original GreenStar Display, GreenStar 2 1800, GreenStar 2 2600, and GreenStar 3 2630) cannot be reprogrammed by G5 or Gen 4 displays. Modular Telematics Gateway and non-Precision Ag Technology components, such as the tractor radio, are not updateable by the G5 display.

Mac is a trademark of Apple Inc.
