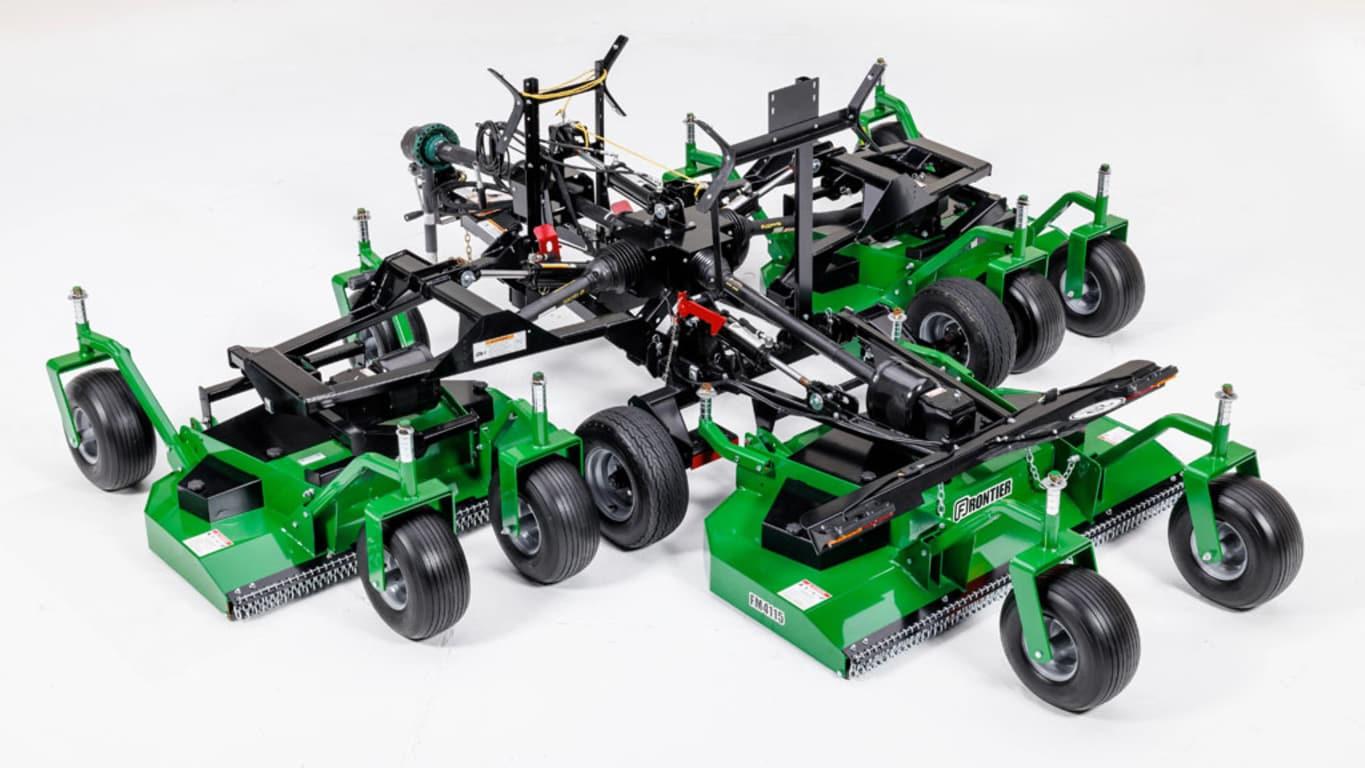

FM41 Series

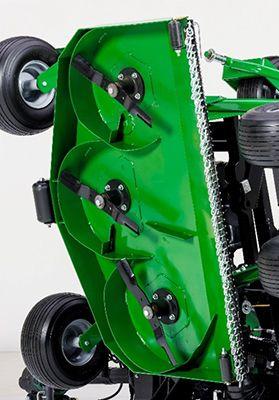

Achieve an even cut while mowing faster with the FM41 Series Flex Wing Grooming Mower. The baffle design of the mower deck controls the air flow to enable evenly cut material and eliminate streaking. You can maintain a high level of cut quality while mowing faster with the high blade-tip speed of 18,000 (ft./per minute), cut quality staying intact at speeds up to 5 MPH.

The parallel side frame combined with deck baffling on the rear half of the decks, promotes evenly spread material across the entire width of the deck, improving clipping dispersal, preventing clumps and windrowing.

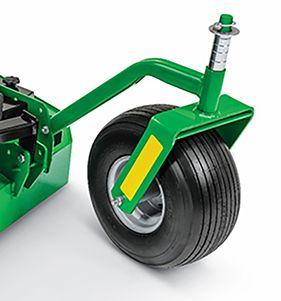

Cutting height can easily be controlled with front and rear caster wheel adjustments, cutting height ranges from 1 ½” to 5 ½” allowing you to set your Flex Wing Grooming Mower to optimal cut height.

To ensure an even cut in a range of conditions, mowers decks have a 6” overlap. For operation in steeper, uneven conditions deck overlap can be adjusted 8.75”

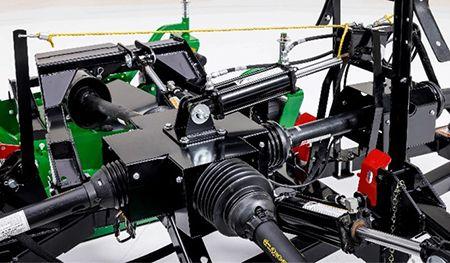

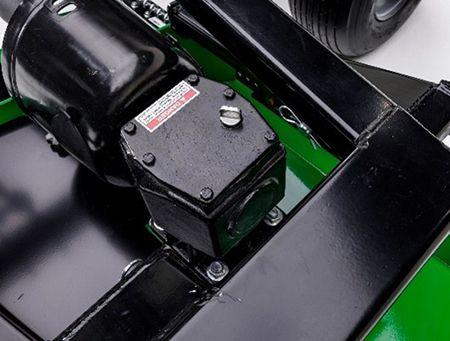

The FM41 Series comes with the same peace of mind you’ve come to expect with Frontier™ products, the FM41 Series Flex Wing Grooming mower includes a 10-year gearbox warranty (including seals) a 3-year Spindle warranty, and 1-year machine warranty. Cast iron sheaves provide the additional benefit of doubling belt life expectancy.

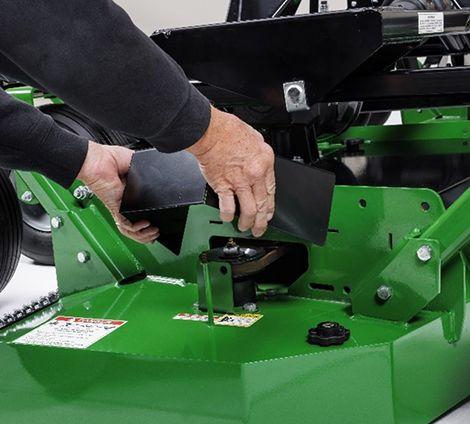

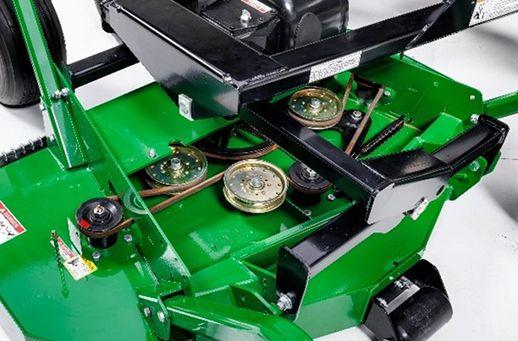

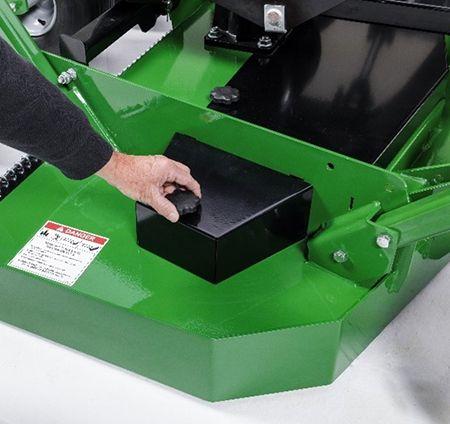

Toolless belt and spindle access improves operator ease. The deck covers are equipped with hand knobs that make it more convenient to access the belt, spindles, and spring-loaded idler.

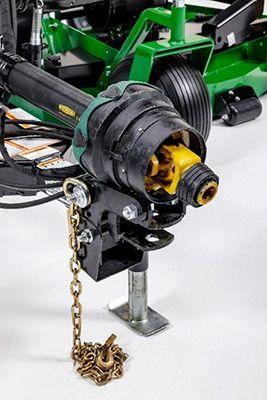

The FM41 Series features a single-point attachment to the drawbar. Coupled with the adjustable hitch height and hand crank on the parking jack, operators can easily fine tune height adjustments.

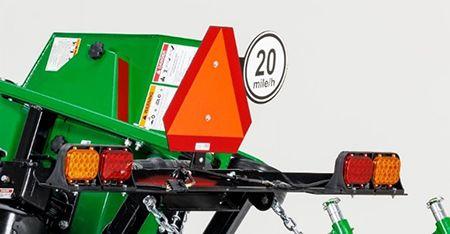

The Transport Light Bar comes standard on the FM41 Flex-Wing Grooming Mower. Two lights, a harness, required brackets, and a SMV/SIS sign are included on the light bar.

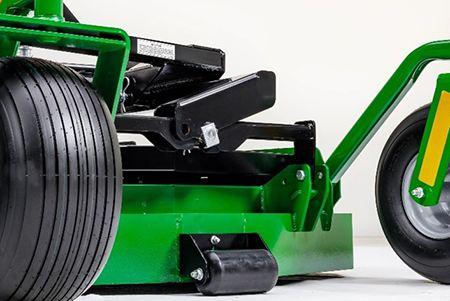

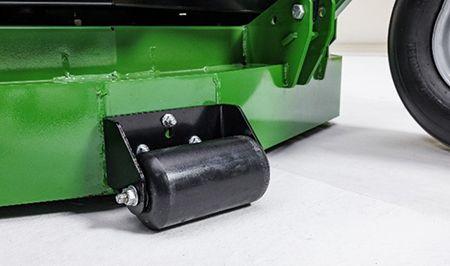

Reduce ground scalping and achieve a smooth cut with Anti-Scalping Roller Kits. The anti-scalping rollers are attached to the front or rear of the cutting deck.

Each kit contains 3 rollers (1 for each deck)

Code

Description

9640

Front Anti-Scalp Roller Kit

9641

Rear Anti-Scalp Roller Kit

Attachment

Description

5WD616079

Front Anti-Scalp Roller Kit

5WD618210

Rear Anti-Scalp Roller Kit

The Hydraulic Wing Release Kit will disengage the locking mechanism, allowing you to lower the wings and rear deck without the rope-pull. The transport latching mechanism automatically engages when the decks are raised into the transport position.

Code

Description

9000

Hydraulic Wing Latch Release Kit

Attachment

Description

5WD1032454

Hydraulic Wing Latch Release Kit

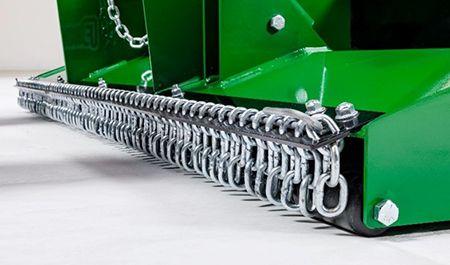

The Rear Chain Shield kit limits the amount and distance that debris can travel from the rear discharge mower decks.

Code

Description

9645

Rear Chain Shield

Attachment

Description

5WD6262442

Rear Chain Shield – 48”

Note: FM4112 requires: (2) - 5WD626442 for the wing decks AND (1) - 5WD616077 for the center deck

5WD616077

Rear Chain Shield – 60”

Note: FM4112 requires: (1) 5WD616007 for center deck AND (2) 5WD626442 for the wing decks

Note: FM4115 requires: (2) 5WD616077 for wing decks and (1) 5WD616076 for the center deck.

5WD616076

Rear Chain Shield - 72" Deck

Note: FM4115 requires: (1) 5WD616076 for the center deck and (2) 5WD616077 for the wing decks

Note: FM4117 requires: (3) 5WD616076
