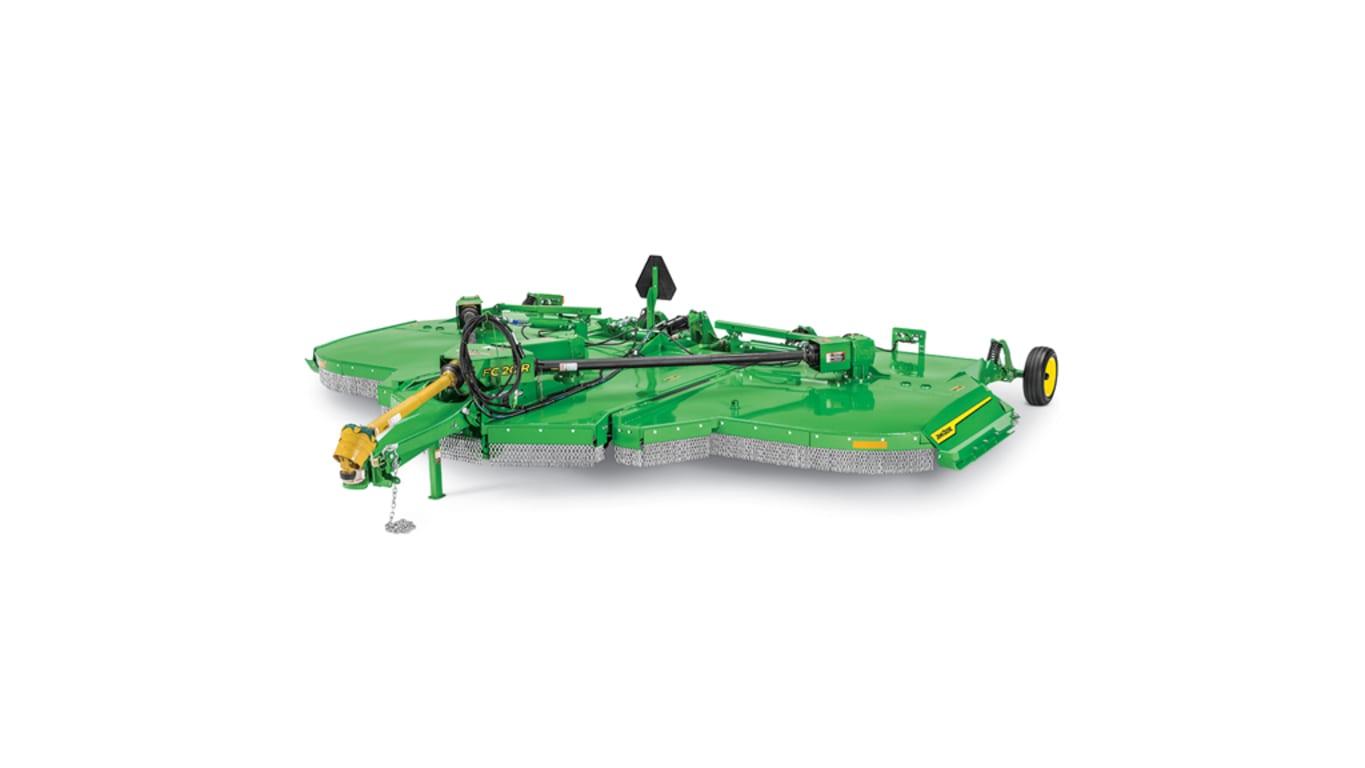

FC20R

John Deere FC series rotary cutters are built to handle the most difficult mowing conditions such as small shrubs, tall, thick grass and weeds, stalks and thick brush. These rotary cutters can mow material up to 4 inches in diameter with features such as:

• Up to 186.4 kw (250 hp) gearboxes; optional on M-spec, standard on R-spec
• 7.62-cm (3-in.) output shafts on 186.4 kw (250 hp) gearboxes
• Main Drivelines built for tight tractor turns
• Slip Clutches standard on all John Deere FC series
• 2.54-cm (1-in.) blade carriers standard
• Ladder frame chassis design with 7.62x7.62 cm (3x3 in.( tubing is standard
• 7-Gauge steel deck on R-spec cutters with smooth top for strength and easy cleaning

You want to be proud of the way the job looks whether you are mowing along a road, mowing a pasture, or mowing around your house. The John Deere line of flex-wing cutters has these key features that will ensure you can take pride in a job well done:

• Thick, heat-treated, high suction blades: These blades are designed to withstand tough conditions and provide a clean cut.
• High blade-tip speed: This allows you to mow faster without sacrificing cut, saving you time and effort, especially when covering large areas.
• Tall deck height: Ensures even, streak-free material dispersal by allowing optimal airflow.
• Optional 540 or 1000 RPM PTO speeds available; Offers flexibility to match your mowing and equipment needs.
• Many blade combinations: Customize your mower to handle different mowing conditions.

The FC Flex Wing Rotary Cutter helps you make the most of both time and money. With wide cutting widths available from 12 ft. to 20 ft., you can mow large areas quickly.

• Reduce Passes: The 5-inch overlap ensures you make fewer passes, saving time and fuel.
• Increase Mowing Speed: Easily mow under trees without exposing the tractor cab, allowing for faster operation.
• Confidence in Tough Conditions: The wing’s front tube lets you run over saplings without worry.
• Adaptability: Adjust your cutting height on the fly from the cab to navigate obstacles effortlessly.

For protection to the operator and surrounding area, all John Deere flex-wing rotary cutters are equipped with chains and lights as standard in all models.

Front and rear safety chains

Chain Shields offer Safety and efficiency in several cutting conditions.

• Enhanced Safety: Protects the operator and surrounding area from debris.
• Cut Efficiency: Allows uncut material to pass into the cutting chamber with minimal restriction.
• Customizable Protection: Add extra rows of chain shields to the front, back, or both sides for increased protection.
• Durability: Built to withstand tough conditions.

Lighting kit

For increased visibility all cutters come standard from the factory with lights. Lights comply with U.S. regulations on implements wider than 3.05 m (10 ft).
