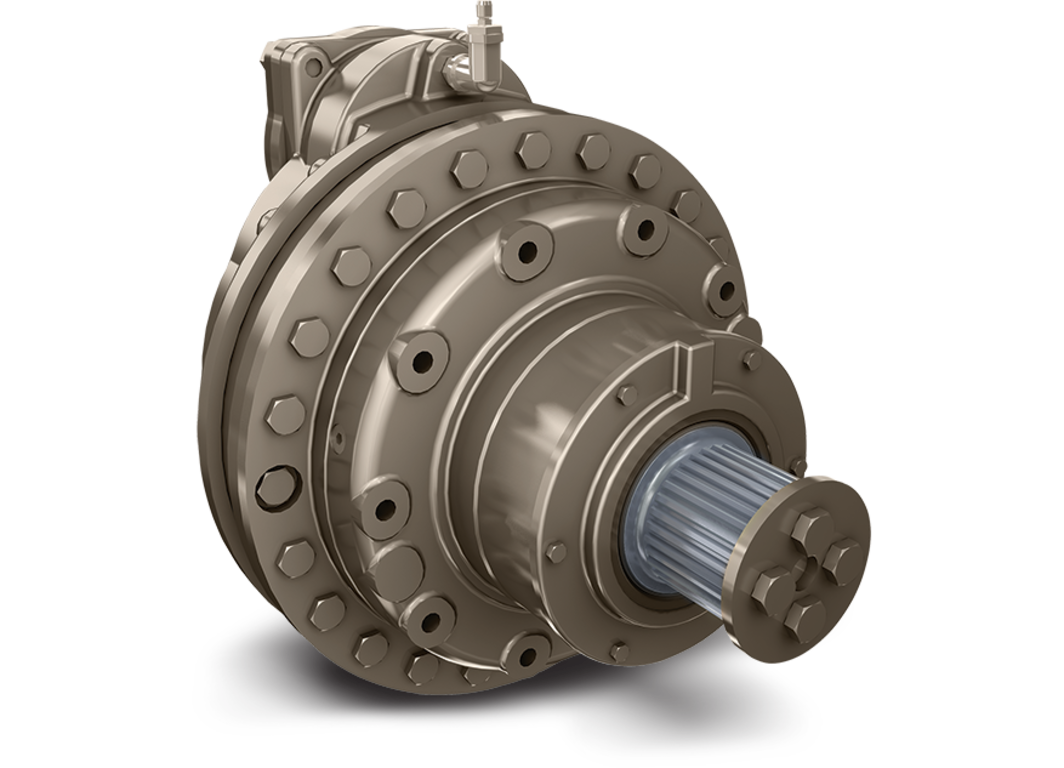

F25R Planetary Gear Drive studio image

New equipment

John Deere Planetary Gear Drives

F25

Planetary Gear Drive

Call Us Email Us Apply for Financing View Deere source

Drive type: speed reducer
Output torque: 33,895 Nm (25,000 lb-ft)
Max input speed: 2800 rpm

Features

Variety of input options

Straight in for an on centerline adaptation giving a symmetrical clearance around the hydraulic motor input
Offset straight in allows the hydraulic motor be mounted off center
Right angle input moves the hydraulic motor perpendicular to the centerline of the planetary drive for added clearance between components on track drives

Output options

With external shaft includes keyed, flanged or spline options to meet the various required output connections
An added output option includes the output without external shaft by offering an internal spline at the output

Specifications

Ratings

Input speed (max)<sup>1</sup>	2800 rpm
Output torque (intermittent)	33,895 Nm (25,000 lb-ft)
Output torque (continuous)	18,710 Nm (13,800 lb-ft)

General data

Approximate dry weight<sup>3</sup>	215 - 263 kg (475 - 580 lb)
Radial load (max)<sup>2</sup>	28,570 kg (63,000 lb)
Drive type	Speed reducer
Hydraulic motor input	SAE C or D
Ratio range<sup>4</sup>	5.0:1 - 54.6:1
Output Shaft	Splined: 33T 8/16P Keyed: 4-in diameter
	1 Max input speed related to ratio and max output speed 2 Max radial load placed at optimum load position 3 Weight varies with configuration and ratio selected 4 Actual ratio is dependent on the drive configuration
