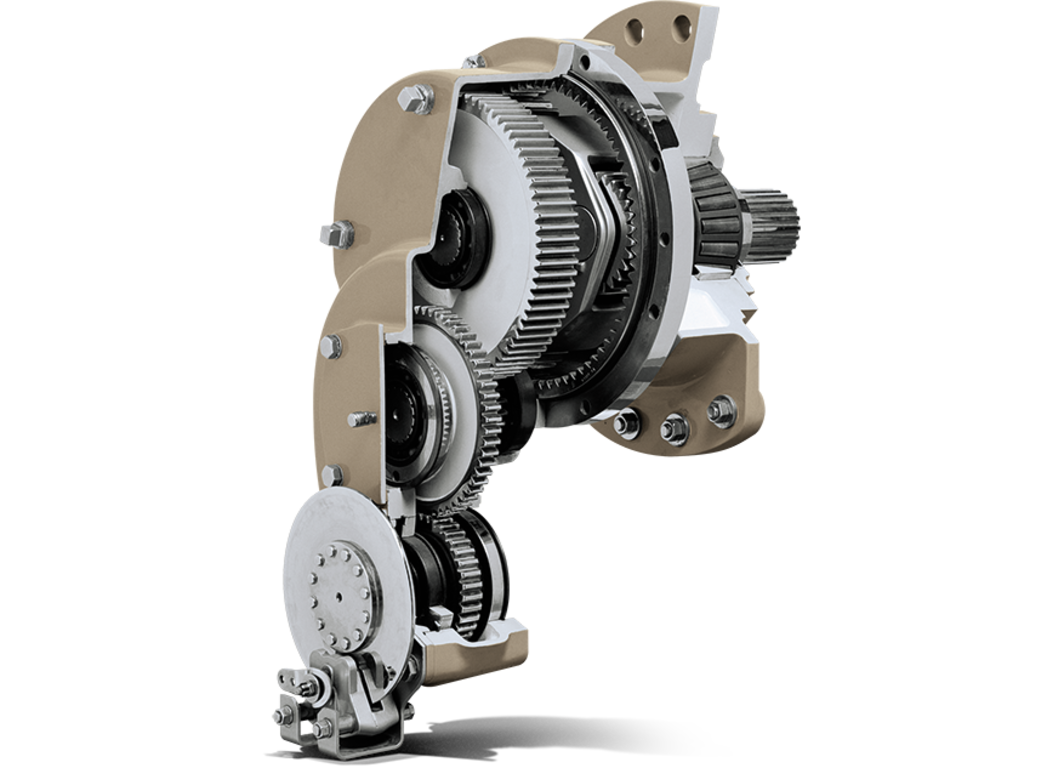

John Deere Planetary Gear DrivesPlanetary Gear Drive
| Input speed (max)<sup>1</sup> | 2800 rpm2 |
|---|---|
| Output torque (intermittent) | 16,948 Nm (12,500 lb-ft) |
| Output torque (continuous) | 10,168 Nm (7,500 lb-ft) |
| Output rotation direction | "O" Input: Opposite input "L" Input: Same as input |
|---|---|
| Approximate dry weight<sup>3</sup> | 91 – 122 kg (200 – 270 lb) |
| Radial load (max)<sup>2</sup> | 14,287 kg (31,500 lb) |
| Drive type | Speed reducer |
| Hydraulic motor input | SAE B or C hydraulic |
| Ratio range<sup>4</sup> | 13.2:1 – 81.3:1 |
| Output Shaft | Splined: 29T 8/16P |
| | 1 Actual ratio is dependent on the drive configuration 2 Max input speed related to ratio and max output speed 3 Max radial load placed at optimum load position 4 Weight varies with configuration and ratio selected |
| Hz (rpm) | 60 (1800) |
|---|---|
| Generator Efficiency % | 88-92 |
| Power Factor | 0.8 |
| Engine power - Prime kW | 77-115 76-112 |
| Engine power - Prime hp | 103-154 102-150 |
| Engine power - Standby kW | 85-126 83-123 |
| Engine power - Standby hp | 114-169 111-165 |
| Rated Fan Power - kW | 10.3-15.5 7.0-9 |
| Rated Fan Power - hp | 13.8-20.8 9.4-12.1 |
| Calculated generator set output - Prime kWe | 54-96 59-97 |
| Calculated generator set output - Prime kVA | 68-120 73-121 |
| Calculated generator set output - Standby kWe | 61-107 65-107 |
| Calculated generator set output - Standby kVA | 76-133 81-134 |
