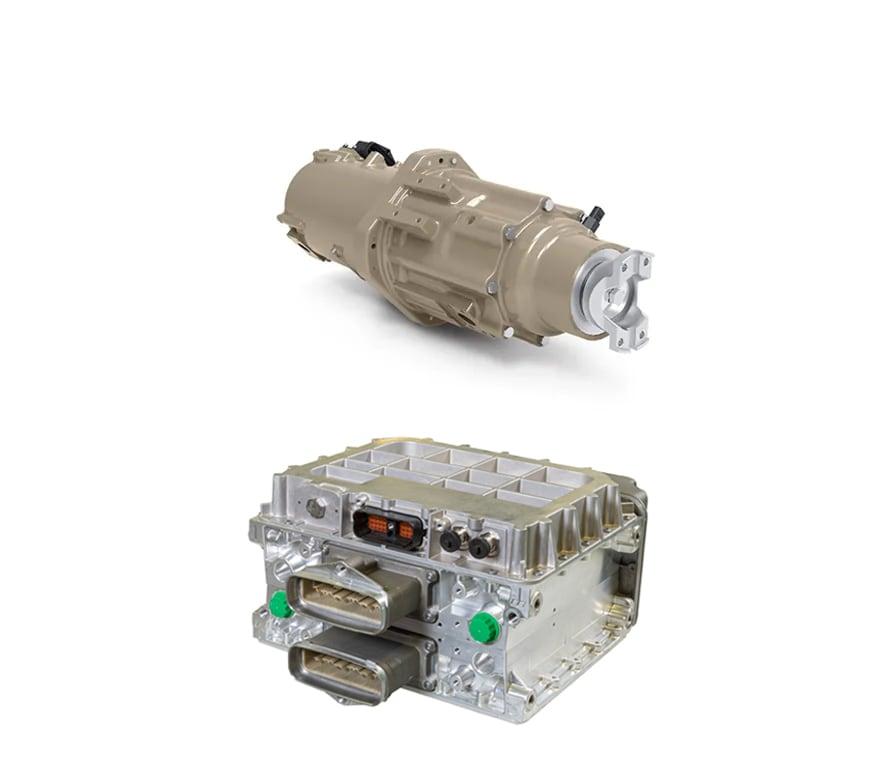

John Deere Electric Drivetrain ComponentsElectric Drivetrain Component
John Deere electric drivetrain components have millions of hours of proven performance in the field. The family of eDrives, electric pump drives, generator pump drives and electric motor drives offer a flexible, balanced, and scalable approach for electric drivetrain solutions.
– Seamless integration with John Deere engines, inverters, and drivetrain components
– Rugged components designed for high durability and reliability in harsh environments
– Modular configurations to fit a variety of applications
– Inverters highly integrated with eDrives to deliver advanced controls
| Max output torque | 4000 Nm (2950 lb -ft ) |
|---|---|
| Max output speed | 2400 rpm |
| Output flange | 7C yoke |
| Tow disconnect | Included |
| Approximate weight | 110 kg (243 lb ) |
| Overall dimensions | 533 x 302 x 302 mm (21 x 12 x 12 in) |
| Power rating | 100 kW (135 hp) |
|---|---|
| Lubrication flow required | 15 lpm (4 gpm) |
| Power electronics | John Deere PD400 Inverter (WEG cooled) |
