New equipment

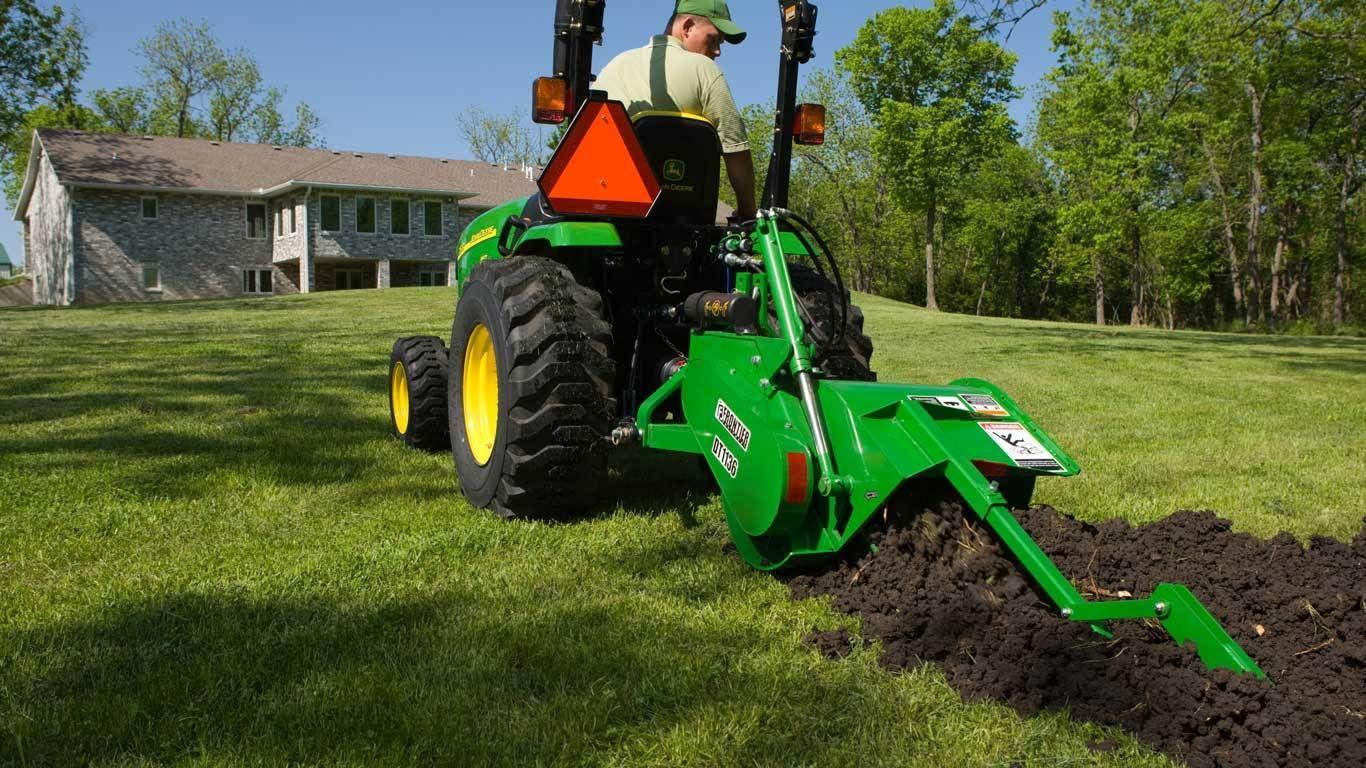

Frontier™ Landscape EquipmentTrenchers
The trencher's durable chain gets under the frost line, cutting a 15.2-cm (6-in.) width and digging a channel up to 91.4-cm (36-in.) deep.
The 35.6-cm (14-in.) discharge auger makes light work when moving dirt. It easily pushes dirt aside, allowing the trencher to run smoothly without clogging.
The discharge auger also helps to prevent unnecessary backfill into newly trenched channels.
| Trench depth with auger at 65-degree angle | 91.4 cm 36 in. |
|---|---|
| Overall length | 200.7 cm 79 in. |
| Overall width | 96.5 cm 38 in. |
| Overall height | 73.7 cm 29 in. |
| Operating | 287.1 kg 633 lb |
|---|---|
| Shipping | 294.8 kg 650 lb |
| PTO horsepower | 11.2-22.4 kW 15-30 hp |
|---|
| Compatibility | Cat. 1 |
|---|---|
| iMatchTM compatible (Cat. 1) | - |
| Chain type | Rated anti back flex: 17,236.5 kg 38,000 lb |
|---|---|
| Chain width | 15.2 cm 6 in. |
| Chain pitch | 4.2 cm 1.654 in. |
| Length in pitches | 64 |
| Speed | 540 rpm |
|---|---|
| Overload protection | Slip clutch |
| Diameter | 35.6 cm 14 in. |
|---|---|
| Discharge reach | 53.3 cm 21 in. |
| Type | One double acting cylinder |
|---|
| Standard | Yes |
|---|
| Type | Standard |
|---|
| Configuration | One unit |
|---|
| Labor hours | - |
|---|
| Time period (machine) | - |
|---|
| Date collected | - |
|---|
