New equipment
John Deere 400 & 600 Series SprayersDry Nutrient Spinner Spreader Box
Get three-season flexibility from your application equipment with the New Leader DS20 or DS30 Dry Spinner Spreader.

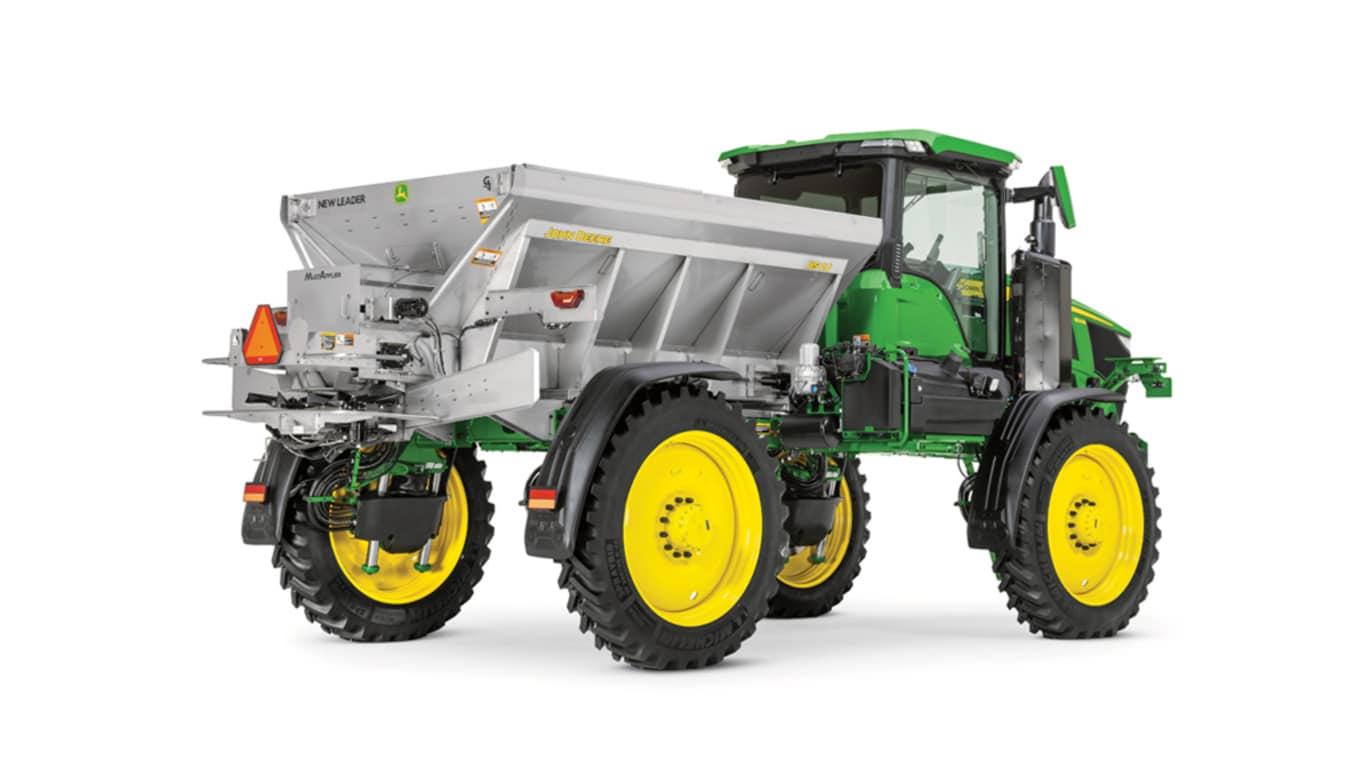

The DS20 offers of up to 5.6-m3 (200 cu ft), or 6.6 tons, of dry fertilizer, while the DS30 bumps capacity to 8.5 m3 (300 cu ft), or 9 tons, of dry fertilizer. Both models feature:
Dry Spinner Spreader comparison chart
New Leader Options - DS20/DS30 Dry Spinner Spreader for the 400R
G4
G4 Edge
G5
John Deere SpreadStar dry rate control system
X
New Leader ISO-VT dry rate control system
X
X
Left-hand and right-hand spinner speed control boundary spreading
X
X
Precision independent spinner control monitoring
X
X
Spreadwidth up to 105 ft
X
X
X
Maximum Output Rate of 40 CFM (Cubic Feet per Minute)
X
X
X
16-section swath width control
X
1/2 width spreading
X
Last pass control
X
Automatic feedgate and fan frame control
X
Centralized grease banks
X
X
X
Tarp ready
X
X
X
Automatic chain oiling routine and alarms
X
X
X
304 stainless-steel
X
X
X
409 stainless-steel
X
MultApplier compatible
X
X
X
Backup camera ready
X
X
X
400R Dry Spinner Spreader
New Leader DS20 G4 -
4800
DS20 G4 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in) Feedgate
4818
DS20 G4 409 Painted Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in) Feedgate
4820
DS20 G4 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13cm (5 in) Feedgate
400R Dry Spinner Spreader
New Leader DS20 G4 Edge -
4844
DS20 G4 Edge 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in.) Feedgate
4846
DS20 G4 Edge 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13 cm (5 in.) Feedgate
400R Dry Spinner Spreader
New Leader DS20 G5 -
4856
DS20 G5 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in.) Feedgate
4858
DS20 G5 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13 cm (5 in) Feedgate
New Leader is a trademark of Highway Equipment Company.
The G-Series Spreader Technology
The G4, G4 Edge, and G5 for the DS20 and DS30 provide up to 32-m (105-ft) spread widths and the adjustable spinner assembly allows for quick, accurate settings during variable-rate applications, broadcasting materials farther and wider with consistent spread patterns, and producing industry-leading productivity.
Depending on product, you can achieve spread widths from 18.92 to 27.43 m (60 to 90 ft), but with the increased clearance of 1.74 m (68 in.) the 400R and 600R Dry Spinner Spreader can achieve spread widths from 21 to 32 m (70 to 105 ft). Added spread width increases the number of acres per day and decreases the number of passes, which also reduces fuel costs and compaction.
By maintaining spread width, operators can consistently place product throughout the fields and prevent bottlenecking of product at the row end.
With a full spread pattern and reduced overlap through integrated technologies such as AutoTrac™ automated steering and John Deere Section Control, the 400R and 600R Dry Spinner Spreaders allow for full product coverage while reducing input costs from overlap.
Additionally, by combining the John Deere 400R or 600R Dry Spinner Spreader chassis and the New Leader dry spinner spreader, operators can maintain spread widths even when rpms are reduced. John Deere's pressure-and-flow-compensated hydraulics allows operators to maintain spinner speed throughout each pass, while maintaining consistent spread width and pattern. This added height allows a greater trajectory at a lower spinner speed and has the ability for later season applications.
The NL720 Spreader Technology

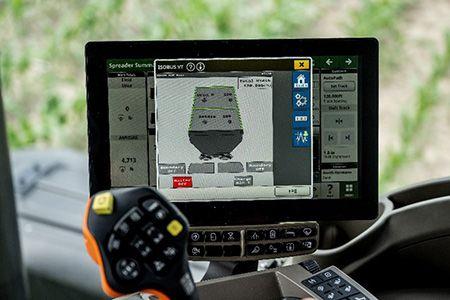

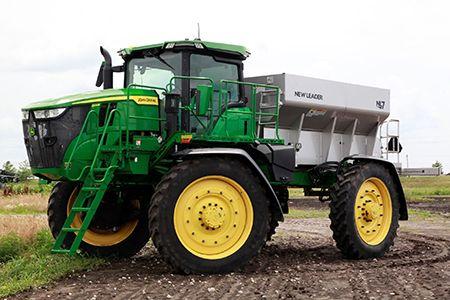

Introducing the New Leader NL7 for the John Deere 600R chassis, available for MY26—a high-output, precision dry spreader engineered for efficiency and accuracy. Designed to maximize productivity, the NL7 features a 33% more efficient high-output design, allowing operators to cover more acres in less time while maintaining precise nutrient placement. With spread width options of 70, 80, 90, 110, and 120 feet and 16-section control, operators can customize application rates and coverage for any field condition. The MultApplier (fixed dual-bin) enables the simultaneous application of two products, ensuring agronomic flexibility and enhanced nutrient management.

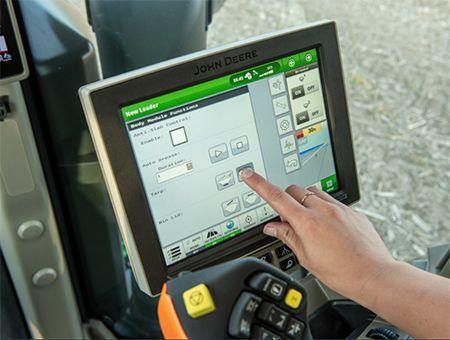

The NL7 is equipped with New Leader’s ISO-VT dry rate control system, offering rate control and real-time monitoring. It features boundary and half-width spreading, allowing for precise application along field edges and obstacles. The split independent dual conveyor with a positive-drive straight belt ensures consistent material flow without requiring conveyor calibration. Operators benefit from zero grease points, a fixed 9.53 cm (3.75 in) feed gate, and a new positive-drive straight belt that requires minimal maintenance. Calibration is streamlined with a simple three-pan pattern testing process, eliminating complexity and ensuring peak performance. Additionally, tool-free components and an easy-to-replace stainless-steel fin overlay enhance serviceability, keeping operators in the field and maximizing uptime. Built for durability and efficiency, the NL7 delivers low sensitivity to driving centers, ensuring uniform coverage and optimal application every pass.
NOTE: With differences in fertilizer density, size, and crush strength a spread pattern test is the only way to measure a product's true spread width and pattern.
New Leader is a trademark of Highway Equipment Company.
Plus Displays">G5/G5Plus Displays
The 400R/600R/800R utilize the G5/G5Plus CommandCenter™ Display that is also found in other John Deere large ag equipment today. The CommandARM™ controls, G5/G5Plus CommandCenter display, and the New Leader ISO VT (International Standards Organization Virtual Terminal) have been updated and tailored to the needs of operators. This combination allows operators to see all key functions on one run screen including AutoTrac™ assisted steering system, variable rate documentation, field totals, and dry spinner spreader settings. Click anywhere on the display to expand and easily adjust information.
**Needs updated with G5 Display material from ISG.
This improved user experience allows the operator to set up, monitor and control the dry spreader much easier and quicker than previous model years. The operator’s experience has been enhanced in the following ways:

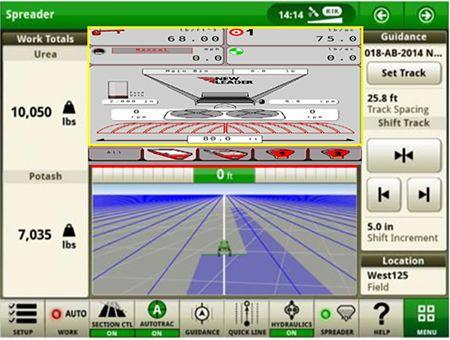

Once selected, the window opens to allow operators to make changes in full screen view
Work setup on the DS20 and DS30 G4, G4 Edge, and G5
To prepare for field application, simply press the setup button in the bottom left corner of the display run page, and it will direct the user to the work setup window. Work setup is identical for all bin configurations.
Dry Rate Controller on the DS20, DS30 Edge and G5

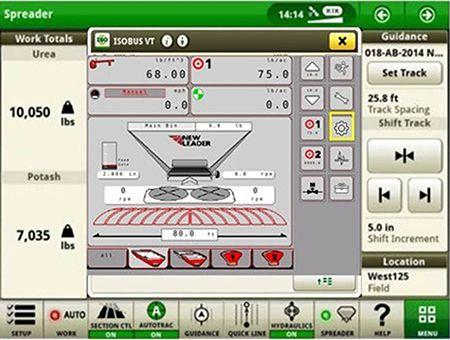

Once the work setup window is complete, the updated rate control application can then be used to input and setup the following:

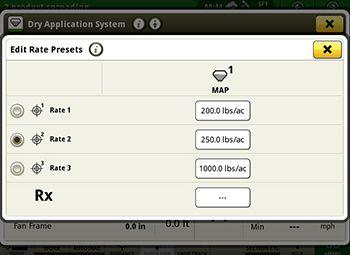

Target spread rate
Target spread rate – Selecting the target rate box allows the operator to quickly adjust three different target rates or load a prescription if needed. The target rates can be adjusted when spreading by changing the rates within the New Leader ISO VT Run Page.

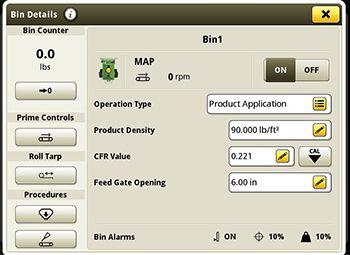

Bin details
Product density/product applied – Selecting either of these areas will take the user to a bin details page where more frequent dry spinner spreader inputs and adjustments are made. For dry spinner spreaders with multiple bins, individual tabs at the top of the screen make it easy to quickly toggle between bins.
Features on the main ISO VT run page include:
New Leader Box Options - DS20/DS30 Dry Spinner Spreaders
G4
G4 Edge
G5
John Deere SpreadStar dry rate control system
X
New Leader ISO-VT dry rate control system
X
X
Left-hand and right-hand spinner speed control boundary spreading
X
Precision independent spinner control monitoring
X
X
Spreadwidth up to 105 ft
X
X
X
Maximum Output Rate of 40 CFM (Cubic Feet per Minute)
X
X
X
16-section swath width control
X
1/2 width spreading
X
Last pass control
X
Automatic feedgate and fan frame control
X
Centralized grease banks
X
X
X
Tarp ready
X
X
X
Automatic chain oiling routine and alarms
X
X
X
304 stainless-steel
X
X
X
409 stainless-steel
X
MultApplier compatible
X
X
X
Backup camera ready
X
X
X
New Leader Options - DS20/DS30 Dry Spinner Spreaders for the 400R and 600R
G4
G4 Edge
G5
John Deere SpreadStar dry rate control system
X
New Leader ISO-VT dry rate control system
X
X
Left-hand and right-hand spinner speed control boundary spreading
X
X
Precision independent spinner control monitoring
X
X
Spreadwidth up to 105 ft
X
X
X
Maximum Output Rate of 40 CFM (Cubic Feet per Minute)
X
X
X
16-section swath width control
X
1/2 width spreading
X
Last pass control
X
Automatic feedgate and fan frame control
X
Centralized grease banks
X
X
X
Tarp ready
X
X
X
Automatic chain oiling routine and alarms
X
X
X
304 stainless-steel
X
X
X
409 stainless-steel
X
MultApplier compatible
X
X
X
Backup camera ready
X
X
X
400R Dry Spinner Spreader
New Leader DS20 G4 -
4800
DS20 G4 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in) Feedgate
4818
DS20 G4 409 Painted Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in) Feedgate
4820
DS20 G4 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13cm (5 in) Feedgate
400R Dry Spinner Spreader
New Leader DS20 G4 Edge -
4844
DS20 G4 Edge 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in.) Feedgate
4846
DS20 G4 Edge 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13 cm (5 in.) Feedgate
400R Dry Spinner Spreader
New Leader DS20 G5 -
4856
DS20 G5 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in.) Feedgate
4858
DS20 G5 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13 cm (5 in) Feedgate
600R Dry Spinner Spreader
New Leader DS20 G4 -
4800
DS20 G4 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in) Feedgate
4806
DS20 G4 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 28 cm (11 in) Feedgate
4808
DS20 G4 409 Painted Steel, Single Bin, #4 Belt Over Chain, 28 cm (11 in) Feedgate
4818
DS20 G4 409 Painted Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in) Feedgate
4820
DS20 G4 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13cm (5 in) Feedgate
600R Dry Spinner Spreader
New Leader DS20 G4 Edge -
4842
DS20 G4 Edge 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 28 cm (11 in.) Feedgate
4844
DS20 G4 Edge 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in.) Feedgate
4846
DS20 G4 Edge 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13 cm (5 in.) Feedgate
600R Dry Spinner Spreader
New Leader DS20 G5 -
4856
DS20 G5 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in.) Feedgate
4858
DS20 G5 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13 cm (5 in) Feedgate
600R Dry Spinner Spreader
New Leader DS30 G4 -
4814
DS30 G4 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in) Feedgate
4816
DS30 G4 409 Painted Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in) Feedgate
4834
DS30 G4 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13 cm (5 in) Feedgate
600R Dry Spinner Spreader
New Leader DS30 G4 Edge -
4848
DS30 G4 Edge 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in.) Feedgate
4852
DS30 G4 Edge 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13 cm (5 in) Feedgate
600R Dry Spinner Spreader
New Leader DS30 G5 -
4862
DS30 G5 304 Stainless Steel, Single Bin, #4 Belt Over Chain,13 cm (5 in) Feedgate
4864
DS30 G5 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13 cm (5 in) Feedgate
Work setup on the DS30 NL7
To prepare for field application, simply press the setup button in the bottom left corner of the display run page, and it will direct the user to the work setup window. Work setup is identical for all bin configurations.
Dry Rate Controller on the DS30 NL7
Once the work setup window is complete, the updated rate control application can then be used to input and setup the following:
Target spread rate
Target spread rate – Selecting the product bin box allows the operator to quickly adjust target rates or load a prescription if needed. The target rates can be adjusted when spreading by changing the rates within the New Leader ISO VT Run Page.
Bin details
Product density/product applied – Selecting the product bin will take the user to a bin details page where more frequent dry spinner spreader inputs and adjustments are made. For the dual bin spinner spreaders, individual product bin pages on the main run screen make it easy to quickly toggle between bin settings.

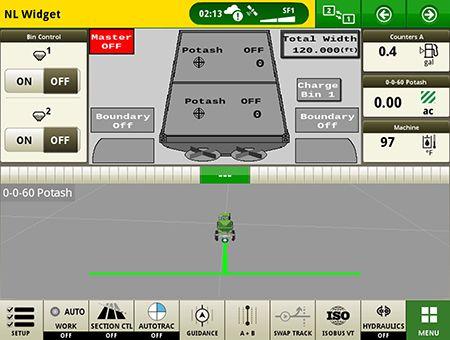

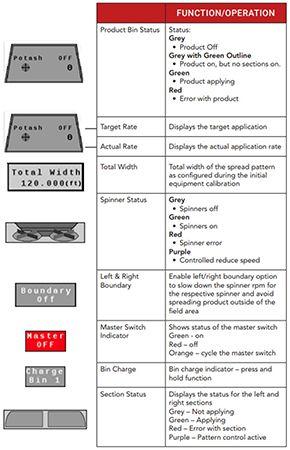

Features on the main ISO VT run page include:
Colored-coded real-time feedback regarding
Compare the Dry Spinner Spreader options from New Leader in the chart below:
G4
G4 Edge
G5
NL7
Spread Width
90'
90'
90'
120'
Output (Cubic Feet per Minute)
40
40
40
50
Low Trajectory Spread Pattern
✔
✔
✔
✔
2 Product Independent Spreading
✔
✔
✔
✔
In-Cab Spread Control Integration
✔
✔
✔
✔
Boundary Spread
---
✔
✔
✔
Automatic Pattern Adjustment
---
---
✔
✔
Section Control
---
---
✔
✔
Last Pass Function
---
---
✔
✔
Remote RH/LH Spread
---
---
✔
✔
---
---
---
---
---
Easy Pattern Width Adjustment
---
---
---
✔
3 Pan Spread Pattern Testing
---
---
---
✔
Positive Drive Straight Belt
---
---
---
✔
Spread Pattern Wizard
---
---
---
✔
Independent RH/LH Control
---
---
---
✔
RH/LH Variable Rate Control
---
---
---
✔
Turn Compensation Spreading
---
---
---
✔
No Conveyor Calibration
---
---
---
✔
No Feedgate Adjustment Required
---
---
---
✔
304 Steel Construction
Option
Option
Option
Standard
Zero Grease Points
---
---
---
✔
Low Carryback Conveyor Design
---
---
---
✔
304 Steel Inspection Platform
---
---
---
✔
Easy Change Fin Replacement
---
---
---
✔
Stainless Steel Internal Screens
---
---
---
✔
New Leader is a trademark of Highway Equipment Company.

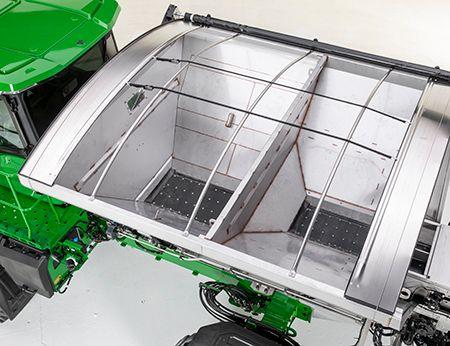

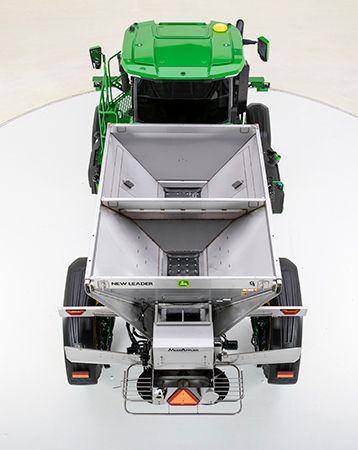

The optional 304 stainless-steel MultApplier insert provides machine flexibility as it can be ordered factory installed or field installed for dual product application. Bolt-in end gates and stainless-steel fittings make converting from a dual product to a single product dry spinner spreader easy. The DS20 MultApplier insert has a Bin 2 stuck capacity of 1.9 m³ (66 cu ft), offsetting the capacity of Bin 1 to 3 m³ (106 cu ft). The DS30 MultApplier insert has a Bin 2 stuck capacity of 3 m³ (106 cu ft), offsetting the capacity of Bin 1 to 4.59 m³ (162 cu ft).
The dual hopper system features two independent conveyors that can simultaneously apply up to two products at predetermined rates or variable rate application with swath widths up to 25 m (84 ft), decreasing time in the field, soil compaction, fuel consumption, and increasing return on investment.
New Leader is a trademark of Highway Equipment Company.
The 400 and 600 Series Sprayers and the G4 box option on the Dry Spreaders will utilize the G5Plus CommandCenter and SpreadStar controller allowing integrated control with the machine and dry spreader. The G4 Edge and G5 box options on the 400 and 600 series will continue to offer the NewLeader™ ISO-VT dry rate controller.
The CommandARM™ controls, G5Plus display, and SpreadStar have been updated and tailored to the needs of operators allowing them to see all key functions on one run screen including AutoTrac™ assisted steering system, variable rate documentation, field totals, and dry spreader settings.
The G5Plus CommandCenter display allows operators to set up and apply single or dual products, utilizing variable rate map-based prescriptions with John Deere Section Control functionality. Click anywhere on the display to expand and easily adjust information.
To prepare for field application, simply press the Setup button in the bottom left corner of the display run page, and it will direct the user to the Work Setup window.

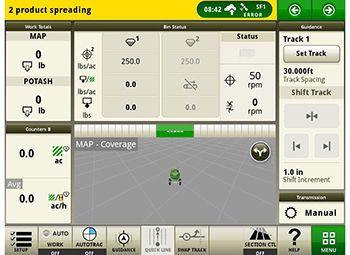

Once the Work Setup window is complete, the updated SpreadStar application can then be used to input and setup the following:
Target spread rate – selecting the target rate box allows the operator to quickly adjust three different target rates or load a prescription if needed. The target rates can be adjusted when spreading by using the corresponding buttons on the CommandARM.
Product density/product applied – selecting either of these areas will take the user to a bin details page where more frequent dry spreader inputs and adjustments are made. For dry spreaders with multiple bins, individual tabs at the top of the screen make it easy to quickly toggle between them.
Features on the bin details page include:

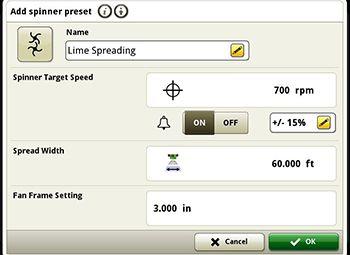

The last step is to setup the spinner settings by clicking on the spinner settings box in the SpreadStar application. The Add Spinner preset window will come up allowing the operator to create a new preset if they choose.
Preset functions include:
The bin details and spinner settings are saved with the Work Summary details. For example, an operator with a two-bin dry spreader may need to change between a two-product variable rate to a single blend application using bin chaining. When the operator switches back to two-product variable rate, SpreadStar automatically remembers the bin details and spinner settings that were last used with that configuration.
Even with this feature, it is still important to calibrate the dry spinner spreader when changing products to ensure an accurate and consistent spread pattern.
Plus CommandCenter™ display">SpreadStar dry rate control on G5/G5Plus CommandCenter™ display

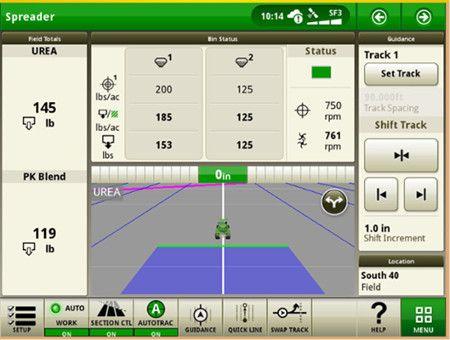

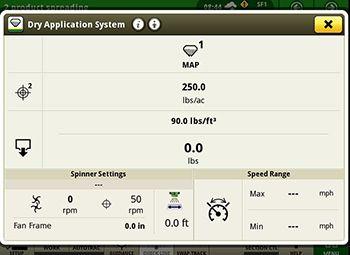

The SpreadStar dry rate control system is a standard feature that is integrated into the design of the self-propelled spreader chassis (not a third-party ISO control add-on) and delivers accurate and consistent on-target rate control. All dry spreading and vehicle functions are displayed on the G5/G5Plus CommandCenter display for easy operation and setup. In addition to these functions, all precision technology can be used on the same display for complete integration and ease of operation. The engine, chassis, dry spreader system, and precision controllers provide central communication through the display for many vehicle and dry system functions that are simple and easy to use.
Engine, transmission, and hydraulic drive pump work together to optimize efficiency of the entire system, providing fuel savings and optimizing power to the ground and delivery of product to the spinners.
When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.
John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink™ telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.
With your permission, John Deere Connected Support:
With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.
| Compatible series | 408R, 410R, 412R, 612R, and 616R Self-Propelled Sprayers and 400R and 600R Dry Spinner Spreaders NOTE: Must use DS20 with 28-cm (11-in.) gate height for lime applications on 612R/616R/600R only. |
|---|---|
| Product spread | Dry fertilizer or lime |
| Second product bin | Optional |
| Multibin four-product bin | - |
| Spreader material | 304 or painted 409 stainless steel |
| Capacity without second product bin | 5.6 m3 200 cu ft |
| Capacity with second product bin | 3 m3 106 cu ft |
| Multibin capacity | - |
| Spread pattern width with single-product bin | 18.3 to 32 m 60 to 105 ft |
| Feedgate height | 12.7 or 28 cm 5 or 11 in. |
| Compatible series | 408R, 410R, 412R, 612R and 616R Self-Propelled Sprayers and 400R and 600R Dry Spinner Spreaders NOTE: Must use DS20 with 28-cm (11-in.) gate height for lime applications on 612R/616R/600R only. |
|---|---|
| Product spread | Dry fertilizer or lime |
| Second product bin | Optional |
| Multibin four-product bin | - |
| Spreader material | 304 or painted 409 stainless steel |
| Conveyor system | #4 belt over chain |
| Rate control make | SpreadStar™ rate controller |
| Capacity without second product bin | 5.6 m3 200 cu ft |
|---|---|
| Capacity with second product bin | 3 m3 106 cu ft |
| Capacity of second product bin | 1.9 m3 66 cu ft |
| Multibin capacity | - |
| Spread pattern width with single-product bin | 18.3 to 32 m 60 to 105 ft |
|---|---|
| Spread pattern width with second-product bin | 18.3 to 25.6 m 60 to 84 ft |
| Estimated spreader weight | 1467 kg 3240 lb |
|---|---|
| Second product bin weight | 431 kg 950 lb |
| Multibin four-product bin weight | - |
| Feedgate height | 12.7 or 28 cm 5 or 11 in. |
|---|---|
| Body length | With spinner frame 437.5 cm 172 in. 335.3 cm 132 in. |
| Body length of second bin insert | 152.4 cm 60 in. |
| Body width | With spinner frame 321.6 cm 127 in. 243.8 cm 96 in. |
| Body height | 144.4 cm 56.85 in. |
| Disk diameter | 61 cm 24 in. |
|---|---|
| Fins per disk | Four |
| Date collected | 1 March 2021 |
|---|
