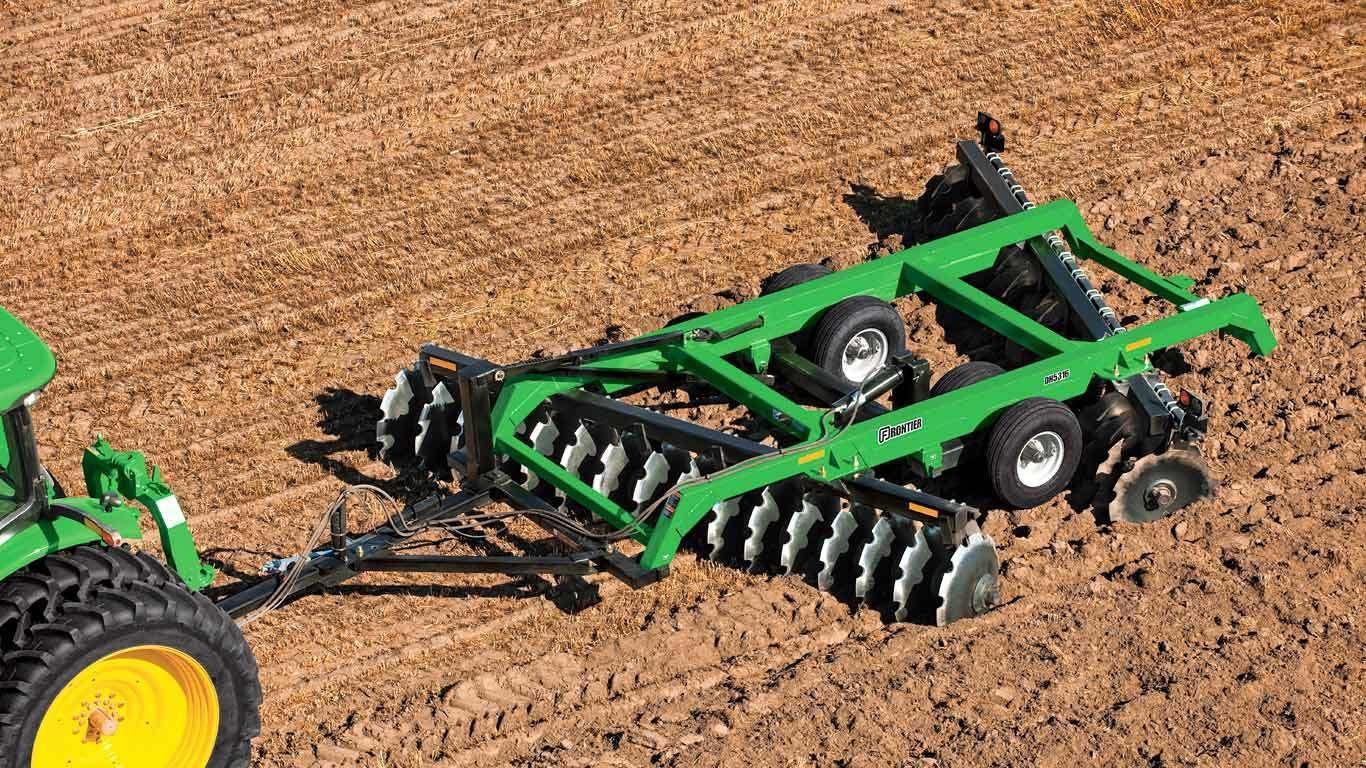

DH53 Series

Adjustable disk blade scrapers keep disk blades clean and performing in wet and sticky soils for increased productivity.

The clevis hitch has a durable design and is designed for ease of use, long life, and tough working conditions.

Disk blades on the DH53 Series Offset Disks are available in 71.1-cm, 76.2-cm, or 81.3-cm (28-in., 30-in, or 32-in.) diameter. The weight per blade on these disks ranges from 152.9 kg to 241.8 kg (337 lb to 533 lb) for superior penetration in tough soil conditions.

Only notched disk blades for front and rear are available on the DH53 Series models.

End washers help keep the gang shaft end nut tightened during operation, increasing gang wear life.

Two gang nut wrenches are supplied with each unit and securely attached to the unit, ready to use when the gangs need tightening.

Oil bath tapered roller bearings, sealed with industrial-grade seals, keep maintenance to a minimum and profitable working hours at a maximum. The bearings come complete with a wear plate.

A rear hitch is available for operators wanting to pull an additional implement such as a harrow or drag.

Transport locks are standard, ensuring disk wings are in secure transport mode.

Easy to set for desired soil condition

Two separate control arms are standard, one for transport leveling and one for leveling while the disk is in the ground. Once set for a given soil condition, the disk will continue to perform with consistency.
