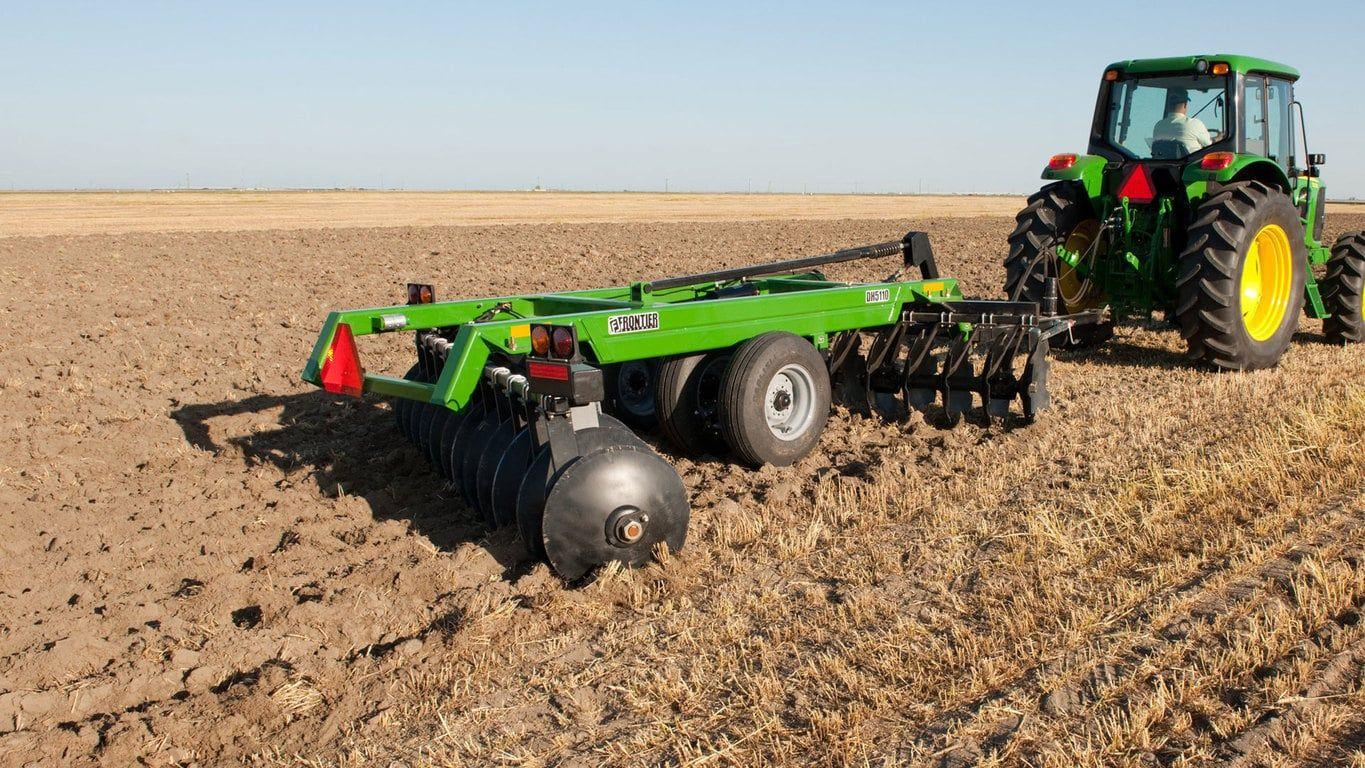

DH52 Series

Adjustable disk blade scrapers keep disk blades clean and performing in wet and sticky soils for increased productivity.

The clevis hitch has a durable design and is designed for ease of use, long life, and tough working conditions.

Disk blades are available in 66-cm or 71-cm (26-in. or 28-in.) diameters. Disk blades are available in smooth blades, notched blades, or a combination of front notched blades and rear smooth blades to meet a variety of needs.

For superior penetration in tough soil conditions, weight per blade ranges from 108.9 kg to 154.7 kg (240 lb to 341 lb) depending on the offset disk series and model.

End washers help keep the gang shaft end nut tightened during operation, increasing gang wear life.

Two gang nut wrenches are supplied with each unit and securely attached to the unit, ready to use when the gangs need tightening.

Oil bath tapered roller bearings, sealed with industrial-grade seals, keep maintenance to a minimum and profitable working hours at a maximum. The bearings come complete with a wear plate.

A rear hitch is available for operators wanting to pull an additional implement such as a harrow or drag.

Transport locks are standard, ensuring disk wings are in secure transport mode.

Easy to set for desired soil condition

Two separate control arms are standard, one for transport leveling and one for leveling while the disk is in the ground. Once set for a given soil condition, the disk will continue to perform with consistency.
