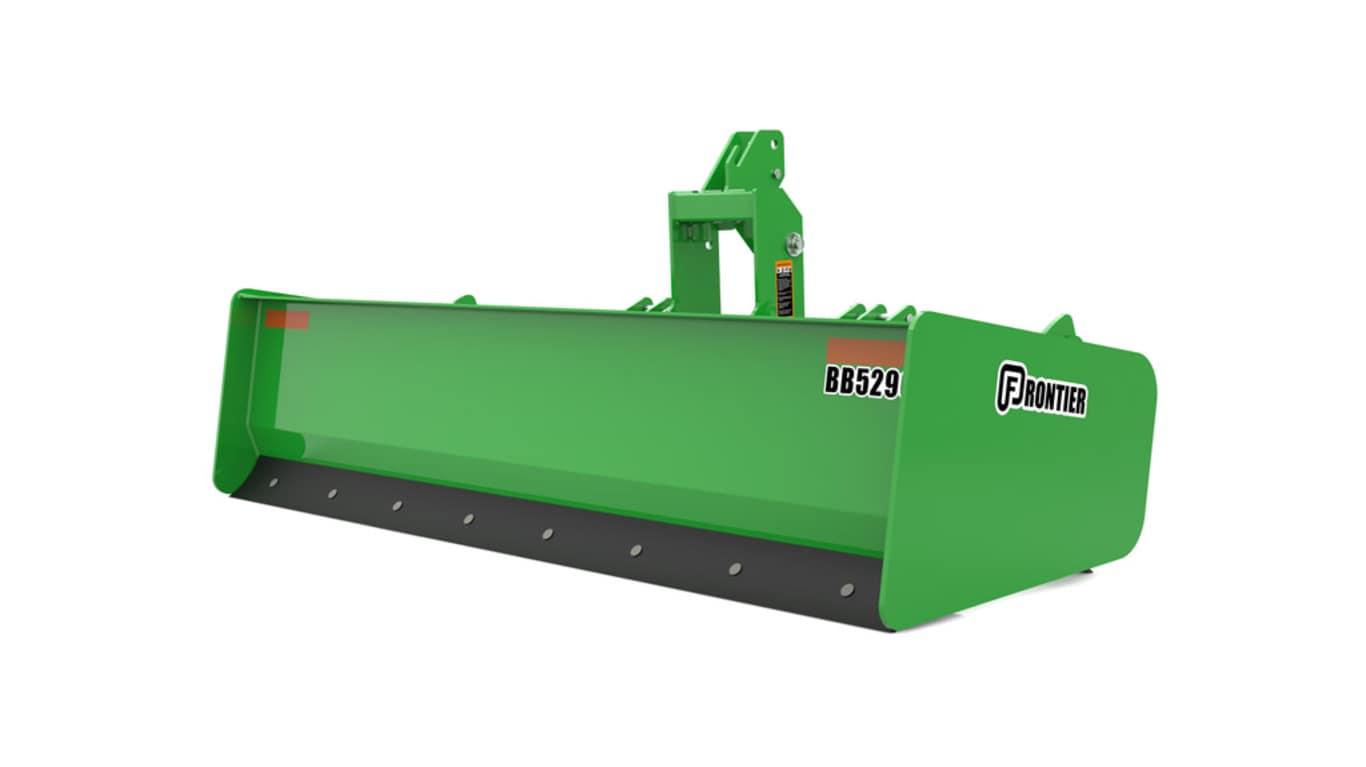

Frontier™ Landscape EquipmentHeavy-Duty Box Blades

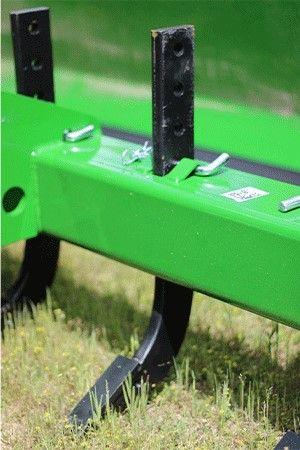

Replaceable heavy-duty scarifiers have multiple adjustment holes for quick and easy changes to shank penetration level. The scarifiers work great for the purposes of chipping or deep digging.

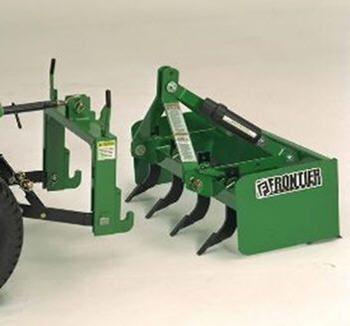

iMatch™ quick-hitch compatibility provides quick, efficient hookup. The iMatch Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.

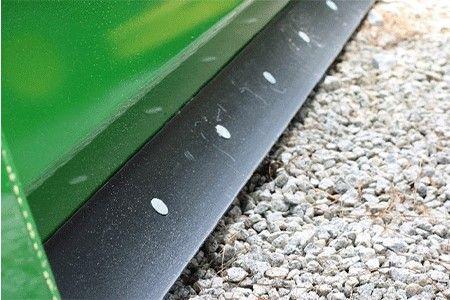

Rear replaceable steel cutting edge ensures precise leveling and a fine finish. The rear blade is reversible for longer life.

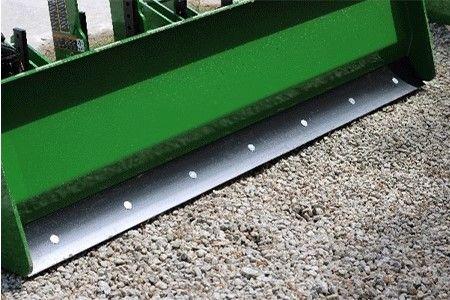

A solid moldboard helps in rough conditions. The moldboard give the cutting edge extra power to slice through hard, compacted ground.
| Working width | BB5272: 182.88 cm 72 in. BB5284: 213.36 cm 84 in. BB5296: 243.84 cm 96 in. |
|---|---|
| Cutting edge - Reversible | All BB52: Yes |
| Shank type | All BB52: Three position with holes |
| Hitch | Compatibility All BB52: Category 1 & 2 iMatch™ compatible (Cat. 1) All BB52: Yes |
| Max Engine Horsepower | All BB52: 86.48 kW 120 hp |
| PTO Horsepower | - |
| Working width | BB5272: 182.88 cm 72 in. BB5284: 213.36 cm 84 in. BB5296: 243.84 cm 96 in. |
|---|---|
| Unit height | All BB52: 99.06 cm 39 in. |
| Unit depth | All BB52: 81.28 cm 32 in. |
| Endplate thickness | All BB52: 1.27 cm 0.5 in. |
| Moldboard thickness | All BB52: 0.64 cm 0.25 in. |
| Operating weight | BB5272: 401.4 kg 885 lb BB5284: 442.3 kg 975 lb BB5296: 474.0 kg 1045 lb |
|---|---|
| Shipping | BB5272: 412.76 kg 910 lb BB5284: 453.59 kg 1000 lb BB5296: 485.34 kg 1070 lb |
| Max Engine Horsepower | All BB52: 86.48 kW 120 hp |
|---|---|
| PTO Horsepower | - |
| Compatibility | All BB52 Category 1 & 2 |
|---|---|
| iMatch™ compatible (Cat. 1) | All BB52: Yes |
| Quick coupler (Cat. 2) | - |
| Capacity | BB5272: 0.8 m3 28.42 cu ft BB5284: 0.94 m3 33.13 cu ft BB5296: 1.07 m3 37.85 cu ft |
|---|---|
| Design | All BB52: High Back Box |
| Reversible | All BB52: Yes |
|---|---|
| Quantity | All BB52: Two |
| Size | All BB52: 0.95x15.24 cm 0.375x6 in. |
| Shank type | All BB52: Three position with holes |
|---|---|
| Points | All BB52: Replaceable, Heat treated |
| Quantity | BB5272: Six BB5284: Eight BB5296: Eight |
| Scarifier Tube | All BB52: 12.7x12.7x0.64 cm 5x5x0.25 in. |
| Tubular scarifier beam size | - |
| Beam reinforcement bar size | - |
| Type | All BB52: Fixed |
|---|
| Type | All BB52: Welded |
|---|
| Color | All BB52: JD Green |
|---|
| Configuration | All BB52: One per |
|---|
| Labor hours | All BB51: 0.50 |
|---|
| Time period | All BB51: One year |
|---|
