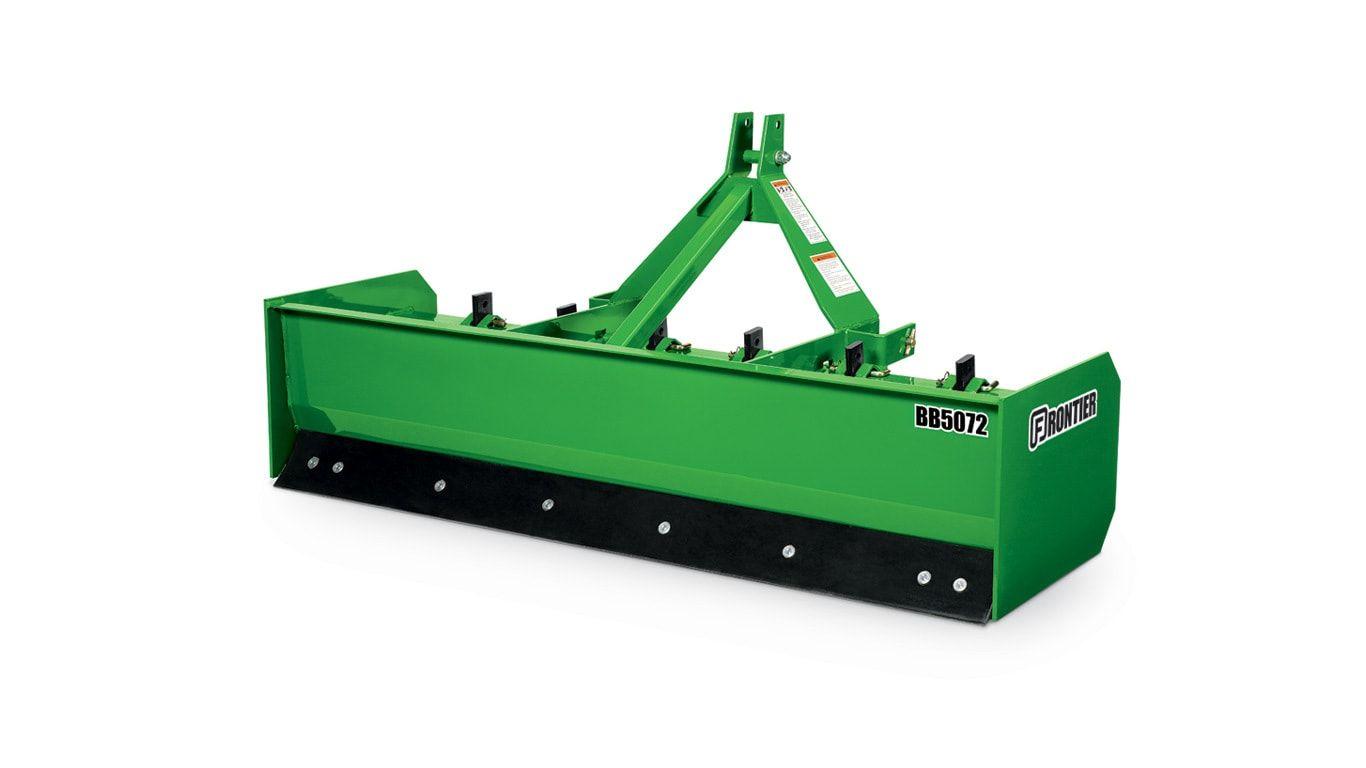

Frontier™ Landscape EquipmentBox Blades


The heavy-duty concave back plate, with a formed upper edge, provides added rigidity and strength for trouble-free performance.


The BB Series Box Blade cutting edge ensures precise leveling and a fine finish. It is also reversible for twice the wear life.

The tailgates on the BB50 Series Box Blades are fixed, giving the cutting edge extra power to slice through hard, compacted ground.


The iMatch Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.

Adjustments are easy on the BB50 Series Box Blades. Simply remove the steel pin and raise or lower the scarifier to increase or decrease ground penetration.
Scarifier shanks can be stored on the scarifier beam when using a box blade for other tasks.
| Working width | 243.8 cm 96 in. |
|---|---|
| Unit height | 85.1 cm 33.5 in. |
| Unit depth | 78.7 cm 31 in. |
| Endplate thickness | 1 cm 0.375 in. |
| Moldboard thickness | 0.5 cm 0.1875 in. |
| Operating weight | 273.1 kg 602 lb |
|---|---|
| Shipping | 288.9 kg 637 lb |
| PTO Horsepower | 20.1-41.8 kW 27-56 hp |
|---|
| Compatibility | Cat. 1 |
|---|---|
| iMatch™ compatible (Cat. 1) | Yes |
| Quick coupler (Cat. 2) | - |
| Capacity | 0.6 m3 21.24 cu ft |
|---|---|
| Design | Box |
| Reversible | Yes |
|---|---|
| Quantity | Two |
| Size | 0.95x15.24 cm 0.375x6 in. |
| Shank type | 4 Position with holes |
|---|---|
| Points | Hardened, crimped |
| Quantity | Seven |
| Tubular scarifier beam size | 10.16x10.16x0.64 cm 4x4x0.25 in. |
| Beam reinforcement bar size | 1.27x1.27 cm 0.5x0.5 in. |
| Type | Fixed |
|---|
| Type | Welded |
|---|
| Color | JD Green |
|---|
| Configuration | Two per crate |
|---|
| Labor hours | 0.25 |
|---|
| Time period | 1 year |
|---|
| Date collected | - |
|---|
