Frontier™ Loader Attachments4-in-1 Buckets

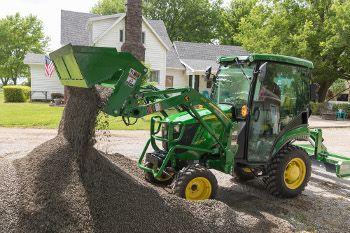

The AY11F Series Four-in-One Bucket frame is built with welded components and high-tensile, heavy-gauge steel for maximum durability.

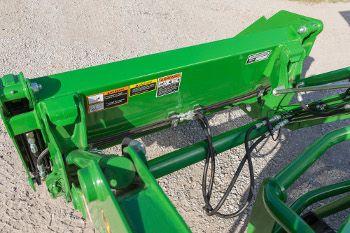

Attaching the AY11F Series Four-in-One Bucket to a John Deere loader is easy with its quick-change attaching systems. Just line up the loader's connecting points to the attachment frame and lock in place.

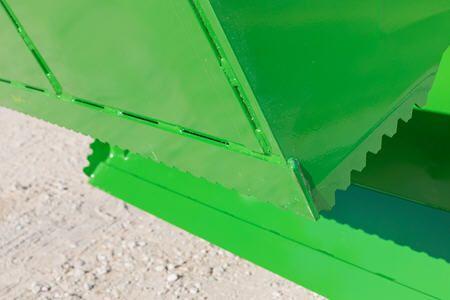

The AY11F Series serrated edge firmly grasps material for secure movement.

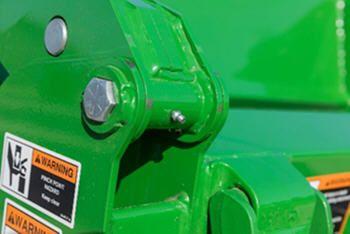

The hinges on the AY11F Series are made of heavy-duty steel to resist bending and provide longer wear capability.
| Cutting width | 134.62 cm 53 in. |
|---|---|
| Clam opening | 81.2 cm 32 in. |
| Current series style | 100, 200 and 300 (300 on 3E Tractor Only) |
| Hydraulic cylinders - Type | Two double-acting |
| Clamp force - Closed | 5,782.7 N 1,300 lb-ft |
| Width | 134.6 cm 53 in. |
|---|---|
| Height | 52.4 cm 20.63 in. |
| Depth | 64.6 cm 21.5 in. |
| Cutting width | 134.62 cm 53 in. |
| Clam opening | 81.2 cm 32 in. |
| Current series style | 100, 200 and 300 (300 on 3E Tractor Only) |
|---|
| Operational | 128 kg 282 lb |
|---|---|
| Shipping | 137 kg 302 lb |
| Type | Two double-acting |
|---|
| Open | 4,448.2 N 1,000 lb-ft |
|---|---|
| Closed | 5,782.7 N 1,300 lb-ft |
| Capacity | - |
|---|
| Labor hours | 0.25 |
|---|
| Time period | 1 year |
|---|
| Date collected | - |
|---|
