New equipment

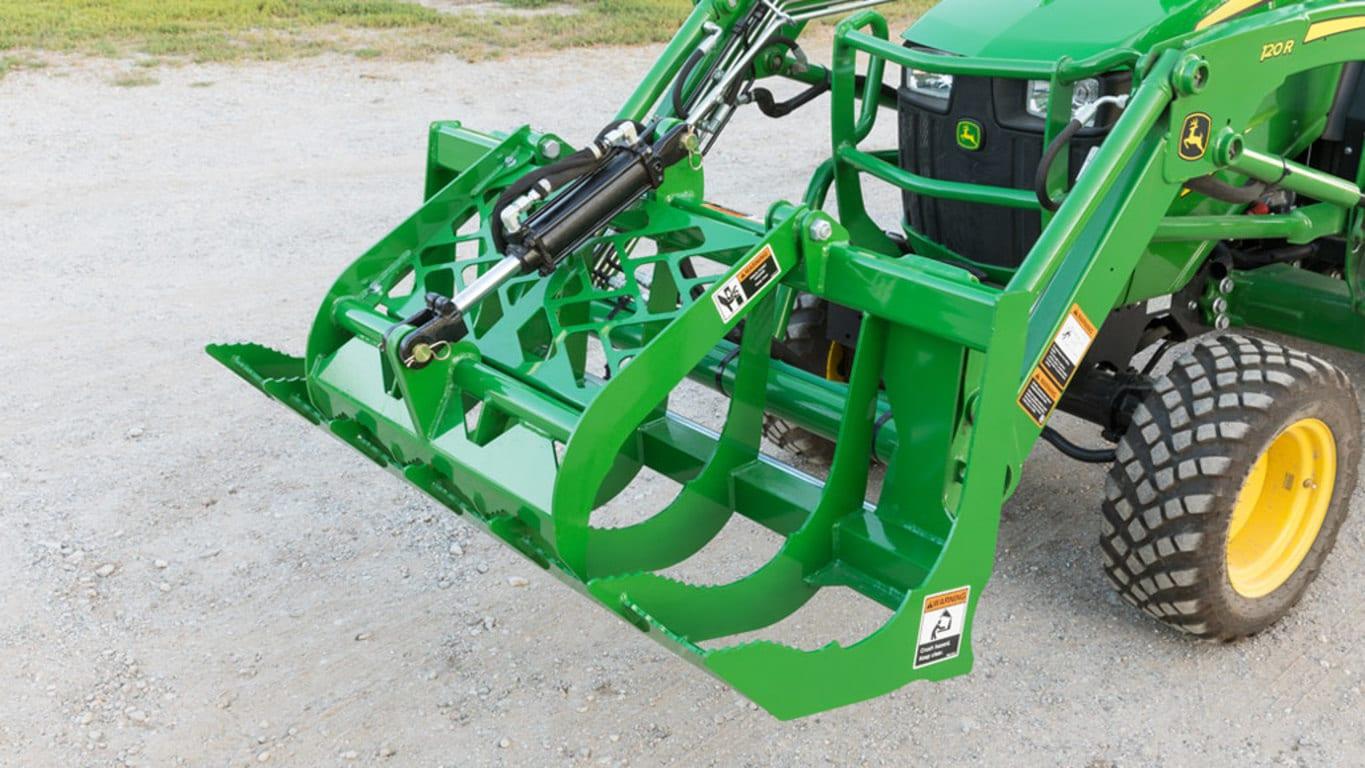

Frontier™ Loader AttachmentsRoot Grapples

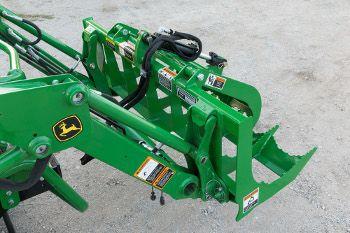

Attaching the AV20F Series Root Grapple to a John Deere loader is easy with quick-change attaching systems. Just line up the loader's connecting points to the attachment frame and lock in place.

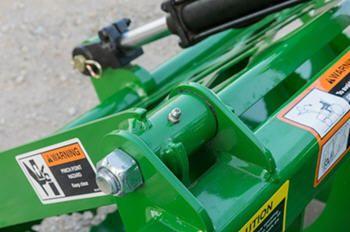

For easy maintenance and keeping the AV20F Series Root Grapple in top working order, all pivot points are greased.

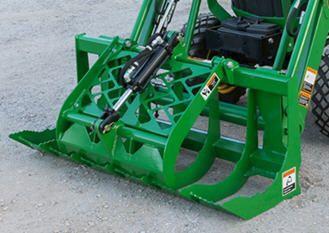

The integrated base support prevents the root grapple from rolling or tipping over when it is off of the loader attachment.
| Cutting width | 134.62 cm 53 in. |
|---|---|
| Grapple opening | 91.4 cm 36 in. |
| Current series style | 100, 200 and 300 (300 on 3E Tractor Only) |
| Width | 134.62 cm 53 in. |
|---|---|
| Height | 63.5 cm 25 in. |
| Depth | 58.9 cm 23.2 in. |
| Cutting width | 134.62 cm 53 in. |
| Grapple opening | 91.4 cm 36 in. |
| Current series style | 100, 200 and 300 (300 on 3E Tractor Only) |
|---|
| Operational | 92 kg 203 lb |
|---|---|
| Shipping | 101.1 kg 223 lb |
| Upper tines | 4 |
|---|---|
| Grapple tine spacing | 21.6 cm 8.5 in. |
| Lower grapple tines | 7 |
| Quantity | 1 |
|---|
| Max | 4203.5 N 945 lb-ft |
|---|
| Labor hours | 0.25 |
|---|
| Time period | 1 year |
|---|
| Date collected | - |
|---|
