New equipment

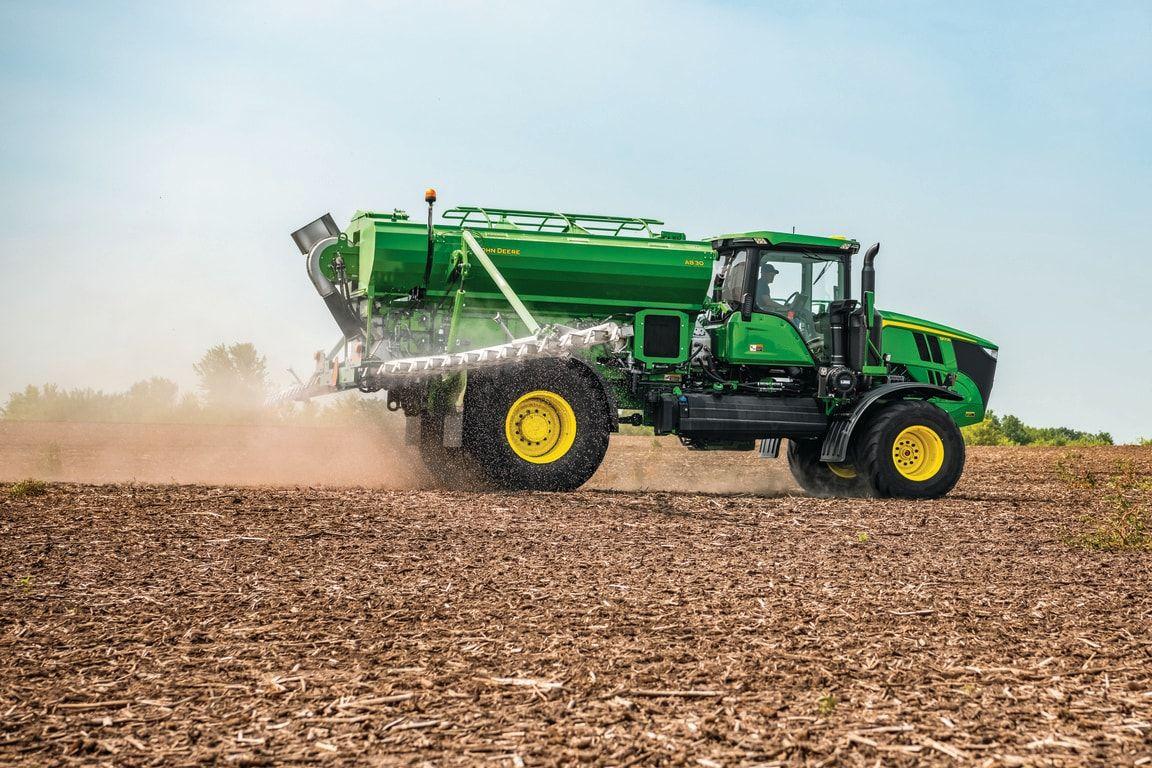

John Deere Nutrient ApplicatorsFloater
The 800R uses a dual c-channel frame design with leaf spring suspension to maximize ride quality and durability. The dual c-channel frame design is very strong, but it still allows the frame to flex. This is especially important when operating in rough field conditions at higher speeds because the frame flexes and absorbs some of the impact loads instead of transferring it to the rest of the machine including the operator.
Industry-proven AxleTech® axles are used on the front and rear and are designed to haul full loads of heavier-density products such as lime.
Parabolic leaf springs are used on the front axle in conjunction with dampers and offer an industry-best 102 mm (4 in.) of travel. Parabolic leaf springs have fewer leaves, which reduces internal friction allowing for easier compression and articulation.

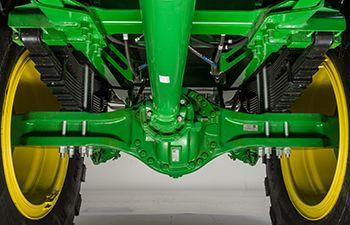

Dual-rate leaf springs are used on the rear axle to ensure consistent ride quality regardless of how much product is in the box. The first smaller set of leaf springs is used when the box is empty. When the box is loaded, the first set of leaf springs fully engages and combines with the second larger set of leaf springs. This design helps the 800R drive and ride more consistently when applying in the field or in transport on the road.
The dual c-channel design, coupled with best-in-class suspension, helps absorb the impact loads and protects the operator and machine from harmful vibration. Less vibration improves productivity by reducing operator fatigue and decreasing the potential for failures caused by them.

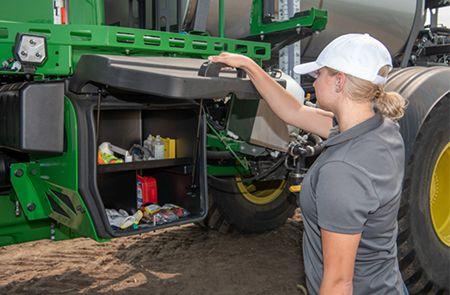

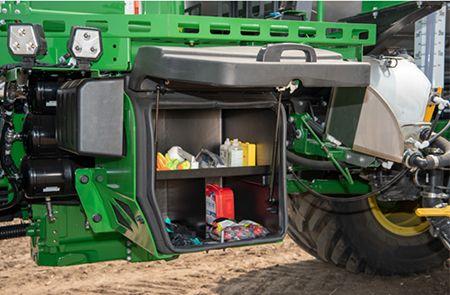

The external storage compartment is triple the size of the F4365 machines. The storage box can be used to store important items nearby, but outside the cab:

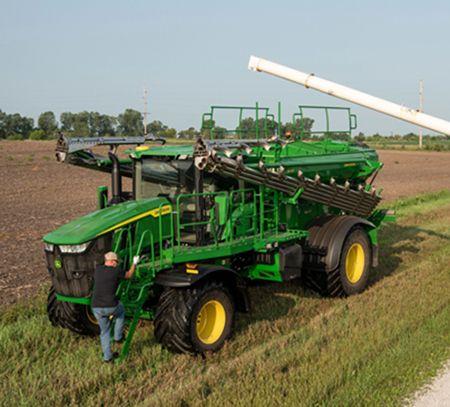

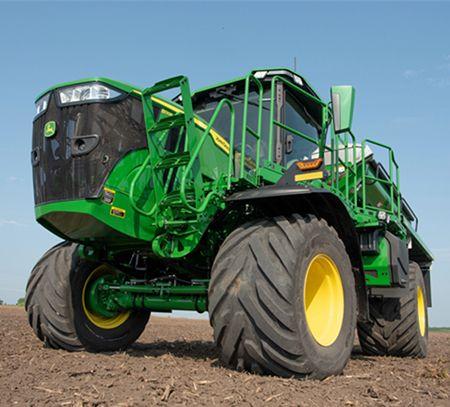

Operators can climb into the 800R via a hydraulically controlled front ladder like our 4 Series Sprayers. When the machine starts to move, the ladder automatically folds up. When the machine stops, the operator simply hits the ladder button on the CommandARM™ control center to unfold it.
This industry-exclusive feature allows the operator to safely exit the cab and walk back to the dry spinner spreader to help with tendering or do a product density check.

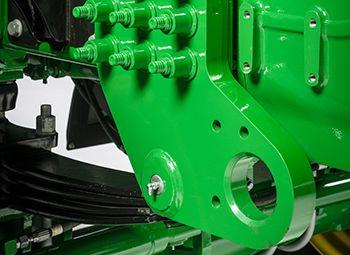

If the machine gets stuck while operating in wet conditions, retrieval points are located on the front of the frame to assist in pulling the machine out.

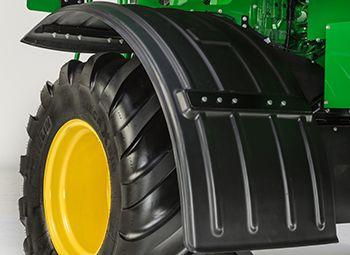

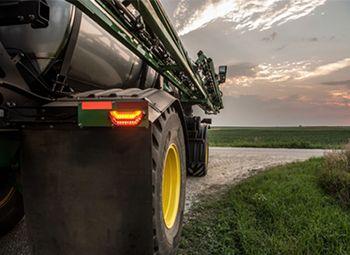

Front and rear fenders protect the 800R from mud and debris when operating in the field. Large front fenders similar to those used on large row-crop tractors protect the front of the machine, even when turning. Rear mud flaps that are attached to the dry spinner spreader platforms on the right and left side provide excellent protection from debris thrown by the rear tires.
800R Floater and bin configuration
Machine weight kg (lbs.)
Front weight kg (lbs.)
Rear weight kg (lbs.)
Weight distribution (percent)
Front
Rear
Base machine with single- bin DS35 (empty)
13,764 kg
(30,344 lbs.)
6,597 kg
(14,543 lbs.)
7,167 kg
(15,801 lbs.)
48 percent
52 percent
Base machine empty with dual-bin DS35 (MultApplier)
14,444 kg
(31,843 lbs.)
6,623 kg
(14,601 lbs.)
7,821 kg
(17,242 lbs.)
46 percent
54 percent
Base machine empty with four-bin DS35 (MultiBin)
14,556 kg
(32,090 lbs.)
6,407 kg
(14,125 lbs.)
8,149 kg
(17,965 lbs.)
44 percent
56 percent
AxleTech is a trademark of AxleTech International IP Holdings, LLC.
When staring down a string of 2,000-acre days, equipment isn’t the only thing that needs to be operating at peak performance – operators need to be at their best, too. That’s why John Deere put together a range of packages to give you just the right features to keep operators comfortable and efficient.
For corner-office comfort that can help make short work of the longest days, take a look at the Ultimate Comfort and Convenience package. The heated, ventilated ActiveSeat™ II seat isolates the operator from up to 90 percent of vertical movement and comes in leather with massage functions. The Ultimate package also provides a premium XM® ready sound system with subwoofer, a leather-wrapped steering wheel, a refrigerator, and more.
The following table gives a quick reference of what is contained in the Cab Comfort and Convenience packages.
Premium Comfort and Convenience package
Ultimate Comfort and Convenience package
Cloth seat
X
---
Leather seat with carpeted floor mat
---
X
ActiveSeat II
---
X
Heated and ventilated leather seat with massage functionality
---
X
Mechanical fore/aft and lumbar support
X
---
Electronic controls and pneumatic lumbar support
X
X
Adjustable right-hand CommandARM™ controls with integrated CommandCenter™ touchscreen display
X
X
24-degree right-hand seat swivel and 8-degree left hand seat swivel
X
---
24-degree right-hand seat swivel and 24-degree left-hand seat swivel
---
X
AM/FM aux and Bluetooth® wireless inputs plus two cab speakers
---
---
16.5-cm (6.5-in.) touchscreen radio, XM ready, and 6.1 speaker system with subwoofer including AM/FM Aux with Bluetooth wireless inputs
X
X
Automatic temperature controls with controls located on CommandARM
X
X
Footrests
X
X
Business band ready
X
X
Refrigerator
X
X
USB, USB-C and 12-V outlet
X
X
Right-hand accessory rail
X
X
120-V outlet
X
X
Leather-wrapped steering wheel
---
X
Some of the features in the chart above are also available as attachments. There are also many options for mounting a variety of monitors, tablets, and phones.
NOTE: Bluetooth where certification allows.

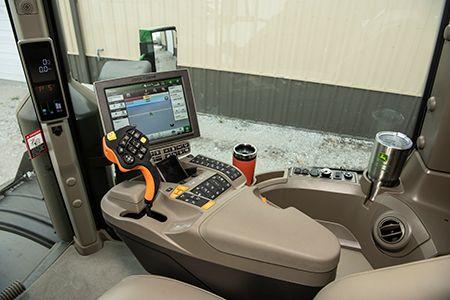

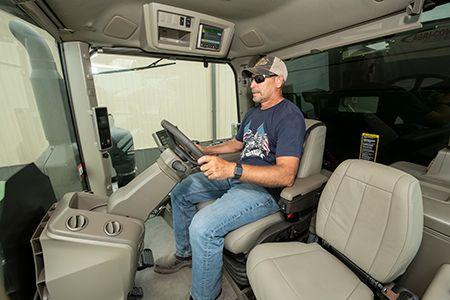

The Ultimate Comfort and Convenience package offers an ActiveSeat II seat with 24 degrees of left-hand seat swivel, as well as an additional 9 degrees of right-hand seat swivel for easier operation. It also includes a leather-wrapped steering wheel, carpeted floor mat, and is a prerequisite for the Signature Edition, unique from the Premium package. The heating, ventilation, and air conditioning (HVAC) system location has also moved to provide a more enjoyable, quiet ride.
Features:
NOTE: The John Deere ActiveSeat II is only available in the Ultimate Comfort and Convenience package.
The John Deere Active Seat II utilizes an electrical control system to control the vertical seat top movement. The “active” control system minimizes vertical seat top acceleration by sensing vertical sprayer inputs and actively positioning the seat top to cancel those inputs. This results in a significantly smoother ride for the operator.
The system utilizes an electric motor on the center pivot working in parallel with an air spring. The purpose of the air spring is to support the operator while the electric motor dynamically positions the seat.
Two sensors are integrated into the seat suspension and are used for inputs into the electric motor control system. The accelerometer, which is integrated into the onboard control unit (ESU), measures seat top acceleration. The position sensor, mounted at the scissors hinge, measures vertical seat top position. The electronic controller uses these two signals in a control algorithm to determine the proper torque and motor speed commands to send to the electric motor to control vertical seat movement such that the vertical acceleration at the seat top is minimized.
The John Deere ActiveSeat II also has a ride firmness switch. The ride firmness switch is located on the left-hand armrest and replaces the suspension shock-dampening seat attenuation lever on the front right-hand side of the seat controls.
The ride firmness switch has three positions: plus, minus, and mid position. The three positions provide three different levels of seat performance:
The ActiveSeat II is heated and ventilated leather seat for increased comfort and easier cleaning. This is only available with the Ultimate Comfort and Convenience package. ActiveSeat II allows for increased overall comfort and productivity.
The leather seat includes massaging capability to alleviate operator fatigue. Right-hand seat swivel is 24 degrees to the left and 24 degrees to the right.
When the long days turn into long nights, visibility becomes imperative to operator safety and overall productivity. The Ultimate Visibility package provides a full 360-degrees of powerful LED cab lighting, a clear view all around the machine, and eight additional LED service lights to illuminate critical service areas. This package also includes factory-installed left- hand and right-hand side view cameras for additional visibility.
For model year 2025, operators can toggle to the two newly added LED lights located on the rear cab’s corner post, enhancing visibility into the box during nighttime operations when using either a Dry Spinner Spreader or Air Boom system. This extends the workday and boosts confidence by providing better awareness of the remaining volume in the box. This feature comes factory installed on all 800R machines, so no special order code is needed.
The following table is a quick reference of features included in each Visibility package.
Feature
Premium Visibility package
Ultimate Visibility package
Cab
Halogen work lights (cab roof)
---
---
LED work lights (cab roof)
Six
Six
LED work lights (rear cab's corner post)
Two
Two
LED beacons (cab roof)
Two
Two
LED convenience lights
Eight
Eight
LED work lights (rear cab’s corner post)
Two
Two
Front sunshades
X
X
Right-side sunshades
X
X
Rear sunshades
X
X
Front wiper
X
X
Right-side wiper
X
X
Vehicle
Halogen work lights (vehicle)
---
---
Halogen hood work lights
---
---
Halogen high beam (hood)
---
---
Halogen low beam (hood)
Two
Two
LED high beam (hood)
Two
Two
LED work lights (vehicle)
Six
Six (two are higher, 4400-lumen output lights)
LED hood work lights
Four
Four
LED beacons
One rear
One rear
Boom LED lights
Two
Two
Boom halogen lights
---
---
Manually adjustable left- hand and right-hand boom mounted with bubble mirror
X
X
Manually adjustable right-hand cab
---
---
Electrically adjustable and heated right-hand cab
X
X
Manual underframe mirror
---
---
Electrically adjustable and heated underframe mirror
X
X
Additional camera ready
X
---
Factory-installed left- hand and right-hand side view cameras
---
X
Integrated backup camera
X
X
Bluetooth is a trademark of Bluetooth SIG, Inc. XM is a trademark of Sirius XM Radio, Inc.
To make the most powerful John Deere options available in one cost-effective package, 800R models can be ordered with the John Deere Signature Edition.

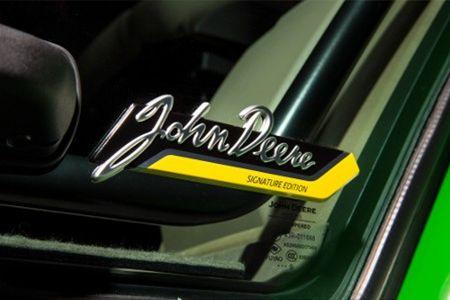

Marked with an exclusive badge only available on the Signature Edition, this package includes:
Get all the top-of-the-line comfort features and technology options in one special edition: the John Deere Signature Edition.
Part solutions are available through John Deere to resolve unique mounting configuration needs.

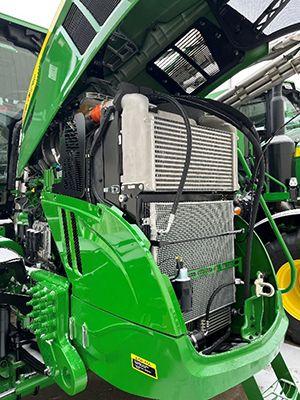

The 800R uses an industry-proven 9L (549-cu in.) PowerTech engine combined with an IVT to provide maximum power and efficiency. The 9L (549-cu in.) engine provides 272-kW (365-hp) rated horsepower and up to 298-kW (400-hp) peak horsepower when needed.
Software tuning and performance change
Auto Mode keeps the engine operating in its peak power band for highest productivity, resulting in better fuel usage over Manual Mode. This will be noticeable in fully loaded conditions and hilly terrain where this feature is unlocked.
The IVT is common to the 8R Tractors but has been modified for higher field and transport speeds.

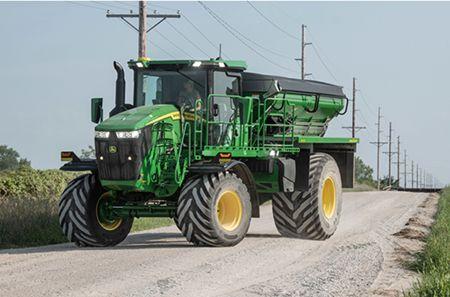

The 800R can apply product up to 48 km/h (30 mph) in field and travel on the highway empty at speeds up to 74 km/h (46 mph). The engine and transmission are common to other product lines in John Deere which means service locations, service intervals, and parts are all common.

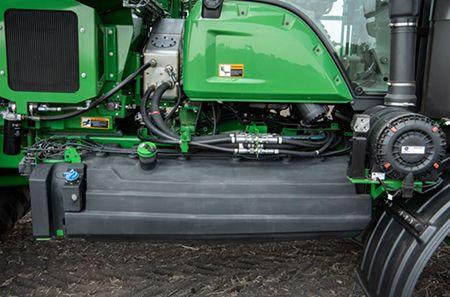

To ensure the 800R can run all day long, it comes equipped with a 852-L (225-gal.) fuel tank and 29.5-L (7.8-gal.) diesel exhaust fluid (DEF) tank located on the right side of the machine. The slender tank designs are attached to the dual c-channel frame, reducing the torque load the tanks can have on the frame when full. Both tanks can be easily filled from ground level. With this 265-L (70-gal) fuel tank size increase, operators will see an average gain of 40%.
On model year 2022 and newer machines, the common hydraulic implement pump for the 800R chassis decreases implement changeover time by more than 50 percent and decreases hydraulic line complexity with the bulkhead. The secondary implement pump that was previously required for liquid systems, air booms, and all MultiBin and MultApplier dry spinner spreader options is not common and comes factory installed. This change to the factory machine means the following benefits:
NOTE: The single bin configurations only requires one pump and are not capable of becoming combo machines. See the compatibility chart for more details.
The StarFire 7500 Receiver is the latest addition to the suite of Precision Ag Technology from John Deere. The StarFire 7500 Receiver offers greater accuracy, faster pull-in times, and season-to-season repeatability. This means less hardware, faster times recovering from a shading event, and the confidence that your guidance lines and boundaries do not shift from year to year. The integrated design further enhances the value that you have come to expect from StarFire products.
Code
Attachment
Description
189T
StarFire™ 7500 Integrated Receiver with SF1
189U
StarFire™ 7500 Integrated Receiver with 1 year SF-RTK License
189W
StarFire™ 7500 Integrated Receiver with RTK (base station) Permanent License
To learn more about the StarFire 7500, visit the StarFire 7500 page.

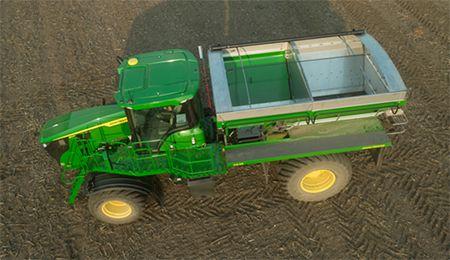

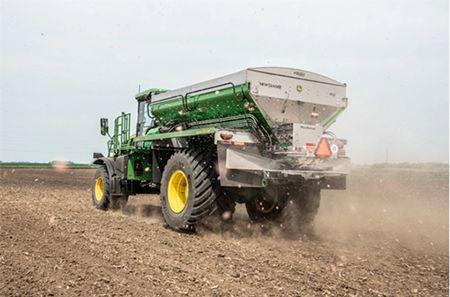

The 800R uses an industry-proven New Leader Dry Spinner Spreader. This 4.27-m (14-ft) long dry box can hold 9.34 m3 (330 cu ft) of product and is available in multiple configurations to meet a variety of application needs. Depending on the product, spread widths can range from 18.3 to 27.4 m (60 to 90 ft).
The single bin option can be ordered in a 304 stainless steel or a 409 painted stainless steel. A removable end gate, inverted V, and electric oiler come in base. At 24 km/h (15 mph), the single bin can spread fertilizer at rates as high as 499 kg (1100 lb) per acre or spread lime at rates as high as 2994 kg (6600 lb) per acre.
A 2.1-m (7.0-ft) 304 stainless-steel MultApplier insert can be added to the single bin to spread two products at once. The MultApplier uses a belt over stainless-steel conveyor chain, so no oil is necessary. Simply remove the end gate of the single bin to install the MultApplier insert.
A 304 stainless-steel MultiBin insert can be added to the single bin to spread up to four products at once. In addition to the second large bin, two micronutrient bins are on the back of the MultiBin. Similar to the MultApplier insert, the MultiBin conveyor chain is belt over stainless-steel conveyor chain and does not require oil.
The divider separating the two micronutrient bins on the rear can also be removed to make one large micronutrient bin. Standard rate metering rollers come in base with the MultiBin insert. A pneumatically controlled lid covers the micronutrient bin(s) opening and is operated in the Generation 4 CommandCenter™ display.
New Leader is a trademark of Highway Equipment Company.

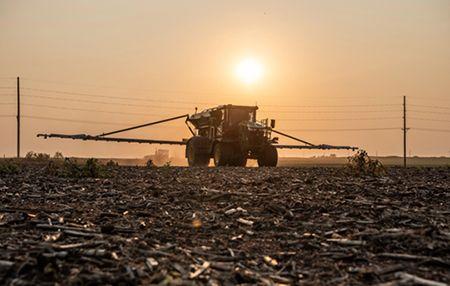

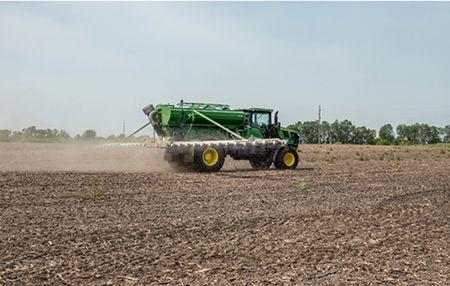

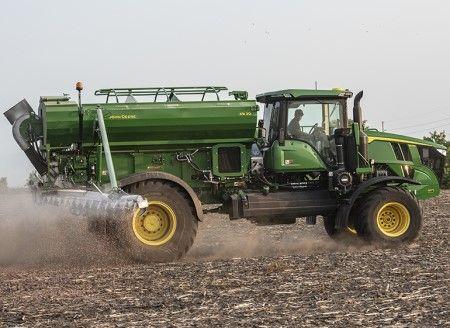

For ag service providers and large-scale producers, the AB30 Air Boom is available as an option for the 800R Floater. The AB30 Air Boom builds on the advantages of the 800R chassis with the addition of an 8.5-m3 (300-cu ft) dry box with dual-product capability and a 21.3-m (70-ft) wide boom.
Durability and uptime are extremely important to an ag retailer’s business. With the number of acres these machines need to cover each year and the varying weather conditions that can impact the schedule, increasing uptime is crucial to the profitability and success of the ag retailer. The AB30 Air Boom is designed to maximize uptime through improved performance, reliability, and operator comfort.
The air boom option allows operators to accurately apply dry fertilizer across a wide 21.3-m (70-ft) swath at speeds up to 48.3 km/h (30 mph), and at maximum rates up to 544.3 kg (1,200 lb) per acre at 16.1 km/h (10 mph). With its 8.5-m3 (300-cu ft) capacity dry box and dual-bin configuration, operators can simultaneously apply up to two products at variable rates to better meet crop nutrient needs with fewer passes over the field. Application accuracy is further improved with half-width section control.

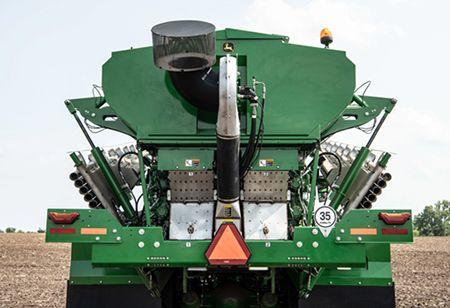

The air distribution system features an efficient design that consistently delivers even air flow from the fan to the booms. The closed-loop speed control allows the fan to run independent of the motor speed, increasing efficiency. This design requires less power for the air system and diverts more engine power to the ground during acceleration and operation.
The electrical and hydraulic systems have been designed from the ground up with full integration into the G5Plus CommandCenter™ Display for easier control and maintenance. The boom structure and supports have also been strengthened to extend the life of the booms regardless of the terrain.
The front ladder provides easy access to the machine even when the booms are folded. During tendering, operators can quickly access the top of the dry box from the cab platform. Handrails can then be folded up on both sides of the dry box, allowing the operator to work more efficiently.
The 800R with the AB30 Air Boom improves the revenue potential for ag service providers by increasing machine productivity through greater durability and superior field performance.
To improve the reliability of the air distribution system, the fan oil cooler is mounted on the right side of the machine, exposing it to less dust and vibration while making it easier to maintain. A large screen was also added over the fan air intake to block residue and debris from entering the air system.

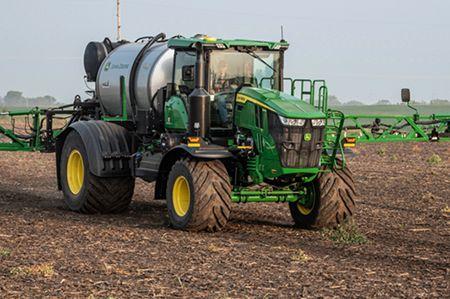

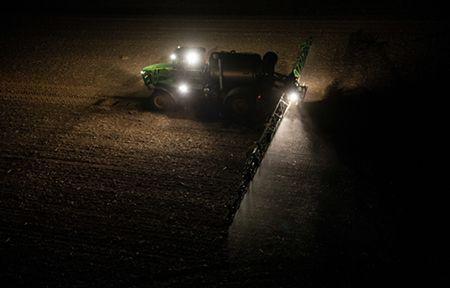

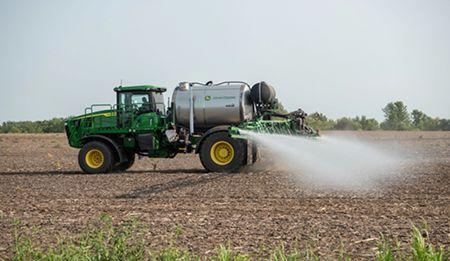

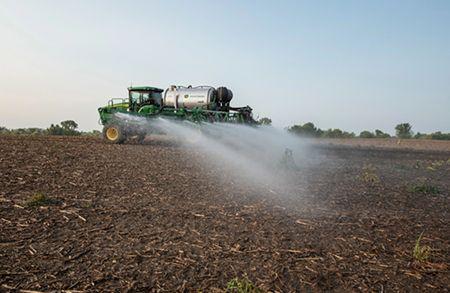

Seasonal flexibility is crucial for maximum machine utilization. LS20 Liquid System option maximizes the seasonal capabilities of the 800R. Together with Hagie™ Manufacturing, this liquid system is designed as a complete package with industry-leading advantages. Learn more on the LS20 product page.
During the busy spring season, you need to complete jobs as crops are planted, from applying high-rate fertilizer on unplanted corn fields to low-rate pre-emergent herbicide on soybeans. Dual centrifugal solution pumps with dedicated magnetic flow meters work together to achieve pin-point rate accuracy through the entire flow range between 18.9 and 1457.4 L/min (5 and 385 gpm).
When the tank is empty, every second counts trying to get back into the field. PowrSpray features independent fill and spray circuits with dedicated pumps to maximize flow. The dedicated self-priming transfer pump can fill the solution tank at over 1135.6 L/min (300 gpm).
This PowrSpray system can:
The time-proven 27.4-m (90-ft) sprayer steel boom unlocks reliable productivity for ag service providers. This durable boom features:
The standard dual plumbing system features 76.2-cm (30-in.) off-center high-flow nozzle bodies (turrets) and a 152.4-cm (60-in.) on-center cam-lock. When configured for 152.4-cm (60-in.) cam-lock spacing, the effective spray pattern is 29 m (95 ft). The 76.2-cm (30-in.) nozzle body configuration achieves a 27.4-m (90-ft) spray pattern.
With higher-speed planting, the season is becoming more condensed every year. When you need to get acres covered, getting tender trucks back to the plant increases productivity. To hold more product onboard, the LS20 solution system features a stainless-steel 7570.8-L (2000-gal.) solution tank and black poly 757.1-L (200-gal.) rinse tank.
The large solution tank allows operators to cover more acres between refills. This tank gets tender trucks empty faster and back on the road, translating into less idle time for the tender truck and you and quicker load turnarounds.
Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, Deere will also support Hagie equipment.

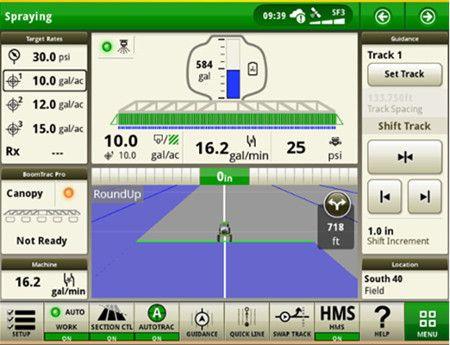

Plus CommandCenter™ Display">SprayStar spray rate control on G5/G5Plus CommandCenter™ Display
The SprayStar spray rate control system is a standard feature that is integrated into the design of the self-propelled sprayer system (not a third-party International Organization for Standardization (ISO) control add-on) and delivers accurate and consistent on-target rate control. All spraying and vehicle functions are displayed on the G5/G5Plus CommandCenter Display for easy operation and setup. In addition to these functions, all precision technology can be used on the same display for complete integration and ease of operation. The engine, chassis, solution system, and precision controllers provide central communication through the display for many vehicle and solution system functions that are simple and easy to use.
The engine, transmission, and hydraulic drive pump work together to optimize efficiency of the entire system. This cohesiveness provides fuel savings and optimizes power to the ground and delivery of product through the solution system to the nozzles.
When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.
John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink™ telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.
With your permission, John Deere Connected Support:
With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.
Plus Displays">G5/G5Plus Displays
The 400R/600R/800R utilize the G5/G5Plus CommandCenter™ Display that is also found in other John Deere large ag equipment today. The CommandARM™ controls, G5/G5Plus CommandCenter display, and the New Leader ISO VT (International Standards Organization Virtual Terminal) have been updated and tailored to the needs of operators. This combination allows operators to see all key functions on one run screen including AutoTrac™ assisted steering system, variable rate documentation, field totals, and dry spinner spreader settings. Click anywhere on the display to expand and easily adjust information.
**Needs updated with G5 Display material from ISG.
This improved user experience allows the operator to set up, monitor and control the dry spreader much easier and quicker than previous model years. The operator’s experience has been enhanced in the following ways:
Once selected, the window opens to allow operators to make changes in full screen view
Work setup on the DS20 and DS30 G4, G4 Edge, and G5
To prepare for field application, simply press the setup button in the bottom left corner of the display run page, and it will direct the user to the work setup window. Work setup is identical for all bin configurations.
Dry Rate Controller on the DS20, DS30 Edge and G5
Once the work setup window is complete, the updated rate control application can then be used to input and setup the following:
Target spread rate
Target spread rate – Selecting the target rate box allows the operator to quickly adjust three different target rates or load a prescription if needed. The target rates can be adjusted when spreading by changing the rates within the New Leader ISO VT Run Page.
Bin details
Product density/product applied – Selecting either of these areas will take the user to a bin details page where more frequent dry spinner spreader inputs and adjustments are made. For dry spinner spreaders with multiple bins, individual tabs at the top of the screen make it easy to quickly toggle between bins.
Features on the main ISO VT run page include:
New Leader Box Options - DS20/DS30 Dry Spinner Spreaders
G4
G4 Edge
G5
John Deere SpreadStar dry rate control system
X
New Leader ISO-VT dry rate control system
X
X
Left-hand and right-hand spinner speed control boundary spreading
X
Precision independent spinner control monitoring
X
X
Spreadwidth up to 105 ft
X
X
X
Maximum Output Rate of 40 CFM (Cubic Feet per Minute)
X
X
X
16-section swath width control
X
1/2 width spreading
X
Last pass control
X
Automatic feedgate and fan frame control
X
Centralized grease banks
X
X
X
Tarp ready
X
X
X
Automatic chain oiling routine and alarms
X
X
X
304 stainless-steel
X
X
X
409 stainless-steel
X
MultApplier compatible
X
X
X
Backup camera ready
X
X
X
New Leader Options - DS20/DS30 Dry Spinner Spreaders for the 400R and 600R
G4
G4 Edge
G5
John Deere SpreadStar dry rate control system
X
New Leader ISO-VT dry rate control system
X
X
Left-hand and right-hand spinner speed control boundary spreading
X
X
Precision independent spinner control monitoring
X
X
Spreadwidth up to 105 ft
X
X
X
Maximum Output Rate of 40 CFM (Cubic Feet per Minute)
X
X
X
16-section swath width control
X
1/2 width spreading
X
Last pass control
X
Automatic feedgate and fan frame control
X
Centralized grease banks
X
X
X
Tarp ready
X
X
X
Automatic chain oiling routine and alarms
X
X
X
304 stainless-steel
X
X
X
409 stainless-steel
X
MultApplier compatible
X
X
X
Backup camera ready
X
X
X
400R Dry Spinner Spreader
New Leader DS20 G4 -
4800
DS20 G4 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in) Feedgate
4818
DS20 G4 409 Painted Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in) Feedgate
4820
DS20 G4 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13cm (5 in) Feedgate
400R Dry Spinner Spreader
New Leader DS20 G4 Edge -
4844
DS20 G4 Edge 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in.) Feedgate
4846
DS20 G4 Edge 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13 cm (5 in.) Feedgate
400R Dry Spinner Spreader
New Leader DS20 G5 -
4856
DS20 G5 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in.) Feedgate
4858
DS20 G5 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13 cm (5 in) Feedgate
600R Dry Spinner Spreader
New Leader DS20 G4 -
4800
DS20 G4 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in) Feedgate
4806
DS20 G4 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 28 cm (11 in) Feedgate
4808
DS20 G4 409 Painted Steel, Single Bin, #4 Belt Over Chain, 28 cm (11 in) Feedgate
4818
DS20 G4 409 Painted Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in) Feedgate
4820
DS20 G4 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13cm (5 in) Feedgate
600R Dry Spinner Spreader
New Leader DS20 G4 Edge -
4842
DS20 G4 Edge 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 28 cm (11 in.) Feedgate
4844
DS20 G4 Edge 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in.) Feedgate
4846
DS20 G4 Edge 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13 cm (5 in.) Feedgate
600R Dry Spinner Spreader
New Leader DS20 G5 -
4856
DS20 G5 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in.) Feedgate
4858
DS20 G5 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13 cm (5 in) Feedgate
600R Dry Spinner Spreader
New Leader DS30 G4 -
4814
DS30 G4 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in) Feedgate
4816
DS30 G4 409 Painted Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in) Feedgate
4834
DS30 G4 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13 cm (5 in) Feedgate
600R Dry Spinner Spreader
New Leader DS30 G4 Edge -
4848
DS30 G4 Edge 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in.) Feedgate
4852
DS30 G4 Edge 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13 cm (5 in) Feedgate
600R Dry Spinner Spreader
New Leader DS30 G5 -
4862
DS30 G5 304 Stainless Steel, Single Bin, #4 Belt Over Chain,13 cm (5 in) Feedgate
4864
DS30 G5 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13 cm (5 in) Feedgate
Work setup on the DS30 NL7
To prepare for field application, simply press the setup button in the bottom left corner of the display run page, and it will direct the user to the work setup window. Work setup is identical for all bin configurations.
Dry Rate Controller on the DS30 NL7
Once the work setup window is complete, the updated rate control application can then be used to input and setup the following:
Target spread rate
Target spread rate – Selecting the product bin box allows the operator to quickly adjust target rates or load a prescription if needed. The target rates can be adjusted when spreading by changing the rates within the New Leader ISO VT Run Page.
Bin details
Product density/product applied – Selecting the product bin will take the user to a bin details page where more frequent dry spinner spreader inputs and adjustments are made. For the dual bin spinner spreaders, individual product bin pages on the main run screen make it easy to quickly toggle between bin settings.
Features on the main ISO VT run page include:
Colored-coded real-time feedback regarding
Compare the Dry Spinner Spreader options from New Leader in the chart below:
G4
G4 Edge
G5
NL7
Spread Width
90'
90'
90'
120'
Output (Cubic Feet per Minute)
40
40
40
50
Low Trajectory Spread Pattern
✔
✔
✔
✔
2 Product Independent Spreading
✔
✔
✔
✔
In-Cab Spread Control Integration
✔
✔
✔
✔
Boundary Spread
---
✔
✔
✔
Automatic Pattern Adjustment
---
---
✔
✔
Section Control
---
---
✔
✔
Last Pass Function
---
---
✔
✔
Remote RH/LH Spread
---
---
✔
✔
---
---
---
---
---
Easy Pattern Width Adjustment
---
---
---
✔
3 Pan Spread Pattern Testing
---
---
---
✔
Positive Drive Straight Belt
---
---
---
✔
Spread Pattern Wizard
---
---
---
✔
Independent RH/LH Control
---
---
---
✔
RH/LH Variable Rate Control
---
---
---
✔
Turn Compensation Spreading
---
---
---
✔
No Conveyor Calibration
---
---
---
✔
No Feedgate Adjustment Required
---
---
---
✔
304 Steel Construction
Option
Option
Option
Standard
Zero Grease Points
---
---
---
✔
Low Carryback Conveyor Design
---
---
---
✔
304 Steel Inspection Platform
---
---
---
✔
Easy Change Fin Replacement
---
---
---
✔
Stainless Steel Internal Screens
---
---
---
✔
New Leader is a trademark of Highway Equipment Company.
| Peak rated power | 272 kW 365 hp |
|---|---|
| Transport speed range | 0 to 74 km/h 0 to 46 mph |
| Transmission type | - |
| Chassis | Dual c-channel frame |
| Dry Spinner spreader - Type | DN495 Dry Spinner Spreader |
| Dry Spinner spreader - Capacity | 9.34 m3 330 cu ft |
| Dry Spinner spreader - Spread width range | 18.29 to 27.43 m 60 to 90 ft |
| Air Boom - Type | AB485 Air Boom |
| Air Boom - Capacity | 8.49 m3 300 cu ft |
| Air Boom - Spread width range | 21.3 m 70 ft |
| Make | - |
|---|---|
| Peak rated power | 272 kW 365 hp |
| Power bulge | 298 kW 400 hp |
| Emissions | Final Tier 4 (FT4) |
| Number of cylinders | Six |
| Displacement | 9.0 L 584 cu in. |
| Fuel tank capacity | 586 L 155 gal. |
| Diesel exhaust fluid (DEF) tank capacity | 29.5 L 7.8 gal. |
| Drive | Full-time two-wheel drive (2WD) |
| Spreading in field speed range (dry box) | 0 to 48 km/h 0 to 30 mph |
| Transport speed range | 0 to 74 km/h 0 to 46 mph |
| Transmission type | - |
| Chassis | Dual c-channel frame |
|---|---|
| Suspension | Four-wheel leaf spring and front axle dampers |
| Axle type | - |
| Steering | Front wheel |
| Air compressor | On-board air compressor |
| Primary brakes | IVT and four-wheel pneumatic brakes |
| Parking brakes | IVT and two-wheel (rear) pneumatic parking brake |
| Turning radius | 10.5 m 39 ft |
| Front tires | 750/50R26 tires - Alliance, Michelin®, or Trelleborg® (option) |
| Rear tires | 1050/50R32 tires - Alliance or Michelin (option) |
| Ladder raise/lower | Automatic |
| Empty weight with single bin | 14,061 kg 31,000 lb |
| Cab type | - |
|---|---|
| Receivers | - |
| Software activations | - |
| Machine connectivity | - |
| Display | 4600 CommandCenter |
| Radio | - |
| Lighting | Deluxe halogen lighting package Light-emitting diode (LED) lighting package (option) |
| Type | DN495 Dry Spinner Spreader |
|---|---|
| Box material | 409 painted stainless steel 304 stainless steel (option) |
| Box length | 4.27 m 14 ft |
| Capacity | 9.34 m3 330 cu ft |
| Spread width range | 18.29 to 27.43 m 60 to 90 ft |
| Spreading control | - |
| Automatic section control | John Deere Section Control (G5 box) |
| Box options | Single bin Two-bin MultApplier insert (option) Four-bin MultiBin insert (option) |
| Conveyor | Single bin - belt-over chain MultApplier and MultiBin - belt-over stainless-steel chain |
| Oiler | Electric |
| Type | AB485 Air Boom |
|---|---|
| Box material | 304 painted stainless steel 409 painted stainless steel |
| Box length | 3.66 m 12 ft |
| Capacity | 8.49 m3 300 cu ft |
| Spread width | 21.3 m 70 ft |
| Spreading control | - |
| Automatic section control | John Deere Section Control |
| Box options | Two-bin capable of 50/50 or 60/40 split |
| Conveyor | Dual conveyors (left and right) with stainless-steel chain |
| Oiler | None |
| Gate height physical adjustable range | 2.5-5.3 cm 1-2.1 in. NOTE: The gate is set from the factory at 3.8 cm (1.5 in.). It is not recommended to adjust the gate height below 3.8 cm (1.5 in.) as operators may experience conveyor performance issues such as belt stalling or it may affect rate accuracy. |
| Controllable conveyer rpm range | Bin 1 and Bin 2 running separately: 2-70 rpm Bin 1 and Bin 2 running at the same time: 2-40 rpm |
| Conveyor application rates | 56-1345 kg/ha 50-1200 lb per acre *Assuming 16.1-km/h (10-mph) vehicle speed, 1041.2 kg/m3 (65 lb/cu ft) material, and 3.8-cm (1.5-in.) gate height. This also assumes CFR 0.2758. NOTE: 1345 kg/ha (1200 lb/acre) is the maximum rate between all bins with the assumptions listed above. 56 kg/ha (50 lb/acre) is the minimum rate from a single bin (1 or 2) with the assumptions listed above. |
| Controllable metering rpm | Bin 3 (granular bin): 3-61 rpm |
| Metering application rates | 6.7-139 kg/ha 6-124 lb per acre *Assuming a yellow metering roller, 16.1-km/h (10-mph) vehicle speed, and 1041.2 kg/m3 (65 lb/cu ft) material. This also assumes a CFR of 0.0442. |
| Volumetric flow rate | Less than 0.74 m3/min 26.1 cu ft/min NOTE: Plugging of booms may occur if the sum of the flow rate of all bins is greater than spec. NOTE: To calculate the volumetric flow rate per bin: volumetric flow rate (cu ft/min) = (rate (lb/acre) x speed (MPH) x 0.1414)/density (cu ft). Constant of 0.1414 assumes 21.3-m (70-ft) spreading width. |
| Beacon lights | Front- and rear-mounted beacon lights |
|---|---|
| Date collected | 10-Oct-2017 |
