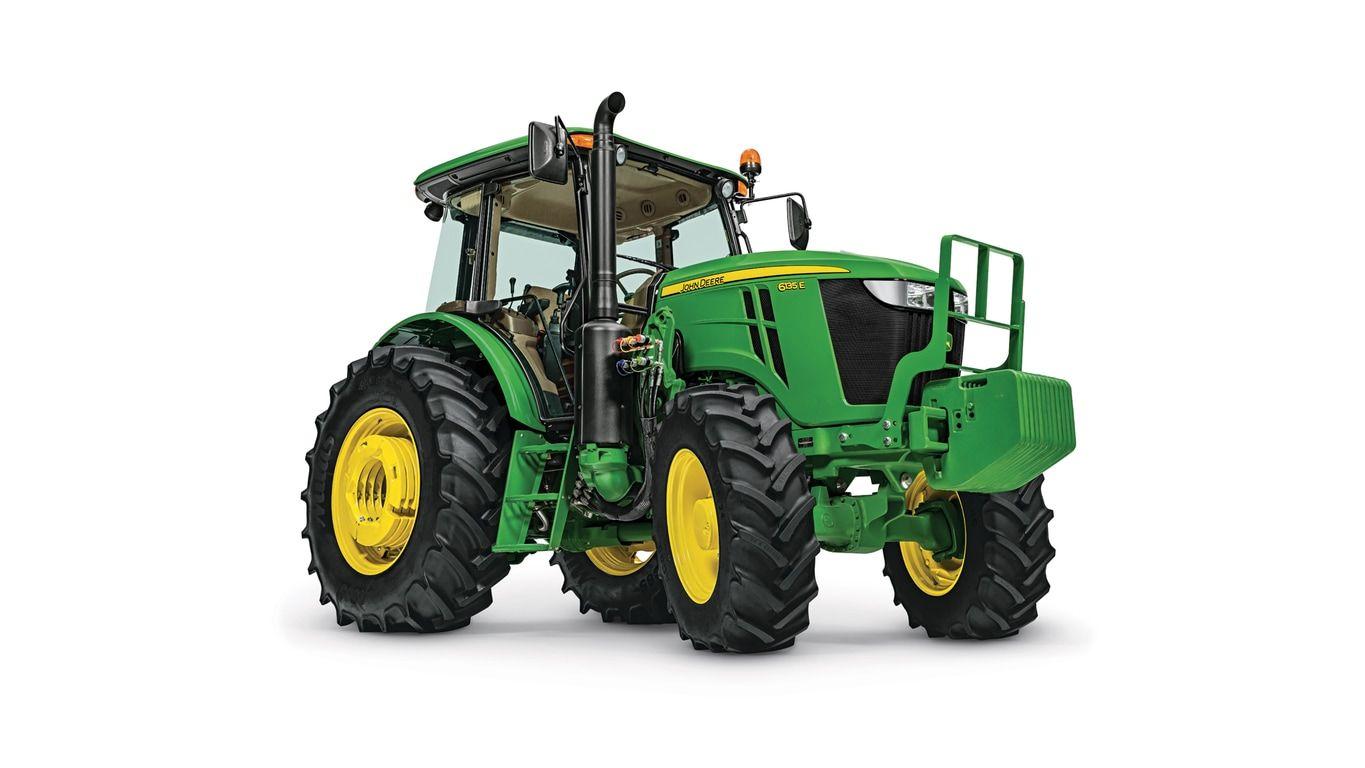

6135E

Overview

Front and rear radial tire offerings are available on all models, except for the front tires on the open-operator station (OOS) configurations.

Benefits

• Better ride quality
• Better wear characteristics
• Less compaction
• More efficient converting more power to the ground
• Heavy-duty front rims are also available that are capable of additional load and are perfect for roadside mowing or sidehill applications

Additional details

Tire combinations by model

Codes

6105E
6120E
6120EH
6135E

2WD front

6151
10.00-16 in. 8PR F2 bias
X
X
---
---

2WD rear

5212
460/85R34 in. 8PR R1W radial
X
X
---
---

5225
420/85/R38 in. 8PR R1W radial
X
X
---
X

5234
460/85R38 in. 8PR R1W radial
X
X
---
X

Mechanical front-wheel drive (MFWD) front

6210
340/85R24 in. 8PR R1W radial
X
X
---
X

6217
320/85R32 R1W
X
X
---
X

6218
340/85R24 R1W heavy-duty rim
X
X
---
X

6220
380/85R24 in. 8PR R1W radial
X
X
---
X

6222
380/85R24 R1W heavy-duty rim
X
X
---
X

6212
320/90R46 in 148A8 R2 radial
---
---
X
---

6213
320/90R50 in 147A8 R1W radial
---
---
X
---

6214
340/85R38 R2 radial
---
---
X
---

6295
230/95R48 in TL R1W radial
---
---
X
---

MFWD rear

5212
460/85R34 in. 8PR R1W radial
X
X
---
X

5225
420/85/R38 in. 8PR R1W radial
X
X
---
X

5234
460/85R38 in. 8PR R1W radial
X
X
---
X

5521
320/90R50 R1W radial
X
X
X
X

5223
320/90R46 in 148A8 R2 radial
---
---
X
---

5567
340/85R38 R2 Radial
---
---
X
---

5295
230/95R48 In. TL R1W Radial
---
---
X
---

Overview

To further the versatility and efficiency of the 6E Tractors and their hydraulic capabilities, the 6Es (excluding 6120EH) can be ordered loader ready. Being able to add a loader to a 6E Tractor makes it an even more capable solution to the various tasks a utility tractor is challenged with.

Mechanical joystick with dual-function mid-mount valve

Overview:

For the operator wanting to install a loader on a tractor, two-function and three-function hydraulic mid-mount valves with mechanical joystick are available.

Benefits:

• The operator can operate the loader using a joystick, increasing productivity and maneuverability
• Available for both cab and open operator station (OOS) configurations on all 6Es (excluding 6120EH)
• Quick installation of a loader once the tractor is received
• Improved resale value

NOTE: To field install the single-function lever controls (both two and three function) please refer to the loader Sales Manual and Price Pages.

Tractor models and horsepower

Overview

All John Deere 6E Series Tractors feature the reliable and proven 4.5L (275-cu in.) engines. These engines deliver constant power over a wide range of rpm with a power bulge above rated power and excellent torque characteristics.

The 6E Series, while being value-featured and competitively priced, are built with John Deere's long-standing reputation for reliability, durability, and maintainability.

Model

Displacement

Rated power take-off (PTO) power

2100 rpm

Rated engine power

97/68/EC standard

6105E

4.5 L (275 cu in.)

66 kW (89 hp)

77 kW (105 hp)

6120E(H)

4.5 L (275 cu in.)

76 kW (102 hp)

88 kW (120 hp)

6135E

4.5 L (275 cu in.)

86 kW (115 hp)

99 kW (135 hp)

Rated engine horsepower ratings are included for reference to competitor's gross or engine-only power ratings. There are several ratings systems used by other manufacturers. John Deere uses the horsepower-rating standard 97/68/EC, which is widely used in Europe for various regulations.

How is engine-only rated and maximum power determined?

John Deere engineering uses a precise procedure to measure engine-only power levels. The 97/68/EC standard is required in the European Union (EU) as an emission test, so there is some relation to the power a tractor has as a whole functioning unit; however, the procedure requires only that a production engine and radiator are used on a dynamometer test. Use the 97/68/EC horsepower ratings in the above chart to compare to competitor claims of engine-only power.

Benefits of PTO power and power bulge

The John Deere exclusive single-injector control, electronic fuel injection system, and other key engine parts work together to sense engine load and instantly respond as needed to pull through tough spots. This reduces engine rpm fluctuation, resulting in the reduced need to downshift the transmission. Fewer shifts result in fewer ground variations, providing more overall tractor productivity.

To match the engine power characteristics and improve economy of operation, the rated engine speed is 2200 rpm.

Feature and benefit overview

High-pressure common rail fuel system

• Higher injection pressures (up to 1896 bar [27,500 psi]), precise variable injection pressure, variable timing control, multiple injections

Four-valve cylinder head

• Crossflow head design provides excellent breathing from a lower-cost four-valve cylinder head.

Turbocharged

• In turbocharged engines, the air is pre-compressed. Due to the higher pressure, more air is supplied into the combustion chamber, allowing a corresponding increase in fuel injection which results in greater engine output.

Turbochargers

• Precisely matched to the power level and application, the 6Es are equipped with a wastegate (to divert exhaust gases) turbo.

Air-to-air intercooling

• This is most efficient method of cooling intake air to help reduce engine emissions while maintaining low speed torque, transient response time, and peak torque. It enables the engine to meet emission requirements with better fuel economy and the lowest installed costs.

Compact size

• 4.5 L (275 cu in.), 4 cylinders

Engine performance

• Power bulge feature
• Increased low-speed torque
• Multiple rated speeds to further reduce noise and improve fuel economy
• Higher peak torque ratings
• Faster torque rise

John Deere electronic engine controls

• Monitors critical engine functions providing warning and/or shutdown to prevent costly engine repairs; eliminates need for add-on governing components; all lowering total installed costs
• Snapshot diagnostic data that can be retrieved using commonly available diagnostic service tools
• Common wiring interface connector for vehicles or available OEM instrumentation packages; solid conduit and T-connectors to reduce wiring stress and improved durability and appearance
• Factory-installed engine-mounted engine control unit (ECU), wiring harness, and associated components; industry standard SAE J1939 interface which communicates with other vehicle systems, eliminating redundant sensors and reducing vehicle total installed cost

Additional features

• Self-adjusting, poly v-fan drive
• Forged-steel connecting rods
• Replaceable wet-type cylinder liners
• 500-hour oil change

Details:

Engine performance

Model
6105E
6120E(H)
6135E

Environmental Protection Agency (EPA) tier level
Final Tier 4 (FT4)
FT4
FT4

Engine model
4045H
4045H
4045H

97/68/EC at rated speed
77 kW (105 hp)
88 kW (120 hp)
99 kW (135 hp)

Rated engine speed
2200 rpm
2200 rpm
2200 rpm

PTO operating speed
2100 rpm
2100 rpm
2100 rpm

Maximum torque engine speed
1600 rpm
1600 rpm
1600 rpm

Fast idle speed
2275+10 rpm
2275+10 rpm
2275+10 rpm

Low idle speed
900+10 rpm
900+10 rpm
900+10 rpm

Torque curves

Engine specifications

Model
6105E
6120E(H)
6135E

Engine
PowerTech PWL
PowerTech PWL
PowerTech PWS

Engine model
4045H
4045H
4045H

Size

4.5 L (275 cu in.)

4.5 L (275 cu in.)
4.5 L (275 cu in.)

Number of cylinders
4
4
4

Valves per cylinder
4
4
4

Aspiration
Turbo and aftercooled
Turbo and aftercooled
Turbo and aftercooled

Engine management
Electronic
Electronic
Electronic

Fuel delivery
High-pressure common rail (HPCR)
HPCR
HPCR

Rated engine speed
2200 rpm
2200 rpm
2200 rpm

PTO operating speed
2100 rpm
2100 rpm
2100 rpm

Maximum torque operating speed
1600 rpm
1600 rpm
1600 rpm

Fast idle speed
2275 rpm
2275 rpm
2275 rpm

Low idle speed
900 rpm
900 rpm
900 rpm

Rated PTO power

66 kW (89 hp) at 2100 rpm

76 kW (102 hp) at 2100 rpm

86 kW (115 hp) at 2100 rpm

Rated engine power
77 kW (105 hp) at 2200 rpm [97/68/EC]
88 kW (120 hp) at 2200 rpm [97/68/EC]
99 kW (135 hp) at 2200 rpm [97/68/EC]

Power bulge
3 percent at 2000 rpm
3 percent at 2000 rpm
3 percent at 2000 rpm

Peak torque
432 Nm (318 lb-ft) at 1600 rpm
494 Nm (364 lb-ft) at 1600 rpm
538 Nm (397 lb-ft) at 1600 rpm

Torque rise
29 percent at 2200
29 percent at 2200
25 percent at 2200

Compression
16.8:1
16.8:1
16.8:1

Bore x stroke
11.9 x 12.7 cm (4.7 x 5 in.)
11.9 x 12.7 cm (4.7 x 5 in.)
11.9 x 12.7 cm (4.7 x 5 in.)

Overview

The 6E Series PowrReverser transmissions deliver unmatched performance. This transmission is ideal for working in tight areas where forward to reverse shifting is a primary occurrence such as in barns, feedlots, and loader applications.

Producers who operate power take-off (PTO) implements like a rotary cutter or baler will appreciate the additional working speeds with the 24F/12R PowrReverser transmission. High and low buttons are used to make fine adjustments in speed without needing to use the clutch, delivering improved productivity.

The PowrReverser transmission provides 12 forward and 12 reverse speeds. Six well-spaced ground speeds place the operator in the important haying or rotary cutter range of 8 km/h to 20.9 km/h (5 mph to 13 mph). With this transmission, the operator can reach a top speed of 31.5 km/h (19.6 mph). The optional 24F/12R PowrReverser transmission delivers 11 well-spaced ground speeds to match the correct speed for a haying or rotary cutter application with a top speed of 40 km/h (25 mph).

A dash-mounted PowrReverser modulation kit (LVB25727) is available to set the aggressiveness of the forward and reverse shuttle modulation that best fits the application or the operator's comfort level.

Operator controls

Two levers, one for speed and one for range, with the addition of an electrohydraulic left-hand reverser, provide operators optimum control and maneuverability.

1. Range lever (right-hand side [cab], left-hand side [OOS]) selects four ranges (A, B, C, D).
2. Gear selection (right-hand side) selects speeds (1, 2, or 3) in the forward or reverse
3. Electrohydraulic left-hand reverser allows for quick and convenient shuttle shifting between forward and reverse at any
4. High and low buttons are located on the gear shifter for the 24F/12R PowrReverser
5. 12F/12R creeper transmission speed control (left-hand side)

Benefits

Forward and reverse speeds

All speed gears (1, 2, 3) are fully synchronized for shifting-on-the-go capabilities, putting less wear on the operator and saving time in the field. In the 12F/12R PowrReverser transmission, gears are synchronized for low shifting effort while the operator is doing field or loader work and during transport.

The PowrReverser transmission lineup also consists of a 12F/12R transmission with creeper. The creeper transmission functionality provides an ultra-low speed to match ground speed during tasks such as harvesting high-value crops, particularly vegetables, that are hand harvested.

The high and low speeds on the 24F/12R PowrReverser transmission can be shifted without clutching while the tractor is under load. This makes for quick speed changes when operating a rotary cutter or baler.

To further enhance awareness of reverse tractor motion, a backup alarm can be field installed (BSJ10026).

The ranges (A, B) are not synchronized. This means the tractor must be stopped for the operator to select the range. However, with operator input, the speeds have been well spaced out to minimize the need to change ranges within applications. The ranges (B to C, C to D, and D to C) are synchronized. That allows the operator to shift ranges on the go in transport and high-speed applications like operating a mower-conditioner.

Wet clutch

John Deere has led the industry in the innovation of wet clutches. In this wet-clutch design, five 17-cm (6.7-in.) diameter clutch disks provide optimum clutch modulation for smooth operation; the disks are oil-cooled for a lifetime of service.

The biggest advantage of a wet clutch is its ease of use as the required force to depress the pedal is minimal. Also, with a wet clutch, the need for frequent adjustment and clutch mechanism changeover is eliminated.
